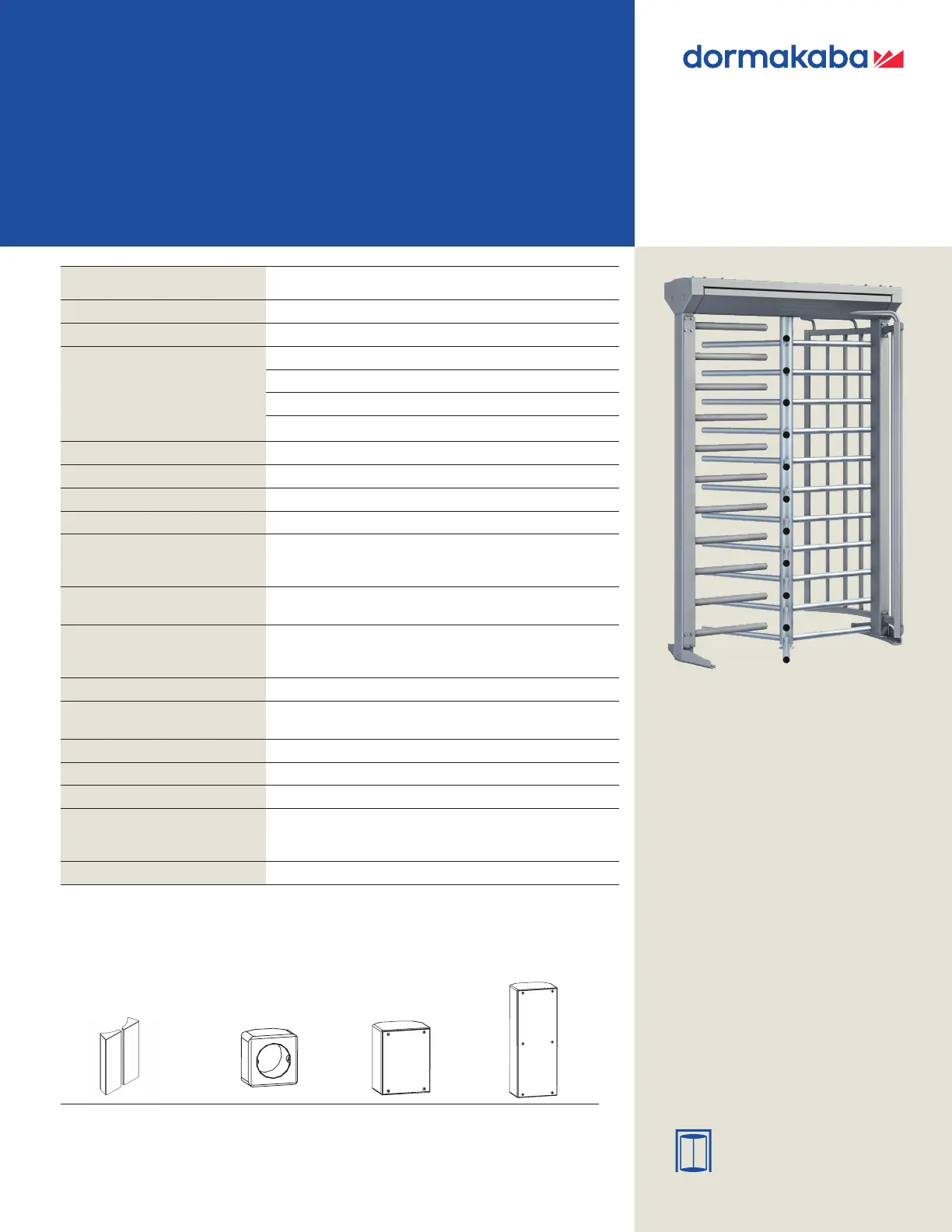

FTS-E02

Full height turnstile with choice

of straight or looped crossbars

Entrance systems

Standard units FTS-E02

Construction column diameter 51-13/16" (1300 mm)

Portal width 60-5/8" (1540 mm)

Total height 89-3/8" (2270 mm)

with optional canopy D1 94-1/16" (2390 mm)

with optional canopy D2 95-1/4" (2420 mm)

with optional canopy D3 95-1/4" (2420 mm)

Passage height 81-1/8" (2060 mm)

Passage width 25-7/16" (646 mm)

Portal and housing Steel

Lockable maintenance opening Aluminum

Rotating unit with tubular

column, Ø3-1/2" (Ø89 mm)

120° each with 11 straight or 7 looped crossbars

Ø1-9/16" (Ø40 mm), made of glossy AISI 304 stainless

steel with black plastic cover caps.

Barrier element With 11 straight or 7 looped crossbars Ø1-5/8"

(Ø42 mm), made of steel.

Finish Rotating unit made of glossy stainless steel, hot-dip

galvanized steel elements, aluminum elements in RAL

9006 (white aluminum).

Rotor 3-blade rotor

Function (see Mechanical (Manual)Function note)

Power assist

Electrical equipment Control system integrated in the unit.

Power supply 100 – 240 VAC, 50/60 Hz, 253 VA.

Standby power consumption 10 VA.

Installation Finish floor

Sub-floor

Sleeve foundation

Protection classes Housing IP33, components conducting supply voltage IP43.

Function

• Manual—Mechanical operation, free in

one direction/opposite direction blocked.

• Power assist—Power-assisted motion;

servo-positioning drive/electronically

controlled in both directions (behavior

in event of power failure can be selected

for each direction: free or blocked).

Housing with lockable front

panel made of silver

anodized aluminum,

plastic-coated according to

RAL or glossy stainless steel

Plastic in color of

unit or in RAL 9006

W: 3-11/16" (94 mm)

H: 3-11/16" (94 mm)

D: 2-9/16" (65 mm)

Aluminum in color of

unit or in RAL 9006

W: 5-1/2" (140 mm)

H: 7-1/16" (180 mm)

D: 4-5/16" (110 mm)

Aluminum in color of

unit or in RAL 9006

W: 5-1/2" (140 mm)

H: 14-3/8" (365 mm)

D: 4-5/16" (110 mm)

Optional components

Housing Console 1 Console 2

Console 3

dormakaba FTS-E02 full height turnstile

EO 8.18

FTS-E02

Installation drawings

INSIDE

passage height = 81-1/8" (2060)

89-3/8" (2270)

measure = X

5-5/16" (150)

foundation =

31-1/2" (800)

foundation =

33-7/16" (850)

foundation = 104-3/ (2660)4"

Option: Barrier element curved Option: Entry/Exit rake

enclosu metal housingre

104-3/4" (2660)

30-1/8" (765)

3-1/8"

(80)

11-13/16"

(300) 11-13/16"

(300)

11-13/16"

(300)

13-3/4"

(350)

15-3/4"

(400)

5-15/16" (150)

7-1/16" (180)

8-11/16" (220)

1- 16" 9/ (40)

4-5/16" (110)

60-5/8" (1540)

23-5/8"

(600)

23-5/8"

(600)

51-13/16" (1300)

57-1/2"

(1460)

roof depth

OUTSIDE

45-3/8" (1152)

15-3/4"

(400) 8-1/4"

(210)

25-7/16"

(646)

Option: Turnstile with curved crossbars

includes barrier element curved rake

1- 16" 9/ (40)

4-5/16" (110)

Ø51-13/16"

(Ø1300)

FFL

SFL

dormakaba USA Inc.

Dorma Drive, Drawer AC

Reamstown, PA 17567

844.SPECNOW

www.dormakaba.us

Note

Dimensions shown as inches

followed by millimeters; for

example, 1" (25).
