Subject to change without notice

7-7/8"

(200)

7-7/8"

(200)

69 -5/16"

(1760)

35-7/16"

(900)

40-3/16"

(1020)

56 - "11/16

(1440)

35-7/16"

(900

)

HSB-M01

51-3/16"

(1300)

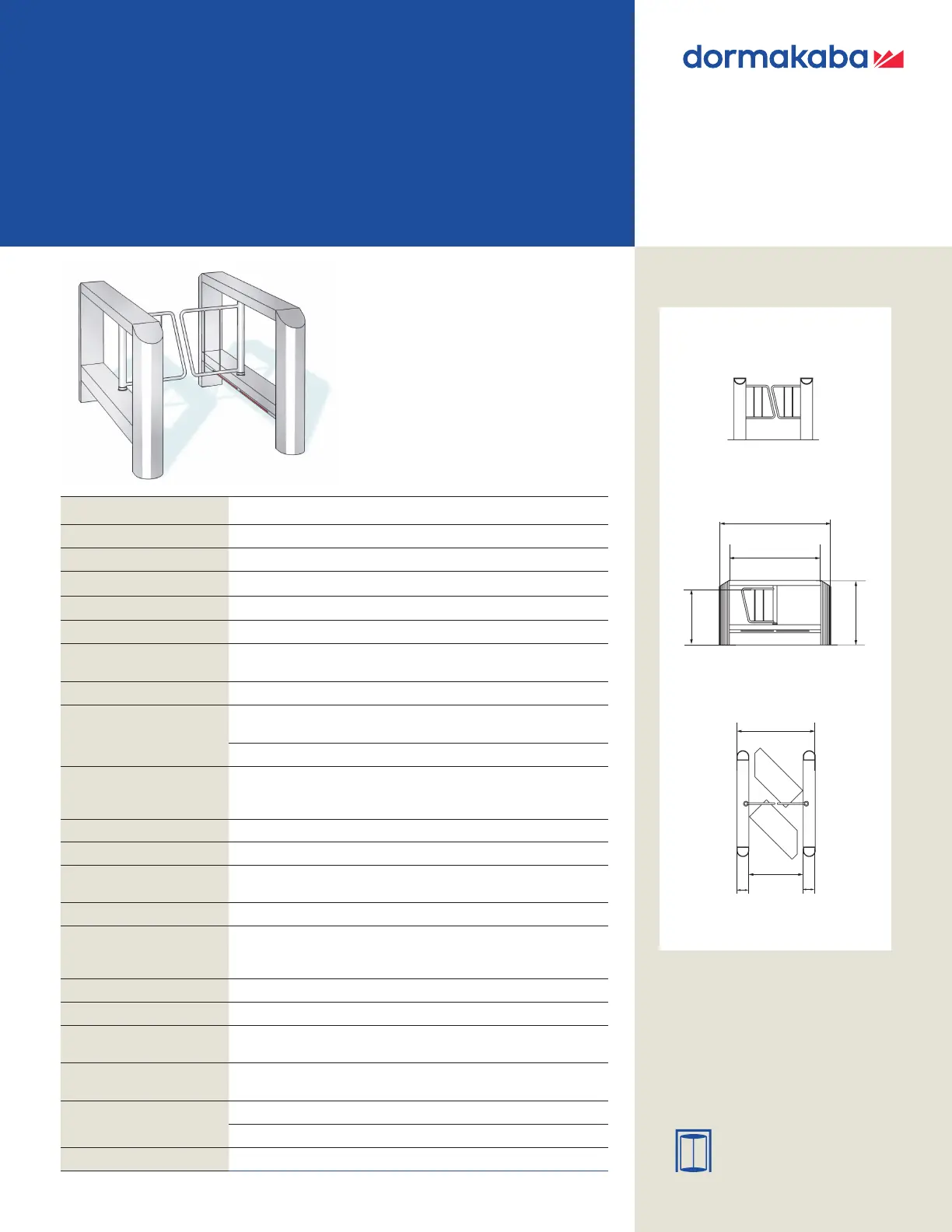

HSB-M01 sensor barriers

Moderate

Moderate units offer

tailgating monitoring.

Standard units HSB-M01

Note: Description of single unit

Interlock height 40-3⁄16" (1020)

Interlock length 69-5⁄16" (1760)

Passage width

-7⁄16"

(900)

Total width

-3⁄16

" (1300)

Housing, base columns,

guiding elements

AISI 304 stainless steel with satin finish.

ADA compliance 36" (915) width available.

Barrier elements

Two door leaves made of curved AISI 304, Ø1-1/16" (26.9) stainless steel

tubes with Ø 3/8" (10) vertical struts, upper edge

-7⁄16

" (900).

Swinging area monitored by a light grid.

Security Passage area monitored by basic sensor system with a compact

installation length (basic level of single passage monitoring in

both directions)

Finish Stainless steel semi-gloss smooth finish.

Safety Low energy drive with energy content less than 1.18 lb/ft.

Function Type 2-power assisted motion; two servo-positioning drives/

electrically controlled in both directions.

Drives Integrated in the swing tube.

Operating modes Optical.

Normally closed.

Normally opened. (Barriers close on tailgate event.)

Electrical equipment Control system and power supply integrated in the unit.

Power supply 110 – 230 VAC, 50/60 Hz. 368 VA

Standby power

consumption

17 VA

Standard adjustment in

case of power failure

Door leaves move freely.

Installation Dowelled on finished floor level FFL.

Suitable for outdoor installation.

Protection classes Housing IP54, components conducting supply voltage IP54. Entrance systems

dormakaba HSB-M01 sensor barriers

EO 8.18

PW = 35-7/16" (900)

double unit

PW = 36" (915)

35-7/16" (900)

13-3/4"

(350)

5" (127)

69-5/16" (1760)

63" (160 0)

inside

outside

induction loop

5-1/16" (128)

7-7/8" (200)

3- 1/8" (80)

area

Ø3-1/8" 80)(Ø

for conduits

63" (1600)

1/2"

(12.7)

2-15/16" (75)

for anchoring

16"7/

(11.5)

conduit

HSB-M01

Installation drawings

dormakaba USA Inc.

2941 Indiana Avenue

Winston-Salem, NC 27105

844.SPECNOW

www.dormakaba.us

Note

Dimensions shown as inches

followed by millimeters; for

example, 1" (25).
