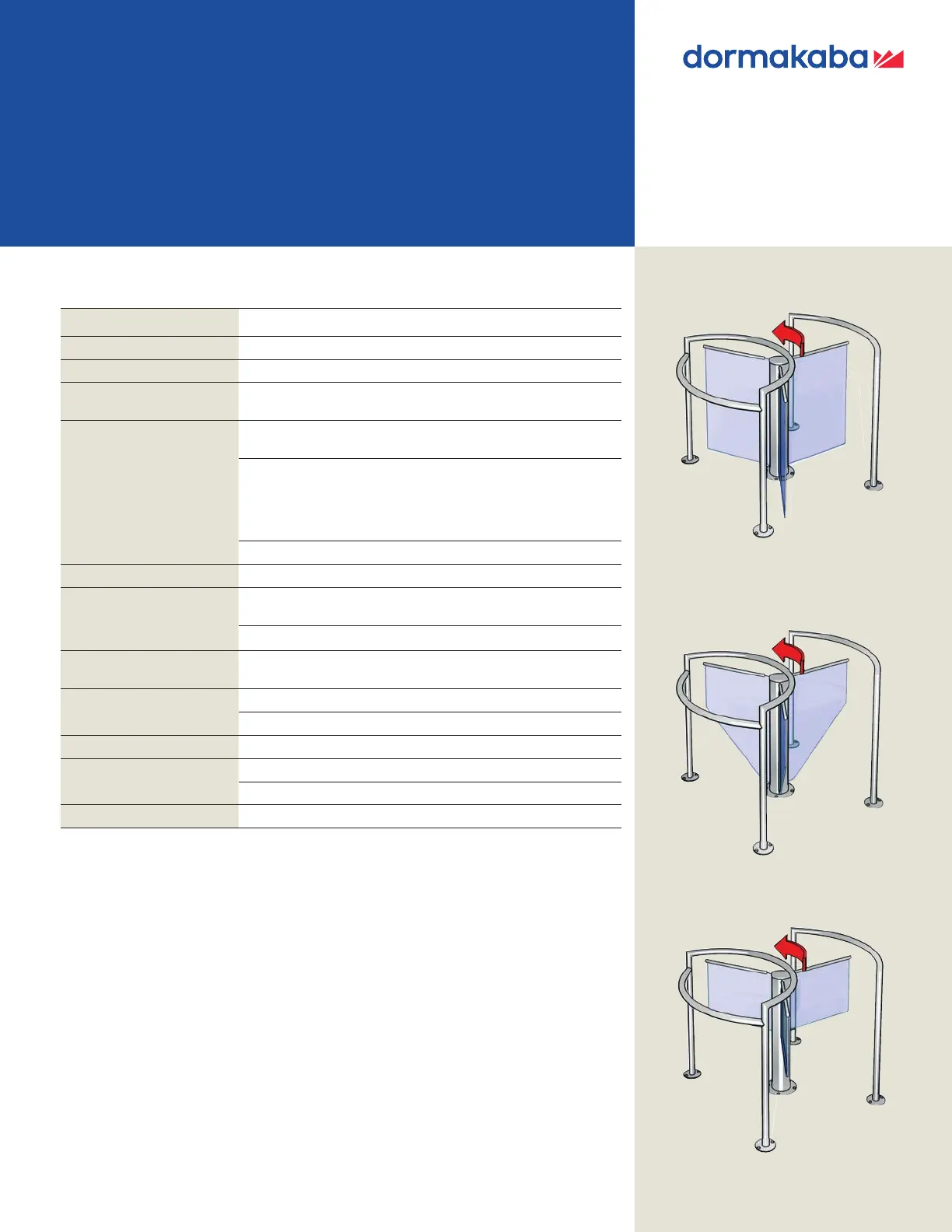

HTS-E03
Waist height turnstiles
Standard units HTS-E03
Construction
Material AISI 304 stainless steel / toughened safety glass, 3/8" (10 mm).
Side barrier elements Made of AISI 304 stainless steel tubing Ø1-7/8" (Ø48 mm),
mitered.
Rotating units With tubular column Ø5-1/2" (Ø140 mm) made of AISI 304 stainless
steel.
With three glass elements and stainless steel bar handles. Glass
elements are one of:
Option 1: Three tall glass elements
Option 2: Three bevelled glass elements
Option 3: Three half-height glass elements
Locking system, drive & toothed clutch installed in tubular column.
Finish Stainless steel satin finish.
Function Power assist; servo-positioning drive/electrically controlled in 2
directions.
Passage side can be selected: inwards right or inwards left.
Electrical equipment Control unit in external switch cabinet:
H 11-1/8" × W 6-5/8" × D 4-1/2" (H 283 mm × W 168 mm × D 115 mm).
Power supply 110 – 230 VAC, 50/60 Hz, 253 VA.
In case of power failure both directions free.
Standby power consumption 15 VA.
Installation Finished floor.
Not suitable for outdoor installation.
Protection classes Housing IP43, components conducting supply voltage IP54.
Option 1
Option 2
Option 3
Subject to change without notice
2
dormakaba
Installation examples
Note
Dimensions are shown as
inches followed by millimeters;
for example, 1" (25).
Ø5 /2"-1
(Ø140)
Ø1 /8"-7
(Ø48)
5/16"
(8)
5/16"
(8)
9-7/16"
(240)
5-1/2"
(140)
Guiding elements
Column
HTS-E03 waist height turnstiles
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1- 16"9/
(40)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18 /8"-7
(480)
18 /8"-7
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
Ø1 /8"-7
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1- 16"9/
(40)
Ø1 /8"-7
(Ø48)
Ø5-1/2"
(Ø140)
35-7/16"
(900)
40-1/4"
(1023)
1- 16"9/
(40)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18 /8"-7
(480)
18-7/8"
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18 /8"-7
(480)
18 /8"-7
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
HTS-E03 Option 2
Option 1 Option 3
HTS-E03
Elevation drawings
