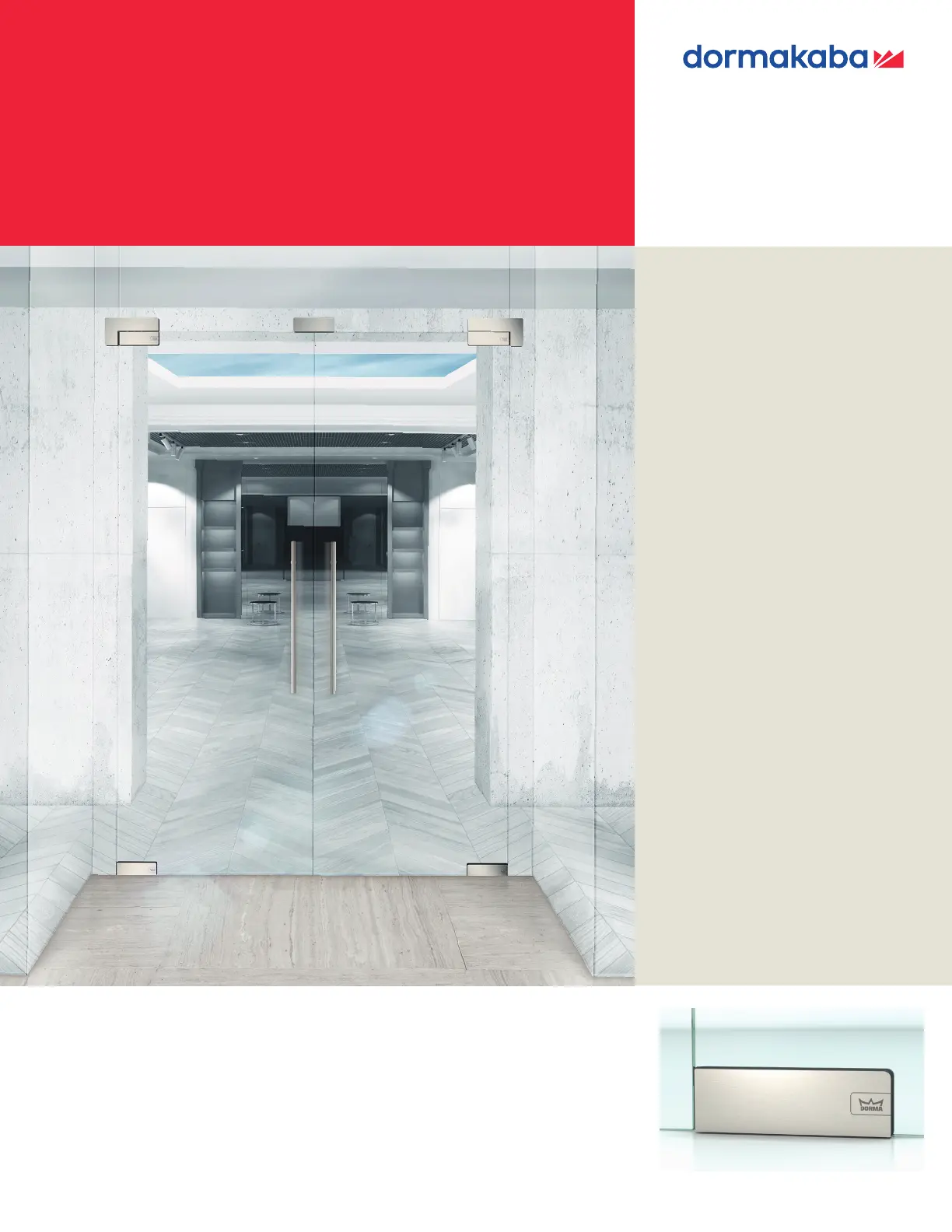

The new MUNDUS patch fitting

joins dormakaba’s already broad

range of options and configura-

tions. Uniquely designed for

tempered glass doors, MUNDUS

fittings are elegantly shaped with

straight edges and rounded

corners, made from high quality

materials, and finished with

precision.

The benefits are substantial:

• Clean design, with no visible

fasteners.

• Wide range of finishes and

materials.

• Fast installation, adjustable

even when mounted.

• Equipped for the right glass

thickness; adjusts to common

glass thicknesses without

changing gaskets.

• Suitable for tempered

laminated glass (TLG).

• Easy to retrofit and integrate

into existing systems.

MUNDUS

Discrete and versatile patch fittings for tempered glass

assemblies. Patch fittings are ideal for almost any frame-

less all glass design. dormakaba’s range of patch fittings

allows designers to create interior and exterior openings

that are both technically sound and visually attractive.

The elegantly designed and precision-

finished MUNDUS patch fitting.

Interior Glass Systems

Patch Fittings

Multi-directional adjustability makes the

MUNDUS patch fitting a truly perfect fit.

Installation is simple—attach the body directly

to the glass, then snap on the individual cover.

Once installed, the fitting can be adjusted at

any time, offering pivot point and flush

alignment, as well as zero position.

MUNDUS eliminates the need for gaskets to

adjust the fittings for common glass

thicknesses. Instead, two screws on the patch

fitting body are used to determine the glass

thickness, which can range from 5/16" (8) to

7/8" (22). By increasing weight capacity up to

440 lb and supporting tempered laminated

glass (TLG), MUNDUS Premium fittings offer

impressive benefits:

• A high level of user safety, even with large

glass doors.

• Decreased noise levels enabled by integrating

noise-reducing laminate.

• Glass doors as design elements utilizing

decorative TLG.

MUNDUS finishes

MUNDUS patch fittings are available in a

variety of finishes for matching with the

building’s architectural finishes or color

scheme.

MUNDUS — easy to install, easy to adjust

MUNDUS Premium MUNDUS Comfort Universal ARCOS EA offset

Glass thickness 1/2"–9/16" (12-15)

5/8"–3/4" (16-19)

13/16"–7/8"

(20-22)

5/16"–1/2" (8-12) 3/8" (10)

1/2" (12)

5/8" (16)

3/4" (19)

3/8" (10)

1/2" (12)

3/8" (10)

1/2" (12)

Max door

weight

440 lb ( 200 kg) 330 lb (150 kg) 275 lb (125 kg) 220 lb (100 kg) 220 lb (100 kg)

Max door width 51-3/16" (1300) 48" (1200) 48" (1200) 43" (1100) 43" (1100)

Stocked in US Yes Yes No NoYes

dormakaba

finish

Old

DORMA

Glass finish

Description

628 Clear anodized101

630

629

700

701

Satin stainless steel

Polished stainless steel

710

711

108

109

Black bronze anodized

Black anodized

728 Satin brass599

880 Black glass

199

299

399

Custom anodized

Custom plated

Paint or powder

coated

Note:

Width measurements are shown as inches

followed by millimeters; for example, 1" (25).

Note:

Please order finishes using the numbers shown in bold.

dormakaba’s comprehensive

line of patch fittings allows

the transparent elegance of

glass doors to reach their full

potential—whether hung in

frames or integrated into

tempered glass openings.

dormakaba patch fitting capacities

MUNDUS

offers multi-

directional

adjustability,

even after

installation.

8.17CT 1M

DORMA USA, Inc

Dorma Drive

Drawer AC

Reamstown, PA 17567

800.523.8483

DORMA Canada

1680 Courtney Park Dr

Unit 13

Mississauga, ON L5T 1R4

800.387.4938
