I N S T A L L A T I O N

www.rutherfordcontrols.com • Phone: 1.800.265.6630 • fax: 1.800.482.9795 • e-mail: sales@rutherfordcontrols.com

When installing an electric strike on an inactive door of a set of double doors, it can be treated the same as a frame installation in most situations. For

more information contact the Technical Service Department at 1-800-265-6630 or 519-621-7651.

Fire labeled heavy-duty electric strike

F1119

isf1119 Pcn14079

r06/15Gr-1

INSTRUCTIONS

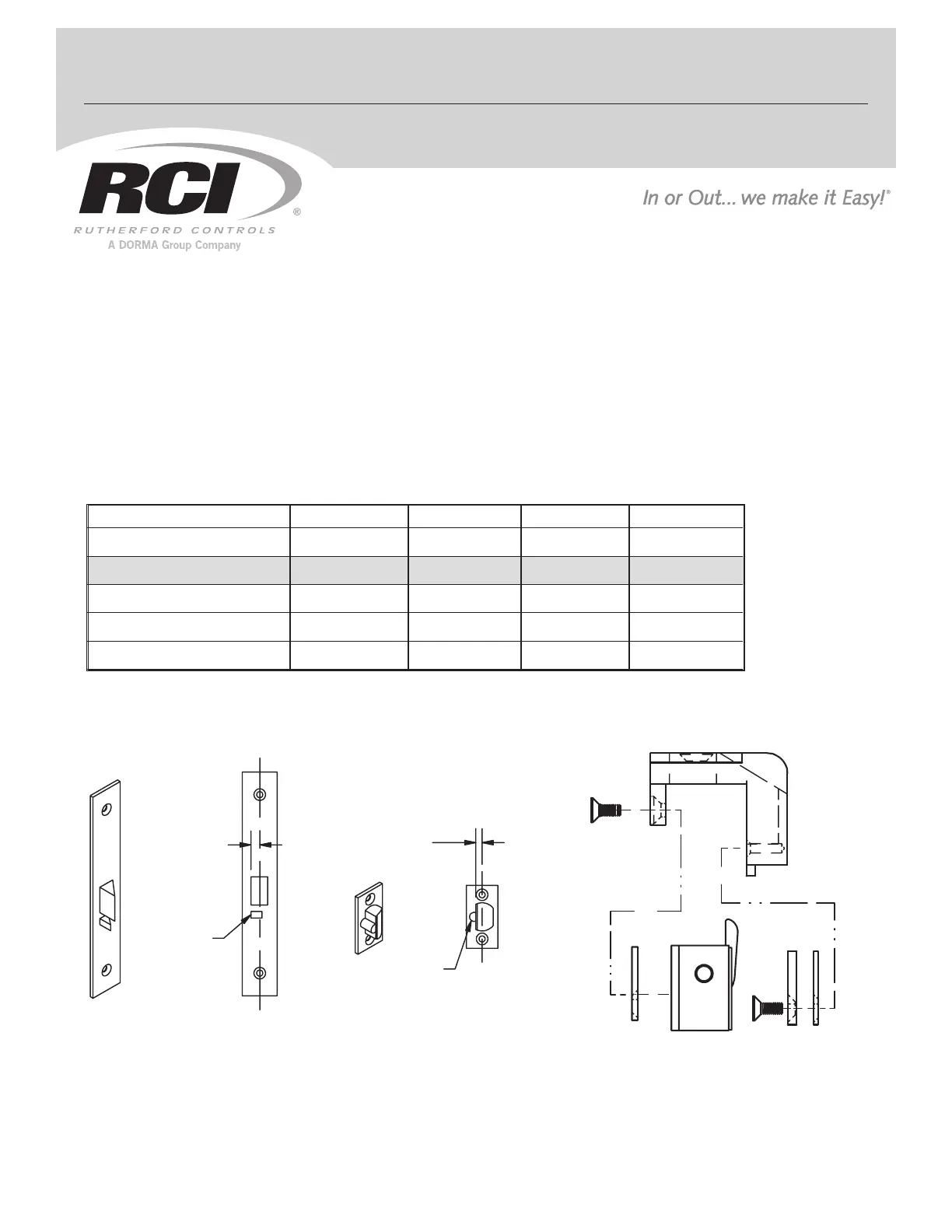

1. To determine if the Strike Shim positions need adjustment, measure dimension “R” (see Figure 1) from the center to the edge

of the latch. When necessary rearrange Strike Shims according to the chart below. The “shipped as default” positions are

illustrated in Figure 2.

SHIM PLACEMENT CHART

Note: Shims consist of two thin and one thick. Install with the indicated hardware per the appropriate measurement R range.

Shipped as Default

Figure #1 Figure #2

S1 S2

“R” distance

from center to

edge of latch

“R” distance from

center to edge of latch

Deadlock

Trigger

Deadlock

Trigger

Mortise Lock Cylindrical Lock

Measurement “R” “S1” Shims “S1” Screws “S2” Shims “S2” Screws

5/16” (8.2mm) or Less None M4 x 10mm 1 thick, 2 thin M4 x 10mm

5/16” - 3/8”, (8.2 - 9.7mm) 1 thin M4 x 10mm 1 thick, 1 thin M4 x 10mm

3/8” - 7/16”, (9.7 - 10.7mm) 1 thick M4 x 10mm 2 thin M4 x 10mm

7/16” - 1/2”, (10.7 - 12.2mm) 1 thick, 1 thin M4 x 14mm 1 thin M4 x 10mm

1/2” - 9/16” (12.2 - 13.7mm) 1 thick, 2 thin M4 x 14mm none none

INSTRUCTIONS Cont’d.

2. Determine the horizontal centerline.

FOR MORTISE LOCKS: Position the strike against the edge of

the door with the deadlock trigger fully on the strike’s angled

ramp and the latch within the strike cavity. Move door close to

the frame. The horizontal centerline is clearly molded into the

strike’s pry-guard. Transfer onto door frame.

FOR CYLINDRICAL LOCKS: Simply align the center of the

latch with the center of the strike cavity. Move door close to

the frame. The horizontal centerline is clearly molded into the

strike’s pry-guard. Transfer onto door frame.

3. Determine the vertical centerline of the door lock face,

carefully considering any stops or gasket and transfer onto

the door frame.

4. Use the vertical and horizontal centerlines marked on the

drawing below to prepare the door frame for cutting.

5. If required, install the optional “no weld” mounting brackets

as per the instructions included with the mounting brackets

in the hardware pack.

6. Connect the incoming wiring from the power supply to the

terminal screws on the strike insert. RCI door strikes are

not polarity sensitive although be certain to observe proper

polarity if a suppression diode is required for access control

applications. To meet BHMA A156.31 install the MOV

provided across the red & black power wires.

7. Install the door strike in the door frame using the screws

provided.

I N S T A L L A T I O N

Fire labeled heavy-duty electric strike

F1119

www.rutherfordcontrols.com • Phone: 1.800.265.6630 • fax: 1.800.482.9795 • e-mail: sales@rutherfordcontrols.com

F1119

Vertical Centre Line of Door

Lock and Mounting Face Plate

A 1 3/8” 1.38 34.9

B 9” 9.0 228.6

C 3-3/4” 3.75 95.3

D 1 1/2” 1.50 38.1

E 5/16” 0.31 7.8

F 5/32” 1.56 4.0

G 1-7/8” 1.88 47.6

K 8-3/8” 8.38 213.0

M 12-24 N/A N/A

MEASUREMENT

FRACTIONAL

INCHES

DECIMAL

INCHES

METRIC

In or Out... we make it Easy!®

NOTE: Specifications subject to change without notice.

* Dimension F is measured from face of mounting tab to face of frame.

MOUNTING TAB KIT INSTRUCTIONS

Mounting tab kit is for use with aluminum and steel frames that

do not have factory installed mounting tabs for electric strike

installation.

1. Prepare the frame as shown in the installation instructions

(shipped separately with corresponding products). Fasten

the mounting tabs to the faceplate of the strike, selecting the

appropriate shims for your installation.

2. Using the assembled strike and tabs as a template, place

against the frame and mark the mounting hole locations.

Remove and drill a 3/16” hole in frame for each mounting tab

and countersink the frame.

3. Remove the tabs from the faceplate and install in the frame

using the 12-24 x 3/8” machine screws supplied. Tabs are zinc

plated and drilled and tapped for this purpose.

4. Make final electrical connections as described in installation

instructions (separate) and mount strike to the tabs with the

12-24 x 3/8” machine screws.

Frame

Self-Adhesive

Mounting Shim (8

incl.)

Mounting bTa

(2 incl.)

12-24 Machine

Screws (2 each to

keep tab straight)
