Introduction

Monitoring

The patented MEM 2400LED Mechanical Electromagnet locking device is designed for securing all types of

inward opening side hung hinged doors. The MEM lock has a holding force of up to 1000KG and is equipped

with a LED light feature for Secure (green) / Insecure (red) local monitoring indication on the device. The

MEM2400LED has been Fire Tested for up to 4 hours to both AS & BS Standards. The MEM2400LED locking

device is capable of releasing under door back pressure (pre-load) of up to 70KG. The unit comes with an L&Z

Bracket as standard.

The MEM2400LED lock is provided with a number of unique monitoring features for either local or remote

indication:

i. Door Status Signal (DSS) 1 set of normally open contacts (N/O -- blue).

ii. Lock Status Signal (LSS) 1 set of normally open contacts (N/O -- yellow).

iii. Early Warning (EW) x 2. 2 sets of single throw double pole switches.

EW1: (N/O -- purple); (COM -- orange); (N/C -- pink).

EW2: (N/O -- gray); (COM -- brown); (N/C -- white ).

MEM2400LED Mechanical Electromagnetic Lock

for Inward Opening Doors

Functions

The MEM2400LED Mechanical Electromagnetic Lock operates on either 12 or 24 VDC. It is factory set on

24VDC and can be changed over to 12VDC by voltage jumper selection. When power is applied to the lock and

the door is in the closed position the Armature Plate is magnetically attracted to the MEM device and both the

DSS & LSS switches change status to NC.

When pressure is applied to the door in an attempt to open it unauthorised, the MEM Lock provides the patented

local or remote “Early Warning” (EW) security alarm indication.

The operating switch or controlling contacts must be installed directly from the power source across the MEM

Lock. The DC output of the power supply must NOT be connected to earth but floating to prevent shock and

possible damage to the unit.

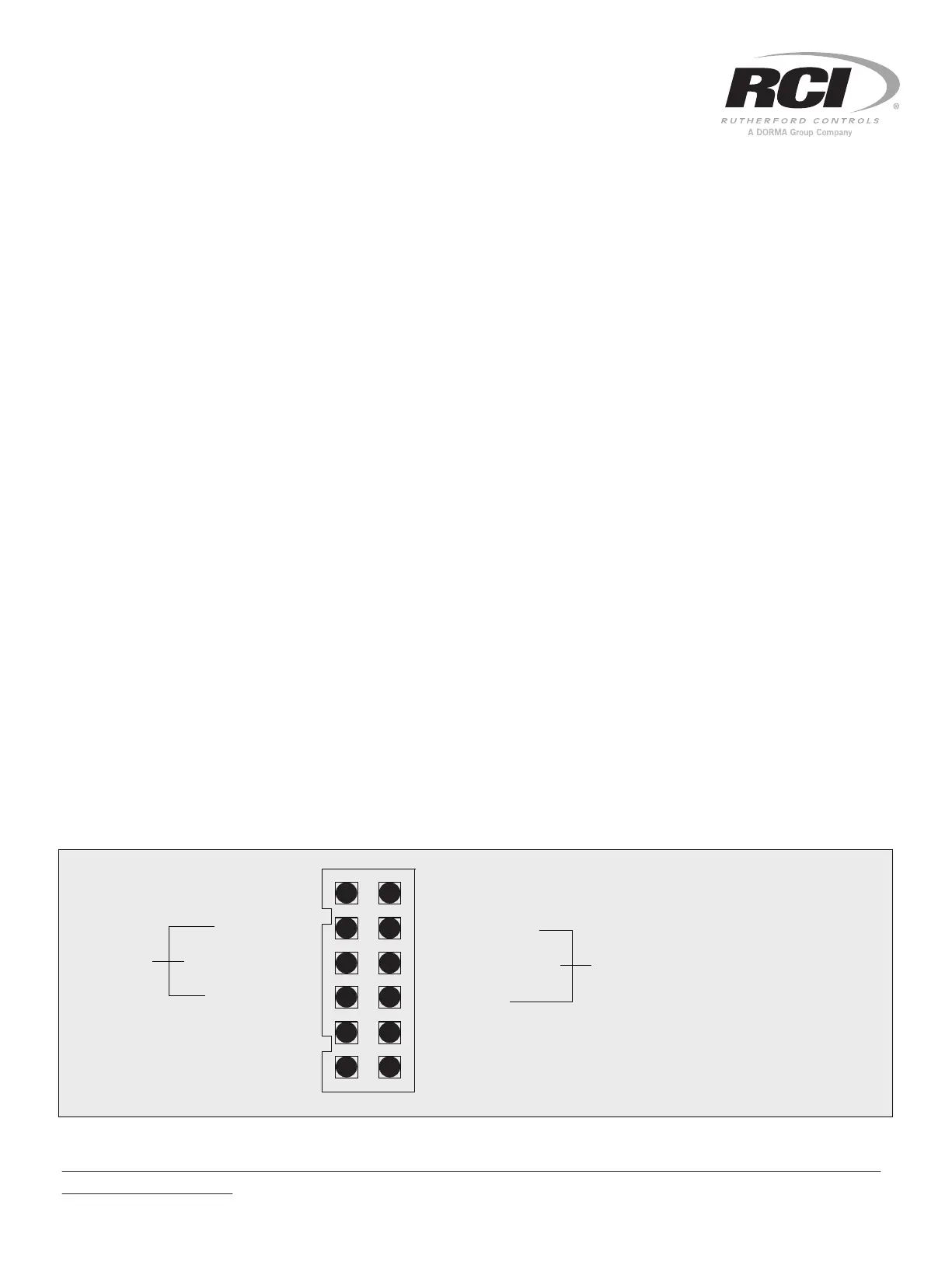

Wiring and Power Input

Power Supply

Ensure that wiring is connected correctly before supplying power to the MEM Lock to prevent

damage to the unit.

NOTE:

NO - LSS (YELLOW)

NC (PINK)

NO - DSS (BLUE)

NO (GRAY) NO (PURPLE)

COM (BROWN) COM (ORANGE)

NO - LSS (YELLOW)

NC (WHITE)

EW2

50 VDC,

0.3 A max.

NO - DSS (BLUE)

EW1, 50 VDC,

0.3

A max.)

+12 VDC, 0.

(RED)

+24 VDC

, 0.

175 A

GROUND (BLACK)

30 VDC max, 0.3 A max, 10 W max

WW .RUTHERFO DCONTW R ROL 0S.COM • PHONE: 1.800.265.6630 • FAX: 1.80 .482.9795 • E-MAIL: SALES@RUTHERFORDCONTROLS.COM

ISMEM2400-60 R01/16TG

The Armature plate (B) is screw fixed onto and through the Z-Bracket (C), with the countersunk hex screw

(A). The Armature plate must remain flexible to allow surface alignment with the MEM magnet face. The

MEM Lock will lose holding force without this floating alignment.

1. Screw fix the Z- Bracket (C) directly to the face of the door with the self-tapping screws provided.

2. Install Armature plate (B) with countersunk Allen screw (A) into and through the Z-Bracket (C).

Ensure that the 2 flat washers and 1 rubber washer are in place and tighten the screw into the tapped hole

of the Z-Bracket(C).

Note:The Armature plate, when tightened, must remain flexible and be allowed to float as mentioned above.

3. Install the End Cap(D) onto the Countersunk hex screw (A).

Armature Plate Installation Instructions

Installation diagram

Key screw

Spring

Pivoting Pin

Countersink

hex screw (A)

Applied drop-wise of provided

threadlockers glue to the thread

of the security sleeve nut to

prevent loosening

rubber

Flat washer

Security top

sleeve nut

NOTE: Make sure to have the rubber washer mount for absorbing

shock and obtaining the required strenght.

Flat washer

Free-Angle

Z - Bracket(C)

Armature plate (B)

(D)

dome-nut

(C)

Magnet

Door

Door Frame

End Cap(D)

(B)

12 VOLT JUMPER POSITION24 VO ER P T NLT JUMP OSI IO

SPARE

JUMPER

(C)

(B)

(A)

(D)
