1.1 Product Reference

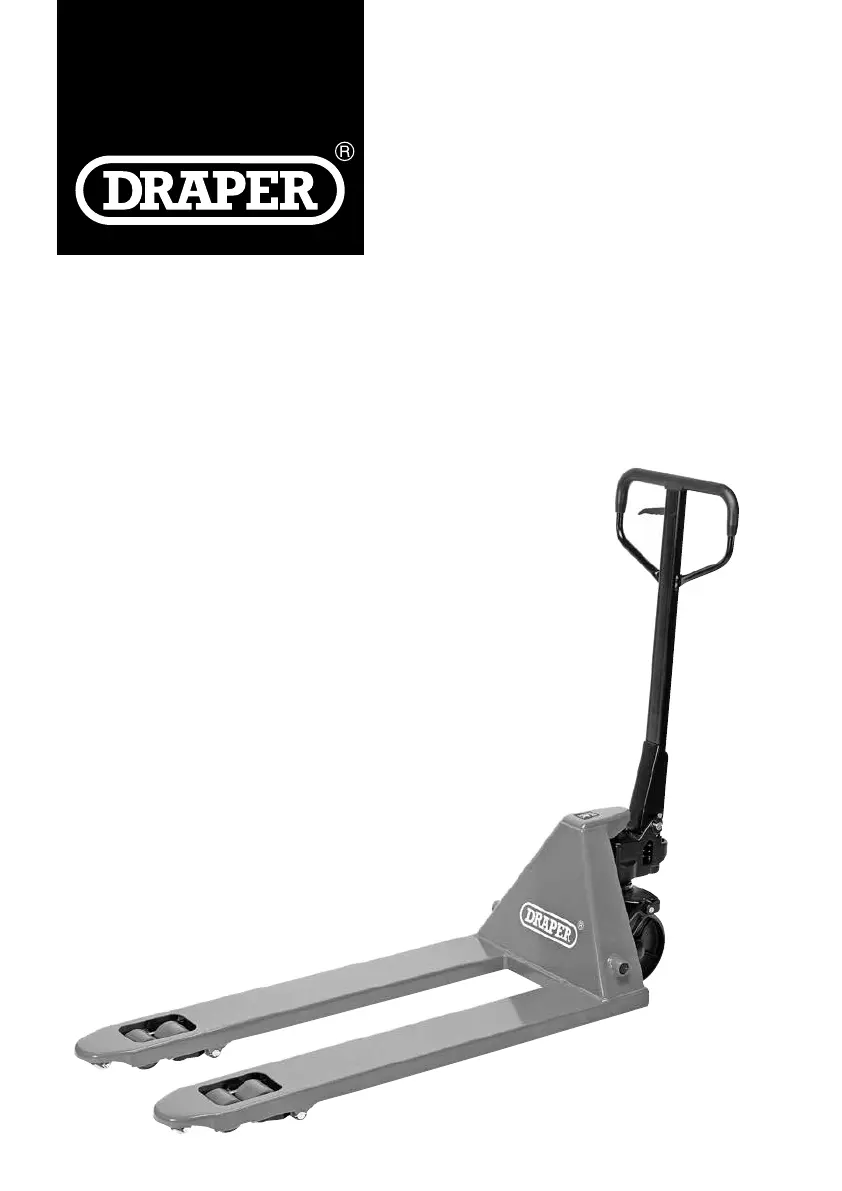

User Manual for: Hand Pallet Truck
Stock No: 85655
Part No: PT2500-B
1.2 Revisions
Version 1: November 2017
First release
Version 2: October 2024
General format and text amends
1. Preface
2.2 Specication
Stock No. 85655
Part No. PT2500-B
Maximum Lifting Capacity 2500kg
Maximum Fork Height 200mm
Minimum Fork Height 85mm
Fork Length 1150mm
Fork Width (overall) 540mm
Load Wheel Diameter 80mm
Steering Wheel Diameter 200mm
Net Weight 72kg
2.1 Intended Use
This hand operated pallet truck is designed ideally for use
in warehouse environments.
Any other application beyond the conditions established
for use will be considered misuse. Draper Tools accepts no
responsibility for improper use of this product.
Read this manual in full before using this product and
retain it for future use. Always use the latest version of the
manual. Please visit drapertools.com/manuals for the
latest version.
2. Product Introduction
3. Health and Safety Information
Important: Read all the Health and Safety instructions
before attempting to operate, maintain or repair this
product. Failure to follow these instructions may result in
injury or damage to the user, the product or the load.
3.1 General Health and Safety
Information
• The operator MUST watch the lifting device and the
load during all movements.
• The user shall not work under the raised load until it is
secured by suitable means.
• Limitations – DO NOT use for:
− operations in severe conditions (e.g. extreme
climates, freezer applications, strong magnetic
elds etc.).
− operations subject to special rules (e.g. potentially
explosive atmospheres, mines etc.).
− lifting of persons.
CAUTION!
• DO NOT handle loads, the nature of which, could lead
to dangerous situations (e.g. molten metals, acids,
radiating materials or brittle loads).
