Side 1/2

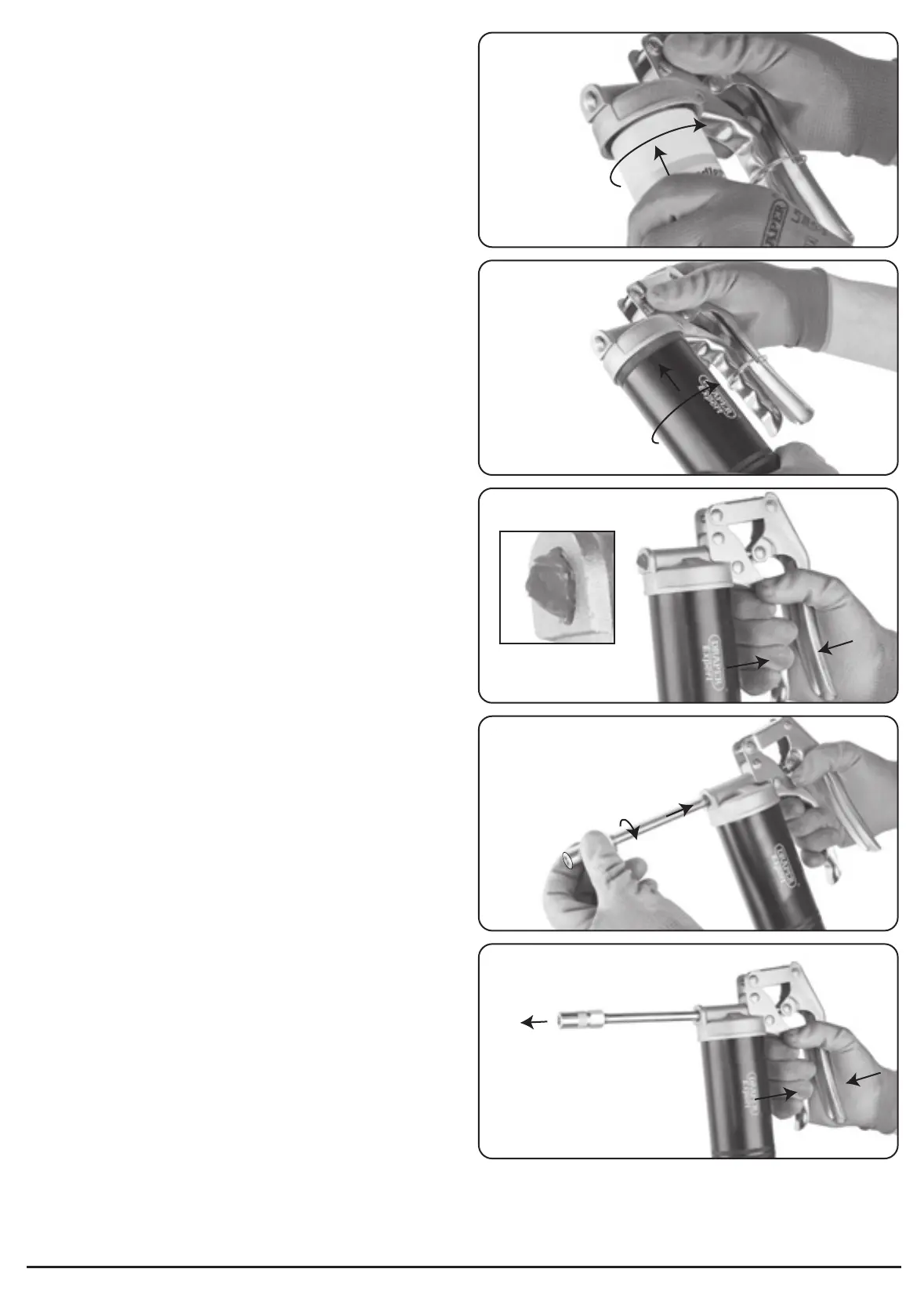

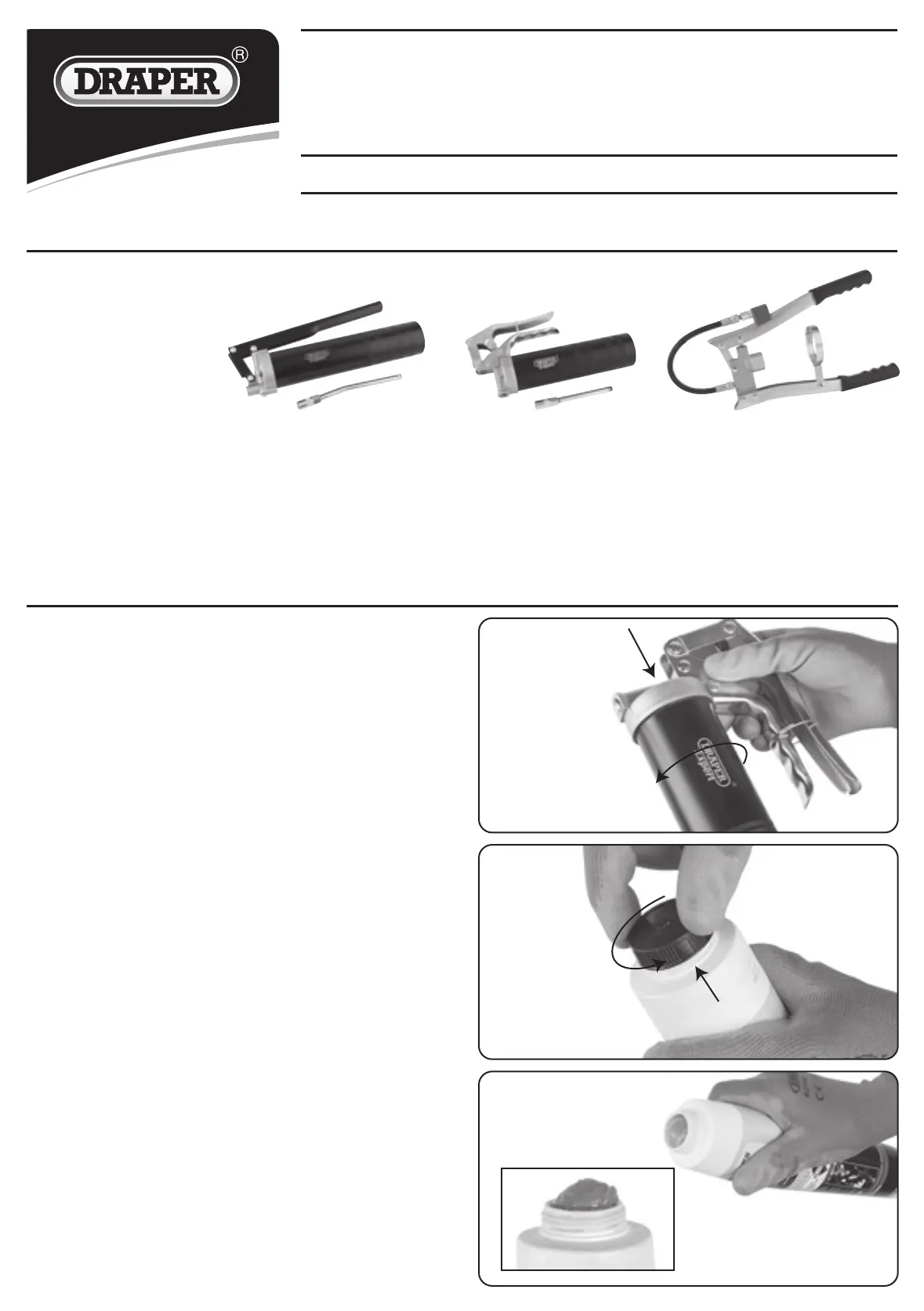

Unscrew barrel from pump head anti-clockwise (note no

barrel on Draper Stock No.16157).

Remove screw-cap from grease cartridge.

Push base of grease cartridge until grease is protruding

approx. 6mm out of the cartridge.

This is required to prevent air entering the pump unit.

INSTRUCTIONS

Stock Nos.16157, 16159, 16160 Part Nos.A10/EXP/F, A9/EXP/LS, A8/EXP/LS

2. ASSEMBLY

1. TECHNICAL DESCRIPTION

Manual for

Screw-on Grease Guns

Stock No..............................................16159 .............................................16160 .............................................16157

Part No............................................ A9/EXP/LS .......................................A8/EXP/LS.......................................A10/EXP/F

Pressure......................................10,000psi/690bar ............................5,000psi/345bar .............................7,500psi/517bar

Output ........................................ 0.5g per stroke.............................. 0.5g per stroke.............................. 0.8g per stroke

Cartridge type .......................400gm x large thread .................... 400g x large thread.................. 500 or 600g small thread
