User Manual
DVDO-CAT4K-70
4K HDMI 70m Extender Over Ethernet With ARC 60
Thank you for purchasing -CAT4K- DVDO 70
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life your equipment.of
Caution
The product requires the use of UTP connectors. Please connect in direct
interconnection method and not cross connect.do
White and Orange
Orange
White and Green
Blue
White and Blue
Green
White and Brown
Brown

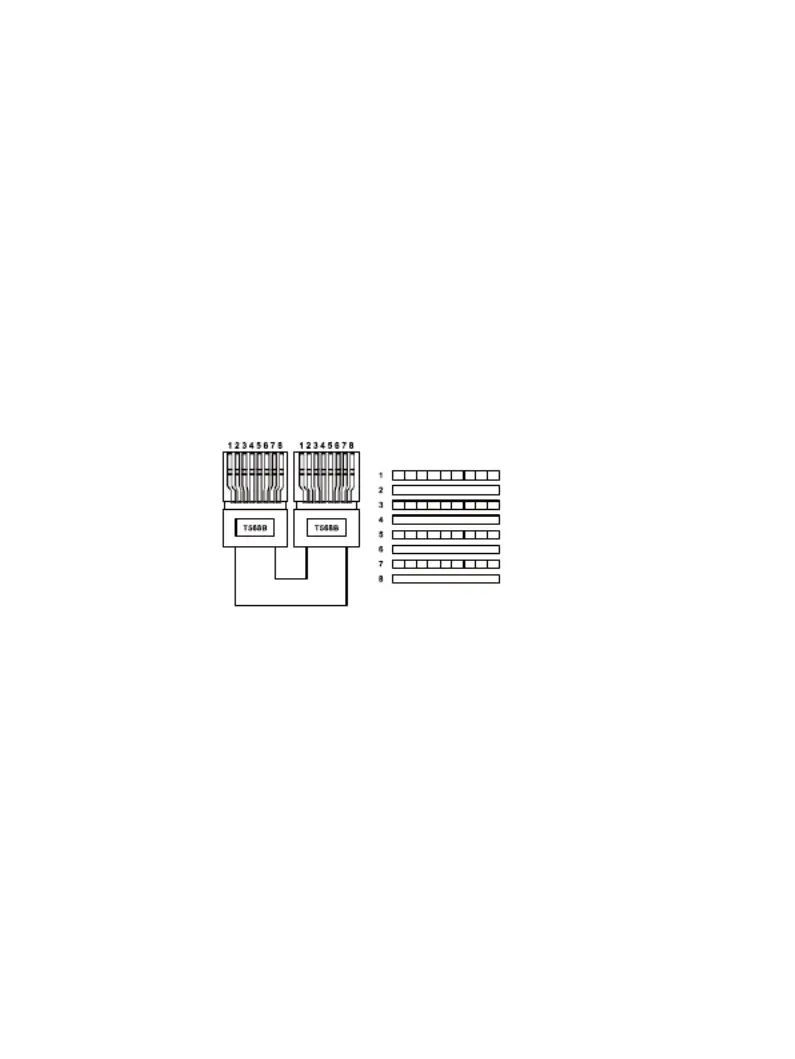

Direct Interconnection Method
Table Contents of
1. Introduction. ........................................................................................
1
2. Features. ..............................................................................................
1
3. Package Contents. .............................................................................
2
4. Specifications. .....................................................................................
2
5. Operation Controls and Functions. ....................................................
4
5.1 Transmitter Panel. ..........................................................................
4
5.2 Receiver Panel. .............................................................................
5
5.3 Pin Definition IR ..............................................................................
7
6. Application Example. .........................................................................
8
