User Manual

Version v1.0

DVDO-Xtend-2USBC-2HDMI-100

2-Host USB-C & USB 3.2 Gen 1 100m Extender

over HDBaseT with 2 HDMI Outputs

Thank you for purchasing DVDO-Xtend-2USBC-2HDMI-100
For optimum performance and safety, please read these instructions carefully before
connecting, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is
highly recommended in order to protect and extend the life of your equipment.

Caution
The use of CAT6A F/FTP 23AWG cable is recommended. Please connect in direct
interconnection method and do not cross connect.


White and Orange
Orange
White and Green
Blue
White and Blue
Green
White and Brown
Brown

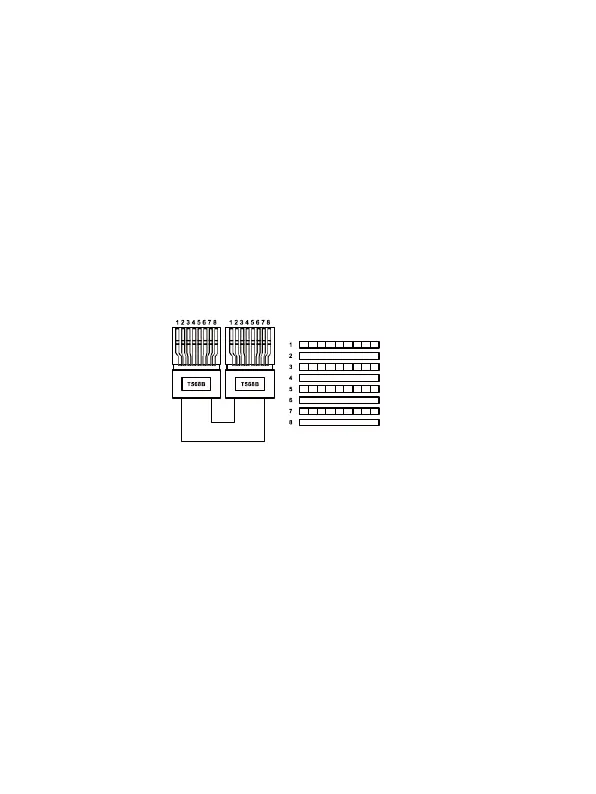

Direct Interconnection Method

Table of Contents
1. Introduction. ..............................................................................................................
1

2. Features. ....................................................................................................................
1

3. Package Contents....................................................................................................
1

4. Specifications. ...........................................................................................................
2

5. Operation Controls and Functions. ........................................................................
3

5.1 Transmitter Panel. ...............................................................................................
3

5.2 Receiver Panel. ...................................................................................................
5

6. API Commands. ........................................................................................................
6

7. Application Example. ..............................................................................................
9
