Side 1/8
- 1 -

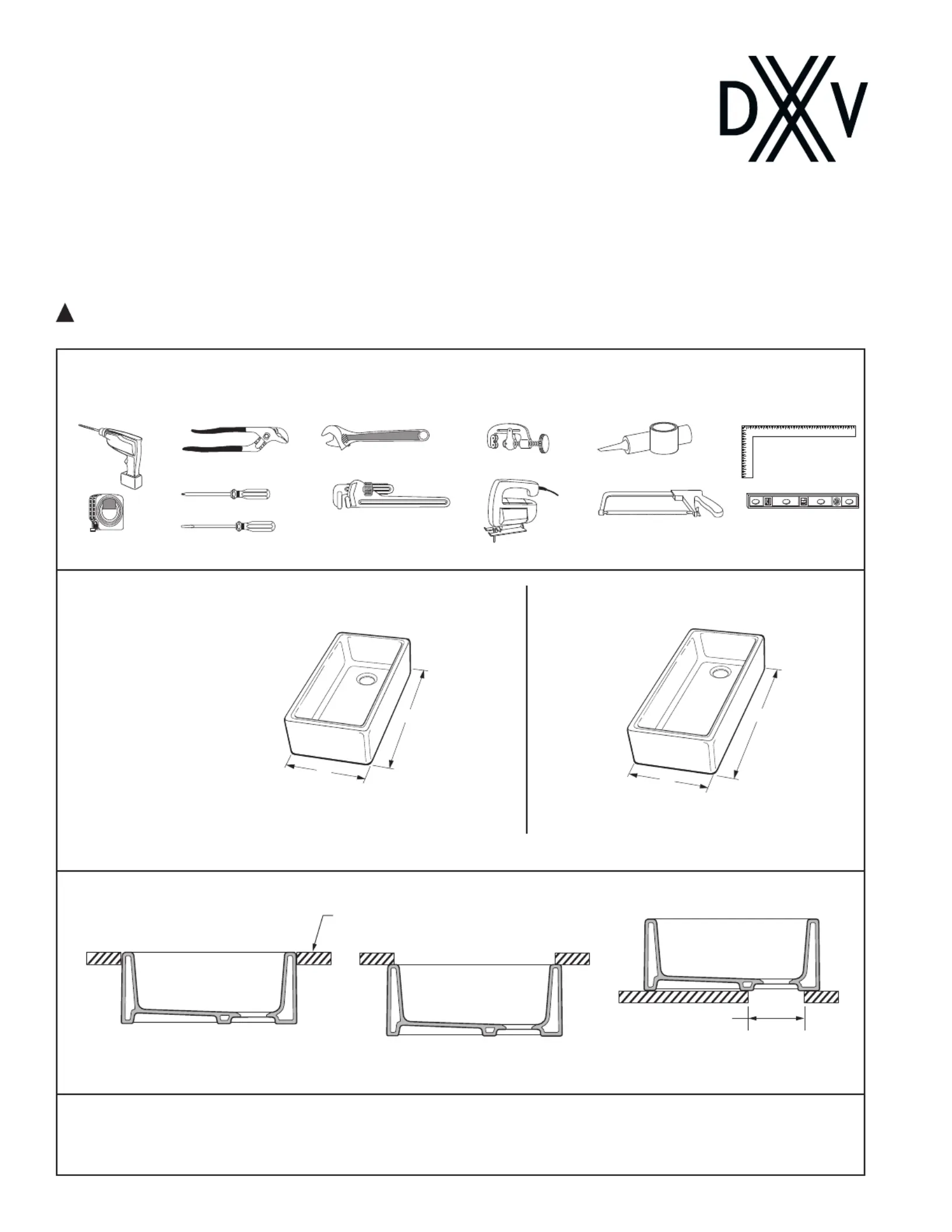

INSTALLATION INSTRUCTIONS
S A V E F O R F U T U R E U S E
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
REPLACEMENT USE
water supply lines and drain ttings. Original supplies and shutoff valves should be replaced on installation.
SINK MODELS
MOUNTING OPTIONS
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
NOTE: Pictures may not exactly define contour of china and components.
!
30 Sink model #D20066230"
36 Sink model #D20066236"
Hillside
™
Apron Kitchen Sinks
Adjustable Wrench
Channel Locks
Regular Screwdriver
Phillips Screwdriver
10'
Saber Saw
Pipe Wrench Level
Tubing Cutter
Square
Tape Measure
Electric
Drill
1234567891011
12345678910
11 12 13 14 15 16 17 18 19 20 21 22 23 24
Hacksaw
Sealant
30" Model
No. D20066230
D: 17-7/8" TO 18-3/8" (454 TO 466 mm)
W: 29-3/4" TO 30-1/4" (756 TO 768 mm)
D: 17-7/8" TO 18-3/8" (454 TO 466 mm)
W: 35-3/4" TO 36-1/4" (908 TO 920 mm)
36" Model
No. D20066236
These sinks accommodate standard 3-1/2" (89 mm) sink outlet drain.
W
D
W
D
* NOTE: Chinaware dimensions can vary. Please use the actual size of the sink that you will be installing in order to determine the
cutout dimensions for your countertop.
Flush Mount
Installation *
Under Countertop
Installation *
Above Countertop
Installation
CUTOUT 10
"
DIA.
(254 mm)
COUNTERTOP
7302028-100 Rev. C (2/18)
- 2 -
1
WALL PREPARATION:
INSTALLATION PROCEDURES
Determine if the sink will be ush mounted or under countertop mounted. Next measure the actual size of the sink being
installed to determine cabinet opening dimensions and support frame location. The cabinet opening should equal the
maximum dimensions of the sink to ensure a minimum gap between the sink apron and the cabinet. Support frame location
is determined by type of sink installation being performed.
FLUSH MOUNT or UNDER COUNTERTOP INSTALLATIONS
(See page 7 for above counter top installation)
Typical installation includes cabinet support preparation, installation of faucet and pop-up drain, connection of exible water
supply lines, attachment of sink to cabinet, sizing and installation of drain, supplies to house water system.
Sink Mounting Provisions
Whether the sink is used for replacement or new installation, the cabinet area beneath the sink must be reinforced to provide
sufcient support. The wood support frame for the sink must support 400 pounds (approximate weight of sink when full and a
garbage disposal installed).

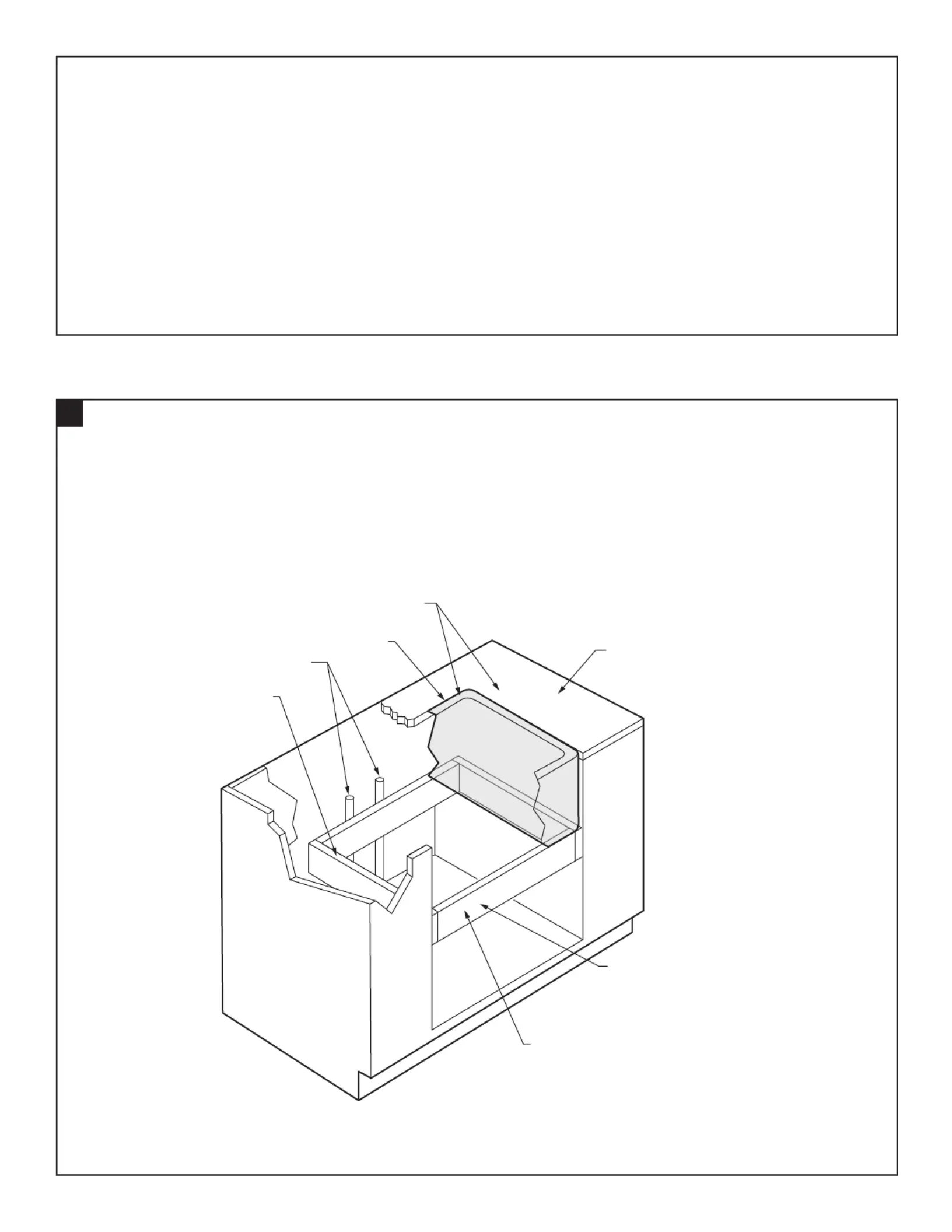

CABINET SUPPORT PREPERATION
Important Note:
This installation assumes the use of a custom cabinet and countertop design. It is not designed for use with standard base
cabinets or standard countertops. Installation must be performed by a professional cabinet maker and shall be in accordance
with all local plumbing and building codes requirements.
7302028-100 Rev. C (2/18)
TOP SURFACE OF SINK & COUNTERTOP
ENSURE LEVEL BEFORE SECURING
SINK
COUNTERTOP
H & C SUPPIES
FRAME
RUNNING FRONT
TYP. BOTH SIDES
FRAME
RUNNING SIDE
TYP. FRONT & REAR
SUPPORT
NOMINAL SIZE
FLUSH MOUNT
INSTALLATION
SHOWN
