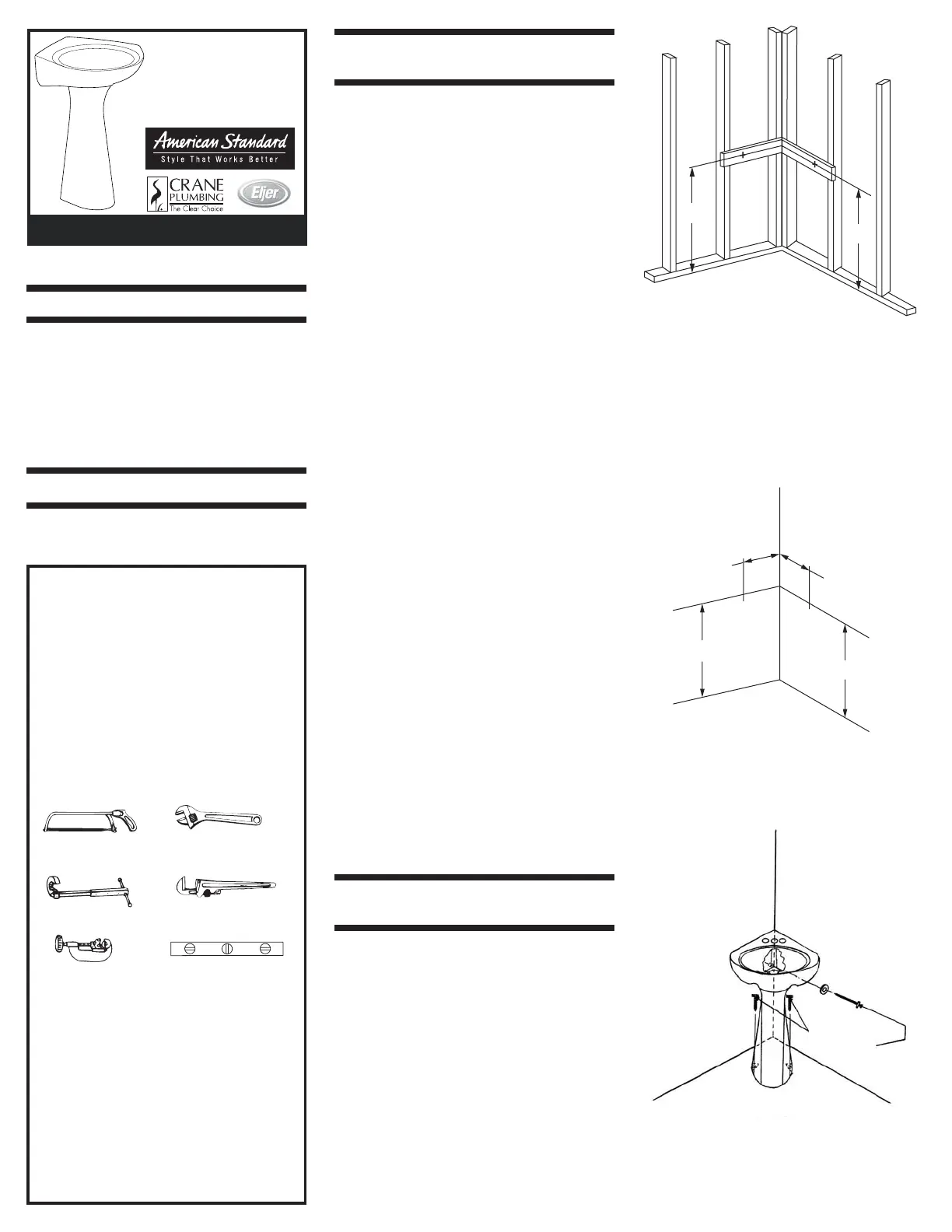

BEFORE YOU BEGIN...

READ INSTRUCTIONS FIRST

TOOLS AND MATERIALS

hacksaw

adjustable

wrench (10")

tube cutter

basin wrench

level

REMOVING YOUR OLD

LAVATORY

INSTALLING YOUR NEW

LAVATORY

pipe wrench (12")

Installation Instructions

Cornice

Pedestal

Lavatory

If you are installing your lavatory in a new or

remodeled bathroom, you should make sure that

you are in compliance with all local plumbing codes.

The rough-in information, available on page 2 of

these instructions or at www.americanstandard.com,

will be helpful in placing the lavatory, water supply

piping, shut-off valves and drain in their proper

positions.

1. Turn off the water supply. This is done by closing

the two shut-off valves located under the lavatory.

If there are no shut-off valves leading to the lavatory,

you must turn off the water at the main valve. This is

usually located in the basement, garage or near the

foundation on the outside of the house. It may also be

near the water meter.

Check to be sure the water is off by turning on the

faucet where you are working until the water stops

flowing.

If you have shut off the main valve in a two-story

house or greater, you should open the kitchen faucet

and another faucet on the same level. Water will then

drain from the entire line. This will help avoid spills.

Be sure to close the faucets before you turn on the

main valve again.

2. Disconnect the drain pipes. Take off as many

sections as possible between the lavatory and the

wall or floor to facilitate removal.

Place a basin under the work area to catch any water

that may still be in the drain.

3. Before removing anything else, check to see if the

pipes in the wall are providing support for the lavatory.

If this is the case, use care in removing the faucet

connections. The lavatory may fall once the faucet is

disconnected, so have a helper hold it up while you

work.

Detach the faucet from the shut-off valves by

unscrewing the compression nut at the joints between

the valves and the water supply tubes.

If the connection is corroded you may need to cut off

the nut with a hacksaw. If there is no nut or shut-off

valve, use a tube cutter or hacksaw to separate the

faucet from the water supply tubes.

Keep the basin and sponge handy for water that

remains in the pipe and faucet.

4. Determine how the lavatory is mounted. Especially

notice if there is a good structural support for wall

mounting. See step 5 for bracing instructions, if

required.

If there is a wall bracket at the back, you might be

able to lift the lavatory off. It may be heavy, so have a

helper lend a hand. A floor mounted lavatory can be

removed by lifting it off of the pedestal or legs after

first detaching any wall-mount fittings.

5. If you are installing the lavatory in a new or

substantially remodeled bathroom, refer to the

rough-in drawings for locations of shut-off valves and

drain. The inlets of the shut-off valves should match

the size of the piping in the house and the outlets

should match the water supply tubes you will run to

the faucet. The latter are usually 1/2" I.P.S. tubing.

You should also install shut-off valves if there were

none in the existing bathroom or if the old ones are

unserviceable or unsightly.

A cross brace is required to provide a solid mounting

support for the new lavatory. Check to be sure there

is one in the existing bathroom. If not, use a saw and

chisel to mortise a 2" x 4" board across at least two of

the vertical 2" x 4" wall studs on each wall of the

corner as shown in FIGURE 1. Nail both boards

securely into place.

The centerline of the cross braces should be

29-3/4"up from the floor on both walls.

6. Hangers provided with the lavatory should be

mounted 11" from the corner and 29-3/4" up from

the floor on each wall (see FIGURE 2). Tighten the

hangers, center slot only, until they will support the

lavatory, leaving "play" for final adjustment later.

Make sure hanger is in highest position when

snugging hanger. Set the lavatory in place.

7. Position the pedestal leg by using the recess

indentation on the underside of the lavatory as a

guide. The back side of the leg should be vertical

and away from the wall surface. See FIGURE 3.

Mark the location of the hole(s) in the bottom of the

leg. Remove the leg, then drill the starter hole(s)

as marked. These hole(s) should be 1-1/2" deep.

Insert a plastic expansion shield into each hole(s)

if required.

You can determine which tools and materials are

necessary by reading the complete installation

instructions and examining the job you have to do.

These are normally needed:

sponge

basin or pail

tape measure

flat blade screwdriver

emery cloth

hammer and nails

saber saw or keyhole saw

drill

chisel

cardboard, newspapers or a dropcloth

2" x 4" x 48" lumber

screws

3/4" washers

expansion or anchor plugs

bathroom caulking

These are optional, in case existing

materials are unusable:

two shut-off valves with 1/2" I.P.S. outlet,

optional (check house piping to determine

valve inlet dimenstion.)

1/2" I.P.S. hot and cold water supply tubes

with compression nut and ferrule

drain tail pipe, trap and additional drain pipe

as required

29-3/4"

(756mm)

FLOOR

FIGURE 1

29-3/4"

(756mm)

FC-071-1102

29-3/4"

(756mm)

29-3/4"

(756mm)

11"

(279mm)

11"

(279mm)

WALL

FLOOR

FIGURE 2

FIGURE 3

FLOOR

WALL WALL

ANCHOR

SCREWS

(2)-PEDESTAL BASE

(1)-LAVA BACK
