INSTALLATION INSTRUCTIONS

S A V E F O R F U T U R E U S E

Product names listed herein are trademarks of AS America, Inc.

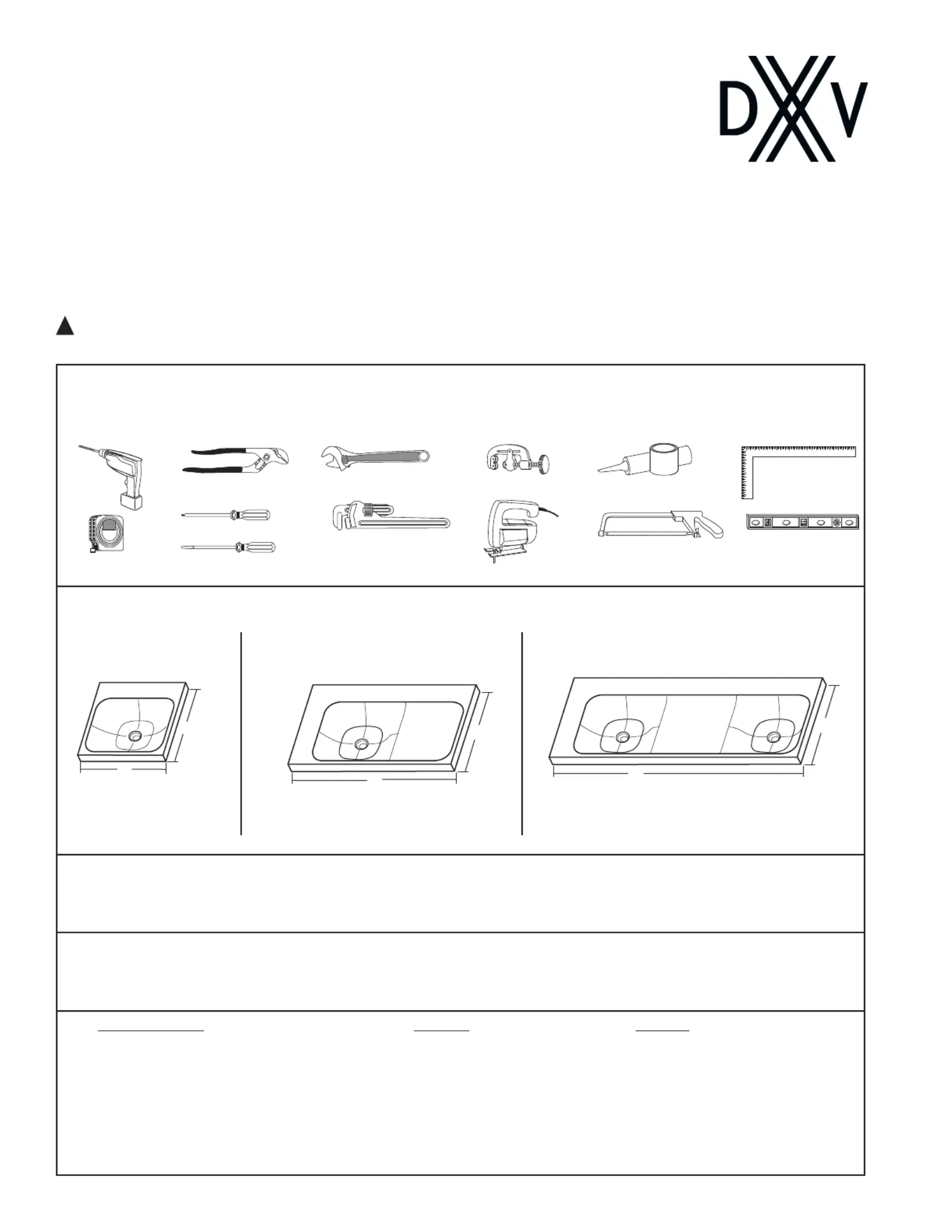

RECOMMENDED TOOLS AND MATERIALS

Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing

supply stores. It is essential that the tools and materials be on hand before work has begun.

INSTALLATION PROCEDURES

Typical installation includes cabinet support preparation, installation of faucet and pop-up drain, connection of exible water

supply lines, attachment of lavatory to cabinet, sizing and installation of drain and water supplies.

REPLACEMENT USE

When replacing an original unit be sure to shut off water supply before removing the lavatory or disconnecting

water supply lines and drain ttings. Original supplies and shutoff valves should be replaced on installation.

LAVATORY MODELS

Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.

(Certain installations may require professional help.) Also be sure your installation conforms to local codes.

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!

NOTE: Pictures may not exactly deﬁne contour of china and components.

21 Model D21040021 Series"

36 Model D21045036 Series"

55 Model D21060055 Series"

36 Model D21050036 Series— Concrete"

DXV Modulus™

Lavatory

Adjustable Wrench

Channel Locks

Regular Screwdriver

Phillips Screwdriver

10'

Saber Saw

Pipe Wrench Level

Tubing Cutter Square

Tape Measure

Electric

Drill

1234567891011

12345678910

11 12 1 3 14 15 16 1 7 18 19 2 0 21 22 2 3 24

Hacksaw

Sealant

55 Model"

D21060055 Series

D: 21" (533 mm)

W: 55" (1397 mm)

36 Model"

D21045036 Series

D: 21" (533 mm)

W: 36" (914 mm)

21 Model"

D21040021 Series

D: 21" (533 mm)

W: 21" (533 mm)

In the United States:

DXV

One Centennial Avenue

Piscataway, New Jersey 08855

Attention: Director of Customer Care

For residents of the United States, warranty

information may also be obtained by calling

the following toll free number: (800) 227-2734

www.DXV.com

In Canada:

DXV

5900 Avebury Road

Mississauga, Ontario

L5R 3M3

Canada

Toll Free: 1-800-387-0369

Local: 905-306-1093

Fax: 1-800-395-1498

www.DXV.ca

In Mexico:

DXV

Via Morelos 330

Col. Santa Clara Coatitla

Ecatepec, Estado de México 55540

Toll Free: 01-800-8391200

www.DXV.mx

- 2 - 7302323-100 (5/17)

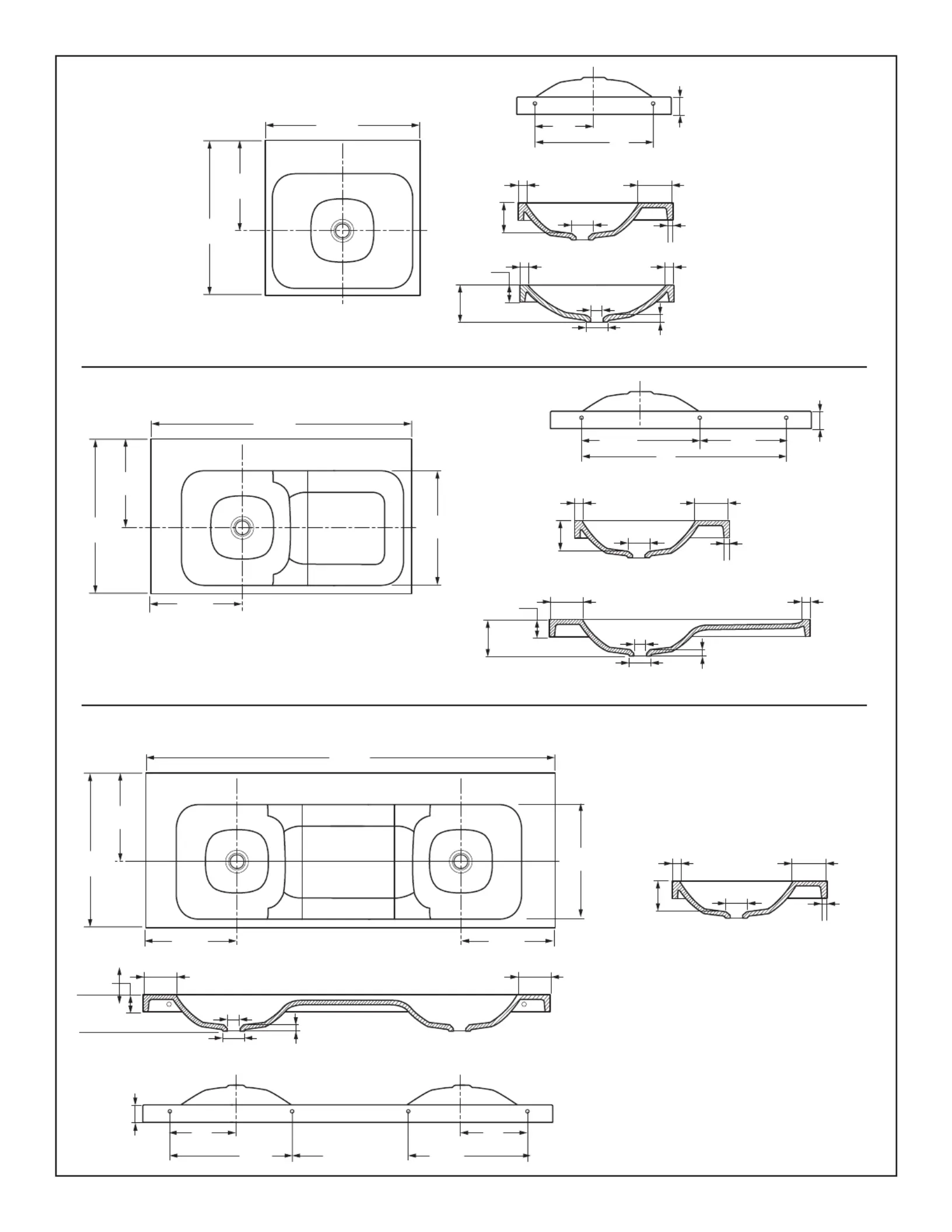

ROUGHING-IN DIMENSIONS:

21"

(533 mm)

21"

(533 mm)

(203 mm) 16"

(406 mm)

5-1/16"

(128 mm)

2-3/8"

(60 mm)

1-1/16"

(26 mm)

15/16"

(24 mm)

1-1/16"

(26 mm)

1-1/16"

(26 mm)

11/16"

(18 mm)

4-1/8"

(104 mm)

4-9/16"

(116 mm)

12-1/4"

(311 mm)

2-15/16"

(75 mm)

1-3/4" (45 mm)

2-11/16" (68 mm)

1-1/2"

(38 mm)

21"

(533 mm)

36"

(914 mm)

12-1/2"

(318 mm)

16"

(406 mm) 36"

(914 mm)

12"

(305 mm)

5-1/16"

(128 mm)

2-3/8"

(60 mm)

4-1/2"

(115 mm)

15/16"

(24 mm)

1-1/16"

(26 mm)

1-1/16"

(26 mm)

11/16"

(18 mm)

4-1/8"

(104 mm)

4-9/16"

(116 mm)

12-1/4"

(311 mm)

15-9/16"

(396 mm)

2-15/16"

(75 mm)

1-3/4" (45 mm)

2-11/16" (68 mm)

1-1/2"

(38 mm)

21"

(533 mm)

55"

(1397 mm)

12-1/2"

(318 mm)

12-1/2"

(318 mm)

16"

(406 mm)

(229 mm)

16"

(406 mm)

(229 mm)

5-1/16"

(128 mm)

2-3/8"

(60 mm)

4-1/2"

(115 mm)

4-1/2"

(115 mm)

15/16"

(24 mm)

1-1/16"

(26 mm)

11/16"

(18 mm)

4-1/8"

(104 mm)

4-9/16"

(116 mm)

12-1/4"

(311 mm)

15-9/16"

(396 mm)

2-15/16"

(75 mm)

1-3/4" (45 mm)

2-11/16" (68 mm)

1-1/2"

(38 mm)

21 Model #D21040021 Series"

36 Model #D21045036 Series"

55 Model #D21060055 Series"
