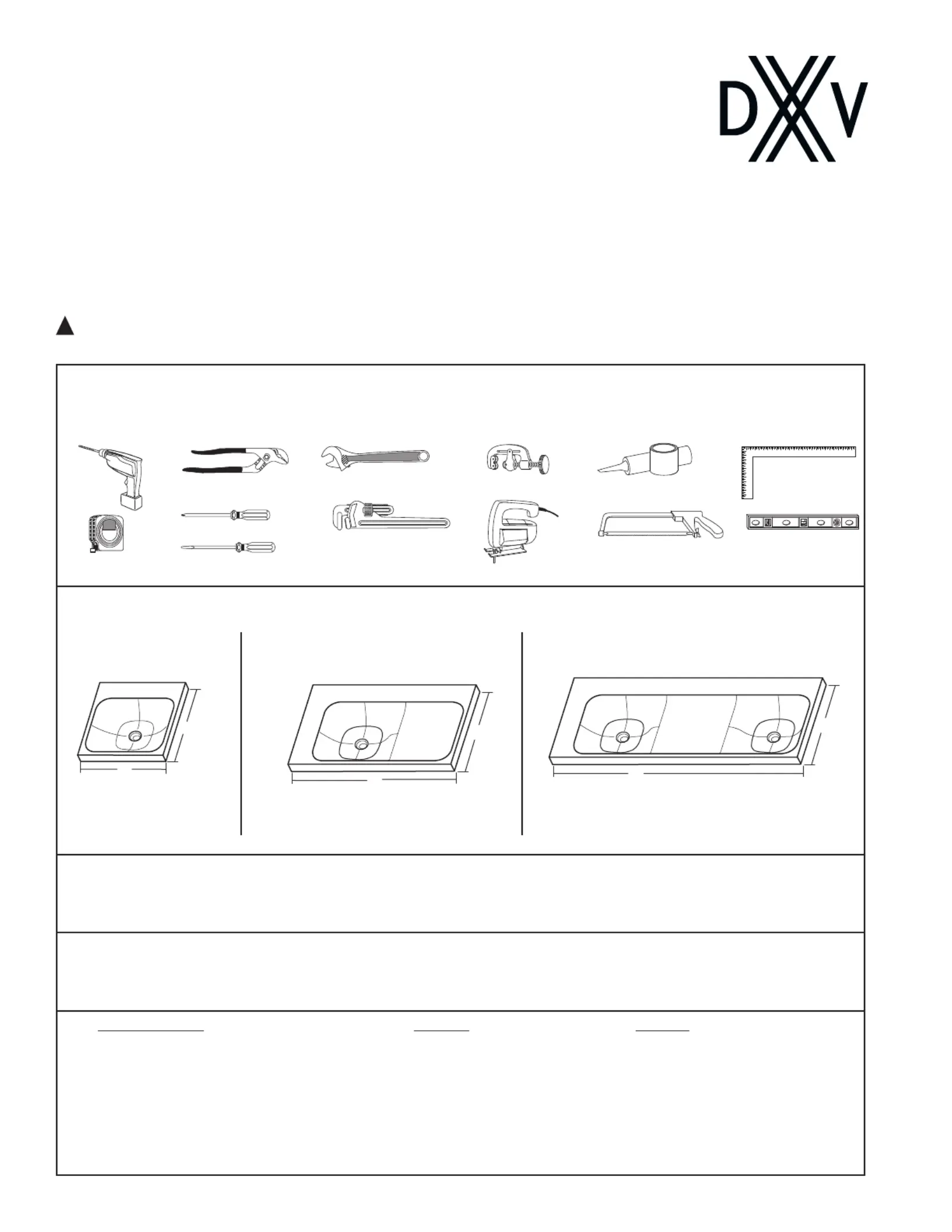

INSTALLATION INSTRUCTIONS
S A V E F O R F U T U R E U S E
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017 7302323-100 (5/17)
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work has begun.
INSTALLATION PROCEDURES
Typical installation includes cabinet support preparation, installation of faucet and pop-up drain, connection of exible water
supply lines, attachment of lavatory to cabinet, sizing and installation of drain and water supplies.
REPLACEMENT USE
When replacing an original unit be sure to shut off water supply before removing the lavatory or disconnecting
water supply lines and drain ttings. Original supplies and shutoff valves should be replaced on installation.
LAVATORY MODELS
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
NOTE: Pictures may not exactly define contour of china and components.
!
21 Model D21040021 Series"
36 Model D21045036 Series"
55 Model D21060055 Series"
36 Model D21050036 Series— Concrete"
DXV Modulus™
Lavatory
Adjustable Wrench
Channel Locks
Regular Screwdriver
Phillips Screwdriver
10'
Saber Saw
Pipe Wrench Level
Tubing Cutter Square
Tape Measure
Electric
Drill
1234567891011
12345678910
11 12 1 3 14 15 16 1 7 18 19 2 0 21 22 2 3 24
Hacksaw
Sealant
55 Model"
D21060055 Series
D: 21" (533 mm)
W: 55" (1397 mm)
D
w
D
w
36 Model"
D21045036 Series
D: 21" (533 mm)
W: 36" (914 mm)
D
W
21 Model"
D21040021 Series
D: 21" (533 mm)
W: 21" (533 mm)
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
- 2 - 7302323-100 (5/17)

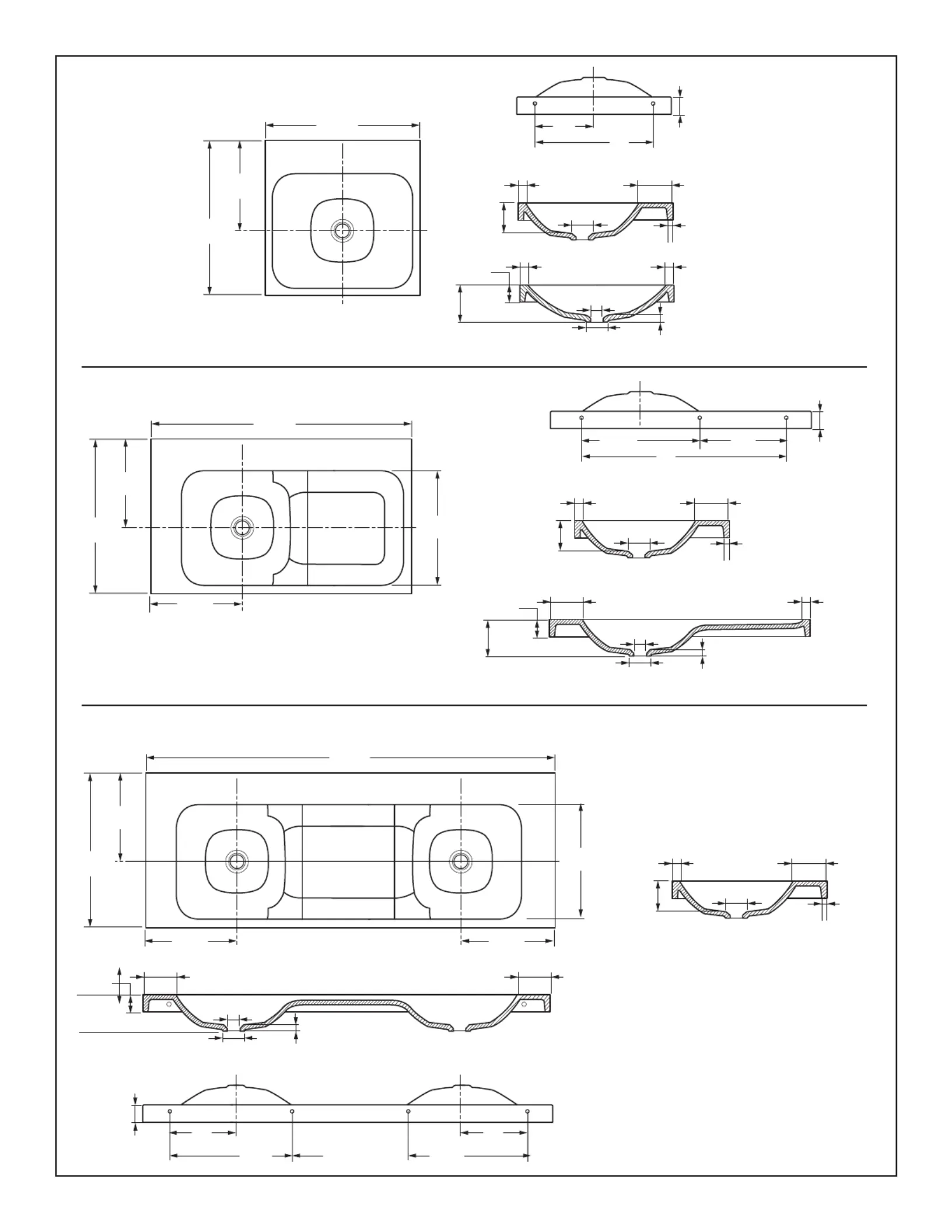

ROUGHING-IN DIMENSIONS:
21"
(533 mm)
21"
(533 mm)
8"
(203 mm) 16"
(406 mm)
5-1/16"
(128 mm)
2-3/8"
(60 mm)
1-1/16"
(26 mm)
15/16"
(24 mm)
1-1/16"
(26 mm)
1-1/16"
(26 mm)
11/16"
(18 mm)
4-1/8"
(104 mm)
4-9/16"
(116 mm)
12-1/4"
(311 mm)
2-15/16"
(75 mm)
1-3/4" (45 mm)
2-11/16" (68 mm)
1-1/2"
(38 mm)
21"
(533 mm)
36"
(914 mm)
12-1/2"
(318 mm)
16"
(406 mm) 36"
(914 mm)
12"
(305 mm)
5-1/16"
(128 mm)
2-3/8"
(60 mm)
4-1/2"
(115 mm)
15/16"
(24 mm)
1-1/16"
(26 mm)
1-1/16"
(26 mm)
11/16"
(18 mm)
4-1/8"
(104 mm)
4-9/16"
(116 mm)
12-1/4"
(311 mm)
15-9/16"
(396 mm)
2-15/16"
(75 mm)
1-3/4" (45 mm)
2-11/16" (68 mm)
1-1/2"
(38 mm)
21"
(533 mm)
55"
(1397 mm)
12-1/2"
(318 mm)
12-1/2"
(318 mm)
16"
(406 mm)
9"
(229 mm)
16"
(406 mm)
9"
(229 mm)
5-1/16"
(128 mm)
2-3/8"
(60 mm)
4-1/2"
(115 mm)
4-1/2"
(115 mm)
15/16"
(24 mm)
1-1/16"
(26 mm)
11/16"
(18 mm)
4-1/8"
(104 mm)
4-9/16"
(116 mm)
12-1/4"
(311 mm)
15-9/16"
(396 mm)
2-15/16"
(75 mm)
1-3/4" (45 mm)
2-11/16" (68 mm)
1-1/2"
(38 mm)
21 Model #D21040021 Series"
36 Model #D21045036 Series"
55 Model #D21060055 Series"
