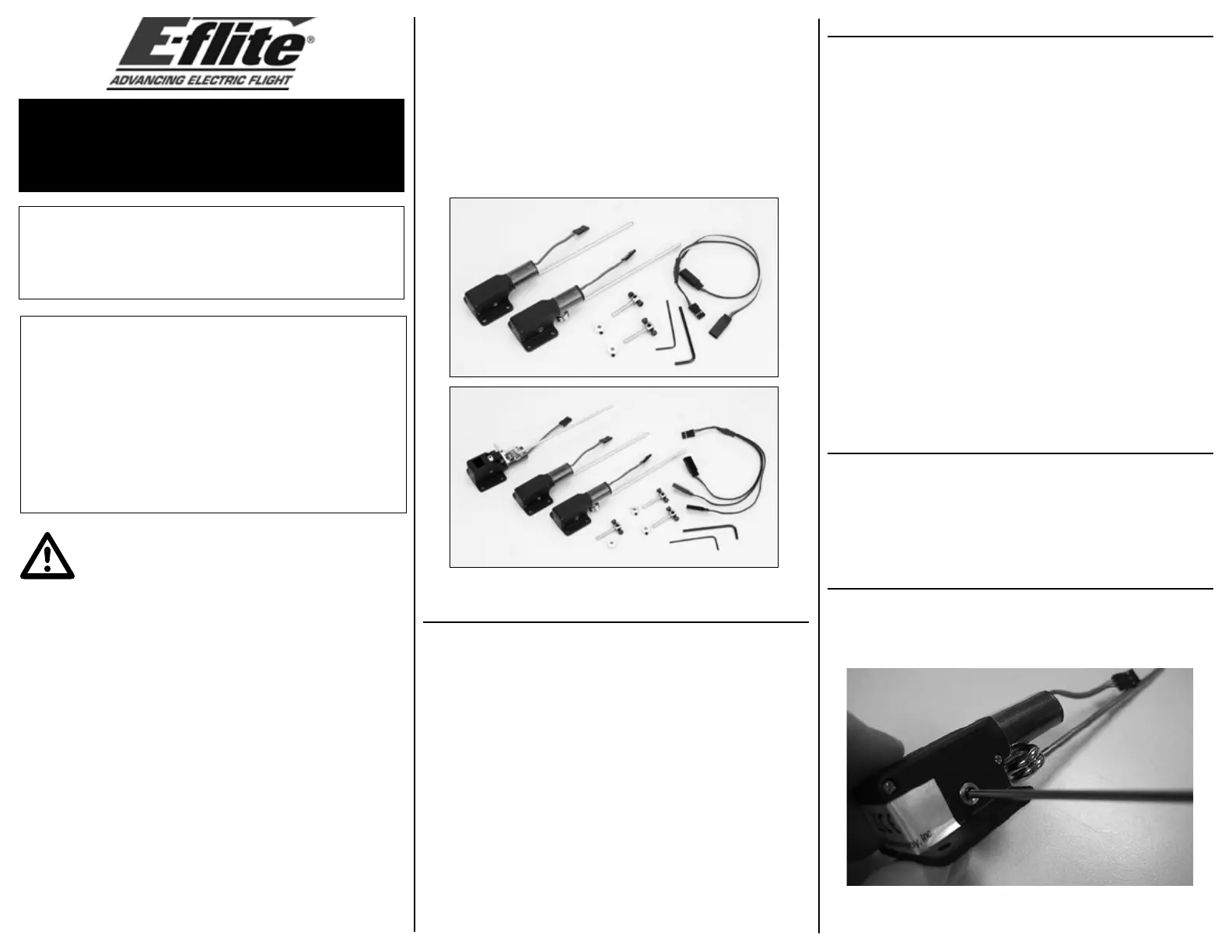

Side 1/4

Note: The EFLG230 tricycle gear set comes

with (1) 90° nose gear and (2) 90° main units.

Parts Available

Tools Required

NOTICE

Installation

EFLG200, EFLG210, EFLG220

EFLG230

15- to 25-Size

Electric Retract

Instructions

All instructions, warranties and other collateral documents are

subject to change at the sole discretion of Horizon Hobby, Inc.

For up-to-date product literature, visit http://www.horizonhobby.

com and click on the support tab for this product.

Meaning of Special Language:

The following terms are used throughout the product

literature to indicate various levels of potential harm when

operating this product:

WARNING: Procedures, which if not properly followed,

create the probability of property damage, collateral

damage, and serious injury OR create a high probability

of supercial injury.

WARNING: Read the ENTIRE instruction manual

to become familiar with the features of the

product before operating. Failure to operate the

product correctly can result in damage to the product,

personal property and cause serious injury.

This is a sophisticated hobby product and NOT a toy. It must be

operated with caution and common sense and requires some

basic mechanical ability. Failure to operate this Product in a

safe and responsible manner could result in injury or damage to

the product or other property. This product is not intended for

use by children without direct adult supervision. Do not attempt

disassembly, use with incompatible components or augment

product in any way without the approval of Horizon Hobby, Inc.

This manual contains instructions for safety, operation and main-

tenance. It is essential to read and follow all the instructions and

warnings in the manual, prior to assembly, setup or use, in order

to operate correctly and avoid damage or serious injury.

Thank you for purchasing the E-ite ® 15- to 25-Size Electric

Retracts. These self-contained units are powered from your

model’s receiver and do not require separate servos.

The retracts are supplied with coil struts installed, plus

adjustable axles, wheel collars, Allen wrenches and a 3-into-1

wire harness (for the tricycle set) or 2-into-1 wire harness (for

main gear set). The nose gear unit is steerable and has a slot in

the sliding steering arm to prevent binding of the steering cable

when retracted.

EFLG20190 90-degree Main Retract Unit

EFLG20185 85-degree Main Retract Unit

EFLG201100L 100-degree Left Rotating Main Unit

EFLG201100R 100-degree Right Rotating Main Unit

EFLG202 Left Main Wire Strut

EFLG203 Right Main Wire Strut

EFLG204 Adjustable Axles

EFLRYH9 Dual Plug Y-harness

EFLG21190 90-degree Nose Retract Unit

EFLG211105 105-degree Nose Retract Unit

EFLG2112 Nose Gear Wire Strut

EFLG2113 Nose Gear Steering Arm

EFLRY9HTR Triple Plug Y-harness

Specications

Current draw

Idle 5mA

Operating 200mA (maximum)

Pulse width trigger points

Down 1.331ms

Up 1.690ms

Operation with FM and DSM

FM 22ms frame rate, 5V signal

DSM 20ms frame rate, 3.3V signal

Sequence time

@ 4.8V 1.25sec

@ 6.0V 1.00sec

@ 7.4V 0.75sec

Operating voltage range: 4.8 – 7.4V

Aircraft weight: 4.0 - 7.0 lb (1.80 – 3.20 kg)

Unit weight: Nose gear 1.7 oz (48.0 g)

Main gear 1.4 oz (39.5 g) each

Pencil Screwdriver

Flat le Threadlock

Safety glasses Rotary tool with cutoff wheel

1.5mm, 2mm, 2.5mm hex wrenches

1. Use a 1.5mm hex wrench to remove the setscrew retaining

the strut in each main gear trunnion. Apply threadlock to the

setscrew and reinstall it.

Nosegear Steering

2. Test t the retract unit in the wing or fuselage to determine

the strut length and axle location. Cut the strut to length using

a cutoff wheel in a rotary tool.

4. Install the wheels on the axles. Slide the brass wheel collar

onto the axle and secure it using a 1.5mm hex wrench. Apply

threadlock to the setscrew to prevent it loosening due to

vibration.

6. Install the retracts in the model using the screws provided

with the kit or those of your own choice. A #4 x 1/2-inch wood

screw works well. You will nd the main units require the use

of a 100-degree countersunk woodscrew while the nose unit

requires a button head woodscrew.

Connect the steering pushrod clevis to the steering arm on

the nosegear.

5. Mark the retract mounting hole locations on the rails using

a pencil and drill appropriately sized holes for the hardware

you intend to use.

3. Make two at spots on the end of the strut with a le and

use a 2.5mm hex wrench to secure the axle to the strut. Apply

threadlock to the threads of the retaining screws so they do

not loosen from vibration.
