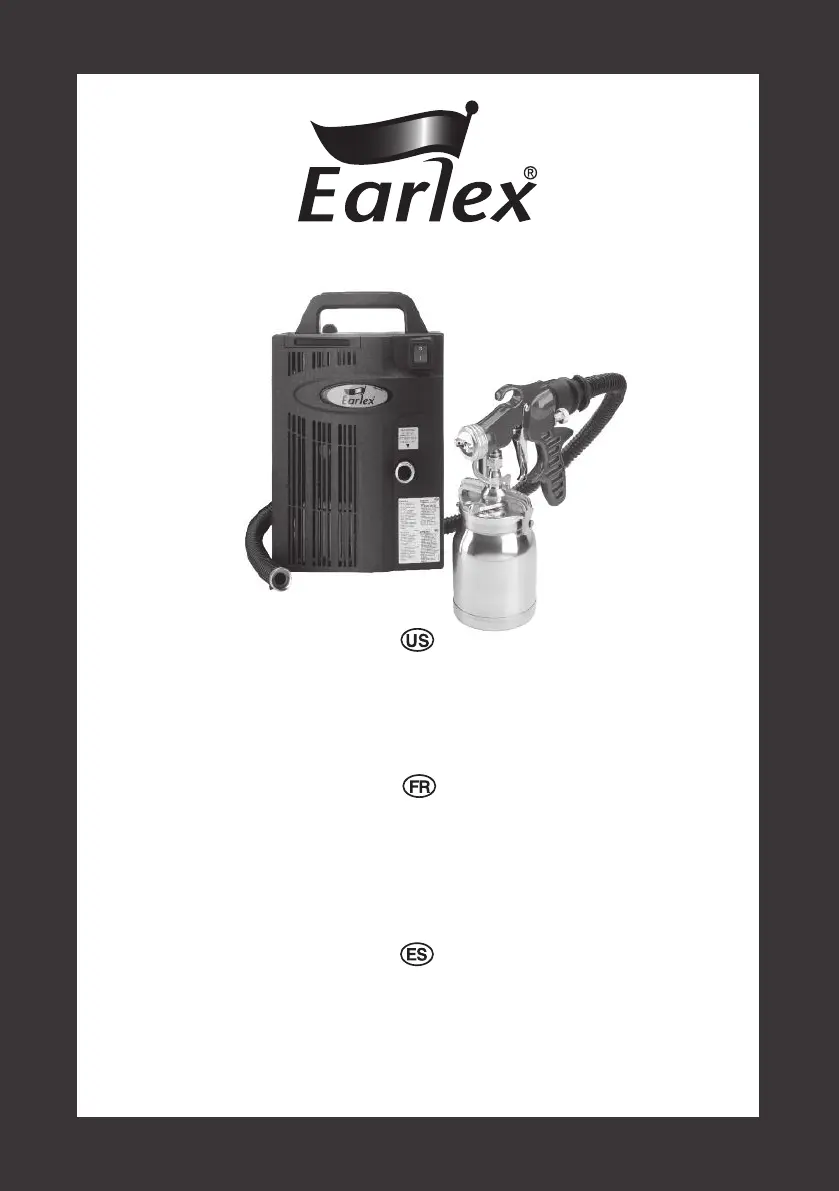

OPERATING INSTRUCTION MANUAL
Thank you for purchasing the professional Earlex low pressure paint system.
This highly versatile HVLP (high volume of air,low pressure painting) system
can be used for a wide variety of applications
.
BEFORE USE – PLEASE READ THE MANUAL AND SAFETY INSTRUCTIONS.
Please retain for future reference
MODE D’EMPLOI
Merci d’avoir choisi le système professionnel de pulvérisation de peinture basse pression
Earlex.Cet appareil est doté du système HVLP (haut volume d’air,basse pression de peinture)
extrêmement polyvalent dont vous pourrez vous servir pour une grande variété d’applications.
AVANTTOUTE UTILISATION,VEUILLEZ LIRE CE MANUEL ET LES INSTRUCTIONS
RELATIVES À LA SÉCURITÉ.
Veuillez conserver ce document afin de le consulter ultérieurement
MANUAL DE INSTRUCCIONES
Gracias por comprar esta unidad profesional de pintura a baja presión Earlex.
Este versátil aparato HVLP (equipo de pintura de gran caudal de aire y baja presión) se
puede utilizar para una gran variedad de aplicaciones.
LEA LAS INSTRUCCIONES DE SEGURIDADY FUNCIONAMIENTO ANTES DE UTILIZAR EL APARATO.
Guarde estas instrucciones para futuras consultas.
EARLEX SPRAY STATION 6900
The substances used with this spray applicator (paint, thinners etc) may contain hazardous,
harmful, explosive or corrosive materials.
The spray applicator must only be used with paints and solvents that have a suitable flash point
for spraying. If in doubt, consult the paint or solvent manufacturer's data
Always ensure there is adequate ventilation when spraying.
NEVER spray near an open flame, including an appliance pilot flame.
NEVER smoke when spraying.
Always disconnect the unit from the mains supply cleaning the spray applicator.
Always ensure the spray area is safe and free from all debris that may present a fire or trip hazard.
NEVER, under any circumstances, point the spray gun at another person or animal. In the
event of injury occurring, seek expert medical advice immediately.
NEVER allow children or unauthorised users to operate or play with the spray equipment.
This equipment is for professional use only.
Always read the paint manufacturer's thinning instructions before use.
Always wear the correct protective face mask when spraying. We also recommend wearing
gloves, goggles and overalls.
After every use ensure that you clean the spray gun thoroughly and grease the gland washer.
Use only genuine manufacturer replacement parts.
Only use the spray equipment as detailed in these instructions.
Do not use the air hose or mains cable to pull the HVLP unit.
Check the hoses, hose connectors and mains cable daily. Any worn or damaged parts should
be replaced immediately.
This appliance is recommended for household use only.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
WARNING: The substances used with this Spray Gun (paints, solvents, etc.) may contain
dangerous, harmful, explosive or corrosive materials. ALWAYS COMPLY WITH THE
SAFETY INSTRUCTIONS ISSUED WITH THIS PRODUCT AND THE MATERIAL BEING USED.
Only use the Spray Station as described in this manual.
TECHNICAL SPECIFICATION:
Wattage: 1100 Watts Container capacity: 1 litres
Voltage: 120 V (60hz) Air hose length: 4.5 m
Air output: 22L/sec Dynamic air pressure: 0.30 bar
Sound pressure level: 88 dB (A) Maximum viscosity: 250DIN/sec
2
No Description Part No
1. Air Cap Ring L0151
2. Air Cap L0517
3. Air Distributor Plate L0162
4. 0.08” (2.0mm) Fluid Tip L0157
5. Fluid Tip Seal L0159
6. Pivot Screw L0179
7. Washer L0195
8. Main Body Assy L0180
9. 0.08” (2.0mm) Fluid Needle L0166
10. Adaptor L0174
11. Needle Spring L0175
12. Fluid Adjusting Screw L0176
13. Pivot L0178
No Description Part No
14. Flexible Tube Air Feed L0182
15. Gland Nut L0173
16. Gland Seal (2 pcs) L0168
17. Trigger L0177
18. Centre Bolt & Pick Up Tube Assy L0183
19. Yoke L0184
20. Clamp Lever L0185
21. Shim L0186
22. Lid Assy L0187
23. Gasket L0188
24. Centre Bolt Nut L0189
25. Paint Container L0190
26. Filter (x2) N0087
27. Air Hose N0212
SAFETY OPERATING INSTRUCTIONS
PLEASE READ BEFORE USE
PARTS LIST
US
Fig.1
Optional Accessory to Purchase 30ʼ Hose - N0099
