User’s Guide

™

earthworksaudio.com

July 11, 2018

Pin 1

“Shield”

Pin 2

“+”

Pin 3

“ ”-

Description

The Earthworks SR40 is a directional pre-polarized con-

denser microphone with a rst-order cardioid pickup pat-

tern directly coupled to a dedicated wideband, low out-

put impedance transformerless preamplier. The SR40

requires a standard 24-48V Phantom Power supply. It

features a frequency response from 20Hz to 40kHz, fast

impulse response, very low handling noise, uniform po-

lar pattern, and high SPL handling. The SR40 provides

excellent uncolored rejection of sounds arriving off-axis.

Each SR40 microphone is delivered with its own calibra-

tion chart providing its individually measured frequency

response curve. A mounting clip is included with the mi-

crophone.

Applications

The Earthworks SR40 is easy to operate. Connect the

microphone to a microphone preamplier supplying 24-

48V phantom power using a standard XLR microphone

cable. Please allow up to one minute for the microphone

to settle. Plugging in the microphone “hot” (phantom

power already present at the input) will not damage the

microphone, and is actually preferred for faster settling.

It is normal for any phantom powered mic to cause a

“pop” in the audio or recording system when plugged in

or powered up. Make sure to mute the signal to speakers

or headphones when phantom power is rst applied to

the microphone.

The excellent performance characteristics of the SR40

allow it to be utilized for a very wide range of applica-

tions. In the studio or on stage the SR40 is an ideal

choice for a variety of instruments including sax, ute,

trumpet, guitar, piano, and percussion. It is superior for

vocals or choir because it doesn’t spotlight; rather, it uni-

formly picks up an entire section. The SR40 is popular

among concert tapers because of its open uncolored

sound and among jazz enthusiasts for its ability to cap-

ture explosive performances while retaining the subtle

nuances of artistic expression.

This microphone has no removable parts.

Care of Microphone

The Earthworks SR40 microphone is a precision instru-

ment designed and built to provide years of top perfor-

mance. Follow these simple rules to help to protect your

investment in the SR40:

Avoid touching the front protective screen.

Never attempt to disassemble the microphone –

it cannot be opened.

Avoid extreme heat and condensing humidity.

Allow the microphone to warm up in the case when

bringing it in from the cold weather.

Rough handling may damage the microphone even

if no visible marks are left.

When not in use keep the SR40 in its case.

•

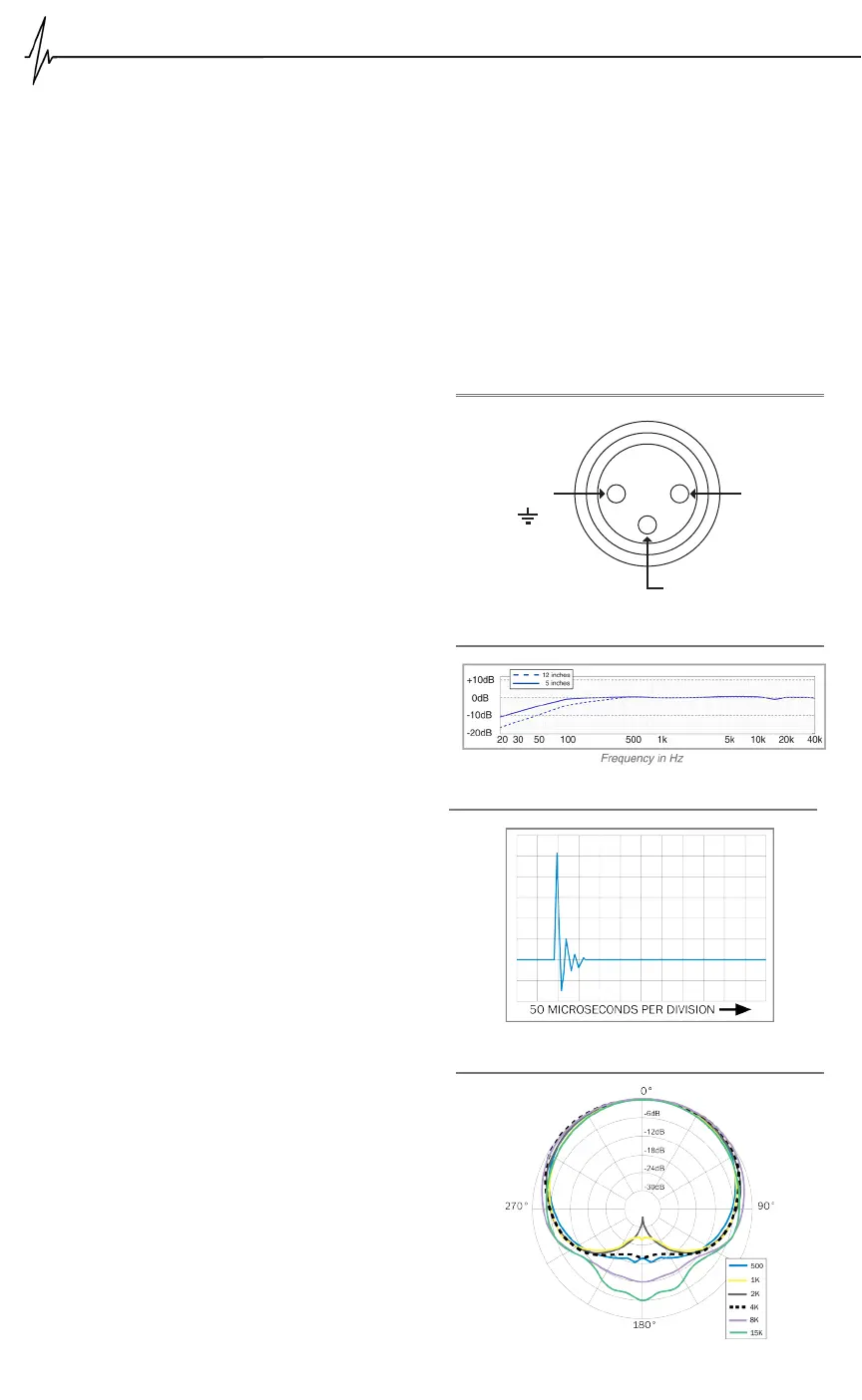

XLR Output Connector Assignment of SR40

Specications

Frequency response: 20Hz to 40kHz

Polar Pattern: Cardioid

Sensitivity: 20mV/Pa (-34dBV/Pa)

Power Requirements: 24-48V Phantom, 10mA

Peak Acoustic Input: 139dB SPL

Output: XLR-3

Output Impedance: 65Ω, balanced between pins 2 & 3

Minimum Load: 600Ω btw. pins 2 & 3

Noise: 16dB, A equivalent

Dimensions L x D: 229 x 22 mm (9 x .860 in.)

Weight: 225g (.5lb)

Impulse Response of SR40 (typical)

Polar Response of SR40 (typical)

Frequency Response of SR40 (typical)

Specications are subject to change without notice.
