User’s Guide

TC25

Product Registration

To help you get the most out of your

Earthworks purchase, please take a

moment and register your product with us

online at earthworksaudio.com/register.

Service & Repair

If you have any problems with your

Earthworks products, please contact our

Service & Repair Department.

Email: returns@earthworksaudio.com

Telephone: (603) 654-2433, ext. 119

MADE IN USA

Omni High Definition

Microphone

™

for Loud Sources

Printed in USA

earthworksaudio.com

Frequency Response of TC25 (typical)

Description

The Earthworks TC25 is an omnidirectional (pressure)

pre-polarized condenser microphone directly coupled to

a dedicated wideband, low output impedance pream-

plier. The TC25 requires a standard 24-48V phantom

power supply. It features a linear free-eld frequency re-

sponse from 9Hz to 25kHz, fast impulse response, very

low handling noise, uniform polar pattern, and very high

SPL handling capabilities. It exhibits no proximity effect.

Applications

The Earthworks TC25 is easy to operate. Connect the

microphone to a microphone preamplier supplying 24-

48V phantom power using a standard XLR microphone

cable. Please allow up to one minute for the microphone

to settle. Plugging in the microphone “hot” (phantom

power already present at the input) will not damage the

microphone, and is actually preferred for faster settling.

It is normal for any phantom powered mic to “pop” when

plugged in or powered up. Make sure to mute the signal

to speakers or headphones when phantom power is rst

applied.

The TC25 is designed specically for drums and percus-

sion. The TC25 has a brilliance that is ideal for drum

overheads, percussion, Leslie speakers, guitar and

bass. This versatile microphone is great for general stu-

dio use and is an exceptional value. It has no handling

noise, no proximity effect, and is very forgiving in terms

of placement.

A mounting clip is included with the microphone. This

microphone has no removable parts.

Care of Microphone

The Earthworks TC25 microphone is a precision instru-

ment designed and built to provide years of excellent

performance. Following these simple rules will help to

protect your investment in the TC25:

TC25

Avoid touching the front protective screen.

Never attempt to disassemble the microphone –

it cannot be opened.

Avoid extreme heat and condensing humidity. Allow the

microphone to warm up in the case when bringing it in

from the cold weather.

Rough handling may damage the microphone even if no

visible marks are left.

When not in use keep the TC25 in its case.

•

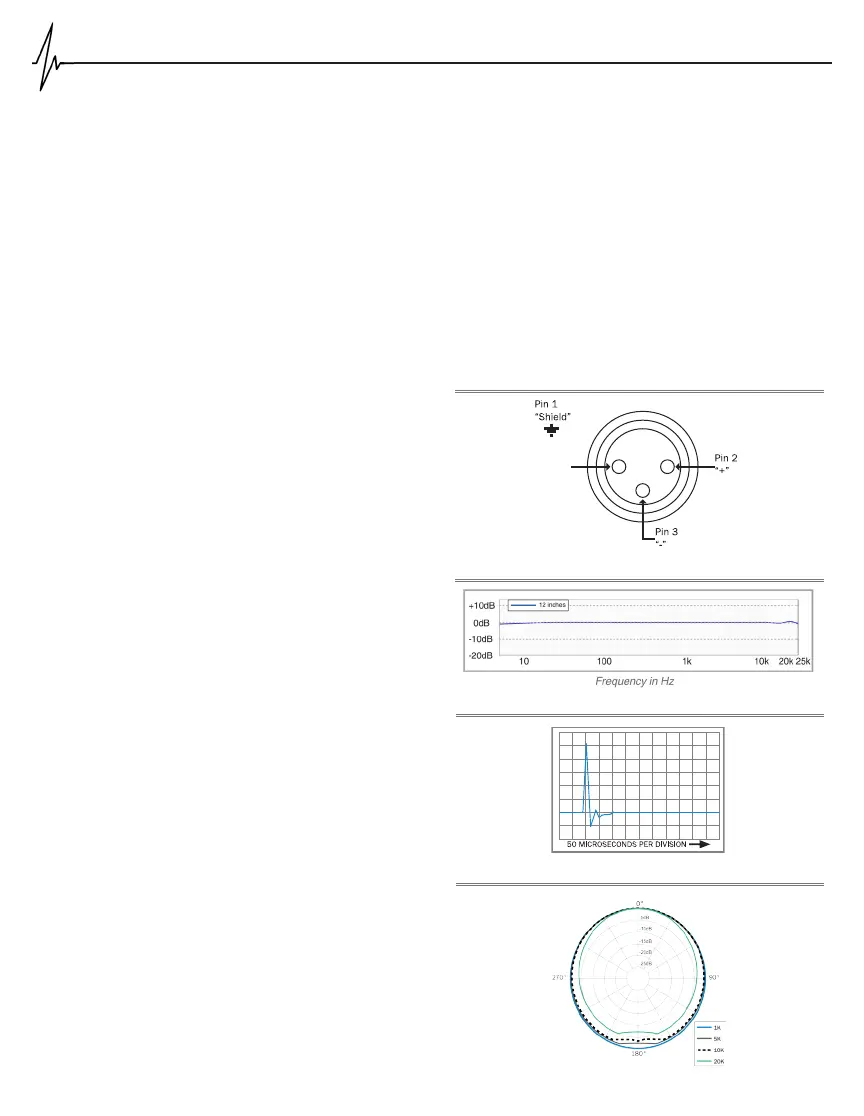

XLR Output Connector Assignment of TC25

Specications

Frequency response: 9Hz to 25kHz +1/-3dB

Polar Pattern: Omnidirectional

Sensitivity: 8mV/Pa (Typical)

Power Requirements: 24-48V Phantom, 10mA

Peak Acoustic Input: 150dB SPL

Output: XLR-3

Output Impedance: 65Ω, balanced between pins 2 & 3

Minimum Load: 600Ω btw. pins 2 & 3

Noise: 26dB, A equivalent

Dimensions L x D: 165 x 22 mm (6.5 x .860 in.)

Weight: 160g (.35lb)

Impulse Response of TC25 (typical)

Polar Response of TC25 (typical)

Specications are subject to change without notice.
