Eastron SDM230-DR User Manual

Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Email: sales@eastrongroup.com

Add:No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314001, China. Web: www.eastrongroup.cn

- 1 -

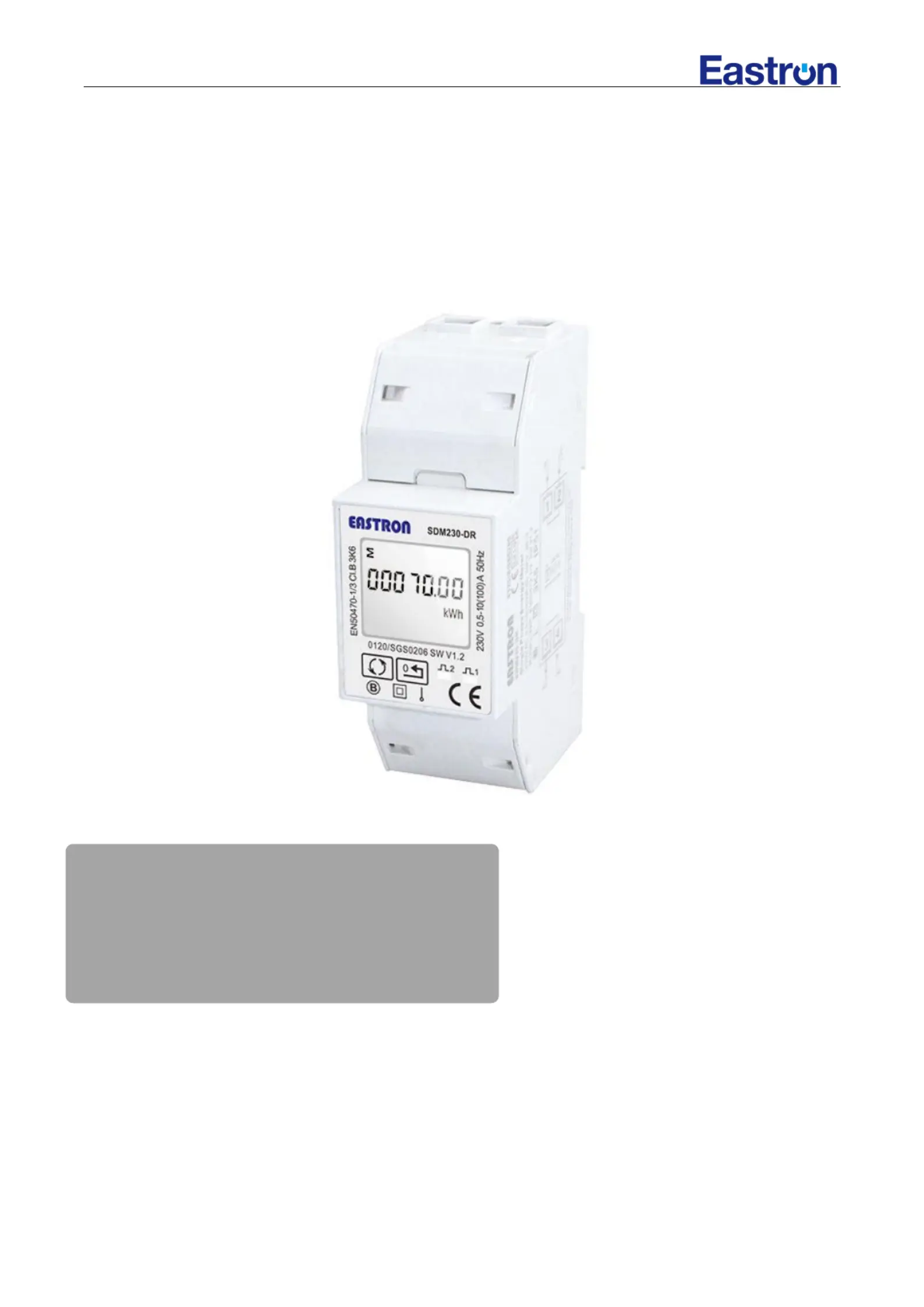

SDM230 DR

Single-Phase Two Module DIN Rail Meters

Measure total active energy

Two pulse outputs

Din rail mounting 35mm

100A direct connection

Better than Class 1 / B accuracy

User Manual V1.1

Eastron SDM230-DR User Manual

Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Email: sales@eastrongroup.com

Add:No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314001, China. Web: www.eastrongroup.cn

- 2 -

Application

The energy-meters “with a white back-lighted LCD screen for prefect reading” are used to measure single-phase

like residential, Utility and Industrial application. The unit measures and displays various important electrical

parameters.

PART 1 Specification

General Specifications

Voltage AC (Un) 230V

Voltage Range 176~276V AC

Base Current (Ib) 10A

Max. Current (Imax) 100A

Mini Current (Imin) 0.5A

Starting current 0.4% of Ib

Power consumption <2W/10VA

Frequency 50Hz(±10%)

AC voltage withstand 4KV for 1 minute

Impulse voltage withstand 6KV-1.2uS waveform

Overcurrent withstand 30 Imax for 0.01s

Pulse output rate 1000imp/kWh (Import)

1000imp/kWh (Export)

Display LCD with white backlit

Max. Reading 999999.9 kWh

Accuracy

Active energy Class 1 IEC62053-21

Environment

Operating temperature -25 to +55℃ ℃

Storage and transportation temperature -40 to +70℃ ℃

Reference temperature 23 2℃± ℃

Relative humidity 0 to 95%, non-condensing

Altitude up to 2000m

Warm up time 5s

Installation category CAT II

Mechanical Environment M1

Electromagnetic environment E2

Degree of pollution 2
