Side 1/13

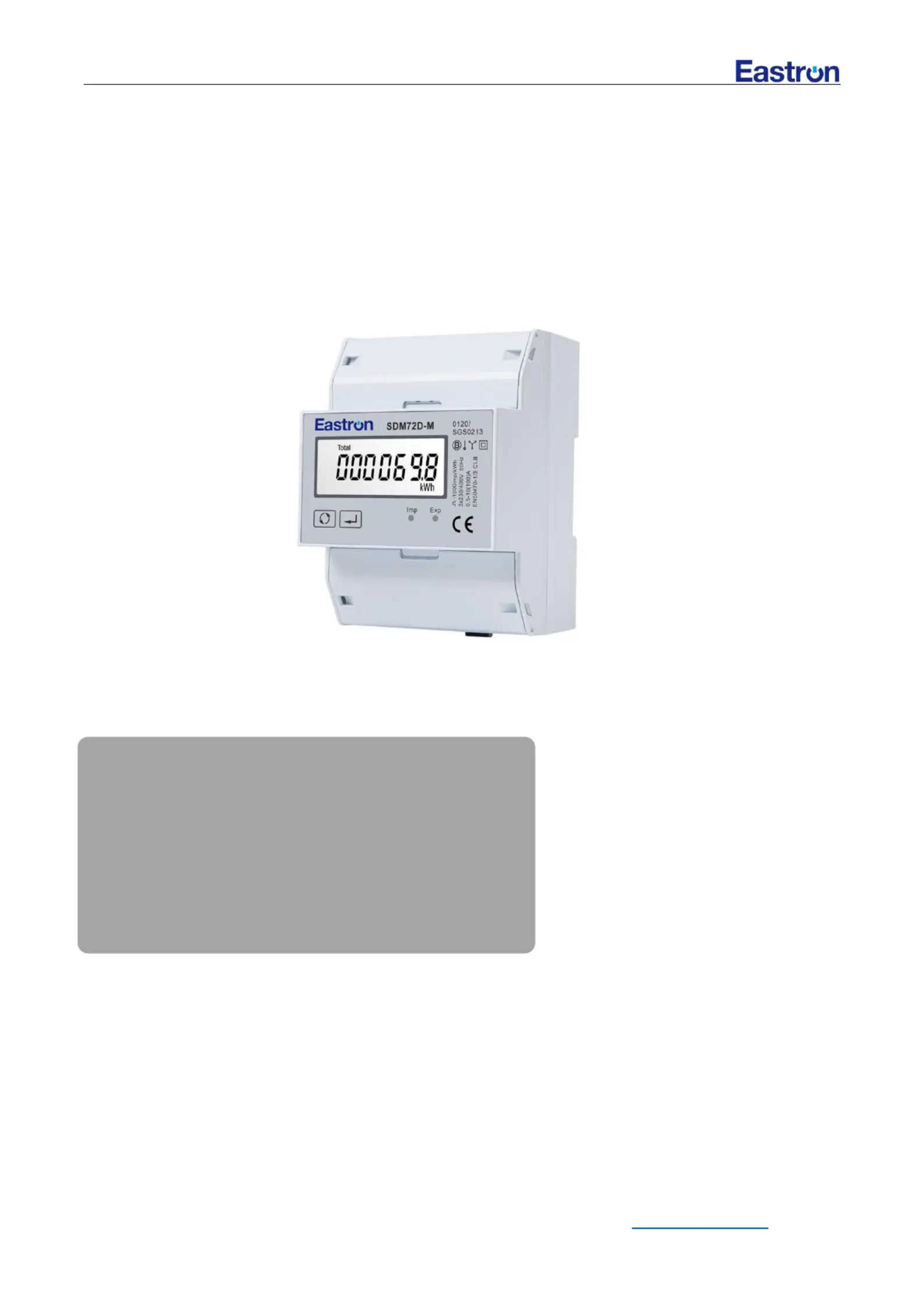

Eastron SDM72D-M-1 User Manual V1.4
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Email: sales@eastrongroup.com
Address: No.52, Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314000, China. Web: www.eastrongroup.com
- 1 -
Measures active kWh & W.
Resettable partial energy
Bi-directional measurement IMP & EXP
Pulse Output
Din rail mounting 35mm
Direct connection, up to 100A
Better than Class 1/ B accuracy
SDM72D-M-1
Three Phase Four Wire Energy Meter
User Manual V1.4
2023
Eastron SDM72D-M-1 User Manual V1.4
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Email: sales@eastrongroup.com
Address: No.52, Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314000, China. Web: www.eastrongroup.com
- 2 -
Introduction
The SDM72D-M-1 is digital 3 phase 4 wire energy meter with a white back-lighted LCD screen for perfect reading.
The unit measures and displays active energy (kWh) and power ( W), imported and exported. A resettable partial
energy is provided, so the user can easily check the energy imported and energy exported during a certain period.
SDM72D-M-1 supports max.100A direct connection, saves the cost and avoid the trouble to connect external CTs,
giving the unit a cost-effective and easy operation. Built-in interfaces provides pulse and RS485 Modbus RTU
outputs. Configuration is password protected.
PART 1 Specification
General Specifications
Voltage AC (Un) 3x230(400)V
Voltage Range 80~120% Un
Base Current (Ib) 10A
Max. Current (Imax) 100A
Mini Current (Imin) 0.5A
Starting current 0.4% of Ib
Power consumption
≤
2W/10VA
Frequency 50/60Hz(non-MID)
50Hz(MID)
AC voltage withstand 4KV for 1 minute
Impulse voltage withstand 6KV-1.2uS wavform
Overcurrent withstand 30 max for 0.01s
Pulse output rate 1000imp/kWh
Display LCD with backlit
Max. Reading 999999.9kWh
Active energy Class 1 IEC62053-21
Class B EN50470-1/3
Reactive energy Class 2 IEC62053-23
Unit Characteristics
The Unit can measure and display:
Power
Active energy (imported and exported)
Pulse output indicates real-time energy measurement. An RS485 output allows remote monitoring from another
display or a computer.
RS485 Serial Modbus RTU
–
–
–
––
This unit uses an RS485 serial port with Modbus RTU protocol to provide a means of remotely monitoring and
