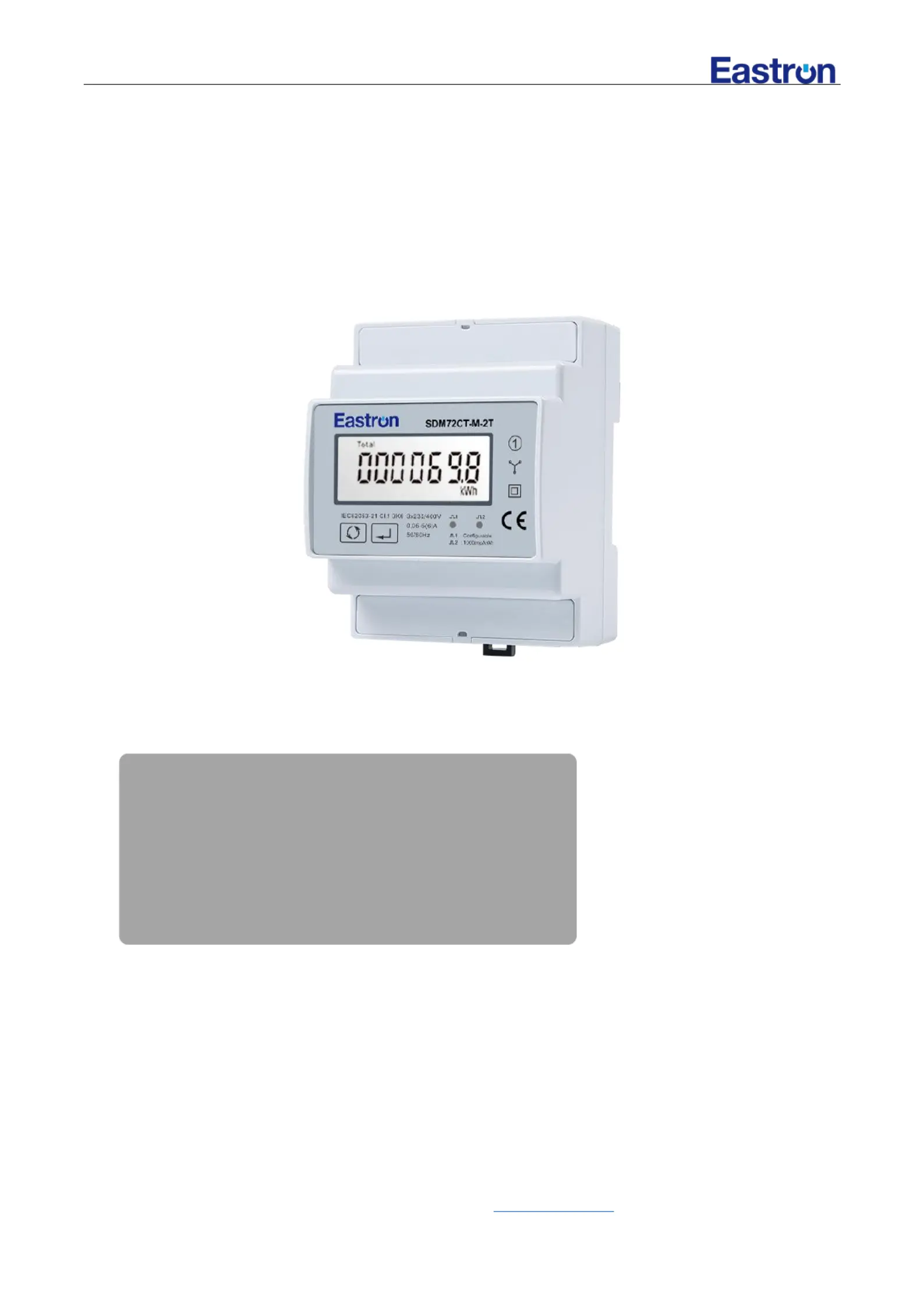

Eastron SDM72CT-M User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 83698882 Fax: 0086-573-83698883
Address: No.52 Dongjin Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: sales@eastrongroup.com
- 1 -
Measures kWh, kVArh, W, Var, VA, PF, Hz, V, A etc.
Bi-directional measurement IMP & EXP
Two pulse outputs
RS485 Modbus
1/5A CT connection
Better than Class 1/ B accuracy
SDM72CT-M-2T
Three Phase Four Wire Energy Meter
User Manual V1.0
2023
Eastron SDM72CT-M User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 83698882 Fax: 0086-573-83698883
Address: No.52 Dongjin Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: sales@eastrongroup.com
- 2 -
Introduction
The SDM72CT-M-2T is digital three phase 4 wire energy meter with a white back-lighted LCD screen for perfect
reading. The unit measures and displays the characteristics of three phase four wires(3p4w) supply, including
voltage, frequency, current, power ,active and reactive energy, imported or exported. Energy is measured in terms
of kWh, kVArh. The requisite current input(s) are obtained via current transformers(CT).
This meter can be configured to work with a wide range of CTs, giving the unit a wide range of operation. Built-in
interfaces provides pulse and RS485 Modbus RTU outputs. Configuration is password protected
PART 1 Specification
General Specifications
Voltage AC (Un) 3x230(400)V
Voltage Range 80~120% Un
Base Current (Ib) 5A CT input
Max. Current (Imax) 120% of Ib AC
Mini Current (Imin) 5% of Ib AC
Starting current 0.4% of Ib
Power consumption <2W/10VA
Frequency 50/60Hz
AC voltage withstand 4KV for 1 minute
Impulse voltage withstand 6KV-1.2uS wavform
Overcurrent withstand 20Imax for 0.5s
Pulse output rate Configurable ( Pulse 1)
1000imp/kWh (Pulse 2)
Display LCD with backlit
Max. Reading 9999999kWh
Active energy Class 1 IEC62053-21
Unit Characteristics
The Unit can measure and display:
Line voltage of all phases
Frequency
Line Currents of all phases
Power and power factor
Active energy imported and exported
Reactive energy imported and exported
Two pulse output indicates real-time energy measurement. An RS485 output allows remote monitoring from
another display or a computer.
