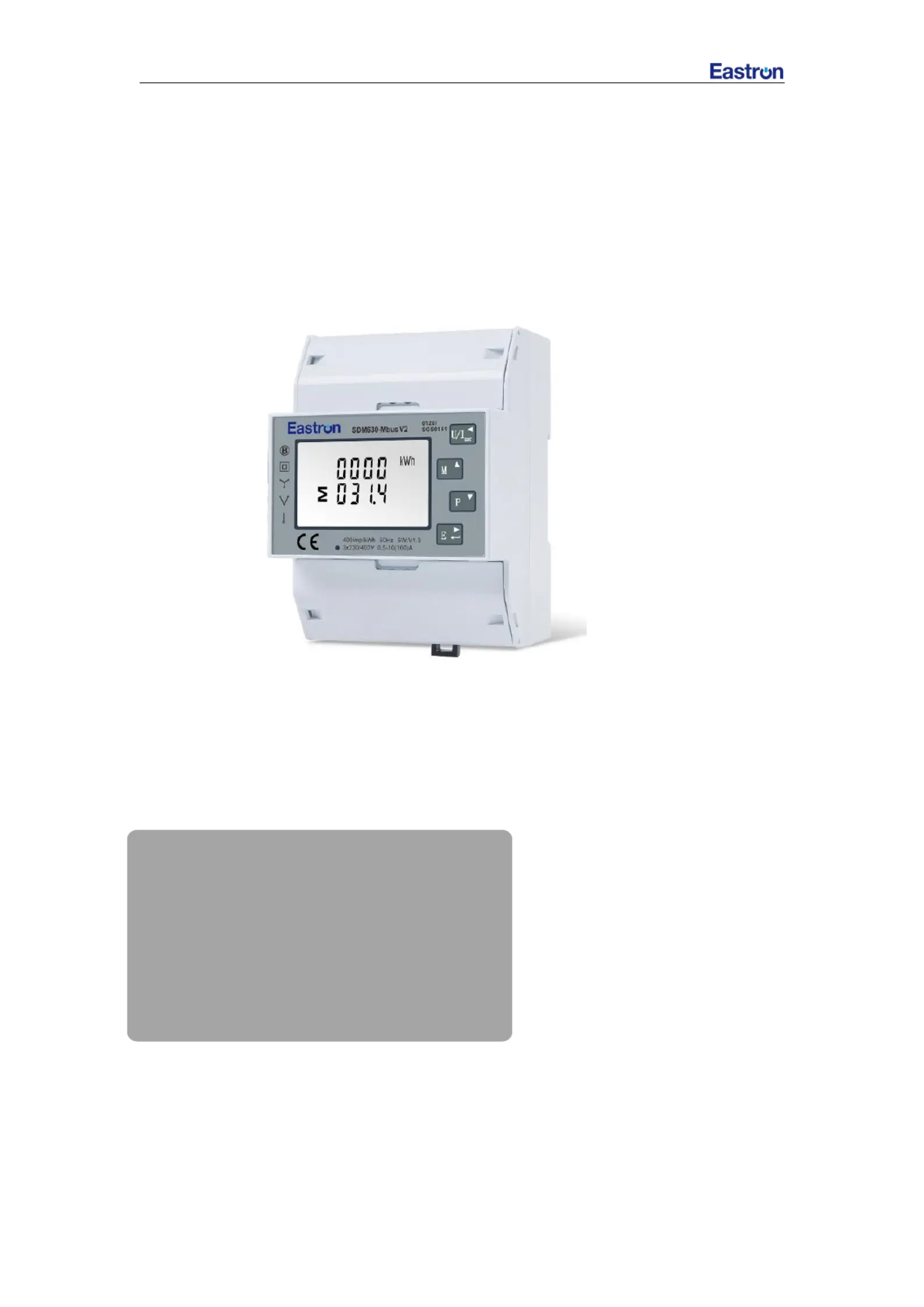

EASTRON SDM630-Mbus V2 User Manual
Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314000, China.
Tel: 0086-573-83698881 Email:sales@eastrongroup.com Web: www.eastrongroup.com
SDM630-Mbus V2
DIN Rail Smart Meter for Single and Three Phase Electrical Systems
Measures kWh Kvarh, KW, Kvar, KVA, P,
F, PF, Hz, dmd, V, A, etc.
Bi-directional measurement IMP & EXP
Mbus EN13753-3
Din rail mounting 35mm
100A direct connection
Better than Class 1 / B accuracy
USER MANUAL
2022 V1.3
EASTRON SDM630-Mbus V2 User Manual
Address: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314000, China.
Tel: 0086-573-83698881 Email:sales@eastrongroup.com Web: www.eastrongroup.com
1
Introduction
The SDM630-Mbus V2 measures and displays the characteristics of single phase two wires
(1p2w), three phase three wires (3p3w,) and three phase four wires(3p4w) supplies, including
voltage, frequency, current, power ,active and reactive energy, imported or exported. Energy is
measured in terms of kWh, kVArh. Maximum demand current can be measured over preset
periods of up to 60 minutes. In order to measure energy, the unit requires voltage and current
inputs in addition to the supply required to power the product.
SDM630-Mbus V2 supports Max. 100A direct connection, saves the cost and avoid the trouble to
connect external CTs, giving the unit a cost-effective and easy operation. Built-in interfaces
provides pulse and Mbus outputs. Configuration is password protected.
Unit Characteristics
The Unit can measure and display:
Line voltage and THD% (total harmonic distortion) of all phases
Line Frequency
Currents, Current demands and current THD% of all phases
Power, maximum power demand and power factor
Active energy imported and exported
Reactive energy imported and exported
The unit has password-protected set-up screens for:
Changing password
Supply system selection 1p2w, 3p3w,3p4w
Demand Interval Time(DIT)
Reset for demand measurements
Pulse output duration
Two pulse output indicates real-time energy measurement. An Mbus output allows remote
monitoring from another display or a computer.
Mbus
This uses an MBus port with EN13753-3 protocol to provide a means of remotely monitoring and
controlling the Unit.
Set-up screens are provided for setting up the MBus port.
Pulse output
This provides two pulse outputs that clock up measured active and reactive energy. The constant
of pulse output 2 for active energy is 400imp/kWh (unconfigurable), its width is fixed at 100ms.
The default constant of configurable pulse output 1 is 400imp/kWh, default pulse width is
100ms.The configurable pulse output 1 can be set from the set-up menu.
