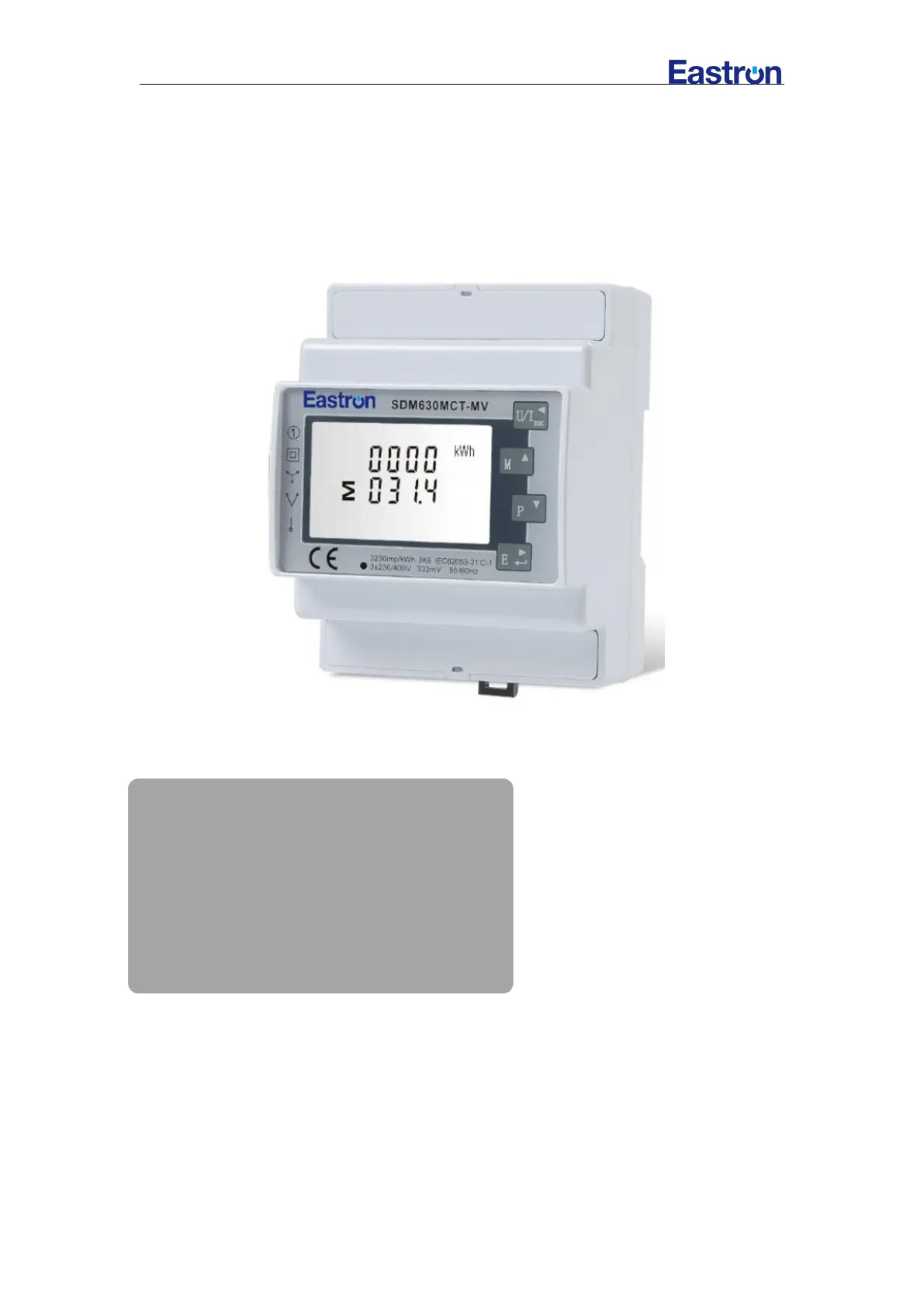

SDM630MCT-MV User Manual V 3.7

SDM630MCT-MV

DIN Rail Energy Meter for Single and Three Phase Electrical Systems

 Measures kWh kVArh, kW, kVAr, kVA, P,

F, PF, Hz, dmd, V, A, THD,etc.

 Bi-directional measurement IMP & EXP

 Two pulse outputs

 RS485 Modbus

 Din rail mounting 35mm

 0.333V CT connection

 Better than Class 1 / B accuracy

USER MANUAL V3.7

SDM630MCT-MV User Manual V 3.7

Introduction

The SDM630MCT-MV measures and displays the characteristics of single phase two wire (1p2w),

three phase three wire (3p3w,) and three phase four wire (3p4w) supplies, including voltage,

frequency, current, power ,active and reactive energy, imported or exported. Energy is measured

in terms of kWh, kVArh. Maximum demand current can be measured over preset periods of up to

60 minutes. In order to measure energy, the unit requires voltage and current inputs in addition

to the supply required to power the product. The requisite current input(s) are obtained via

current transformers(CT).

SDM630MCT-MV can be configured to work with a wide range of CTs with 0.333V output, giving

the unit a wide range of operation. Built-in interfaces provides pulse and RS485 Modbus RTU

outputs. Configuration is password protected.

This unit can be powered from a separate auxiliary (AC or DC)supply. Alternatively it can be

powered from the monitored supply, where appropriate.

Unit Characteristics

The Unit can measure and display:

 Line voltage and THD% (total harmonic distortion) of all phases

 Line Frequency

 Currents, Current demands and current THD% of all phases

 Power, maximum power demand and power factor

 Active energy imported and exported

 Reactive energy imported and exported

The unit has password-protected set-up screens for:

 Changing password

 Supply system selection 1p2w, 3p3w,3p4w

 Demand Interval time

 Reset for demand measurements

 Pulse output duration

Two pulse output indicates real-time energy measurement. An RS485 output allows remote

monitoring from another display or a computer.

Current Transformer Primary Current

The unit can be configured to operate with CT with 0.333V output. The secondary CT is fixed

0.333V, and the primary is optional.

RS485 Serial – Modbus RTU

This uses an RS485 serial port with Modbus RTU protocol to provide a means of remotely

monitoring and controlling the Unit

Set-up screens are provided for setting up the RS485 port.
