Eastron SMART X96-1A User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: sales@eastrongroup.com

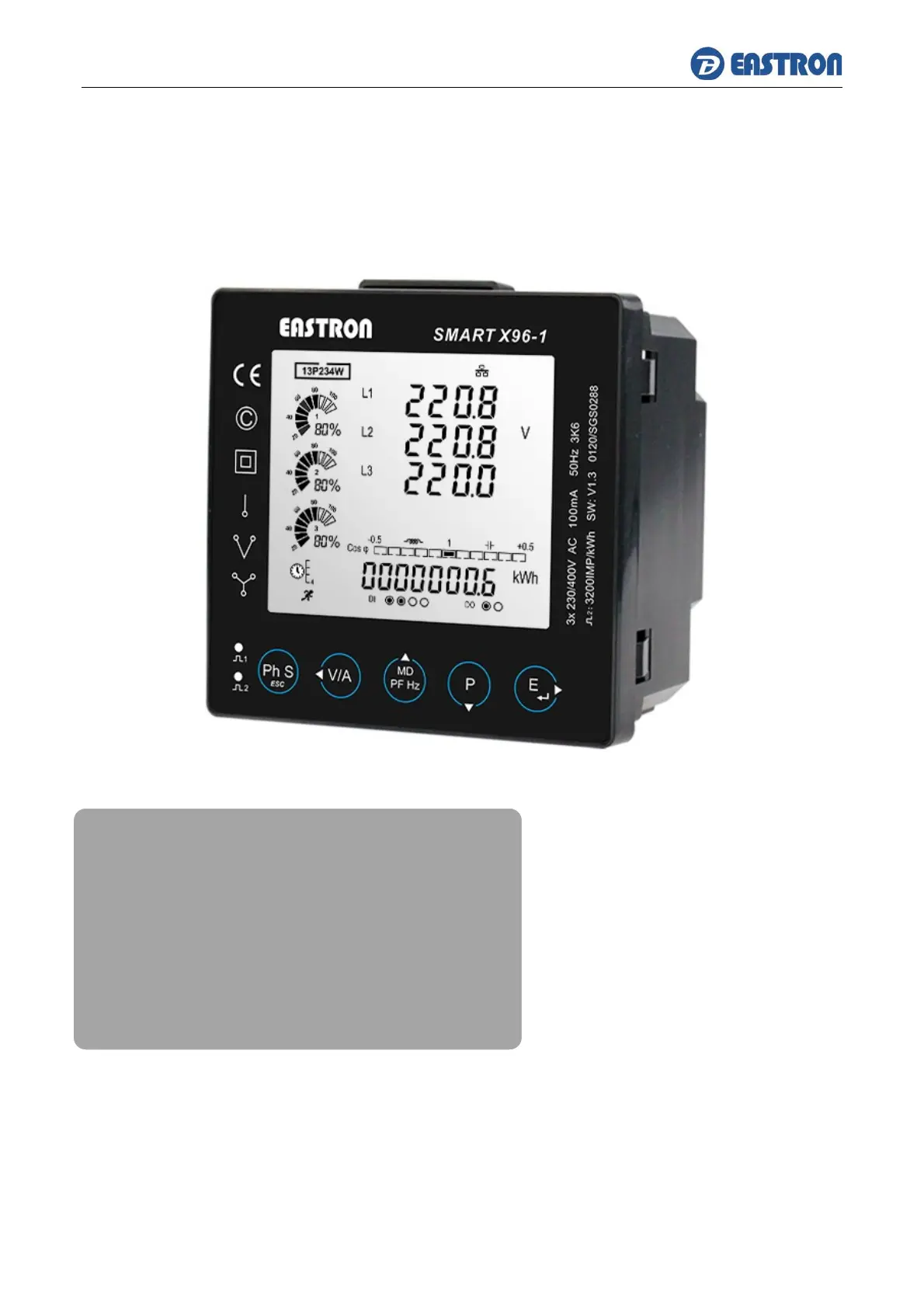

SMART X96-1A
Smart Power Analyzer for Single and Three Phase System
Measures kWh, kVArh, KW, kVAr, kVA, PF, Hz, dmd, V, A, etc.
Up to 63
rd
THD and IHD
Bi-directional measurement IMP & EXP
CT and PT operated
2 Pulse outputs
RS485 Modbus RTU communication
Bar Graph for power indication
Three phase self-power supply
Backlit LCD display for full viewing angles
Accuracy class 0.5s
User Manual V1.6
Eastron SMART X96-1A User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: sales@eastrongroup.com
Application
The multifunction energy analyzer SMART X96 series is a top new-generation intelligent panel meter, used not
only in the electricity transmission and power distribution system, but also in the power consumption
measurement and analysis in high voltage intelligent power grid.
This document provides operating, maintenance and installation instructions for the Eastron SMART X96 series.
The unit measures and displays the characteristics of single phase two wires, three phase three wires and three
phase four wires supplies, including voltage, frequency, current, power and active and reactive energy,
imported or exported, Harmonic, Power factor, Max. Demand etc. Energy is measured in terms of kWh, kVArh.
Maximum demand current can be measured over preset periods of up to 60minutes. In order to measure
energy, the unit requires voltage and current inputs in addition to the supply required to power the product.
The requisite current input(s) are obtained via current transformers The SMART X96 can be configured to work
with a wide range of CTs, giving the unit a wide range of operation. Built-in interfaces provide pulse and RS485
Modbus RTU outputs. Configuration is password protected.
PART 1 Specification
Input
Norminal input voltage 50-276V AC(L-N) 87-480V AC(L-L)
Max.short duration input voltage 2x nominal voltage for 0.5 second
Nominal input voltage burden < 0.2VA per phase
Nominal input current 100mA
Nom. input current burden < 0.1VA
Max. continuous input overload current 120% of nominal
Max. short duration input current 20x nominal current for 0.5 second
Starting current 0.08% Ib
Power Supply
Operating range three phase self-power supply
Supply burden <2W/ 10VA
Measured Range
Voltage(V) 50-276V AC(L-N) 87-480V AC(L-L)
Current(A) 5-120% of nominal
Frequency(Hz) 45- 66 Hz
Power(W, VAr, VA) 5-120% of nominal (bi-directional)
Energy 8 digits, up to 9999999.9kWh
Power factor 4 quadrants
THD 0-40% up to 63
rd
harmonic
