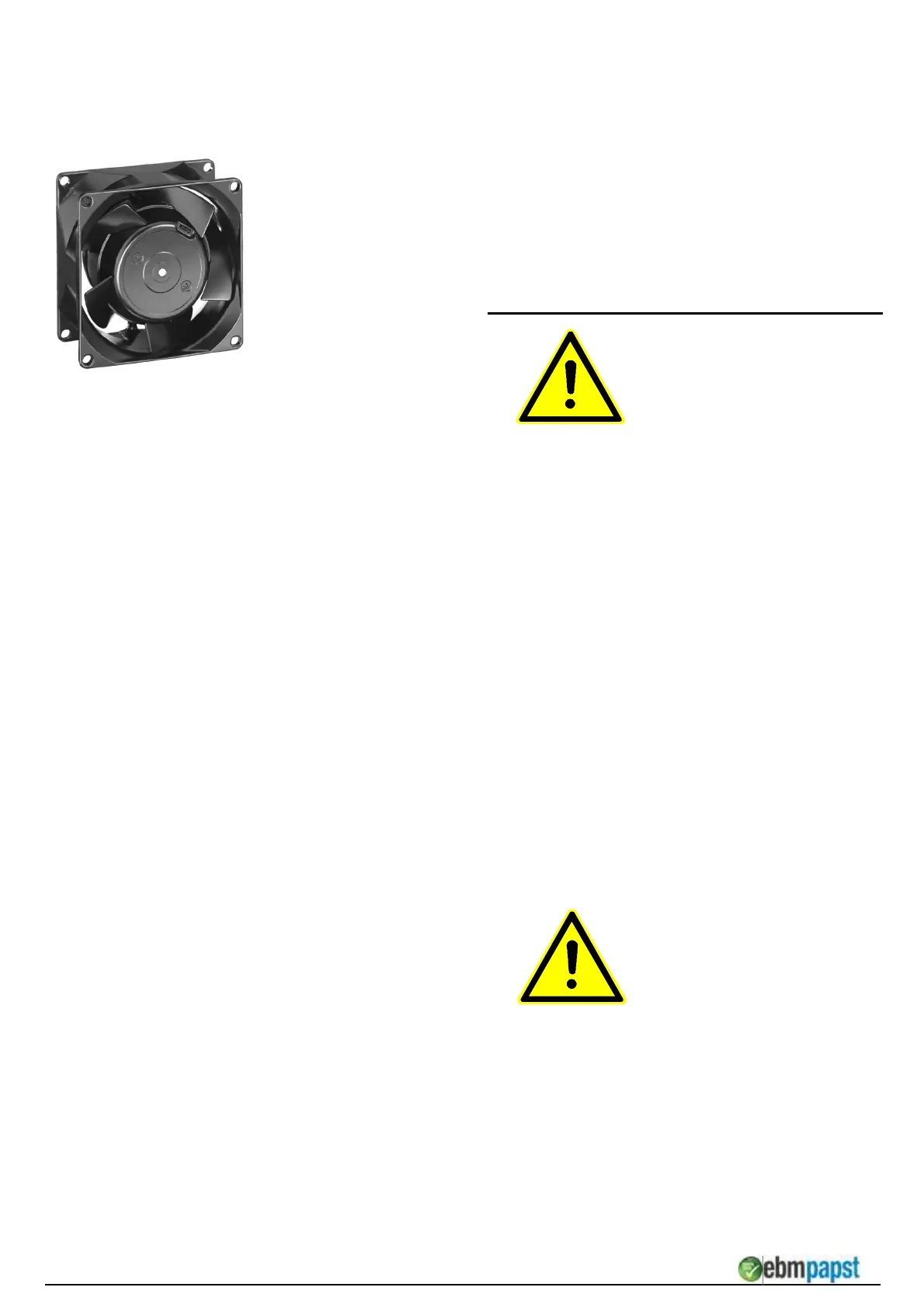

Operating manual

8880 N

Product type, manufacturing date (calendar week/year of construction)

and if required, conformity mark can be found on the nameplate on the

product.

Please provide us with the contents of the nameplate when making

enquiries about the product.

ebm-papst St.Georgen GmbH & Co. KG

Hermann-Papst-Straße 1

D - 78112 St.Georgen

Phone: +49 (0) 7724 / 81-0

Fax: +49 (0) 7724 / 81-1309

info2@de.ebmpapst.com

www.ebmpapst.com

As per: 04.06.2012

Version 1 4

Article number: 9244014343

Original operating manual

INDEX

1 SAFETY REGULATIONS AND INFORMATION 1

2 INTENDED USE 2

3 TECHNICAL DATA 3

4 CONNECTION AND COMMISSIONING 3

5 FAULTS, POSSIBLE CAUSES AND REMEDIES 4

6 APPROVALS 4

1 SAFETY REGULATIONS AND INFORMATION

Read the operating manual carefully before commencing work at the

product. Pay attention to the following warnings to avoid risk to

persons or malfunctioning.

This operating manual is an integral part of the product.

In the event of resale or change of ownership the operating manual

must accompany the product. This operating manual may be copied

and provided as information on potential risks and their avoidance.

Hazard classification of warning notices

The following risk ratings are used in this operating manual to denote

potential risk situations and important safety instructions:

DANGER

This is a potentially dangerous situation

and warns of an impending health risk

or risk of fatal injury if this warning is

not observed. Observe this warning.

WARNING

The dangerous situation can occur and

can result in major or fatal injuries if the

warning is not observed. Work with

extreme care.

CAUTION

The dangerous situation can occur and

can result in minor injuries or damage

to property if the warning is not

observed.

NOTE

A potentially dangerous situation can

occur and results in damage to

property if not avoided.

Qualification of personnel

Only skilled electricians are permitted to install the product, to carry out

the test run and to work at the electrical unit.

Only instructed and authorized skilled personnel are permitted to

transport, unpack, operate and service the product.

Basic safety regulations

Safety risks related to the product must be reassessed after installing

in the final device.

The operating manual was developed in accordance with European

market requirements and may need adapting to the market

requirements of the country in question.

When working at the product, observe the following:

 Do not make any changes to the product.

WARNING

Impermissible high load

 Stop the product immediately after

impermissible loading (e.g. impact,

heat, overvoltage).

page 2 of 4

Electrical voltage and current

DANGER

Electrical voltage

Regularly check the electrical

equipment of the product.

 Eliminate immediately loose

connections and defective cables.

CAUTION

In the event of a fault, the product is

energized.

Product has basic insulation.

 Do not touch the product after

installing.

Safety and protective functions

DANGER

Missing safety device and faulty

protective equipment.

Without protective equipment severe

injuries can occur, e.g. by taking hold of

the rotating equipment.

 Operate the product with protection

guards only.

Electromagnetic radiation

Electromagnetic compatibility (EMC) may affect the system integration

of the product due to interaction.

 Ensure the electromagnetic compatibility of the entire system.

Moving parts

DANGER

Self-starting product

If voltage is applied, the motor

automatically restarts after a mains

failure or when blocking has been

eliminated.

 Do not stand in the danger zone of

the product.

 Switch off the mains voltage when

working on the product and secure

against switching on again.

WARNING

Rotating fan

Long hair, loose-fitting garments and

jewellery can be caught and pulled into

the product. Risk of injury.

 Do not wear loose-fitting garments

or jewellery when working on

moving parts.

 Protect long hair by wearing a hair

net.

CAUTION

High risk of fire spreading

Can cause fire to spread.

 Never direct the airflow

(intake/exhaust side) at a potential

source of fire.

Hot surface

CAUTION

High temperature at motor housing.

Risk of burns

 Provide adequate protection against

accidental contact.

Transport

Only transport the product in its original packaging. Secure during

transport.

The vibration values, temperature and climate ranges should not be

exceeded during transport.

Storage

Store the product in a dry and clean environment that is well protected.

Ensure that the storage temperature is adhered to,see Chapter 3,

Technical Data.If the product is not operated for a longer period of

time, we recommend running it for approx. 15 minutes annually to

move the motor bearings.

Cleaning

NOTE

Product damaged during cleaning

 Clean the product carefully with a

moist cloth without applying

pressure to the rotor. Do not use

cleaning agents that contain acids,

caustic solutions or solvents.

Disposal

When disposing of the product, observe all requirements and

regulations that are relevant in your country.

2 INTENDED USE

The product is designed exclusively as a built-in device for conveying

air according to the technical data.

Every use that is not in accordance with the intended purpose, is

regarded as misuse of the product.

On-site installations must comply with the mechanical, thermal and

service life requirements, see Chapter 3, Technical Data.

Intended use includes:

- Operating the product with all protective equipment

- Do not put the product into operation before it has been installed in

the customer's application

- Observation of the operating manual

Use for other than the intended purpose

Using the product for the purposes mentioned below is prohibited and

can be dangerous:

- Conveyance of air that contains abrasive particles.

- Conveyance of air that has a highly corrosive effect.

- Conveyance of air that has a high dust load, e.g. vacuuming

sawdust.

- Conveyance of inflammable gases/particles.

- Contact with materials that can damage the product, e.g. acids,

caustic solutions, solvents.

- Exposure to radiation that can damage product components, e.g.

strong UV rays or thermal radiation.

- Operating during external vibration.

- Operating the product close to inflammable materials or

components.

- Operating the product in an explosive atmosphere

- Use of the prouct as a safety component or for performing safety-

relevant functions.

- Operating in medical devices with life-sustaining or life-saving

function.

- Operating in non-stationary systems, e.g. railway vehicles, aircraft

and spacecraft.

- Operating with fully or partially dismantled or manipulated protective

equipment.

- Operating the product under conditions other than those mentioned

in the technical data.

- Furthermore, all fields of application not mentioned under intended

use.

Produkt Specifikationer

Mærke:	Ebm-papst
Kategori:	Ventilator
Model:	4890 N
Type:	Ventilator
Bredde:	119 mm
Dybde:	38 mm
Højde:	119 mm
Vægt:	550 g
Omdrejningshastighed (maks.):	1550 rpm
Strømforbrug (typisk):	11 W
Driftstemperatur (T-T):	-10 - 70 °C
Materiale:	Aluminium, Stainless steel
Luftstrøm:	80 m³/t
Spænding:	230 V
Støjniveau (lav hastighed):	25 dB
Passende til rumtype:	Universel
Lejets levetid (L10):	55000 t
Kabelbeskyttende hylster:	Ja
