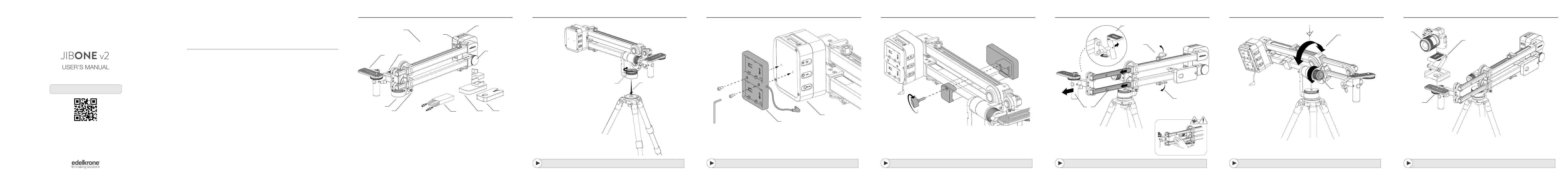

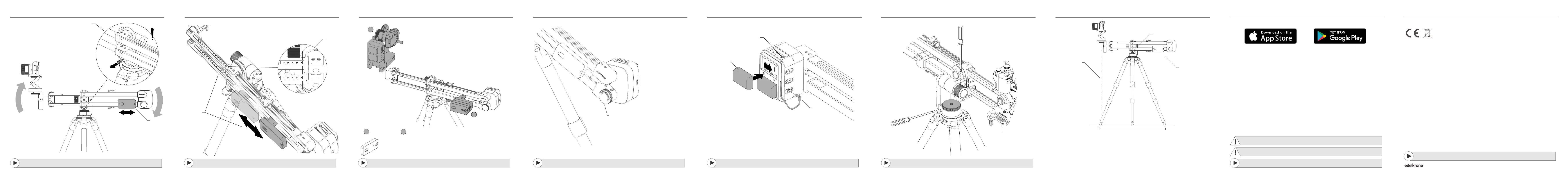

Side 1/2

Before operating your edelkrone,

please watch the user’s manual video.

http://edel.kr/jbnv2

1. WHAT’S IN THE BOX & THE BASICS

2. MOUNTING ON A TRIPOD

3. MOUNTING THE BATTERY BRACKET

4. ATTACHING THE COUNTERWEIGHT

5. PULLING OUT THE EXTENSIONS

6. ADJUSTING THE OPERATION ANGLE

7. ATTACHING THE CAMERA

8. BALANCE ADJUSTMENT & SAFETY LOCK

9. EXTENSION LENGTH INDICATORS

10. COUNTERWEIGHTS

11. TENSION ADJUSTMENT

12. TURNING ON JIBONE v2

13. LOOSENING THE KNOBS

14. WARNINGS

15. START USING

TABLE OF CONTENTS

1. WHAT’S IN THE BOX & THE BASICS 2. MOUNTING ON A TRIPOD 3. MOUNTING THE BATTERY BRACKET 4. ATTACHING THE COUNTERWEIGHT 5. PULLING OUT THE EXTENSIONS 6. ADJUSTING THE OPERATION ANGLE 7. ATTACHING THE CAMERA

JibONE v2

Motor unit (with information screen,

On/Off button, DC in, shutter

trigger port, battery bracket port)

JibONE v2 length extension screws

Tension adjustment wheel

Angle adjustment knob

Camera plate (with 3/8” mounting

screw and spirit level)

10.

11.

Body (3/8” tripod mounting port, 1/4“

accessory port, Cold Shoe)

Safety lock

Shutter trigger extension cable

Main counterweight (1 kg/2.2 lbs)

Counterweight (1 kg/2.2 lbs) (3 pcs.)

10 11

Battery Bracket

Motor Unit

1. Place the body of JibONE v2 on the tripod

making sure it's aligned.

2. Tighten it by turning the mounting wheel.

1. Align the main counterweight parts as shown.

2. Attach to JibONE v2 by turning the butterﬂy screw clockwise.

Attach the battery bracket to the motor unit using the screws included with

the battery bracket.

1. Lift the lever above to release the top arm.

2. Repeat below to release the bottom arm.

3. Grip the camera plate bar to pull out the extensions.

4. Extend the camera plate by loosening the butterﬂy

screw.

5. Push the levers back to their original positions.

1. Loosen the angle adjustment knob by turning counterclockwise.

2. Adjust your operation angle (JibONE v2 has ﬁve different operation angles).

3. Tighten the angle adjustment knob back.

1. Align your FlexTILT Head v3 or any tripod head with the camera plate as shown.

2. Tighten the mounting wheel.

3. Attach your camera to your FlexTILT Head v3 or any tripod head.

*Battery Bracket sold separately.

CAUTION

Keep hands clear of moving proﬁles.

A detailed video explaining the mounting process can be found at:

http://edel.kr/jbnv2

A detailed video explaining how to mount the battery bracket can be found at:

http://edel.kr/jbnv2

A detailed video explaining how to attach the counterweight can be found at:

http://edel.kr/jbnv2

A detailed video explaining how to extend JibONE v2 can be found at:

http://edel.kr/jbnv2

A detailed video explaining how to adjust the operation anglev can be found at:

http://edel.kr/jbnv2

A detailed video explaining how to attach the camera can be found at:

http://edel.kr/jbnv2

www.edelkrone.com

DISPOSAL OF THE PRODUCT & WARNINGS

For more information and tips about your JibONE v2, please watch the user’s

manual videos at: http://edel.kr/jbnv2

Should the product become damaged beyond repair, or if you wish to

dispose of it, it must be disposed separately from the municipal waste

stream via designated collection facilities appointed by the government or

the local authorities. Observe the regulations of your area and country that

relate to the disposal of electronic products.

* Keep your electronic Motion Control Unit away from all sorts of liquids.

* In order to preserve your Motion Control Unit and battery performance at their best, use the

exact same type of batteries with an equivalent level of charge during dual-battery operation.

* Do not attempt to disassemble or modify any internal parts of your Motion Control Unit. If the

device appears to be malfunctioning, discontinue use immediately and contact support for

qualiﬁed service.

* Never force a different type of connector into a port.

* Never use or store your Motion Control Unit in areas subject to extreme temperatures, or high

levels of vibration.

* If your motion control unit becomes unresponsive, disconnect and re-connect the power

source. Make sure your DC adapter is plugged in or your batteries are properly charged. If the

problem persists, contact our support team.

* Environmental factors may affect your Motion Control Unit’s performance. Keep your product

away from environmental hazards such as dust or heavy resonance. Do not use chemical

materials to clean your product.

* If there is an impairment on the power or connector cable, stop using the Motion Control Unit

immediately.

* Avoid dropping or causing physical damage to your Motion Control Unit.

* Do not place heavy objects on top of your Motion Control Unit.

**edelkrone cannot be held responsible for damage caused by improper use or

modiﬁcation of the product.

* Rated Voltage: 7.4V-14.8V (2 x 7.4V Parallel LP-E6 or NP-F Battery / AC-DC Adapter )

Rated Current: 2A Operating Temperature: -5°C to +45°C

15. START USING

Download the edelkrone App to your mobile device from the App Store or

Google Play. Links can be found at www.edelkrone.com/products/jibone-v2

To operate JibONE v2, hold On/Off button down until the opening bar in the

information screen is full-ﬁlled.

JibONE v2 is now ready for smart pairing or manual pairing through

Bluetooth/Wiﬁ.

After pairing the devices, you are now ready to use your JibONE v2.

Just keep following the instructions on your mobile device or visit

manuals.edelkrone.com for a detailed video instruction.

Make sure your mobile device’s Bluetooth connection is on.

Always start using with fully charged batteries.

A detailed video explaining the edelkrone App can be found at: http://edel.kr/jbnv2

9. EXTENSION LENGTH INDICATORS 10. COUNTERWEIGHTS8. BALANCE ADJUSTMENT & SAFETY LOCK 11. TENSION ADJUSTMENT 12. TURNING ON JIBONE v2 13. LOOSENING THE KNOBS 14. WARNINGS

You may need extra counterweights to

keep your setup balanced. You can ﬁnd the

recommended counterweight usage

scenarios below.

*While JibONE v2 is fully extended

Camera + FlexTILT Head or any tripod head (1.5-2.4 kg)

Camera + HeadONE + FlexTILT Head or any tripod head (2.2-3.4 kg)

Camera + 2 HeadONEs + Tilt Kit v2 (2.6-4.2 kg)

Camera + HeadPLUS Full Setup (2.9-5 kg)

1 pcs.

2 pcs.

3 pcs.

4 pcs.

1. Attach the batteries.

2. Plug the cable into the "DC IN" socket.

3. Press and hold the On/Off button for a second to turn on JibONE v2. 1. Make sure to correctly adjust the leg distance of your tripod while operating or adjusting

the JibONE v2 extensions for a balanced setup.

2. If you’d like to make adjustments or carry your JibONE v2, make sure the safety lock is

on, remove your camera and insert the extensions back in. Otherwise, the device will be

unstable and may cause damage.

3. Make sure you attach the counterweights tightly and correctly.

If you are unable to loosen the knobs,

you can insert a screwdriver into the

holes to help you turn the knobs.

You can tighten or loosen the tension

adjustment wheel for smoother motions.

Tension Adjustment Wheel

1. Pull the safety lock as shown to mobilize
