Side 1/32
EKseries
StudioMonitors
USER’SMANUAL
ENGLISH
ITALIANO
96MAN00138-REV.46/18
INDEX
DISPOSALOFOLDELECTRICAL&ELECTRONICEQUIPMENT..............................................................4
GENERALSAFETYINSTRUCTIONS.....................................................................................................4
INCASEOFFAULT............................................................................................................................4
PACKAGING,SHIPPINGANDCOMPLAINT.........................................................................................4
WARRANTYANDPRODUCTSRETURN..............................................................................................4
MAINTENANCEANDDISCLAIMER....................................................................................................5
POWERSUPPLY................................................................................................................................5
CECONFORMITY..............................................................................................................................5
INTRODUCTION...............................................................................................................................6
DESCRIPTION...................................................................................................................................6
EK5,6,8INPUTPANEL....................................................................................................................6
EK10SINPUTPANEL........................................................................................................................7
EKMAINSPANEL..............................................................................................................................8
BASICSTEREOSETUP.......................................................................................................................9
STEREOSETUPWITHSUBWOOFER.................................................................................................10
5.1SURROUNDSETUP............................................ ........11...............................................................
TECHNICALSPECIFICATION............................................................................................................14
DIMENSIONS.................................................... ...............15...............................................................
ACCESSORIES................................................... ...............16...............................................................
misuse,neglectorabuse.ProelS.p.A.willverifydamageonreturnedunits,andwhentheunithasbeen
properlyusedand warranty isstill valid,thenthe unitwillbe replaced orrepaired. ProelS.p.A.is not
responsibleforany"directdamage"or"indirectdamage"causedbyproductdefectiveness.
MAINTENANCEANDDISCLAIMER
Cleanonlywithdrycloth.
Proelproductshavebeenexpresslydesignedforaudioapplication,withsignalsinaudiorange(20Hzto
20kHz).Proelhasnoliabilityfordamagescausedincaseoflackofmaintenance,modifications,improper
useorimproperinstallationnon-applyingsafetyinstructions.
ProelS.p.A.reservestherighttochangethesespecificationsatanytimewithoutnotice.
Proel S.p.A. declines any liability for damages to objects or persons caused by lacks of maintenance,
improperuse,installationnotperformedwithsafetyprecautionsandatthestateoftheart.
POWERSUPPLY
Thisapparatusshouldonlybeconnectedtopowersourcetypespecifiedinthisowner’smanualoronthe
unit.
IfthesuppliedACpowercableplugisdifferentfromthewallsocket,pleasecontactanelectriciantochange
theACpowerplug.
HoldtheplugandthewalloutletwhiledisconnectingtheunitfromACpower.
Iftheunitwillnotbeusedforalongperiodoftime,pleaseunplugthepowercordfromACpoweroutlet.
Toavoidunitpowercorddamage,pleasedonotstraintheACpowercableanddonotbundleit.
In order to avoid damages, please ensure that the power cord is not stepped on or pinched by heavy
objects.
CECONFORMITY
TheproductisincompliancewithDirectiveLVD2006/95/ECasstatedinEN60065standard.
PROEL S.p.A hereby, declares that this product complies with the essential requirements and other
relevantprovisionsofDirective2004/108/EC(EMC),asstatedinEN55103-1andEN55103-2standards.
INTRODUCTION
ThankyouforchoosingthisEIKONproductandforyourtrustinourbrand,synonymousofprofessionalism,
accuracy, high quality and reliability. All our products are CE approved and designed for continuous use in
professionalapplications.
DESCRIPTION
EKisaseriesofnearfieldstudiomonitorsdesignedbyPROELR&Dteaminordertoprovidetoyourmusicthe
mosthonestandaccuratereferencepossible.
Fromthe carefullyselectedtransducerstothe proprietaryenhanced waveguides andtothe low-resonance
cabinetdesign,everythinghasbeentailoredwithhoursoflisteninginordertoofferthebestaccuracyoverthe
wholeaudiospectrum.
Theperfectlyoptimizedelectronics, includinghigh-headroomseparateClassABamplifiersforhighandlow
section, high-precisioncrossover networks andseparateLIMITER circuits, provide maximumresolution and
minimumlisteningfatigue.
Thelineupincludesthreemodels,featuring5.25”,6”and8”woofers,anda10”subwoofer,offeringtheidealnearfield
monitorsolutionforanykindofmusicproductionapplications:recordingstudios,homeandprojectstudios,broadcast
studios,post-productionfacilities,mobileproductionvehicles,hometheater,multimediainstallations.

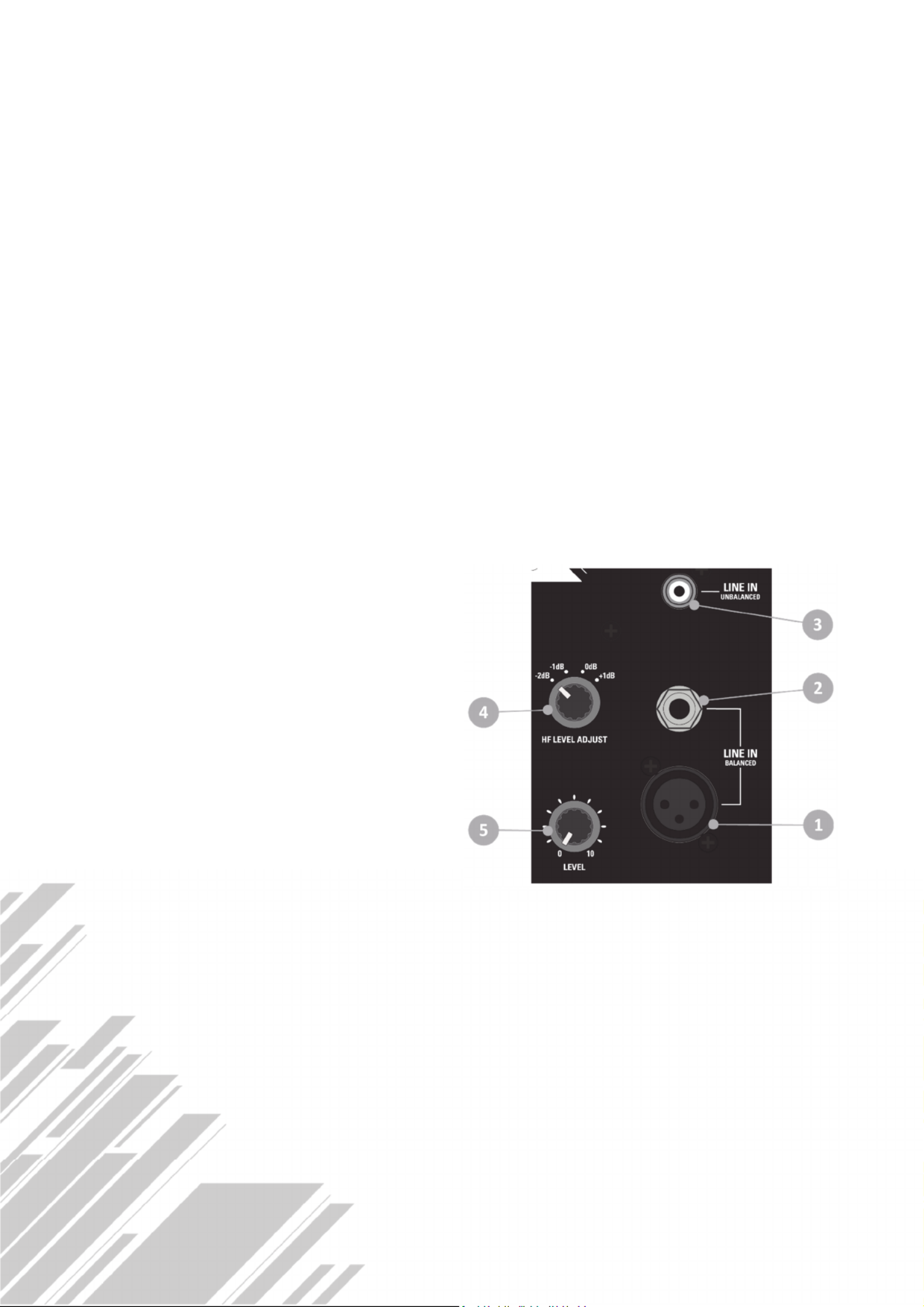

EK5/6/8INPUTPANEL
1. LINEIN(XLR)
ThisisafemaleXLRconnectorthatacceptsa
XLRplugfromanybalancedorunbalancedline
leveldevice.TheXLRinputiswiredasfollows:
Pin1=shieldorground
Pin2=+positiveor"hot"
Pin3=-negativeor"cold"
2. LINEIN(JACK)
ThisisafemaleJACKconnectorthatacceptsa
JACKplugfromanybalancedorunbalancedline
leveldevice.ThebalancedJACKinputiswired
asfollows:
Tip=+positiveor"hot"
Ring=-negativeor"cold"
Sleeve=shieldorground
TheunbalancedJACKinputiswiredasfollows:
Tip=+positiveor"hot"
Sleeve=shieldorground
3. LINEIN(RCA)
ThisisaRCAfemaleconnectorsthatacceptRCAplugfromLEFTorRIGHTchannelofalinelevelsource.
EachRCAinputiswiredasfollows:
Tip=+positiveor"hot"
Sleeve=shieldorground
4. HFLEVELADJUST
HFadjustmentforafinecontrolofhighfrequencyresponseaccordingtopersonaltasteorroom
characteristics.
