Important

Please read PRECAUTIONS, this User’s Manual and Setup Guide (separate

volume) carefully to familiarize yourself with safe and effective usage.

Please read the Setup Guide (separate volume)

The latest User’s Manual is available for download from our site:

http://www.eizo.com

•

Cover

[Location of Caution Statement]

Ex. CG243W

Product speciﬁcations may vary with sales areas.

Conﬁrm the speciﬁcations in the manual written in the language of the region of purchase.

This product has acquired TCO standard that relates to safety, ergonomics, environment and so forth of

ofﬁce equipment. For overview of the TCO, refer to our website.

http://www.eizo.com

No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by

any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO

CORPORATION.

EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information

condential unless prior arrangements are made pursuant to EIZO NANAO CORPORATION’s receipt of

said information.

Although every effort has been made to ensure that this manual provides up-to-date information, please

note that EIZO monitor specications are subject to change without notice.

Apple, Macintosh, Mac OS and ColorSync are registered trademarks of Apple Inc.

VGA is a registered trademark of International Business Machines Corporation.

Windows and Windows Vista are registered trademarks of Microsoft Corporation.

The round gothic bold bit map font used for this product is designed by Ricoh.

DisplayPort icon and VESA are trademarks and registered trademarks of Video Electronics Standards Association.

PowerManager, ColorNavigator and UniColor Pro are a trademark of EIZO NANAO CORPORATION.

EIZO, EIZO Logo and ColorEdge are registered trademarks of EIZO NANAO CORPORATION in Japan and other countries.

Notice for this monitor

Aside from creating documents, viewing multimedia content, and other general purposes, this product is also suited to

applications such as graphics creation and digital photo processing, where accurate color reproduction is a priority.

This product has been adjusted specically for use in the region to which it was originally shipped. If the product is

used outside the region, it may not operate as specied in the specications.

This product may not be covered by warranty for uses other than those described in this manual.

The specications noted in this manual are only applicable for power cords and signal cables specied by us.

Use optional products manufactured or specied by us with this product.

As it takes about 30 minutes for the performance of electrical parts to stabilize, adjust the monitor 30 minutes or more

after the monitor power has been turned on.

In order to suppress the luminosity change by long-term use and to maintain the stable luminosity, use of a monitor in

lower brightness is recommended.

When the screen image is changed after displaying the same image for extended periods of time, an afterimage may

appear. Use the screen saver or power save function to avoid displaying the same image for extended periods of time.

Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. (Refer to

“Cleaning” on the next page.)

The LCD panel is manufactured using high-precision technology. However, note that the appearance of any missing

pixels or lit pixels does not indicate damage to the LCD monitor. Percentage of effective pixels : 99.9994% or higher.

The backlight of the LCD panel has a xed life span. When the screen becomes dark or begins to icker, please

contact your dealer.

Do not press on the panel or edge of the frame strongly, as this may result in the display malfunction, such as the

interference patterns, etc. If pressure is continually applied to the LCD panel, it may deteriorate or damage your LCD

panel. (If the pressure marks remain on the LCD panel, leave the monitor with a white or black screen. The symptom

may disappear.)

Do not scratch or press on the panel with any sharp objects, such as a pencil or pen as this may result in damage to the

panel. Do not attempt to brush with tissues as this may scratch the LCD panel.

When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation

may occur inside and outside the monitor. In that case, do not turn the monitor on and wait until dew condensation

disappears, otherwise it may cause some damages to the monitor.

Cleaning

Attention

Never use any solvents or chemicals, such as thinner, benzene, wax, alcohol, disinfectant, and abrasive cleaner,

which may damage the cabinet or LCD panel.

•

●

LCD Panel

Clean the LCD panel with a soft cloth such as cotton cloth or lens cleaning paper.

If necessary, stubborn stains can be removed by using the provided ScreenCleaner, or moistening part

of a cloth with water to enhance its cleaning power.

●

Cabinet

Clean the cabinet with a soft cloth dampened with a little mild detergent.

To use the monitor comfortably

An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor

according to the environmental conditions.

Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.

•

CONTENTS

Cover ............................................................. 1

Notice for this monitor ............................................. 3

CONTENTS ............................................................. 5

Chapter 1 Introduction .......................................

1-1. Features ............................................................ 6

1-2. Controls and Functions ..................................

1-3. Utility Disk ........................................................

●

Disk contents and software overview ................ 8

●

To use ColorNavigator ....................................... 8

1- 4. Basic Operation and Functions .....................

Basic operation of Adjustment menu ................. 9

Showing Button Guide ........................................10

Functions ..............................................................11

Chapter 2 Adjusting Screen ............................. 12

2-1. Setting Screen Resolution ...............................12

Compatible Resolutions/Frequencies ...............12

Setting Resolution ...............................................13

●

Windows 7 .........................................................13

●

Windows Vista ..................................................13

●

Windows XP ......................................................13

●

Mac OS X ..........................................................13

2-2. Displaying Screen Correctly .........................

Digital Input ..........................................................14

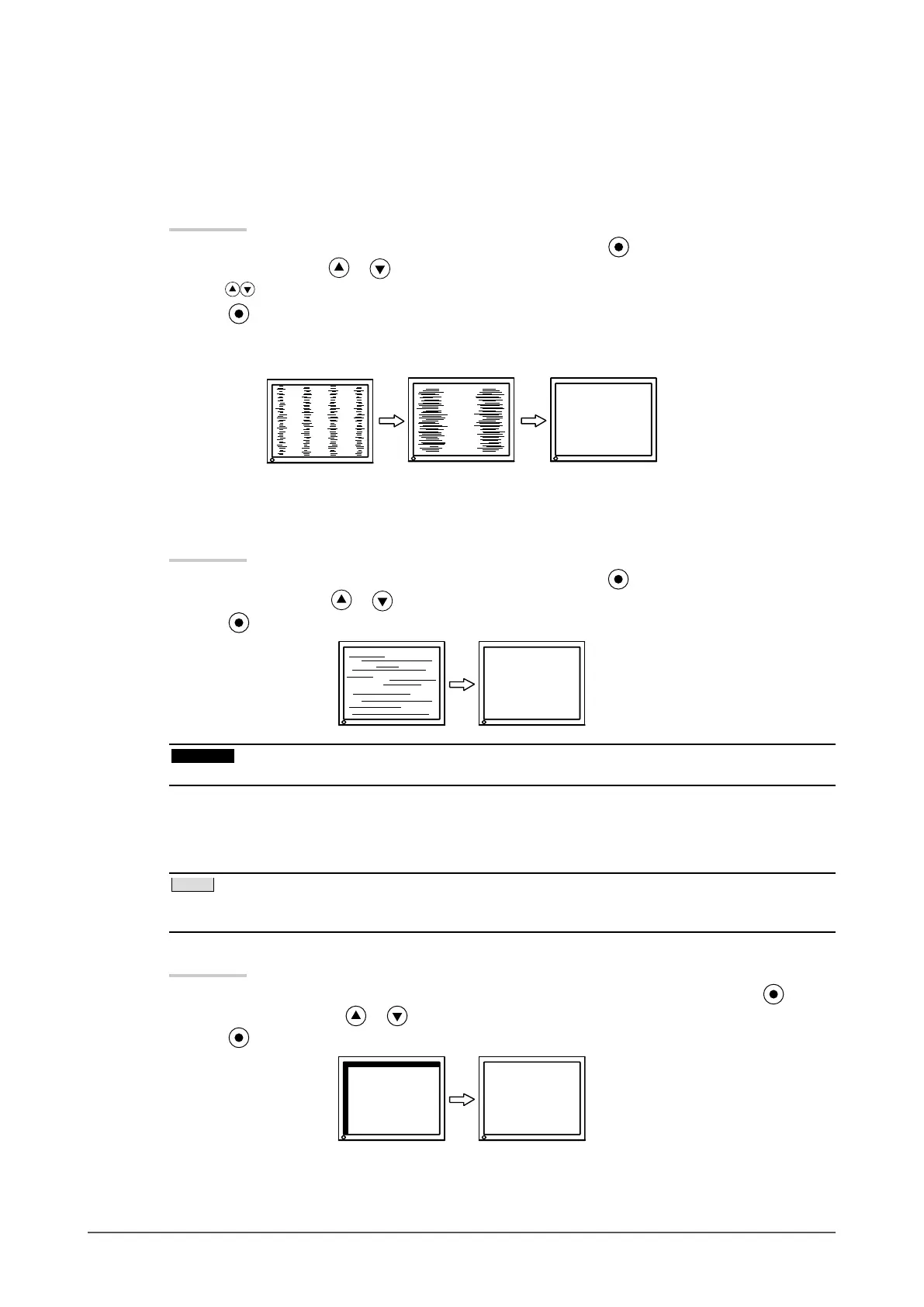

Analog Input .........................................................14

2-3. Color Adjustment ...........................................

●

To select the display mode (Color Mode) .........18

●

To perform advanced adjustments ...................19

●

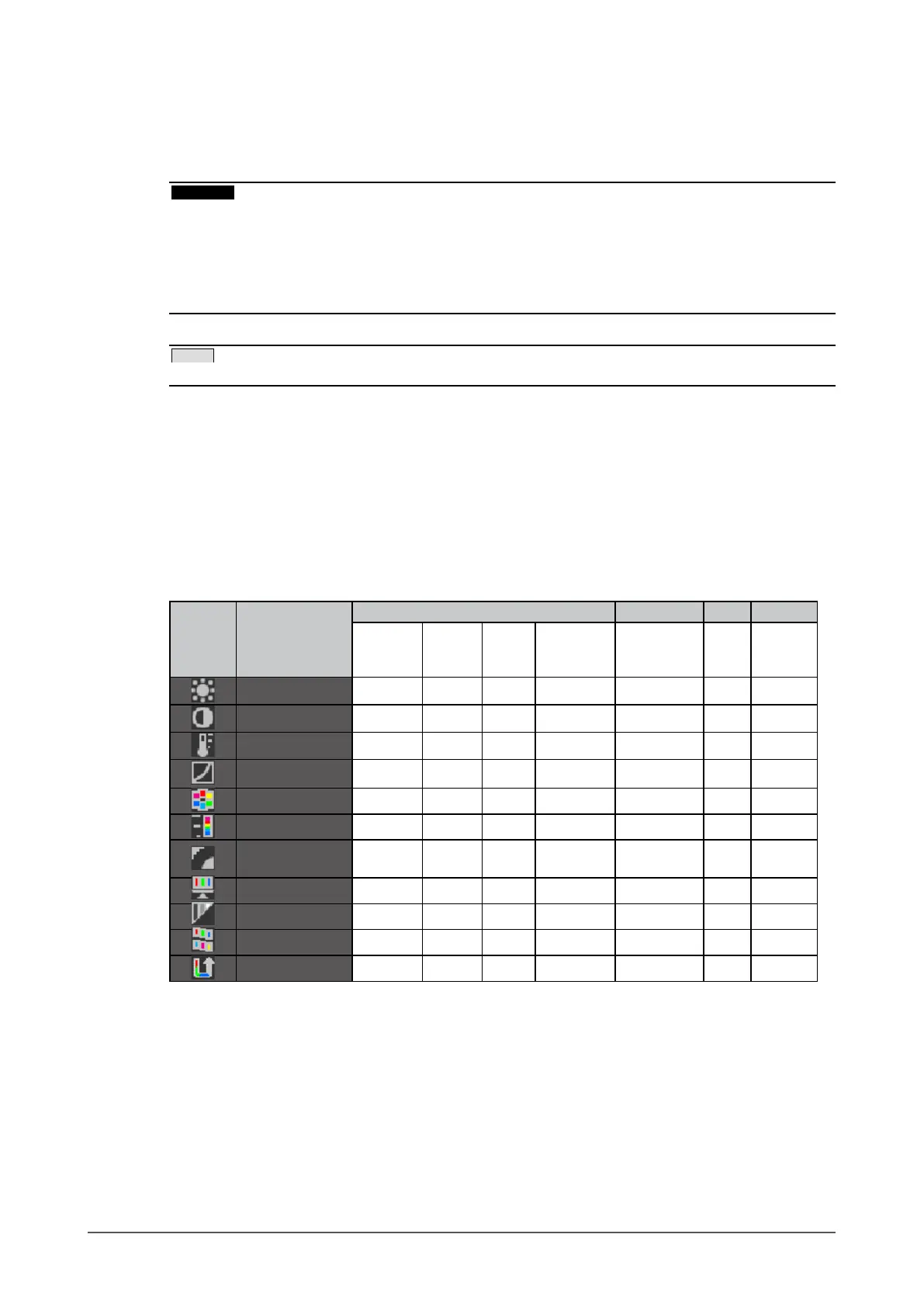

Adjustment items in each mode ........................19

●

To adjust the brightness [Brightness] ............... 20

●

To adjust the contrast [Contrast] ...................... 20

●

To adjust the color temperature [Temperature] ... 20

●

To adjust the gamma value [Gamma] ...............21

●

To adjust the hue [Hue] .....................................21

●

To adjust the color saturation [Saturation] ........21

●

To enhance the outline of the image

[Outline Enhancer] ........................................... 22

●

To adjust the gain value [Gain] ......................... 22

●

To adjust the black level [Black Level] ............. 22

●

To adjust six colors [6 Colors] .......................... 23

2-4. Displaying Lower Resolutions .....................

●

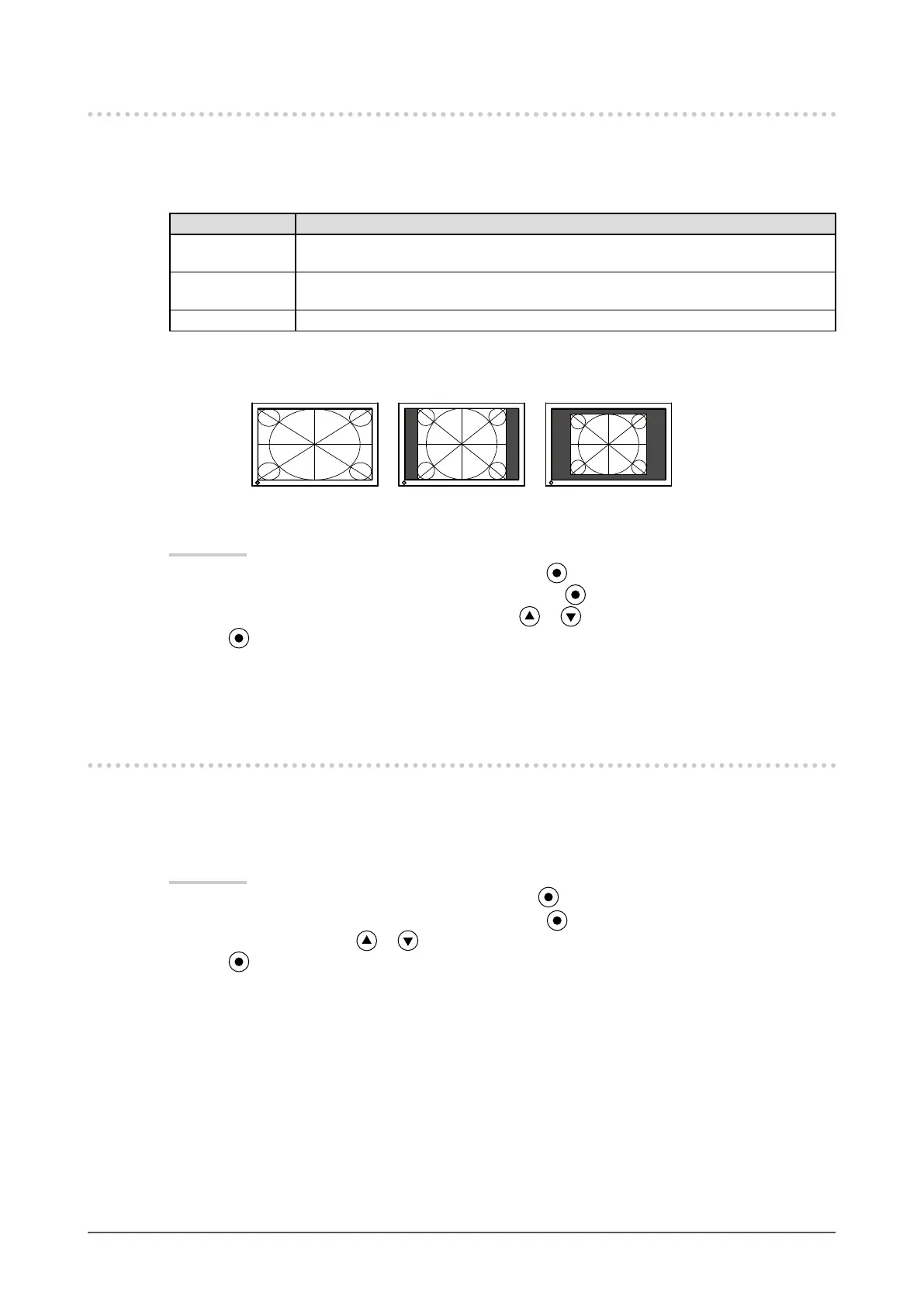

To change screen size [Screen Size] ................24

2-5. Conguringmovingimageperformance

[Overdrive] (CG243W) ...................................

Chapter 3 Setting Monitor ................................ 25

3-1. Enabling/Disabling Mode Selection

[Mode Preset] ................................................. 25

3-2. Locking Buttons [Key Lock] ........................

3-3. Setting the EIZO Logo Display [Logo] ........

3-4. Setting Orientation [Orientation] ................

3-5. Setting Language [Language] .....................

3-6. Setting Range of Frequency [Signal

Bandwidth] ..................................................... 27

3-7. Setting the Display Position of the

Adjustment Menu [Menu Position] .............. 28

3-8. Restoring the Default Setting ......................

●

To reset color adjustment values [Color Reset] .... 28

●

To reset all adjustments to the factory default

settings [All Reset] ........................................... 28

Chapter 4 Power Saving Function ................... 29

4-1. Setting the Power Saving [Power Save] ..... 29

4-2.

Setting Power Indicator [Power Indicator]... 30

4-3. Setting Monitor’s Automatic Brightness

Adjustment [Auto EcoView] ......................... 30

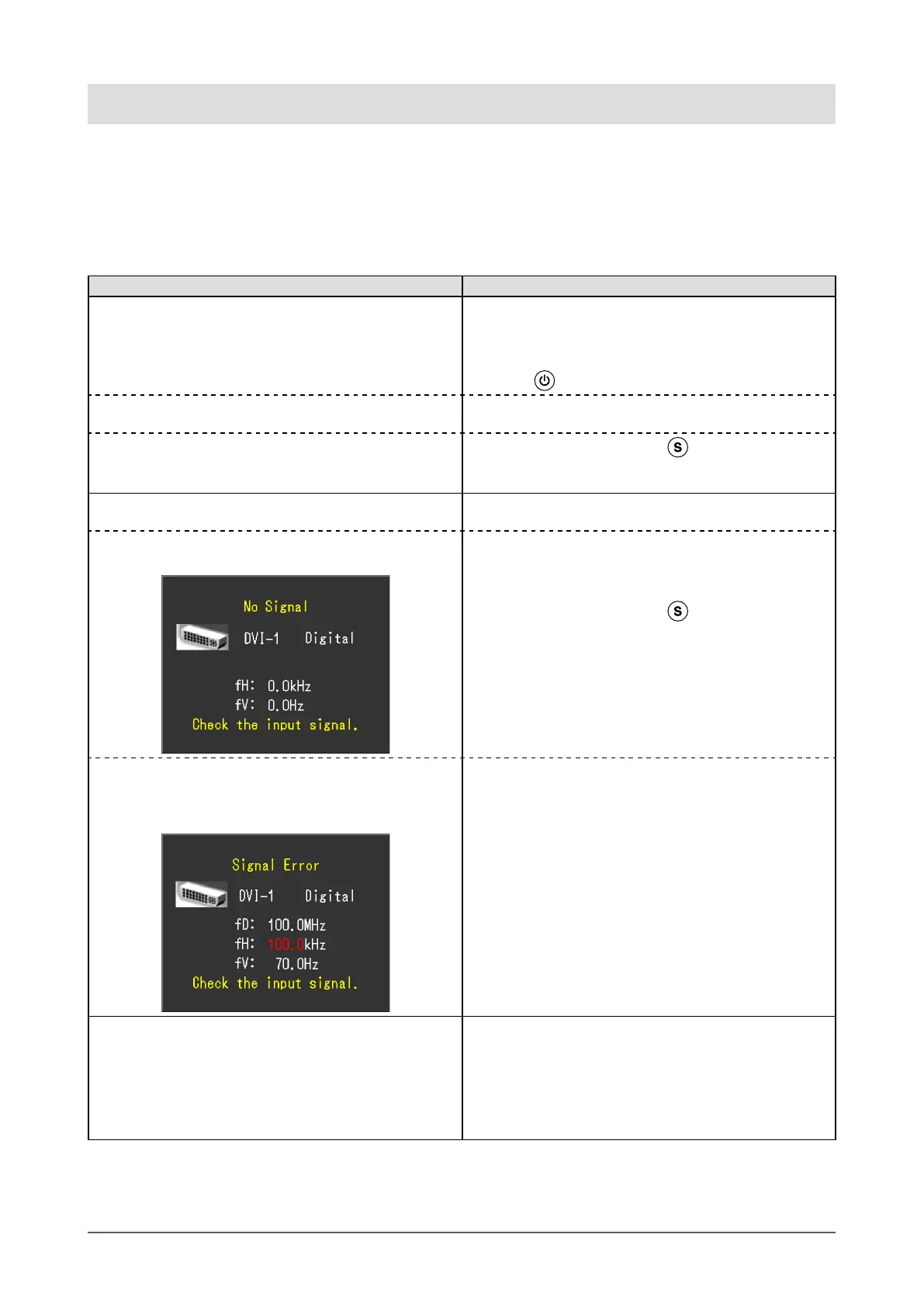

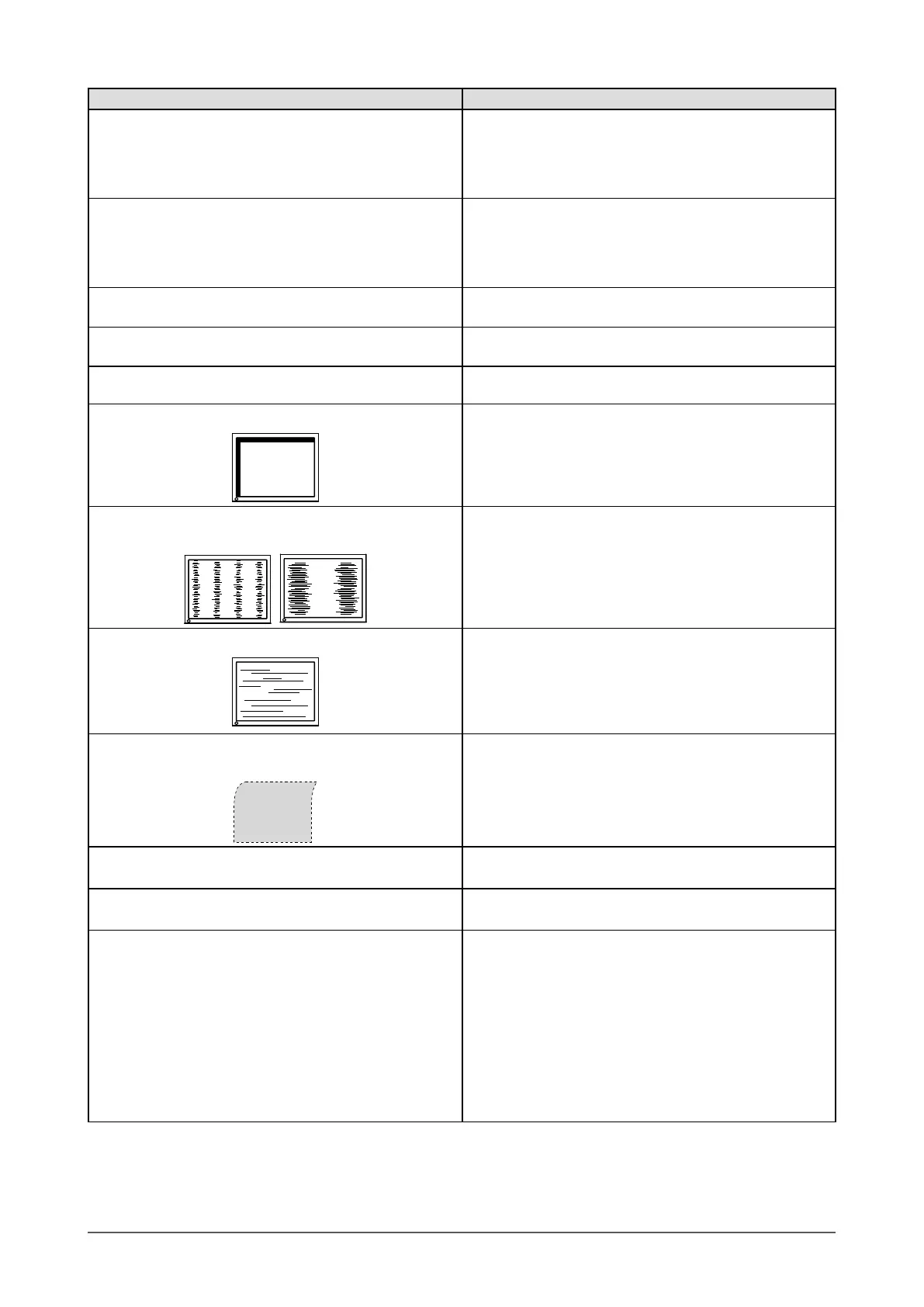

Chapter 5 Troubleshooting .............................. 31

Chapter 6 Reference .........................................

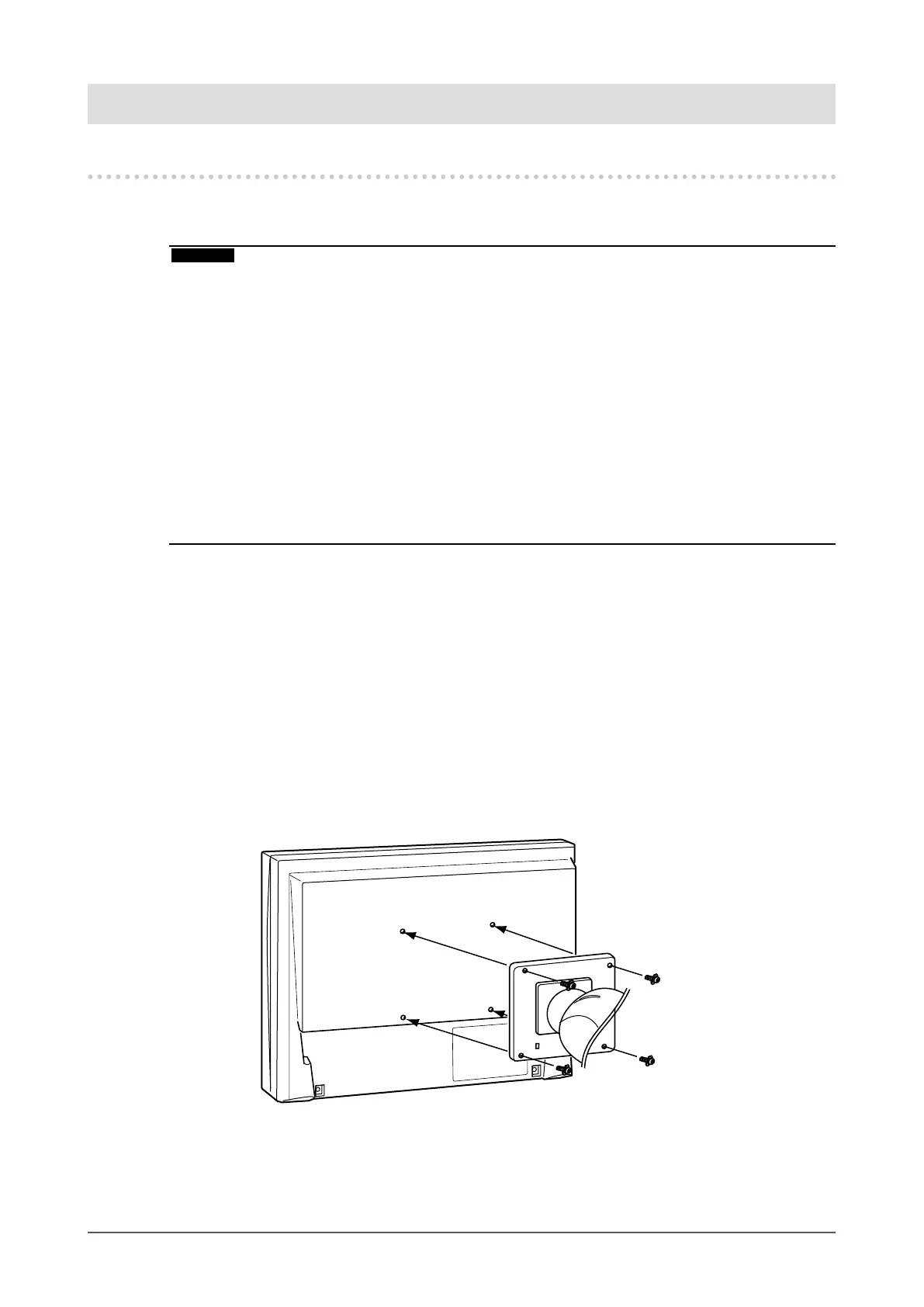

6-1. Attaching an Arm .......................................... 34

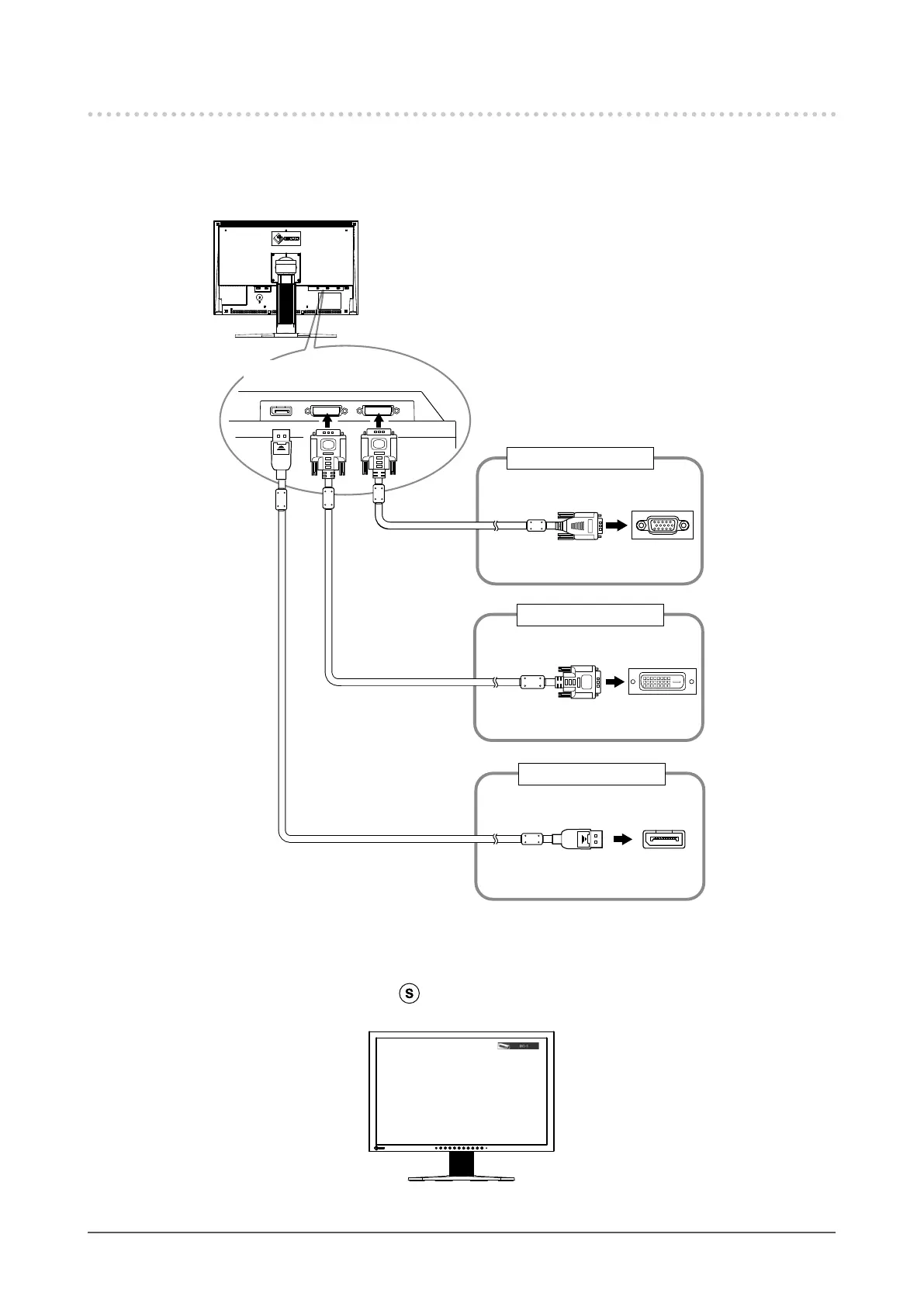

6-2. Connecting More than Two PCs to the

Monitor ........................................................... 35

●

To switch the input signal ................................. 35

●

To set input signal selection [Input Selection] ... 36

6-3.

Making Use of USB (Universal Serial Bus) ...37

●

Required System Environment .........................37

●

Connection Procedure (Setup of USB Function) ...37

6-4. Displaying Monitor Information

................... 38

●

Displaying monitor information by pressing ... 38

●

Displaying signal information [Signal Info] ....... 38

●

Displaying monitor information [Monitor Info] ... 38

6-5.

Specications ................................................ 39

6-6. Glossary .........................................................

6-7. Preset Timing ..................................................

About TCO’ 03 .....................................................48

FCC Declaration of Conformity .........................49

HinweiseHinweise zur Auswahl des richtigen

Schwenkarms für Ihren Monitor .......................50

Chapter 1 Introduction

Thank you very much for choosing an EIZO Color Monitor.

1-1. Features

22” wide format LCD (CG223W) / 24” wide format LCD (CG243W)

Wide color gamut of 95% of Adobe RGB (CG223W) / 98% (CG243W)

Resolution 1680 dots x 1050 lines (CG223W) / 1920 dots x 1200 lines (CG243W)

HDCP (High-bandwidth Digital Content Interface)

Frame Synchronous mode supported : 47.5 - 61Hz (CG223W)

: 23.75 - 30.5Hz, 47.5 - 61Hz (CG243W)

Applicable to DisplayPort (applicable to 8 bit or 10 bit, not applicable to audio signals)

3 signal input terminals (DVI-I x 2, DisplayPort x 1)

Color Mode function reproduces color gamut and gamma compliant with [EBU/REC.709/SMPTE-C]

broadcasting standards as well as the [DCI] digital cinema standard

“2-3. To select the display mode (Color Mode)” (page 18)

Attaching the “Adjustment Certicate” to describe the grayscale and uniformity characteristics of the

monitor individually

Portrait/Landscape display available (rotate 90 degrees clockwise)

Monitor hood attached

The provided “ColorNavigator” calibration software enables you to calibrate monitor characteristics

and generate color proles

“1-3. Utility Disk” (page 8)

Color Vision Deciency Simulation Software "UniColor Pro" supported

This software can be downloaded from http://www.eizo.com

Power saving function

This product is equipped with power saving function.

Power Consumption when main power switch is Off: 0W

Equipped with main power switch.

Turning off the main power switch completely shuts off power supply to the monitor while the monitor is not

used.

Auto EcoView function

The sensor on the front side of the monitor detects the environmental brightness to adjust the screen brightness

automatically and comfortably.

Excessively high brightness may lead a damage to the natural environment as well as to your eyes. Suppressing

the excessively high brightness will be helpful to reduce the power consumption and the damage to your eyes.

“4-3. Setting Monitor’s Automatic Brightness Adjustment” (page 30)

NOTE

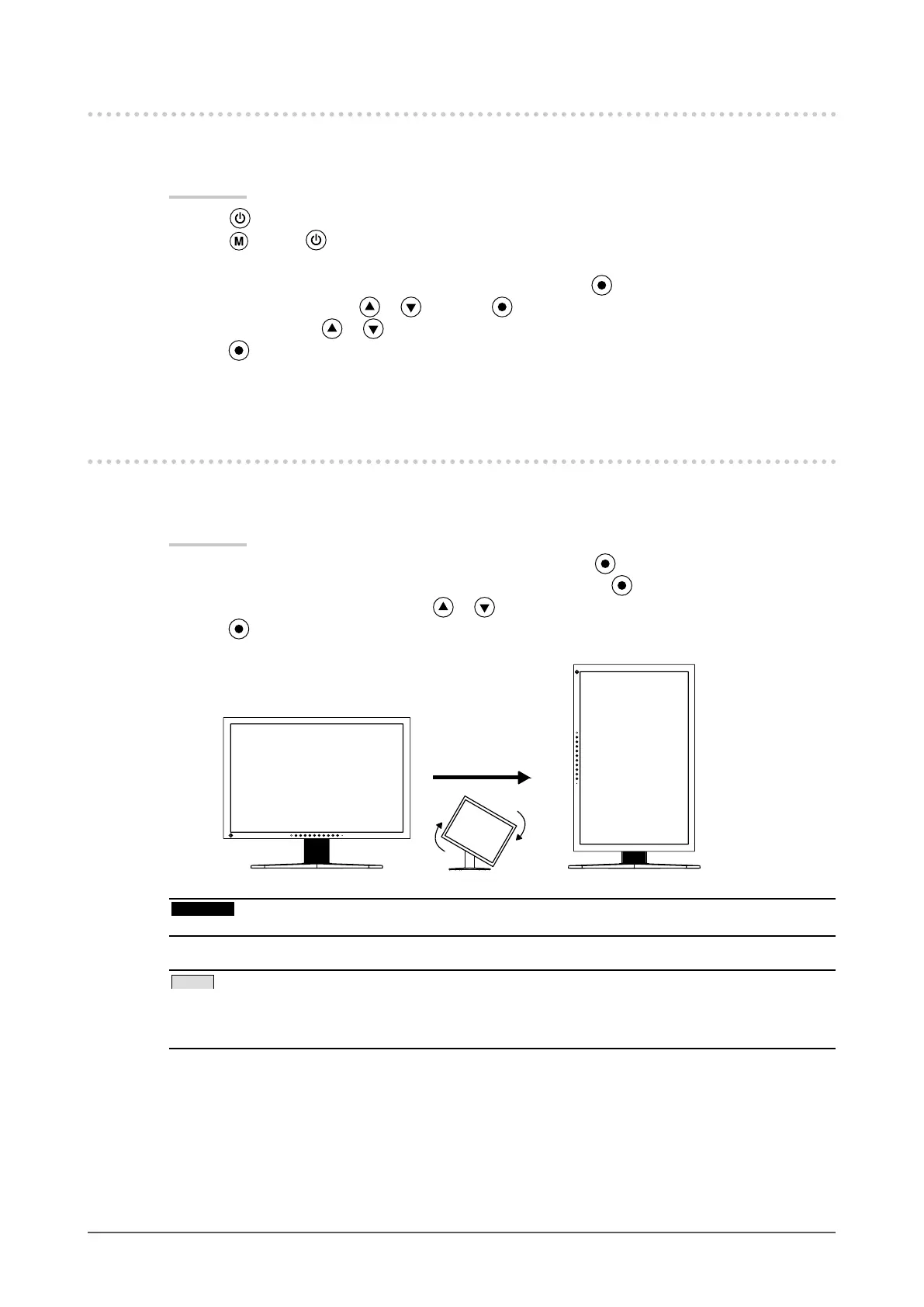

This monitor supports the Portrait/Landscape display. This function allows you to change the orientation of the

Adjustment menu when using the monitor screen in vertical display position. (Refer to “To set the orientation of

the Adjustment menu [Orientation]” on page 26.)

For using the monitor with “Portrait” position, the graphics board supporting portrait display is required. When

using the monitor with “Portrait” position, the setting needs to be changed depending on the graphics board used

in your PC. Refer to the manual of the graphics board for details.

•

Chapter 1 Introduction

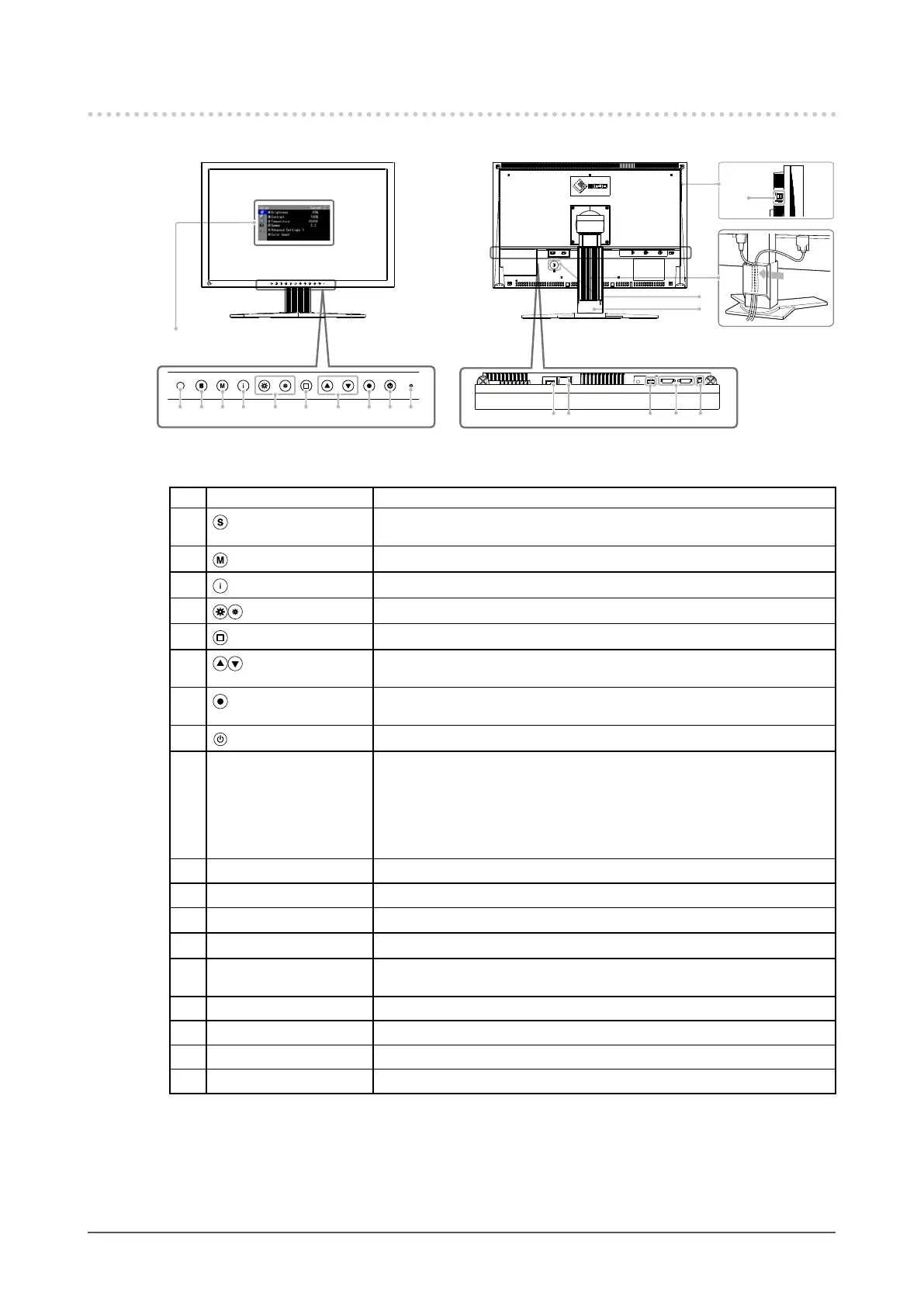

1-2. Controls and Functions

Ex. CG243W

11 13 15

1 2 3 4 5 6 7 8 9 10

DVI-1

DVI-2

Disply-Port

POWER INPUT

1 Sensor (AutoEcoView) Detects ambient brightness. Auto EcoView function

button

Switches input signals for display when more than two PCs are

connected to the monitor.

button

Allows you to switch the Color Mode.

button

Displays the information about monitor or input signals.

button

Adjusts the brightness.

button

Cancels the adjustment/setting or exit the adjustment menu.

buttons

Chooses an adjustment item or increases/decreases adjusted values

for advanced adjustments using the Adjustment menu.

button

Displays the Adjustment menu, determines an item on the menu screen,

and saves values adjusted.

button

Turns the power on or off.

10 Power indicator Indicates monitor’s operation status.

Blue : Operating

Flashing blue

(2 times for each)

: When the timer is set for ColorNavigator, noties

that a recalibration is required (for CAL mode).

Orange : Power saving

Off : Power off

11 Main Power switch Turns the main power on or off.

Power connector Connects the power cord.

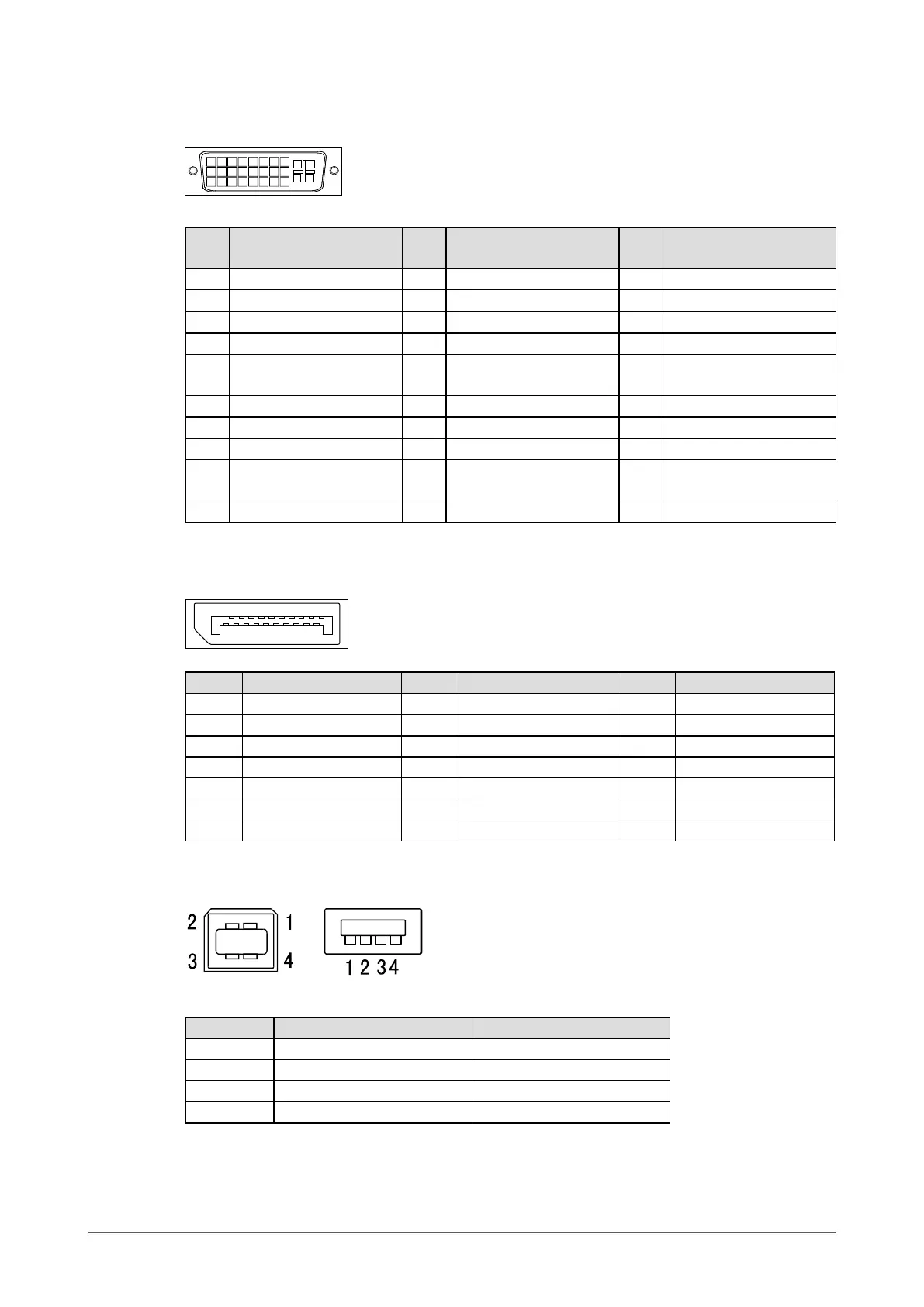

Input signal connectors Display Port Connector x 1

Input signal connectors DVI-I Connector x 2

USB port (Up) Connects the USB cable to use the software that needs USB

connection, or to use USB Hub function.

16 USB port (Down) Connects a peripheral USB dirive.

17 Stand Used to adjust the height and angle of the monitor screen.

18 Security lock slot Complies with Kensington's MicroSaver security system.

19 Cable holder Covers the monitor cables.

Adjustment menu

Chapter 1 Introduction

1-3. Utility Disk

An “EIZO LCD Utility Disk” (CD-ROM) is supplied with the monitor. The following table shows the

disk contents and the overview of the software programs.

●

Disk contents and software overview

The disk includes application software programs for adjustment, and User’s Manual. Refer to "Readme.

txt" or the "read me" le on the disk for software startup procedures or le access procedures.

Item Overview For

Windows

For

Macintosh

A “Readme.txt” or “read me” le

√ √

ColorNavigator An application software for calibrating monitor

characteristics and generating ICC proles (for Windows)

and Apple ColorSync proles (for Macintosh).

(A PC must be connected to the monitor with the supplied

USB cable.) Refer to the descriotion later.

√ √

Screen

Adjustment Utility

Monitor pattern display software used when adjusting the

image of the analog input signal manually.

√

–

Screen adjustment

pattern les

Used when adjusting the image of the analog signal input

manually. If the Screen Adjustment Utility is not applicable

to your PC, use this pattern les to adjust the image.

√

–

User’s Manual (PDF le)

√ √

●

To use ColorNavigator

Refer to the corresponding User’s Manual on the CD-ROM disk in order to install and use the software.

When using this software, you will need to connect a PC to the monitor with the supplied USB cable. For

more information refer to the “6-3. Making Use of USB (Universal Serial Bus)” (page 37).

Chapter 1 Introduction

1- 4. Basic Operation and Functions

Basic operation of Adjustment menu

1 Displaying Adjustment Menu

Press .

The adjustment menu appears.

Current mode

Menu title

Settings

Item

2 Adjusting/Setting

Choose a menu to adjust/set with , and press .

Choose an item to adjust/set with , and press .

Adjust/set the selected item with , and press .

3 Exiting

Press a few times.

The adjustment menu nishes.

Chapter 1 Introduction

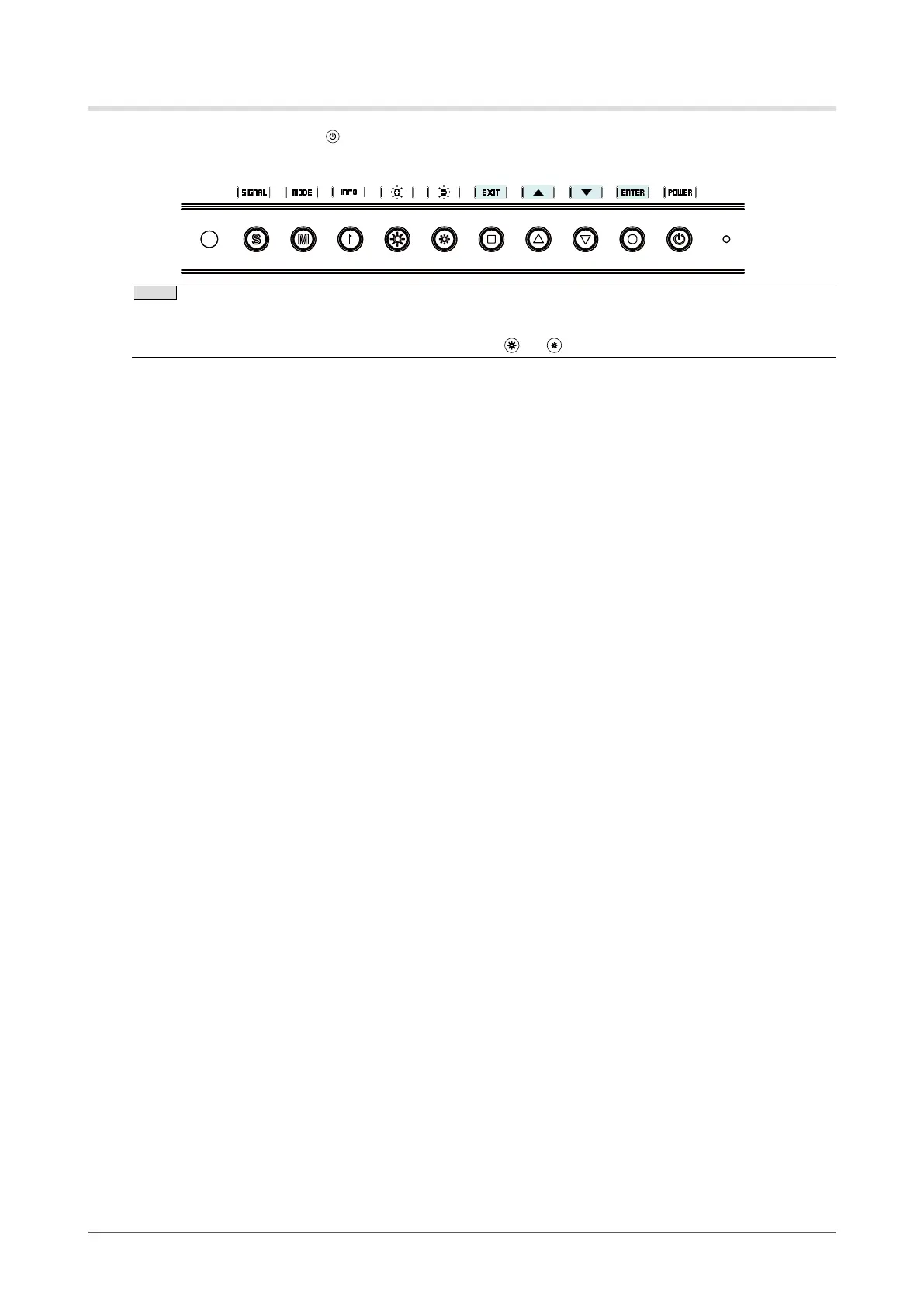

Showing Button Guide

Press the front buttons (except button), the button guide appears above the button. (When using the monitor

with "Portrait" position, the button guide appears next to the button.)

NOTE

The button guide will continue to appear while the Adjustment menu or Mode menu is showing.

The button guide is displayed differently depending on the selected menu or status.

In CAL mode, although Button Guide are displayed above the and buttons, the brightness cannot be adjusted.

•

Chapter 1 Introduction

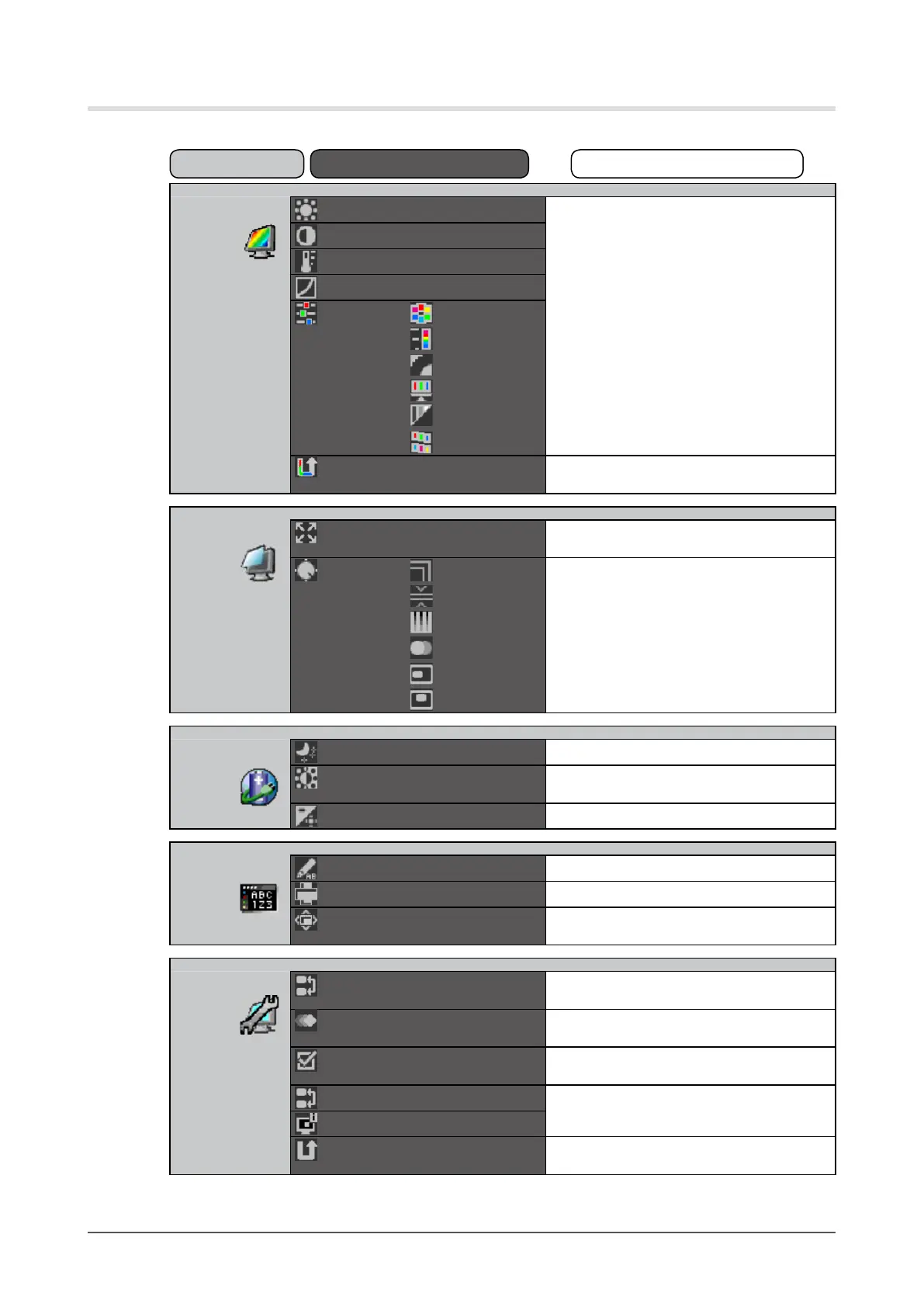

Functions

The following table shows all the Adjustment menu’s adjustment and setting menus.

Main Menu



Item



Adjusting/Setting

Color

Brightness

“2-3. Color Adjustment” (page 18)

Contrast

Temperature

Gamma

Advanced

Settings

Hue

Saturation

Outline Enhancer

Gain

Black Level

6 Colors

Color Reset

“3-8. Restoring the Default Setting”

(page 28)

Screen

Screen Size

“2-4. Displaying Lower Resolutions”

(page 24)

Analog

Adjustment

Auto Adjustment

“2-2. Displaying Screen Correctly”

(page 14)

Range Adjustment

Clock

Phase

Hor.Position

Ver.Position

PowerManager

Power Save

“4-1. Setting the Power Saving” (page 29)

Auto EcoView

“4-3. Setting Monitor’s Automatic Brightness

Adjustment” (page 30)

Power Indicator

“4-2. Setting Power Indicator” (page 30)

Menu Settings

Language

“3-5. Setting Language” (page 27)

Orientation

“3-4. Setting Orientation” (page 26)

Menu Position

“3-7. Setting the Display Position of the

Adjustment Menu” (page 28)

Tools

Input Selection

“6-2. Connecting More than Two PCs to the

Monitor” (page 35)

Overdrive (CG243W)

“2-5. Conguring moving image

performance” (page 24)

Mode Preset

“3-1. Enabling/Disabling Mode Selection”

(page 25)

Signal Info

“6-4. Displaying Monitor Information”

(page 38)

Monitor Info

All Reset

“3-8. Restoring the Default Setting” (page

28)

* The adjusting/setting function on the <Color> menu depend on the selected Color mode (

page 19). The above table

shows the sub menus when the “Custom” mode is selected (See “2-3. Color Adjustment” (page 18)).

Chapter 2 Adjusting Screen

2-1. Setting Screen Resolution

Compatible Resolutions/Frequencies

The monitor supports the following resolutions.

Analog Input

Resolution Applicable signal Frequency Dot Clock CG223W CG243W

640×480 VGA 60Hz

170MHz

(Max.)

√ √

720×400 VGA TEXT 70Hz

√ √

800×600 VESA 60Hz

√ √

1024×768 VESA 60Hz

√ √

1024×768 VESA ~ 75Hz

√

―

1024×768 VESA 85Hz

√

―

1152×864 VESA 75Hz

√

―

1280×960 VESA 60Hz

√ √

1280×1024 VESA 60Hz

√ √

1600×1200 VESA 60Hz ―

√

1680×1050*

VESA CVT 60Hz

√ √

1680×1050*

VESA CVT RB 60Hz

√

―

1920×1200*

VESA CVT RB 60Hz ―

√

Digital Input (DVI/DisplayPort)

Resolution Applicable signal Frequency Dot Clock CG223W CG243W

640×480 VGA 60Hz

164.5MHz

(Max.)

√ √

720×400 VGA TEXT 70Hz

√ √

800×600 VESA 60Hz

√ √

1024×768 VESA 60Hz

√ √

1280×960 VESA 60Hz

√ √

1280×1024 VESA 60Hz

√ √

1600×1200 VESA 60Hz

√ √

1680×1050*

VESA CVT 60Hz ―

√

1680×1050*

VESA CVT RB 60Hz

√ √

1920×1200

VESA CVT RB 60Hz ―

√

A graphics board in conformance with VESA standard is required.

Recommended resolution (CG223W : Set this resolution).

Recommended resolution (CG243W : Set this resolution).

Chapter 2 Adjusting Screen

Setting Resolution

When you connect the monitor to the PC and nd that the resolution is improper, or when you want to

change the resolution, follow the procedure below.

●

Windows 7

Right-click the mouse anywhere on the desktop except for icons.

From the displayed menu, click “Screen resolution”.

On the "Screen Resolution" dialog, select the monitor .

Click "Resolution" to select the desired resolution.

Click the [OK] button.

When a conrmation dialog is displayed, click [Keep changes].

●

Windows Vista

Right-click the mouse anywhere on the desktop except for icons.

From the displayed menu, click “Personalize”.

On the “Personalization” window, click “Display Settings”.

On the “Display Settings” dialog, select the “Monitor” tab and select desired resolution in the

“Resolution” eld.

Click the [OK] button.

When a conrmation dialog is displayed, click [Yes].

●

Windows XP

Right-click the mouse anywhere on the desktop except for icons.

From the displayed menu, click “Properties”.

When the “Display Properties” dialog is displayed, click the “Settings” tab and select desired

resolution for “Screen resolution” under “Display”.

Click the [OK] button to close the dialog.

●

Mac OS X

Select “System Preferences” from the Apple menu.

When the “System Preferences” dialog is displayed, click “Displays” for “Hardware”.

On the displayed dialog, select the “Display” tab and select desired resolution in the “Resolutions”

eld.

Your selection will be reected immediately. When you are satised with the selected resolution, close

the window.

Chapter 2 Adjusting Screen

2-2. Displaying Screen Correctly

Digital Input

When digital signals are input, images are displayed correctly based on the preset data of the monitor.

When performing advanced adjustment, see “2-3 Color Adjustment” (page 18) and subsequent pages.

Analog Input

Attention

Wait 30 minutes or more from monitor power on before starting adjustments.

(Allow the monitor to warm up for at least 30 minutes before making adjustments.)

•

The monitor screen adjustment is used to suppress ickering of the screen or adjust screen position and

screen size correctly according to the PC to be used.

The auto adjustment function works when lling/satisfying all of the following conditions

When a signal is input into the monitor for the rst time or when the resolution or Vertical/

Horizontal Frequency not displayed before is set

When signals with the vertical resolution over 480 are input

•

If the screen is not displayed correctly even after performing the auto adjustment, perform the screen

adjustments according to the procedures on the following pages to use the monitor comfortably.

[Adjustment Procedure]

1 Perform the auto adjustment.

●

 Toadjustickering,screenposition,andscreensizeautomatically[AutoAdjustment]

Procedure

Choose <Screen> from the Adjustment menu, and press .

Choose <Analog Adjustment> from the <Screen> menu, and press .

Choose <Auto Adjustment>, and press .

The auto adjustment function works (the message “In Progress” appears) to correctly adjust the ickering, screen

position, and screen size correctly.

When the auto adjustment is completed, a message appears. Select “OK” to conrm the new settings or “Cancel”

to restore the previous settings, and press .

Attention

This function works correctly when an image is fully displayed over the Windows or Macintosh display area. It

does not work properly when an image is displayed only on a part of the screen (command prompt window, for

example) or when a black background (wallpaper, etc.) is in use.

This function does not work correctly with some graphics boards.

•

If the screen is not displayed correctly even after adjusting in step 1 above, perform the adjustments

according to the procedures on the following pages. When the screen is displayed correctly, go to step

5 “To adjust color gradation automatically [Range]”.

Chapter 2 Adjusting Screen

2 Prepare the display pattern for the analog display adjustment.

Windows

Load the “EIZO LCD Utility Disk” to your PC.

Start the “Screen Adjustment Utility” from the startup menu. If it cannot be started, open the

screen adjustment pattern les.

Other than Windows

Download the "Screen adjustment pattern les" from our site: http://www.eizo.com

NOTE

For details and instructions on opening the “Screen adjustment pattern les”, refer to “Readme.txt” le.

•

3 Perform the auto adjustment again with the analog screen adjustment pattern

displayed.

●

 Toadjustickering,screenposition,andscreensizeautomatically[AutoAdjustment]

Procedure

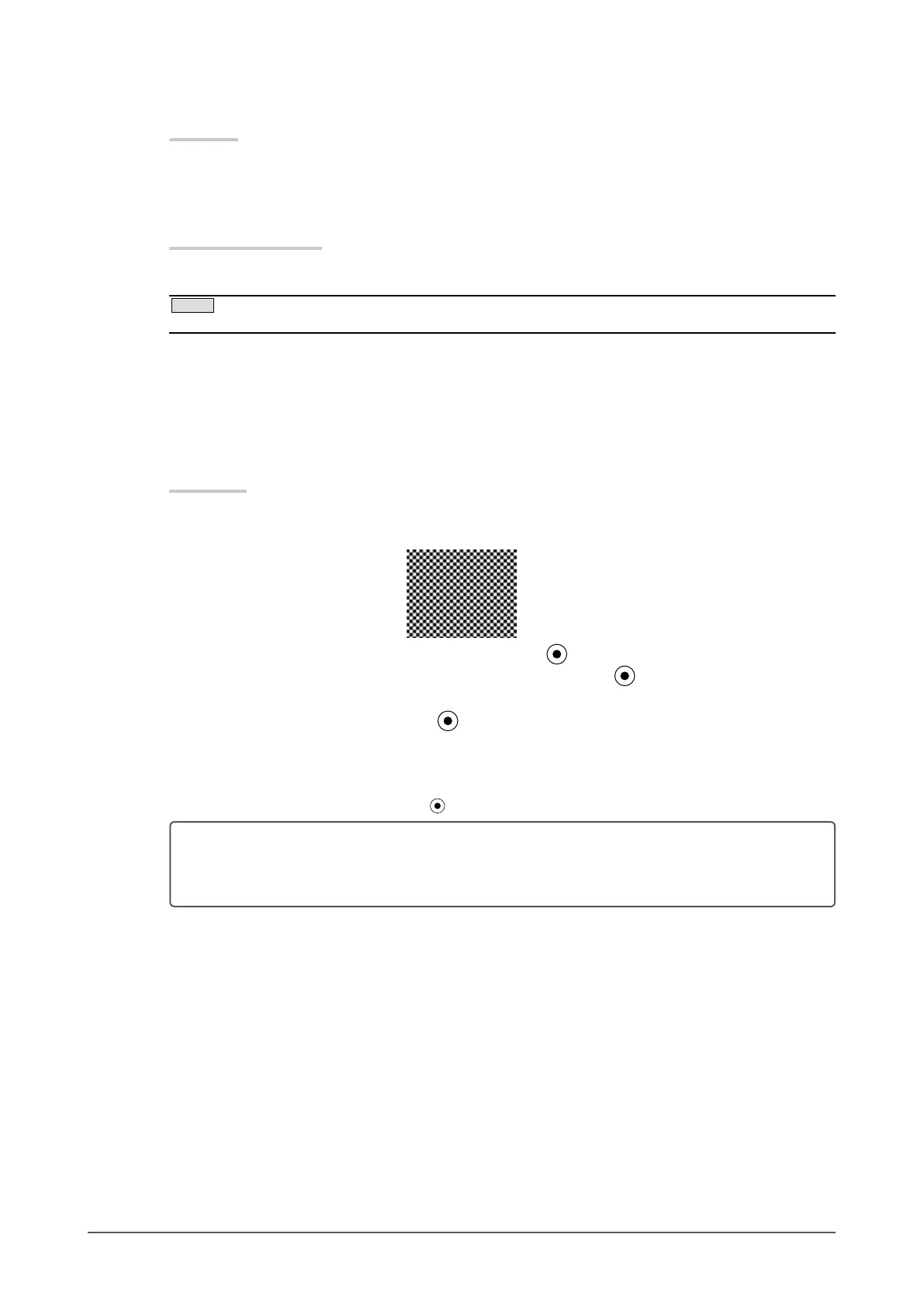

Display Pattern 1 in full screen on the monitor using the “Screen Adjustment Utility” or the screen

adjustment patternles.

Choose <Screen> from the Adjustment menu, and press .

Choose <Analog Adjustment> from the <Screen> menu, and press .

To proceed with the subsequent adjustments, select an item in <Analog Adjustment> of the <Screen> menu.

Choose <Auto Adjustment>, and press .

The auto adjustment function works (the message “In Progress” appears) to adjust the ickering, screen position,

and screen size correctly.

When the auto adjustment is completed, a message appears. Select “OK” to conrm the new settings or “Cancel”

to restore the previous settings, and press .

If the screen is not displayed correctly even after adjusting in step 3 above, perform the adjustments

according to the procedures on the following pages. When the screen is displayed correctly, go to step

5 “To adjust color gradation automatically [Range]”.

Chapter 2 Adjusting Screen

4 Perform advanced adjustments for the following using the <Screen> menu of

the <Analog Adjustment>.

Adjust the clock, phase and position, in this order.

●

To eliminate vertical bars [Clock]

Procedure

Choose <Clock> from the <Analog Adjustment> menu, and press .

Adjust the clock with or .

Press slowly so as not to miss the adjustment point.

Press to exit the adjustment.

When blurring, ickering or bars appear on the screen after adjustment, proceed to [Phase] to remove ickering

or blurring.

●

 Removeickeringorblurring[Phase]

Procedure

Choose <Phase> from the <Analog Adjustment> menu, and press .

Adjust the phase with or .

Press to exit the adjustment.

Attention

Flickering or blurring may not be eliminated depending on your PC or graphics board.•

●

To correct screen position [Hor.Position] [Ver.Position]

NOTE

Since the number of pixels and the pixel positions are xed on the LCD monitor, only one position is provided to

display images correctly. The position adjustment is made to shift an image to the correct position.

•

Procedure

Choose <Hor.Position> or <Ver.Position> from the <Analog Adjustment> menu, and press .

Adjust the position with or .

Press to exit the adjustment.

Chapter 2 Adjusting Screen

5 Adjust the color gradation.

●

To adjust color gradation automatically [Range Adjustment]

Every color gradation (0 to 255) can be displayed by adjusting the signal output level.

Procedure

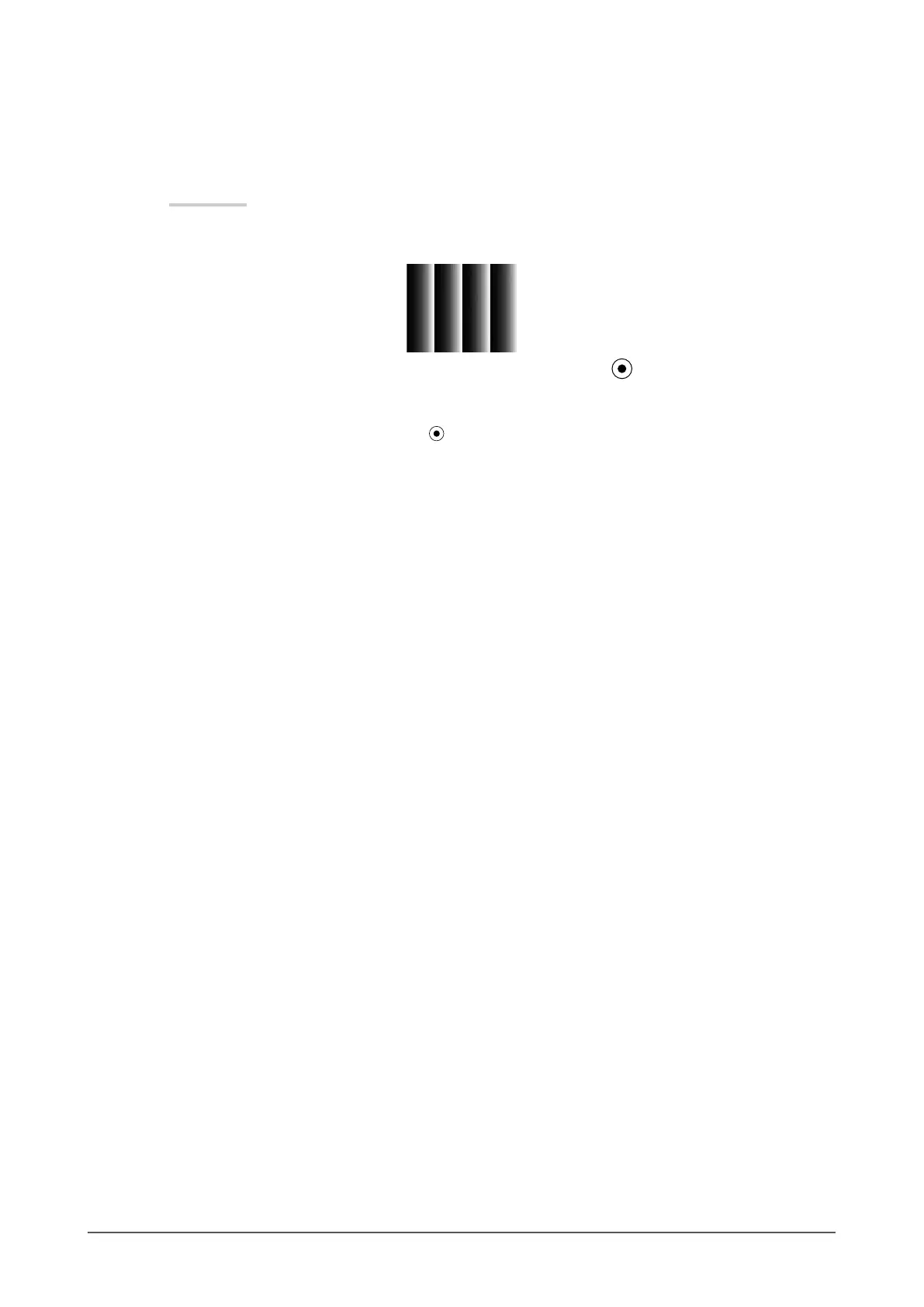

Display Pattern 2 in full screen on the monitor using the “Screen Adjustment Utility” or the screen

adjustment pattern les.

Choose <Range> from the <Analog Adjustment> menu, and press .

The color gradation is adjusted automatically.

When the auto adjustment is completed, a message appears. Select “OK” to conrm the new settings or “Cancel”

to restore the precious settings, and press .

Close the Pattern 2. When using the “Screen Adjustment Utility”, close the program.

Chapter 2 Adjusting Screen

2-3. Color Adjustment

●

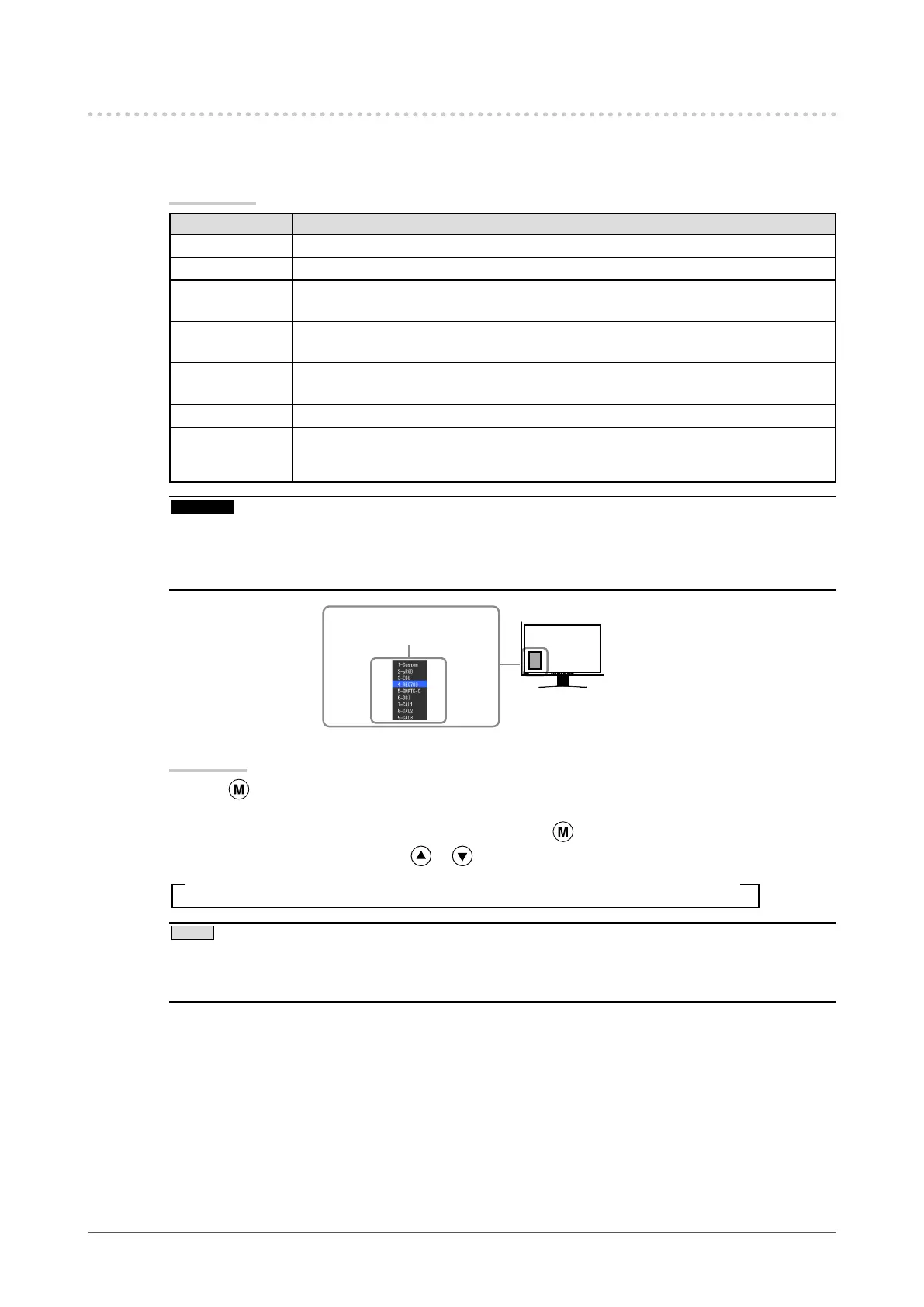

To select the display mode (Color Mode)

Color Mode allows you to select easily the adequate mode suitable for the monitor’s application.

Color Mode

Mode Purpose

1-Custom

Available for the color settings according to your preference.

2-sRGB

Suitable for color matching with sRGB compatible peripherals.

3-EBU

Suitable for reproducing the color gamut and gamma as set forth by EBU (European

Broadcasting Union) standards.

4-REC709

Suitable for reproducing the color gamut and gamma as set forth by the ITU-R Rec.

709 standard.

5-SMPTE-C

Suitable for reproducing the color gamut and gamma as set forth by SMPTE-C stan-

dards.

6-DCI

Suitable for reproducing the color gamut and gamma as set forth by DCI standards.

7-CAL1

8-CAL2

9-CAL3

Displays the screen adjusted by calibration software.

Attention

“CAL” mode can be adjusted only by Calibration Software “ColorNavigator”.

With default settings only one CAL mode can be selected for every input signal displayed.

A CAL mode will be chosen by the ColorNavigator in accordance with the displayed input signal.

Avoid operating any funciton of the monitor while using ColorNavigator.

•

The mode menu

appears.

Procedure

Press .

Mode menu appears at the lower left of the screen.

The mode among the list is highlighted in turn each time is pressed.

You can switch the current mode with or while the mode menu is being displayed.

→Custom←→sRGB←→EBU←→REC709←→SMPTE-C←→DCI←→CAL1←→CAL2←→CAL3←

NOTE

The Adjustment menu and the Mode menu cannot be displayed at the same time.

You can disable a specic mode to be selected. For more information, refer to “3-1 Enabling/Disabling Mode

Selection” (page 25).

•

Chapter 2 Adjusting Screen

●

To perform advanced adjustments

The <Color> menu of the Adjustment menu allows you to set and save the independent color adjustment

for each mode.

Attention

Wait 30 minutes or more from monitor power on before starting the color adjustment.

(Allow the monitor to warm up for at least 30 minutes before making adjustments.)

Perform the range adjustment rst when adjusting color for analog input signals.

(Refer to “To adjust color gradation automatically” on page 17).

The same image may be seen in different colors on multiple monitors due to their monitor-specic characteristics.

Make ne color adjustment visually when matching colors on multiple monitors.

•

NOTE

The values shown in “%” or “K” are available only as reference.•

●

Adjustment items in each mode

According to the mode selected, the adjustable function differs.

(You can not select any function unavailable for adjustment or setting.)

The adjustments or settings made for each mode are applied to all input signals.

For the adjustment method of each function, refer to subsequent pages.

√: Adjustment available ―: Invalid for adjustment

Icon Function

Color Mode

1-Custom 2-sRGB 3-EBU 4-REC709 5-SMPTE-C 6-DCI

7-CAL1

8-CAL2

9-CAL3

Brightness

√ √ √ √ √ √

―

Contrast

√ ―

― ― ― ― ―

Temperature

√ √ √ √ √ √

―

Gamma

√ √ √ √ √ √

―

Hue

√

― ― ― ― ― ―

Saturation

√

― ― ― ― ― ―

Outline

Enhancer

√ √ √ √ √ √

―

Gain

√

― ― ― ― ― ―

Black Level

√ √ √ √ √ √

―

6 Colors

√ ―

― ― ― ― ―

Color Reset

√ √ √ √ √ √

―

Chapter 2 Adjusting Screen

●

To adjust the brightness [Brightness]

The screen brightness is adjusted by changing the brightness of the backlight (Light source from the LCD

back panel).

Adjustable range: 0 to 100%

Procedure

Choose <Color> from the Adjustment menu, and press .

Choose <Brightness> from the <Color> menu, and press .

Adjust the brightness with or .

Press to exit the adjustment.

NOTE

You can also adjust the brightness using and .

When your feel the image is bright even if the brightness is set to 0%, adjust the contrast.

•

●

To adjust the contrast [Contrast]

The luminance of the screen is adjusted by varying the video signal level.

Adjustable range: 0 to 100%

Procedure

Choose <Color> from the Adjustment menu, and press .

Choose <Contrast> from the <Color> menu, and press .

Adjust the contrast with or .

Press to exit the adjustment.

NOTE

In the contrast of 100%, every color gradation is displayed.

When adjusting the monitor, it is recommended to perform the brightness adjustment which may not lose the

gradation characteristics, prior to the contrast adjustment.

Perform the contrast adjustment in the following cases.

- When you feel the image is bright even if the brightness is set to 0%. (Set the contrast to lower than 100%).

•

●

To adjust the color temperature [Temperature]

The color temperature can be adjusted. The color temperature is normally used to express the hue of

“White” and/or “Black” by a numerical value. The value is expressed in degrees “K” (Kelvin). In the

same way as the ame temperature, the image on the monitor is displayed reddish if the color temperature

is low and is bluish if the color temperature is high. The gain preset values are set for each color

temperature setting value.

Adjustable range: Standard, Native, 4000K-10000K (specied by every 500K unit, including 5400K,

9300K)

Procedure

Choose <Color> from the Adjustment menu, and press .

Choose <Temperature> from the <Color> menu, and press .

Adjust the color temperature with or .

Press to exit the adjustment.

NOTE

[Gain] allows you to perform more advanced adjustment (See “To adjust the gain value” on page 22).

If you set to [Native], the image is displayed in the preset color of the monitor (Gain: 100% for each RGB).

When changing the gain value, the color temperature adjusting range is changed to “User”.

The default setting for each sRGB/EBU/REC709/SMPTE-C/DCI mode is set to "Standard", which is the

temperature in conformity with each standard.

•

Chapter 2 Adjusting Screen

●

To adjust the gamma value [Gamma]

The gamma value can be adjusted. The luminance of the monitor varies depending on the input signal,

however, the variation rate is not proportional to the input signal. To keep the balance between the input

signal and the luminance of the monitor is called as “Gamma correction”.

Adjustable range: 1.8-2.6

Procedure

Choose <Color> from the Adjustment menu, and press .

Choose <Gamma> from the <Color> menu, and press .

Adjust the gamma value with or .

Press to exit the adjustment.

NOTE

The default setting for each sRGB/EBU/REC709/SMPTE-C/DCI mode is set to "Standard", which is the gamma

in conformity with each standard.

•

●

To adjust the hue [Hue]

This function allows you to adjust the hue.

Adjustable range: -100 to 100

Procedure

Choose <Color> from the Adjustment menu, and press .

Choose <Advanced Settings> from the <Color> menu, and press .

Choose <Hue>, and press .

Adjust the hue with or .

Press to exit the adjustment.

Attention

This function does not enable to display every color gradation.•

●

To adjust the color saturation [Saturation]

This function allows you to adjust the saturation of the color on the monitor.

Adjustable range: -100 to 100

Procedure

Choose <Color> from the Adjustment menu, and press .

Choose <Advanced Settings> from the <Color> menu, and press .

Choose <Saturation>, and press .

Adjust the saturation of the color with or .

Press to exit the adjustment.

Attention

This function does not enable to display every color gradation.•

NOTE

Setting the minimum (-100) turns the image to a monochrome screen.•

Chapter 2 Adjusting Screen

●

To enhance the outline of the image [Outline Enhancer]

OutlineEnhancer functions to emphasize outline of the images by emphasizing the color difference

between pixels composing the images. This may improve the texture of the material and its feel of the

images.

On the contrary, it also functions to reproduce the images smoothly by gradating its outline.

Procedure

Choose <Color> from the Adjustment menu, and press .

Choose <Advanced Settings> from the <Color> menu, and press .

Choose <Outline Enhancer> and press .

Select the display status in the range from -3 to 3 (soft to sharp) with or as desired.

Press to exit the adjustment.

●

To adjust the gain value [Gain]

Each luminance of red/green/blue composing the color is called “Gain”. The gain adjustment may change

the color tone of the “White” (when the max input signal for each color is obtained)

Adjustable range: 0 to 100%

Procedure

Choose <Color> from the Adjustment menu, and press .

Choose <Advanced Settings> from the <Color> menu, and press .

Choose <Gain>, and press .

Choose the color for adjustment among <Red>, <Green>, or <Blue> to adjust, and press .

Adjust the gain with or .

Press to exit the adjustment.

NOTE

The <Temperature> setting invalidates this setting.

The gain value may change depending on the value of the color temperature.

When changing the gain value, the color temperature adjusting range is changed to “User”.

•

●

To adjust the black level [Black Level]

The brightness of black and chromaticity can be adjusted based on the respective black level of red, green

and blue. Adjust the black level by showing images with black background.

Adjustable range:0 to 100%

Procedure

Choose <Color> from the Adjustment menu, and press .

Choose <Advanced Settings> from the <Color> menu, and press .

Choose <Black Level>, and press .

Choose the color for adjustment among <Red>, <Green>, or <Blue> to adjust, and press .

Adjust the black level with or .

Press to exit the adjustment.

NOTE

To further darken the black when the value of the black level is 0, lower the brightness value.

Lowering the contrast value will not change the brightness of the black level.

•

Chapter 2 Adjusting Screen

●

To adjust six colors [6 Colors]

The hue and saturation can be adjusted for each of six colors: Magenta, Red, Yellow, Green, Cyan, and

Blue.

Adjustable range: -100 to 100

Procedure

Choose <Color> from the Adjustment menu, and press .

Choose <Advanced Settings> from the <Color> menu, and press .

Choose <6 Colors>, and press .

Choose the color for adjustment among <Magenta>, <Red>, <Yellow>, <Green>, <Cyan>, or <Blue>,

and press .

Select <Hue> or <Saturation>, and press .

Adjust the 6 colors with or .

Press to exit the adjustment.

Chapter 2 Adjusting Screen

2-4. Displaying Lower Resolutions

●

To change screen size [Screen Size]

The image with the resolution other than the recommended resolution is displayed in full screen

automatically. You can change the screen size by using <Screen Size> from <Screen> menu.

Menu Function

Full

(default setting)

Displays an image in full screen. Images are distorted in some cases because the

vertical rate is not equal to the horizontal rate.

Enlarged Displays an image in full screen. In some cases, a blank horizontal or vertical border

appears to equalize the vertical rate and the horizontal rate.

Normal Displays images with the specied resolution.

Example: Image size 1280 x 1024 in case of CG243W

Full

(Default setting)

Enlarged

(1920 x 1200) (1500 x 1200) (1280 x 1024)

Procedure

Choose <Screen> from the Adjustment menu, and press .

Choose <Screen Size> from the <Screen> menu, and press .

Select “Full Screen,” “Enlarged,” or “Normal” with or .

Press to exit the adjustment.

2-5. Conguringmovingimageperformance

[Overdrive] (CG243W)

By using the <Overdrive> setting, the extent to which fast moving images produce visible afterimages

can be reduced. This setting is set to “On” by default, but while turned “On” noise and afterimages may

instead be more noticeable. In such a case, please set the <Overdrive> setting to “Off”.

Procedure

Choose <Tools> from the Adjustment menu, and press .

Choose <Overdrive> from the <Tools> menu, and press .

Select "On" or "Off" with or .

Press to exit the adjustment.

Normal

Chapter 3 Setting Monitor

3-1. Enabling/Disabling Mode Selection [Mode Preset]

Allows you to select the specied modes only.

Use this function when all the display modes are not available or when keeping the display mode

unchanged.

Procedure

Choose <Tools> from the Adjustment menu, and press .

Choose <Mode Preset> from the <Tools> menu, and press .

Select the mode to change its settings with or , and press .

Select “On” or “Off” with or .

Press to exit the adjustment.

Attention

You cannot set all the modes disable. Set at least one mode to “On”.•

3-2. Locking Buttons [Key Lock]

This function allows you to lock to prevent changing the adjusted/set status.

Procedure

Press to turn off the monitor.

Press holding down for at least 2 seconds to turn on the monitor.

The Optional Settings menu appears.

Choose <Key Lock> from the <Optional Settings> menu, and press .

Select “Off”, “Menu”, or “All” with or , and press .

Settings Buttons that can be locked

Off (Initial settings) None (All buttons are enabled)

button

All

All buttons excluding

Select “Finish” with or .

Press to exit.

The Optional Settings menu is closed.

Chapter 3 Setting Monitor

3-3. Setting the EIZO Logo Display [Logo]

The EIZO logo appears on the display when turning on the monitor. This function allows you to display,

or not, the EIZO logo.

Procedure

Press to turn off the monitor.

Press holding down at least 2 seconds to turn on the monitor.

The Optional Settings menu appears.

Choose <Logo> from the <Optional Settings> menu, and press .

Select “On” or “Off” with or , and press .

Select “Finish” with or .

Press to exit the Optional Settings.

The Optional Settings menu is closed.

3-4. Setting Orientation [Orientation]

This function allows you to change the orientation of the Adjustment menu when using the monitor

screen in vertical display position. (Default settings : Landscape)

Procedure

Choose <Menu Settings> from the Adjustment menu, and press .

Choose <Orientation> from the <Menu Settings> menu, and press .

Select “Landscape” or “Portrait” with or .

Press to exit the adjustment.

When selecting “Portrait”, turn the monitor screen 90° in clockwise direction.

Attention

Be sure that the cables are correctly connected.•

NOTE

For using the monitor with “Portrait” position, the graphics board supporting portrait display is required. When

placing the monitor in a "Portrait" position, settings of your graphics board need to be changed. Refer to the

manual of the graphics board for details.

•

Chapter 3 Setting Monitor

3-5. Setting Language [Language]

This function allows you to select a language for the adjustment menu or displaying message.

Selectable languages

English/German/French/Spanish/Italian/Swedish/Japanese /Simplied Chinese/Traditional Chinese

Procedure

Choose <Menu Settings> menu from the Adjustment menu, and press .

Choose <Language> from the <Menu Settings> menu, and press .

Choose a language with or .

Press to exit the adjustment.

3-6. Setting Range of Frequency [Signal Bandwidth]

Depending upon your operating environment, it may be necessary to set the frequency that corresponds

to your graphics board. If you install it for the rst time or change environment, set the monitor.

NOTE

Refer to the manual of the graphics board.

These environment described below can be set regardless of whether or not the computer is running.

Only digital input signals can be set up.

•

Procedure

Press to turn off the monitor.

Press holding down at least 2 seconds to turn on the monitor.

The Optional Settings menu appears.

Choose <Signal Baldwidth> from the <Optional Settings> menu, and press .

Select “Normal” or “Wide” with or , and press .

Use or to select (or just conrm) the frequency that corresponds to your graphics board.

Setting CG223W CG243W

Horizontal scanning

frequency (kHz)

Vertical scanning

frequency (Hz)

Horizontal scanning

frequency (kHz)

Vertical scanning

frequency (Hz)

Normal 31 - 65 59 - 61 26 - 78 59 - 61

Wide 31 - 65 47.5 - 61 26 - 78 23.75 - 63

Select “Finish” with or .

Press to exit the Optional Settings.

The Optional Settings menu is closed.

Chapter 3 Setting Monitor

3-7. Setting the Display Position of the Adjustment

Menu [Menu Position]

Adjust the menu position using the following procedure.

Procedure

Choose <Menu Settings> from the Adjustment menu, and press .

Choose <Menu Position> from the <Menu Settings> menu, and press .

Select a menu position with or .

Press to exit the adjustment.

3-8. Restoring the Default Setting

There are two types of Reset. One is to reset the color adjustment only to the default settings, and the

other is to reset all the settings to the default settings.

Attention

After resetting, you cannot undo the operation.•

NOTE

For main default settings, refer to “Main default settings (factory settings)” on page 41.•

●

To reset color adjustment values [Color Reset]

Only the adjustment values in the current mode will revert to the default settings (factory settings).

Procedure

Choose <Color> from the Adjustment menu, and press .

Choose <Color Reset> from the <Color> menu and press .

Select “Execute” with or .

Press .

The color adjustment values revert to the default settings.

●

To reset all adjustments to the factory default settings [All Reset]

Reset all adjustments to the factory default settings.

Procedure

Choose <Tools> from the Adjustment menu, and press .

Choose <All Reset> from the <Tools> menu, and press .

Select “Execute” with or .

Press .

All setting values revert to the default settings.

Chapter 4 Power Saving Function

4-1. Setting the Power Saving [Power Save]

This function allows you to set the monitor into the power saving mode according to the PC status.

When the monitor enters the power saving mode, no image is displayed on the screen.

Attention

Turning off the main power switch or unplugging the power cord completely shuts off power supply to the

monitor.

Devices connected to the USB port (upstream and downstream) work when the monitor is in power saving

mode or when the power button of the monitor is Off. Therefore, power consumption of the monitor varies with

connected devices even in the power saving mode.

•

Power Save is compliant with the following standards for the respective signal inputs.

signal inputs Standard

Analog signal VESA DPMS

Digital signal DVI DVI DMPM

DisplayPort DisplayPort Standard V1.1a

Procedure

Choose <PowerManager> from the Adjustment menu, and press .

Choose <Power Save> from the <PowerManager> menu, and press .

Select “On” or “Off” with or .

Press to exit the adjustment.

Power Saving System

The monitor enters the power saving mode in conjunction with the PC settings.

PC Monitor Power Indicator

Operating Operating Blue

Power saving STAND-BY

SUSPENDED

OFF

Power saving Orange

Chapter 4 Power Saving Function

4-2. Setting Power Indicator [Power Indicator]

The brightness of the power indicator (blue) when the screen is displayed can be adjusted (default setting

is set to light up when power is turned on, and brightness is set to 4).

Procedure

Choose <PowerManager> from the Adjustment menu, and press .

Choose <Power Indicator> from the <PowerManager> menu, and press .

Select the indicator brightness “Off” or in the range from 1 to 7 with or as desired.

Press to exit the adjustment.

4-3. Setting Monitor’s Automatic Brightness Adjustment

[Auto EcoView]

The sensor on the lower side of the monitor detects the environmental brightness to adjust the screen

brightness automatically and comfortably by using the Auto EcoView function.

Attention

The Auto EcoView function is not available in CAL mode.

Be careful not to block the sensor on the lower side of the monitor when using the Auto EcoView function.

•

Procedure

Choose <PowerManager> from the Adjustment menu, and press .

Choose <Auto EcoView> from the <PowerManager> menu, and press .

Select “On” or “Off” with or .

Press to exit the adjustment.

Chapter 5 Troubleshooting

If a problem still remains after applying the suggested remedies, contact your local dealer.

No-picture problems → See No.1 - No.2.

Imaging problems (digital input) → See No.3 - No.8.

Imaging problems (analog input) → See No.3 - No.12.

Other problems → See No.13 - No.16.

Problems Possible cause and remedy

1. No picture

Power indicator does not light.•

Check whether the power cord is connected correctly.

Turn off the main power, and then turn it on again a

few minutes later.

Turn the main power switch on.

Press .

•

Power indicator lights blue.• Set each adjusting value in <Brightness>, <Contrast>

and <Gain> to higher level. (page 20, 22)

•

Power indicator lights orange.•

Switch the input signal with .

Operate the mouse or keyboard.

Check whether the PC is turned on.

•

2. The message below appears.

This message appears when the signal is not input

correctly even when the monitor functions properly.

This message appears when no signal is input.

Example:

• The message shown left may appear, because some

PCs do not output the signal soon after power-on.

Check whether the PC is turned on.

Check whether the signal cable is connected properly.

Switch the input signal with .

•

The message shows that the input signal is out of the

specied frequency range. (Such signal frequency is

displayed in red.)

Example:

• Check whether the signal setting of your PC matches

the resolution and the vertical frequency settings

for the monitor. (refer to the Setup Manual “Setting

Screen Resolution”)

Reboot the PC.

Select an appropriate display mode using the

graphics board’s utility. Refer to the manual of the

graphics board for details.

fD : Dot Clock

(Displayed only when the digital signal inputs)

fH : Horizontal Frequency

fV : Vertical Frequency

•

3. The screen is too bright or too dark.

Adjust using <Brightness> or <Contrast>. (The LCD

monitor backlight has a xed life span. When the

screen becomes dark or begins to icker, contact your

local dealer.)

Turn on the Auto EcoView function. The monitor

detects the environmental brightness to adjust the

screen brightness automatically.

•

Chapter 5 Troubleshooting

Problems Possible cause and remedy

4. Characters are blurred

Check whether the signal setting of your PC matches

the resolution and the vertical frequency settings

for the monitor. (refer to the Setup Manual “Setting

Screen Resolution”)

Adjust using <Outline Enhancer>. (page 22)

•

5. Afterimages appear

Afterimages are particular to LCD monitors. Avoid

displaying the same image for a long time.

Use the screen saver or power save function to avoid

displaying the same image for extended periods of

time.

•

6. Green/red/blue/white dots or defective dots

remain on the screen.

This is due to LCD panel characteristics and is not a

failure.

•

7. Interference patterns or pressure marks remain

on the screen.

Leave the monitor with a white or black screen. The

symptom may disappear.

•

8. Noise appears on the screen.

When entering the signals of HDCP system, the

normal images may not be displayed immediately.

•

9. Display position is incorrect.

Adjust image position using <Hor.Position> or <Ver.

Position>. (page 16)

If the problem persists, use the graphics board’s utility

if available to change the display position.

•

10. Vertical bars appear on the screen or a part of the

imageisickering.

Adjust using <Clock>. (page 16)•

11. Wholescreenisickeringorblurring.

Adjust using <Phase>. (page 16)•

12. Upper part of the screen is distorted as shown

below.

This is caused when both composite sync (X-OR)

signal and separate vertical sync signal are input

simultaneously. Select either composite signal or

separate signal.

•

13. The adjustment menu does not appear.

Check whether the operation lock function works.

(page 25)

•

14. Mode menu does not appear.

Check whether the operation lock function works.

(page 25)

•

15. The auto adjust function does not work correctly.

This function does not work when digital signal is

input.

This function is intended for use on the Macintosh and

on AT-compatible PC running Windows. It may not

work properly in either of the following cases. It does

not work properly when an image is displayed only

on a part of the screen (command prompt window,

for example) or when a black background (wallpaper,

etc.) is in use.

This function does not work correctly with some

graphics boards.

•

Chapter 5 Troubleshooting

Problems Possible cause and remedy

16. The monitor connected with the USB cable is not

detected. / USB devices connected to the monitor

does not work.

Check whether the USB cable is connected correctly.

(page 37)

Change the USB port to another one. If the PC or

peripheral devices works correctly by changing the

USB port, contact your local dealer. (Refer to the

manual of the PC for details.)

Reboot the PC.

If the peripheral devices work correctly when the PC

and peripheral devices are connected directly, please

contact your local dealer.

Check whether the PC and OS are USB compliant.

(For USB compliance of the respective devices,

consult their manufacturers.)

Check the PC’s BIOS setting for USB when using

Windows. (Refer to the manual of the PC for details.)

•

Chapter 6 Reference

6-1. Attaching an Arm

The stand can be removed and replaced with an arm (or another stand) to be attached to the monitor. Use

an arm or stand of EIZO option.

Attention

When attaching an arm or stand, follow the instructions of their user’s manual.

When using another manufacturer’s arm or stand, conrm the following in advance and select one conforming to

the VESA standard.

- Clearance between the screw holes: 100 mm × 100 mm

- Thickness of plate: 2.6 mm

- Strong enough to support weight of the monitor unit (except the stand) and attachments such as cables.

Use the screws as described below.

- CG223W: The screws xing the stand to the monitor

- CG243W: The screws supplied with this monitor (M4 × 12mm)

When using an arm or stand, attach it to meet the following tilt angles of the monitor.

- Up 45 degrees, down 45 degrees (horizontal display, and vertical display rotated 90 degrees clockwise)

Connect the cables after attaching an arm.

Do not adjust the height of the stand removed from the monitor. When adjusted without attached monitor, it

causes the personnel injury or the damaged to the stand.

Since the monitor and arm are so heavy, dropping them may result in injury or equipment damage.

•

[Attachment Procedure]

1 Lay the LCD monitor on a soft cloth spread over on a stable surface with the

panel surface facing down.

2 Remove the stand.

Prepare a screwdriver. Unscrew the four screws securing the unit and the stand with the screwdriver.

3 Attach the monitor to the arm or stand.

Secure the monitor to the arm or stand using the screws specied in the user’s manual of the arm or stand.

Chapter 6 Reference

6-2. Connecting More than Two PCs to the Monitor

More than two PCs can be connected to the monitor through the DVI-I and the DisplayPort connector on

the back of the monitor.

Connection examples

DVI-1

DVI-2

Disply-Port

POWER INPUT

D-Sub mini 15-

pin connector

DVI

connector

Signal cable

(FD-C39 option)

Signal cable

(supplied FD-C16)

To PC 1

To PC 2

To PC 3

Signal cable

(supplied PP200)

DVI-I connector

DisplayPort

connector

DisplayPort

connector

Analog

Digital

●

To switch the input signal

The input signal switches each time is pressed.

When the signal is switched, the active input port name appears at the top right corner of the screen.

Chapter 6 Reference

●

To set input signal selection [Input Selection]

The monitor recognizes the connector through which PC signals are input.

Priority setting Function

Auto When a PC is turned off or enters the powersaving mode, the monitor

automatically displays another signal.

Manual The monitor detects only the PC’s signals currently displaying automatically. Select

an active input signal with .

Procedure

Choose <Tools> from the Adjustment menu, and press .

Choose <Input Selection> from the <Tools> menu, and press .

The <Input Selection> menu appears.

Select “Auto” or “Manual” with or .

Press to exit the adjustment.

Attention

When “Auto” is selected for <Input Selection>, the monitor’s power-saving function works only when the all PCs

are in the power-saving mode.

•

Chapter 6 Reference

6-3. Making Use of USB (Universal Serial Bus)

This monitor has a hub compatible with USB. Connected to a PC compatible with USB or another USB

hub, this monitor functions as a USB hub allowing connection to peripheral USB devices.

●

Required System Environment

A PC equipped with a USB port or another USB hub connected to a USB compatible PC

Windows 2000/XP/Vista/7 or Mac OS 9.2.2 and Mac OS X 10.2 or later

EIZO USB cable (MD-C93)

Attention

This monitor may not work depending on PC, OS or peripheral devices to be used. For USB compatibility of

peripheral devices, contact their manufactures.

Devices connected to the USB port (upstream and downstream) work when the monitor is in power saving

mode or when the power button of the monitor is Off. Therefore, power consumption of the monitor varies with

connected devices even in the power saving mode.

When the main power switch is Off, device connected to the USB port will not operate.

•

●

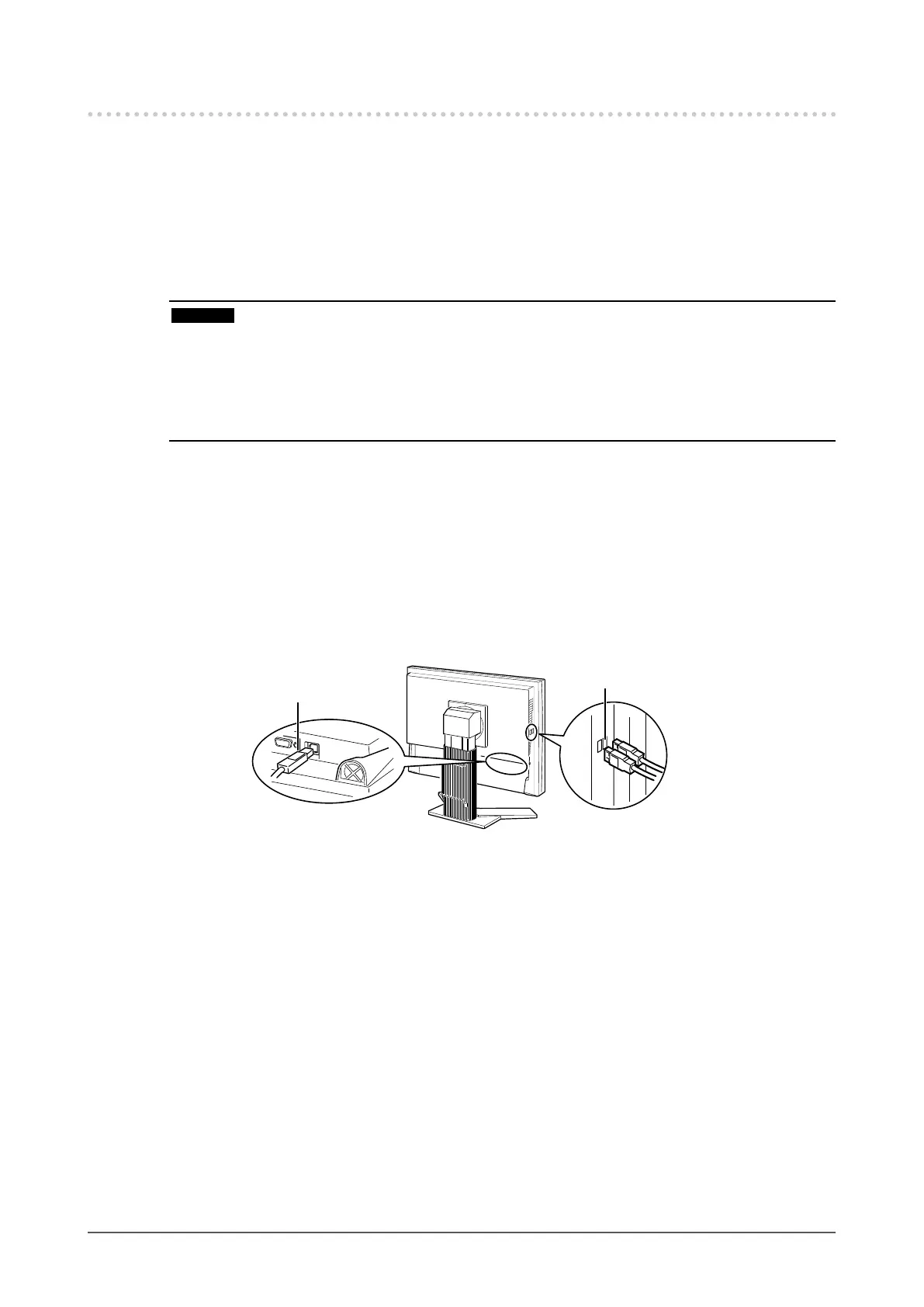

Connection Procedure (Setup of USB Function)

Connect the monitor rst to a PC using the signal cable, and run the PC.

Connect the supplied USB cable between the downstream USB port of a USB compatible PC (or

another USB hub) and the monitor’s upstream USB port.

The USB hub function is set up automatically upon connection of the USB cable.

Connect the peripheral USB device to the USB port (downstream) of the monitor.

Upstream

Downstream

Chapter 6 Reference

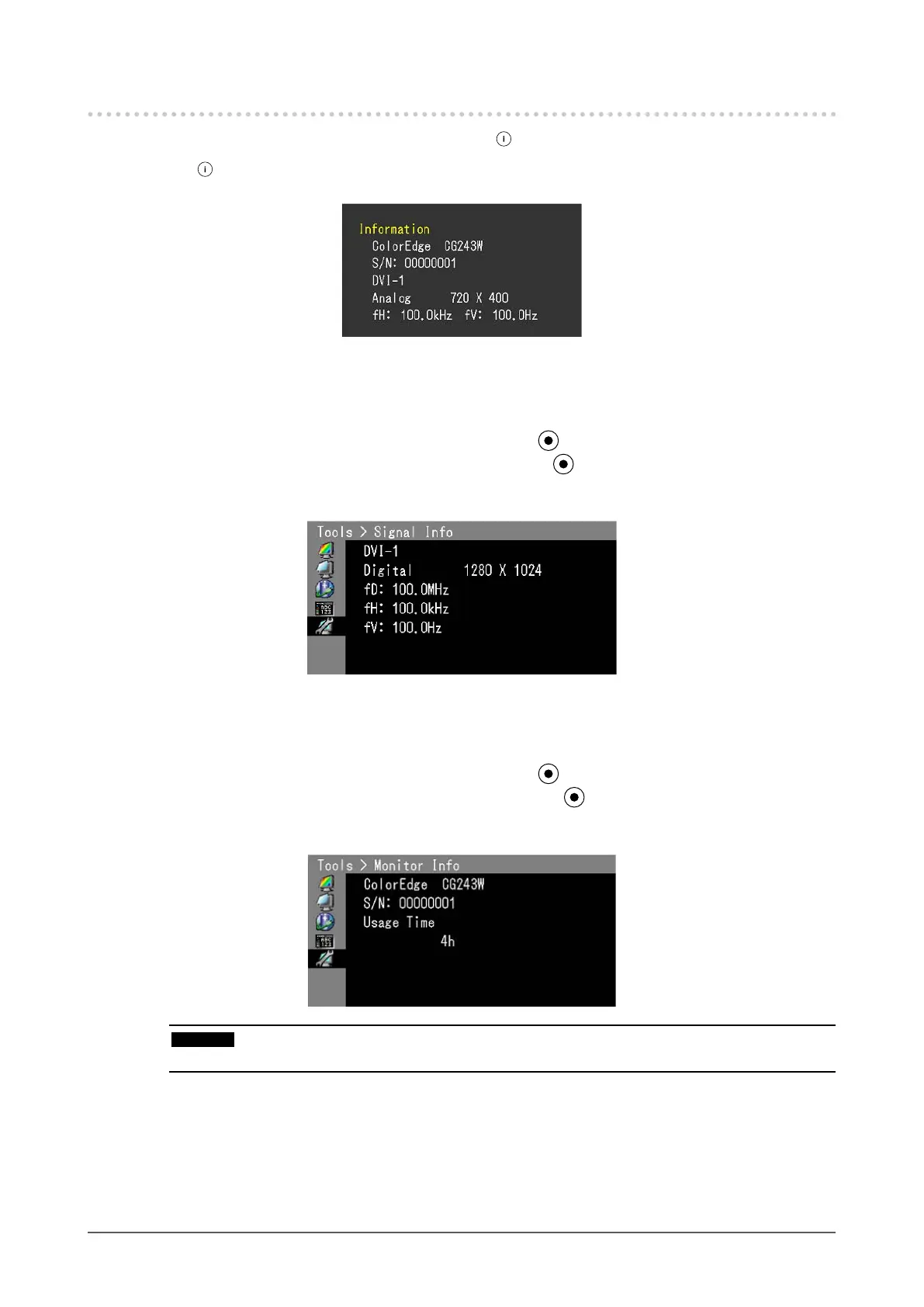

6-4. Displaying Monitor Information

●

Displaying monitor information by pressing

The displays the information about the monitor and the current input signals displayed.

(Example)

●

Displaying signal information [Signal Info]

This function displays the information about the current input signals displayed.

Choose <Tools> from the Adjustment menu, and press .

Choose <Signal Info> from the <Tools> menu, and press .

The Signal Info screen appears.

(Example)

●

Displaying monitor information [Monitor Info]

This function displays the information about the monitor.

Choose <Tools> from the Adjustment menu, and press .

Choose <Monitor Info> from the <Tools> menu, and press .

The Monitor Info screen appears.

(Example)

Attention

The usage time is not always “0” due to factory inspection when you purchase the monitor.•

Chapter 6 Reference

6-5. Specications

CG223W

LCD Panel Size 22.0-inch (560 mm) TFT color LCD

Surface treatment Anti-Glare Hard Coating

Surface hardness 3H

Viewing angle Viewing angle : Horizontal 178°, Vertical 178° (CR:10 or more)

Dot Pitch 0.282 mm

Response Time Approx. 12ms

Horizontal Scan

Frequency

Analog 24-82 kHz

Digital 31-65 kHz

Vertical Scan

Frequency

Analog 47.5-86 Hz (1280 × 1024: ~ 76 Hz, 1680 × 1050: ~ 61 Hz)

Digital 47.5-61 Hz (VGA TEXT: 69-71 Hz)

Frame

Synchronous

mode

Analog 47.5-61 Hz

Digital 47.5-61 Hz

Resolution 1680 dots × 1050 lines

Recommended Brightness 120 cd/m

or less (with color temperature of between 5000K to 6500K)

Max. Dot Clock Analog 150 MHz

Digital 120 MHz

Max. Display Color Approx. 1073.74 million colors (DisplayPort 10bit)

Display Area (H × V) 473.76 mm × 296.1 mm

Power Supply 100-120/200-240 VAC ±10%, 50/60Hz, 0.85A/0.45A

Power

Consumption

Screen Display On 85W or less (with USB load)

75W or less (without USB load)

Power saving mode 0.9W or less (for DVI-I (Analog) single signal input, without USB load,

[Input Selectionl] : “Manual”)

Power button Off 0.7W or less (without USB load)

Main Power switch Off 0W

Input Signal Connector DVI-I connector (Applicable to HDCP) × 2

DisplayPort (Standard V1.1a, applicable to HDCP)

Analog Input Signal (Sync) Separate, TTL, positive/ negative

Composite, TTL, positive/ negative

Analog Input Signal (Video) Analog, Positive (0.7Vp-p/75Ω)

Digital Signal (DVI) Transmission System TMDS (Single Link)

Max. Video

Signal Memory

Analog 45 (preset: 12)

Plug & Play Analog / Digital (DVI-I) : VESA DDC 2B / EDID structure 1.3

Digital (DisplayPort) : VESA DisplayPort / EDID structure 1.4

Dimensions Main unit 511 mm (20.1 inch) × 347.5-521.5 mm (13.7 – 20.5 inch) × 240.5 mm

(9.5 inch)

Main unit (without stand) 511 mm (20.1 inch) × 333 mm (13.1 inch) × 85 mm (3.35 inch)

Mass Main unit Approx. 9.6 kg (21.2 lbs.)

Main unit (without stand) Approx. 6.6 kg (14.6 lbs.)

Chapter 6 Reference

Movable range Tilt 30° Up, 0° Down

Swivel 172° Right, 172° Left

Adjustable height 225 mm (8.9 inch) (174 mm (6.9 inch) when Tilt is 0°)

Rotation 90° (clockwise)

Environmental

Conditions

Temperature Operating temperature: 0 °C - 35 °C (32 °F - 95 °F)

Storage temperature: -20 °C - 60 °C (-4 °F - 140 °F)

Humidity Operating humidity: 20% - 80% R.H. (no condensation)

Storage humidity: 10% - 80% R.H. (no condensation)

Pressure Operating: 700 to 1,060 hPa

Storage: 200 to 1,060 hPa

USB Standard USB Specication Revision 2.0

Port Upstream port × 1, Downstream port × 2

Communication Speed 480 Mbps (high), 12 Mbps (full), 1.5 Mbps (low)

Supply current Downstream: Max. 500mA/1 port

CG243W

LCD Panel Size 24.1-inch (610 mm) TFT color LCD

Surface treatment Hard Coating

Surface hardness 3H

Viewing angle Viewing angle : Horizontal 178°, Vertical 178° (CR:10 or more)

Dot Pitch 0.270 mm

Response Time Approx. 13ms

Horizontal Scan

Frequency

Analog 24-76 kHz

Digital 26-78 kHz

Vertical Scan

Frequency

Analog 47.5-86 Hz(1600 × 1200, 1920 × 1200: 49-61 Hz)

Digital 23.75-63 Hz (VGA TEXT: 69-71 Hz)

Frame

Synchronous

mode

Analog 47.5-61 Hz

Digital 23.75-30.5 Hz, 47.5-61 Hz

Resolution 1920 dots × 1200 lines

Recommended Brightness 120 cd/m

or less (with color temperature of between 5000K to 6500K)

Max. Dot Clock Analog 170 MHz

Digital 164.5 MHz

Max. Display Color Approx. 1073.74 million colors (DisplayPort 10bit)

Display Area (H × V) 518.4 mm × 324.0 mm

Power Supply 100-120/200-240 VAC ±10%, 50/60Hz, 1.0A/0.5A

Power

Consumption

Screen Display On 95W or less (with USB load)

85W or less (without USB load)

Power saving mode 0.9W or less (for DVI-I (Analog) single signal input, without USB load,

[Input Selection] : “Manual”)

Power button Off 0.7W or less (without USB load)

Main Power switch Off 0W

Input Signal Connector DVI-I connector (Applicable to HDCP) × 2

DisplayPort (Standard V1.1a, applicable to HDCP)

Chapter 6 Reference

Analog Input Signal (Sync) Separate, TTL, positive/ negative

Composite, TTL, positive/ negative

Analog Input Signal (Video) Analog, Positive (0.7Vp-p/75Ω)

Digital Signal (DVI) Transmission System TMDS (Single Link)

Max. Video

Signal Memory

Analog 45 (preset: 9)

Plug & Play Analog / Digital (DVI-I) : VESA DDC 2B / EDID structure 1.3

Digital (DisplayPort) : VESA DisplayPort / EDID structure 1.4

Dimensions Main unit 566 mm (22.3 inch) × 456-538 mm (18.0 – 21.2 inch) × 230 mm

(9.1 inch)

Main unit (without stand) 566 mm (22.3 inch) × 367 mm (14.4 inch) × 85 mm (3.4 inch)

Mass Main unit Approx. 10.7 kg (23.6 lbs.)

Main unit (without stand) Approx.7.1 kg (15.7 lbs.)

Movable range Tilt 40° Up, 0° Down

Swivel 35° Right, 35° Left

Adjustable height 82 mm (3.2 inch)

Rotation 90° (clockwise)

Environmental

Conditions

Temperature Operating temperature: 0 °C - 35 °C (32 °F - 95 °F)

Storage temperature: -20 °C - 60 °C (-4 °F - 140 °F)

Humidity Operating humidity: 20% - 80% R.H. (no condensation)

Storage humidity: 10% - 80% R.H. (no condensation)

Pressure Operating: 700 to 1,060 hPa

Storage: 200 to 1,060 hPa

USB Standard USB Specication Revision 2.0

Port Upstream port × 1, Downstream port × 2

Communication Speed 480 Mbps (high), 12 Mbps (full), 1.5 Mbps (low)

Supply current Downstream: Max. 500mA/1 port

Main default settings (factory settings)

Color Mode Custom

PowerManager On

Input Selection Manual

Screen Size Fulll

Auto EcoView Off

Outline Enhancer 0

Menu Position Center

Language English

Chapter 6 Reference

Outside Dimensions

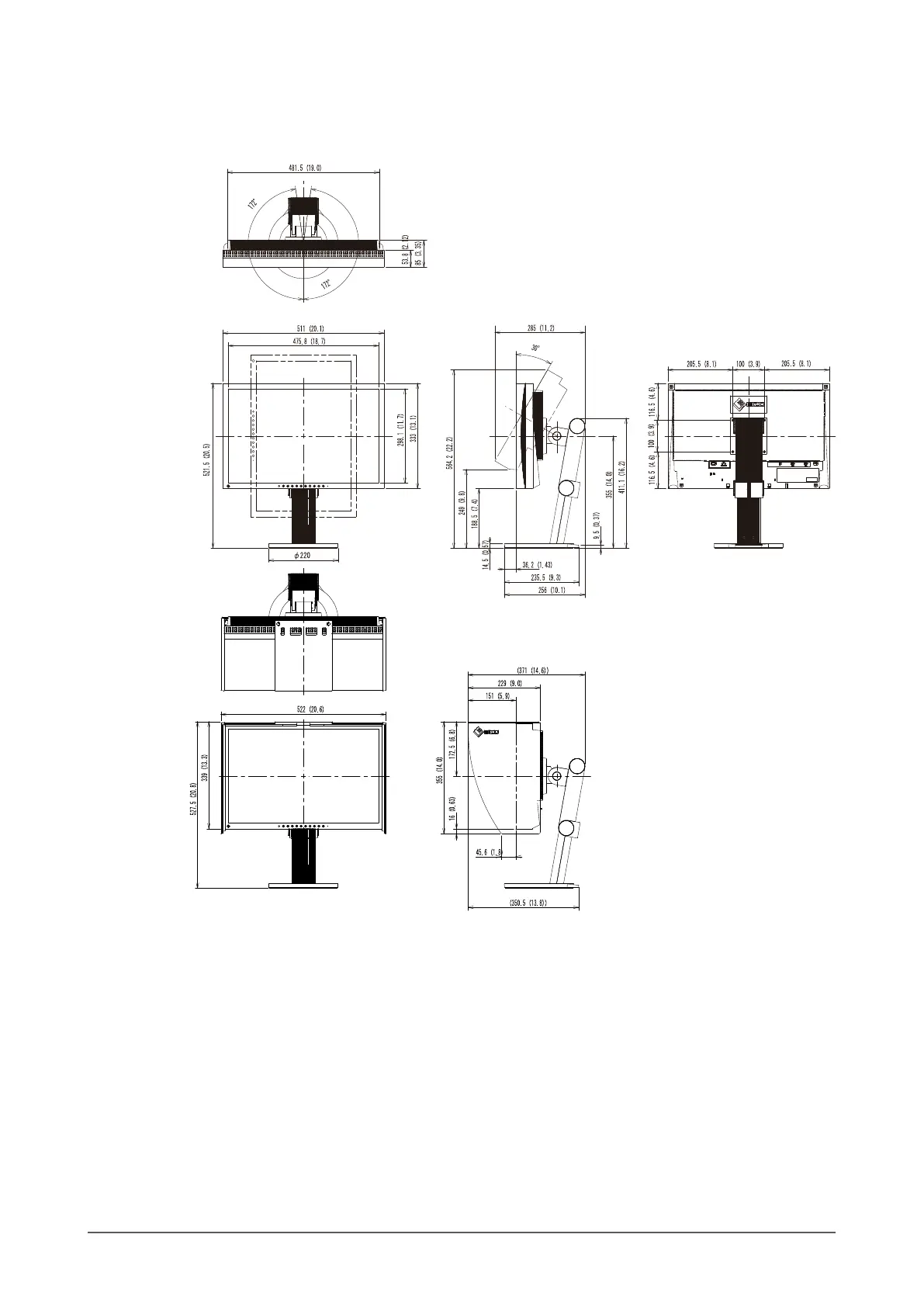

CG223W

Unit: mm (inch)

Chapter 6 Reference

Outside Dimensions

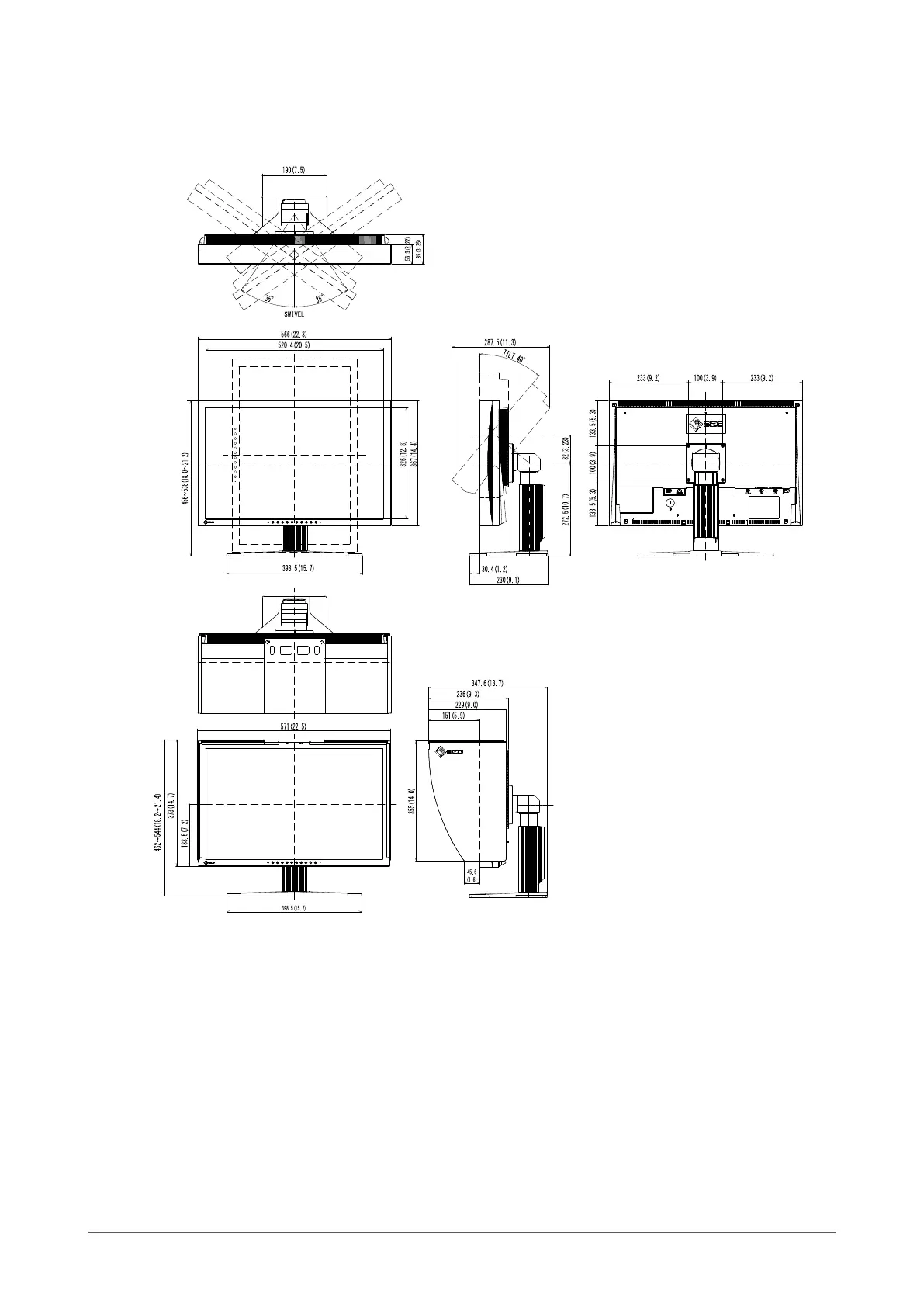

CG243W

Unit: mm (inch)

Chapter 6 Reference

Connector Pin Assignment

DVI-I connector

14 15

18 22 23

No.

Signal

No.

Signal

No.

Signal

1 T.M.D.S. Data 2- 11 T.M.D.S. Data1/3 Shield 21 NC*

2 T.M.D.S. Data 2+ 12 NC* 22 T.M.D.S. Clock shield

3 T.M.D.S. Data2/4 Shield 13 NC* 23 T.M.D.S. Clock+

4 NC* 14 +5V Power 24 T.M.D.S. Clock-

5 NC* 15 Ground (return for +5V,

Hsync, and Vsync)

C1 Analog Red

6 DDC Clock (SCL) 16 Hot Plug Detect C2 Analog Green

7 DDC Data (SDA) 17 T.M.D.S. Data0- C3 Analog Blue

8 Analog Vertical Sync 18 T.M.D.S. Data0+ C4 Analog Horizontal Sync

9 T.M.D.S. Data1- 19 T.M.D.S. Data0/5 Shield C5 Analog Ground(analog

R,G,&B return)

10 T.M.D.S. Data1+ 20 NC*

(NC*: No Connection)

DisplayPort connector

135791113151719

2468101214161820

Pin No.

Signal

Pin No.

Signal

Pin No.

Signal

1 ML Lane3- 8 Ground 15 AUX CH+

2 Ground 9 ML Lane1+ 16 Ground

3 ML Lane3+ 10 ML Lane0- 17 AUX CH-

4 ML Lane2- 11 Ground 18 Hot Plug Detect

5 Ground 12 ML Lane0+ 19 Return

6 ML Lane2+ 13 CONFIG1 20 DP PWR

7 ML Lane1- 14 CONFIG2

USB port

Upstream

Series A connectorSeries B connector

Downstream

Contact No. Signal Remarks

1 VCC Cable power

2 - Data Serial data

3 + Data Serial data

4 Ground Cable ground

•

Chapter 6 Reference

6-6. Glossary

Clock

The analog input monitor needs to reproduce a clock of the same frequency as the dot clock of the

graphics system in use, when the analog input signal is converted to a digital signal for image display.

This is called clock adjustment. If the clock pulse is not set correctly, some vertical bars appear on the

screen.

DisplayPort

VESA provides the digital interface standard for the digital display device. DisplayPort can transfer the

video signal up to 16 bits for each channel of RGB, and the audio signal too. (This monitor supports the

8-bit video signal only.)

DVI (Digital Visual Interface)

DVI is a digital interface standard. DVI allows direct transmission of the PC’s digital data without loss.

This adopts the TMDS transmission system and DVI connectors. There are two types of DVI connectors.

One is a DVI-D connector for digital signal input only. The other is a DVI-I connector for both digital and

analog signal inputs.

DVI DMPM (DVI Digital Monitor Power Management)

DVI DMPM is a digital interface power-saving function. The “Monitor ON (operating mode)” and

“Active Off (power-saving mode)” are indispensable for DVI DMPM as the monitor’s power mode.

Gain

This is used to adjust each color parameter for red, green and blue. An LCD monitor displays the color

by the light passing through the panel color lter. Red, green and blue are the three primary colors. All

the colors on the screen are displayed by combining these three colors. The color tone can be changed by

adjusting the light intensity (volume) passing through each color’s lter.

Gamma

Generally, the monitor brightness varies nonlinearly with the input signal level, which is called “Gamma

Characteristic”. A small gamma value produces a low-contrast image, while a large gamma value

produces a highcontrast image.

Chapter 6 Reference

HDCP (High-bandwidth Digital Contents Protection)

Digital signal coding system developed to copy-protect the digital contents, such as video, music, etc.

This helps to transmit the digital contents safely by coding the digital contents sent via DVI terminal on

the output side and decoding them on the input side. Any digital contents cannot be reproduced if both of

the equipments on the output and input sides are not applicable to HDCP system.

Phase

Phase means the sampling timing to convert the analog input signal to a digital signal. Phase adjustment

is made to adjust the timing. It is recommended that phase adjustment be made after the clock is adjusted

correctly.

Range Adjustment

Range adjustment controls the signal output levels to display every color gradation. It is recommended

that range adjustment be made before color adjustment.

Resolution

The LCD panel consists of numerous pixels of specied size, which are illuminated to form images.

This monitor consists of 1680(CG223W) / 1920(CG243W) horizontal pixels and 1050(CG223W) /

1200(CG243W) vertical pixels. At a resolution of 1680 x 1050(CG223W) / 1920 x 1200(CG243W) , all

pixels are illuminated as a full screen (1:1).

sRGB(Standard RGB)

"International Standard for Red, Green, and Blue color space" A color space was dened with the aim of

the color matching between applications and hardware devices, such as monitors, scanners, printers and

digital cameras. As a standard default space, sRGB allows Internet users to closely match colors.

Temperature

Color temperature is a method to measure the white color tone, generally indicated in degrees Kelvin.

The screen becomes reddish at a low temperature, and bluish at a high temperature, like the ame

temperature.

5000K: Slightly reddish white (usually used in print industry)

6500K: White called daylight color (suited for web browsing)

9300K: Slightly bluish white (usually used for television)

TMDS (Transition Minimized Differential Signaling)

A signal transmission system for digital interface.

VESA DPMS (Video Electronics Standards Association - Display Power Management

Signaling)

VESA provides the standardization of signals from PC (graphics board) for power saving of PC monitors.

DPMS denes the signal status between PC and monitor.

Chapter 6 Reference

6-7. Preset Timing

The following table shows factory preset video timing (for analog signal only).

Attention

Display position may be deviated depending on the PC connected, which may require screen adjustment using

Adjustment menu.

If a signal other than those listed in the table is input, adjust the screen using the Adjustment menu. However,

screen display may still be incorrect even after the adjustment.

When interlace signals are used, the screen cannot be displayed correctly even after screen adjustment using the

Adjustment menu.

•

Resolution

Applicable

signal

Frequency Polarity

CG223W CG243W

Dot clock

: MHz

Horizontal

: kHz

Vertical

: Hz

Horizontal Vertical

640 × 480 VGA 25.18 31.47 59.94

Negative Negative

√ √

720 × 400 VGA TEXT 28.32 31.47 70.09

Negative Positive

√ √

800 × 600 VESA 40.00 37.88 60.32

Positive Positive

√ √

1024 × 768 VESA 65.00 48.36 60.00

Negative Negative

√ √

1024 × 768 VESA 75.00 56.48 70.07

Negative Negative

√

―

1024 × 768 VESA 78.75 60.02 75.03

Positive Positive

√

―

1024 × 768 VESA 94.50 68.68 85.00

Positive Positive

√

―

1152 × 864 VESA 108.00 67.50 75.00

Positive Positive

√

―

1280 × 960 VESA 108.00 60.00 60.00

Positive Positive

√ √

1280 × 1024 VESA 108.00 63.98 60.02

Positive Positive

√ √

1600 × 1200 VESA 161.99 75.00 60.00

Positive Positive

―

√

1680 × 1050 VESA CVT 146.25 65.29 59.95

Negative Positive

√ √

1680 × 1050

VESA CVT

119.00 64.67 59.88

Positive Negative

√

―

1920× 1200

VESA CVT

154.00 74.04 59.95

Positive Negative

―

√

Congratulations!

The display you have just purchased carries the TCO’03 Displays label. This

means that your display is designed, manufactured and tested according to

some of the strictest quality and environmental requirements in the world.

This makes for a high performance product, designed with the user in focus

that also minimizes the Impact on our natural environment.

Some of the features of the TCO’03 Display requirements:

Ergonomics

● Good visual ergonomics and image quality in order to improve the working environment for the user

and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution,

reectance, colour rendition and image stability.

Energy

● Energy-saving mode after a certain time - benecial both for the user and environment

● Electrical safety

Emissions

● Electromagnetic elds

● Noise emissions

Ecology

● The products must be prepared for recycling and the manufacturer must have a certied environmental

management system such as EMAS or ISO 14000

● Restrictions on

● chlorinated and brominated ame retardants and polymers

● heavy metals such as cadmium, mercury and lead.

The requirements includes in this label have been developed by TCO Development in co-operation with scientists,

experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in

inuencing the development of IT equipment in a more user-friendly direction. Our labeling system with displays

in 1992 and is now requested by users and IT-manufacturers all over the world.

Formoreinformation,pleasevisit

www.tcodevelopment.com

About TCO’ 03

For U.S.A. , Canada, etc. (rated 100-120 Vac) Only

FCC Declaration of Conformity

We, the Responsible Party EIZO NANAO TECHNOLOGIES INC.

5710 Warland Drive, Cypress, CA 90630

Phone: (562) 431-5011

declare that the product Trade name: EIZO

Model: ColorEdge CG223W / CG243W

is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following

two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures.

* Reorient or relocate the receiving antenna.

* Increase the separation between the equipment and receiver.

* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

* Consult the dealer or an experienced radio/TV technician for help.

Changes or modications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

Note

Use the attached specied cable below or EIZO signal cable with this monitor so as to keep interference within the

limits of a Class B digital device.

- AC Cord

- Shielded Signal Cable (Enclosed)

Canadian Notice

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de le classe B est comforme à la norme NMB-003 du Canada.

FCC Declaration of Conformity

Hinweise zur Auswahl des richtigen Schwenkarms für Ihren Monitor

Dieser Monitor ist für Bildschirmarbeitsplätze vorgesehen. Wenn nicht der zum Standardzubehör gehörige

Schwenkarm verwendet wird, muss statt dessen ein geeigneter anderer Schwenkarm installiert werden. Bei der

Auswahl des Schwenkarms sind die nachstehenden Hinweise zu berücksichtigen:

Der Standfuß muß den nachfolgenden Anforderungen entsprechen:

a) Der Standfuß muß eine ausreichende mechanische Stabilität zur Aufnahme des Gewichtes vom Bildschirmgerät

und des spezizierten Zubehörs besitzen. Das Gewicht des Bildschirmgerätes und des Zubehörs sind in der

zugehörenden Bedienungsanleitung angegeben.

b) Die Befestigung des Standfusses muß derart erfolgen, daß die oberste Zeile der Bildschirmanzeige nicht höher

als die Augenhöhe eines Benutzers in sitzender Position ist.

c) Im Fall eines stehenden Benutzers muß die Befestigung des Bildschirmgerätes derart erfolgen, daß die Höhe der

Bildschirmmitte über dem Boden zwischen 135 – 150 cm beträgt.

d) Der Standfuß muß die Möglichkeit zur Neigung des Bildschirmgerätes besitzen (max. vorwärts: 5°, min. nach

hinten ≥ 5°).

e) Der Standfuß muß die Möglichkeit zur Drehung des Bildschirmgerätes besitzen (max. ±180°). Der maximale

Kraftaufwand dafür muß weniger als 100 N betragen.

f) Der Standfuß muß in der Stellung verharren, in die er manuell bewegt wurde.

g) Der Glanzgrad des Standfusses muß weniger als 20 Glanzeinheiten betragen (seidenmatt).

h) Der Standfuß mit Bildschirmgerät muß bei einer Neigung von bis zu 10° aus der normalen aufrechten Position

kippsicher sein.

Hinweis zur Ergonomie :

Dieser Monitor erfüllt die Anforderungen an die Ergonomie nach EK1-ITB2000 mit dem Videosignal, 1680× 1050

(CG223W) / 1920× 1200 (CG243W), Digital Eingang und mindestens 60,0 Hz Bildwiederholfrequenz, non

interlaced. Weiterhin wird aus ergonomischen Gründen empfohlen, die Grundfarbe Blau nicht auf dunklem

Untergrund zu verwenden (schlechte Erkennbarkeit, Augenbelastung bei zu geringem Zeichenkontrast.)

„Maschinenlärminformations-Verordnung 3. GPSGV:

Der höchste Schalldruckpegel beträgt 70 dB(A) oder weniger gemäss EN ISO 7779“

HinweiseHinweise zur Auswahl des

richtigen Schwenkarms für Ihren Monitor

关于电子信息产品污染控制标识

本标识根据「电子信息产品污染控制管理办法」，适用于在中华人民共和国销售的电子信息产品。标识中央的

数字为环保使用期限的年数。只要您遵守该产品相关的安全及使用注意事项，在自制造日起算的年限内，不会

产生对环境污染或人体及财产的影响。上述标识粘贴在机器背面。

•

有毒有害物质或元素的名称及含量

部件名称有毒有害物质或元素

铅

（Pb）

汞

（Hg）

镉

（Cd）

六价铬

（Cr（VI））

多溴联苯

（PBB）

多溴二苯醚

（PBDE）

印刷电路板 × ○ ○ ○ ○ ○

机箱 ○ ○ ○ ○ ○ ○

液晶显示器 × × ○ ○ ○ ○

其他 × ○ ○ ○ ○ ○

○：表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 规定的限量要求以下。

×：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T 11363-2006 规定的限量要求。

( 企业可在此处 , 根据实际情況对上表中打“×

”

的技术原因进行进一步说明 )

Produkt Specifikationer

Mærke:	Eizo
Kategori:	overvåge
Model:	CG223W-BK
Produktfarve:	Sort
Skærm diagonal:	22 "
Skærmopløsning:	1680 x 1050 pixel
Berøringsskærm:	Ingen
Naturligt aspektforhold:	16:10
Responstid:	6 ms
Synsvinkel, horisontal:	178 °
Synsvinkel, vertikal:	178 °
Indbyggede højttaler(e):	Ingen
HDCP:	Ja
Panel montering grænseflade:	100 x 100 mm
Bredde (uden stativ):	511 mm
Dybde (uden stativ):	85 mm
Højde (uden stativ):	333 mm
Vægt (uden stativ):	6600 g
Bredde (med stativ):	511 mm
Dybde (med stativ):	240.5 mm
Højde (med stativ):	347.5 mm
Vægt (med stativ):	9600 g
Markedspositionering:	Grafisk design
Understøttede grafikopløsninger:	720 x 400
LED-indikatorer:	Standby
Indbygget kamera:	Ingen
Billedformat:	16:10
Vis antal farver:	16,78 millioner farver
Plug and play:	Ja
Skærmens lysstyrke (typisk):	270 cd/m²
Kontrastforhold (typisk):	950:1
Pixel pitch:	0.282 x 0.282 mm
Synlig størrelse, horisontal:	473.8 mm
Synlig størrelse, vertikal:	296.1 mm
Horisontal scanningsområde:	24 - 82 kHz
Antal VGA-porte (D-sub):	2
USB-hub-version:	2.0
Antal USB type-A downstream-porte:	3
AC (strøm) indgang:	Ja
Drejevinkel område:	-172 - 172 °
Hældningsvinkelområde:	0 - 30 °
TV-tuner, integreret:	Ingen
Vertikalt scanningsområde:	47.5 - 86 Hz
Vis synligt område (HxL):	473.8 x 296.1 mm
Overholdelse af branchestandarder:	CUDO, TCO'03, TÜV/GS, c-Tick, CE, CB, UL (cTÜVus), CSA (cTÜVus), FCC-B, ICES-003-B, TÜV/S, VCCI-B, RoHS, WEEE
Digital vertikal frekvens:	47.5 - 61 Hz
Antal DVI-I-porte:	2
Digital horisontal frekvens:	31 - 65 kHz
Video-dot-hastighed:	150 MHz
