Installation and mounting manual for EK-FC780 GTX Ti Backplate

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability

whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at for updates. Before www.ekwb.com

installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

STEP 1: GENERAL INFORMATION. Sample picture of nVidia GeForce GTX 780 GTX Ti graphics card.

STEP 2: PREPARING YOUR GRAPHICS CARD

EK FC EK EK FC- Titan Backplate is very easy to install. First install SE -FC780 GTX Ti, - Titan or EK-FC770 GTX series water block according to its SE

installation manual. If you have it already installed the water block please check the picture below to see which mounting screws are to be left in

their position and which are to be removed. Please remove the six (6 M3x4 DIN7985 screws and their washers (marked with arrow). )

STEP 3: APPLYING THE THERMAL PADS (GEFORCE GTX TITAN ONLY)

EK FC- Titan Backplate features SE passive cooling of the printed circuit board and it’s components therefore it is mandatory to install the enclosed

thermal pad. Please place enclosed 0.5mm thick thermal pad (Thermal Pad D 0.5mm (RAM 8X)) directly on the marked memory (RAM) IC on the –

back of the card’s printed circuit board as shown on the picture below. You will need twelve (12) pieces for 12 RAM IC, which is one and a half of

the enclosed thermal pad.

Thermal pad D 0.5mm (RAM 8X) –

All disclosures, noces and warranty condions are being wrien on EKWB website. Revision 1.0. Released on 13

of November 2013.

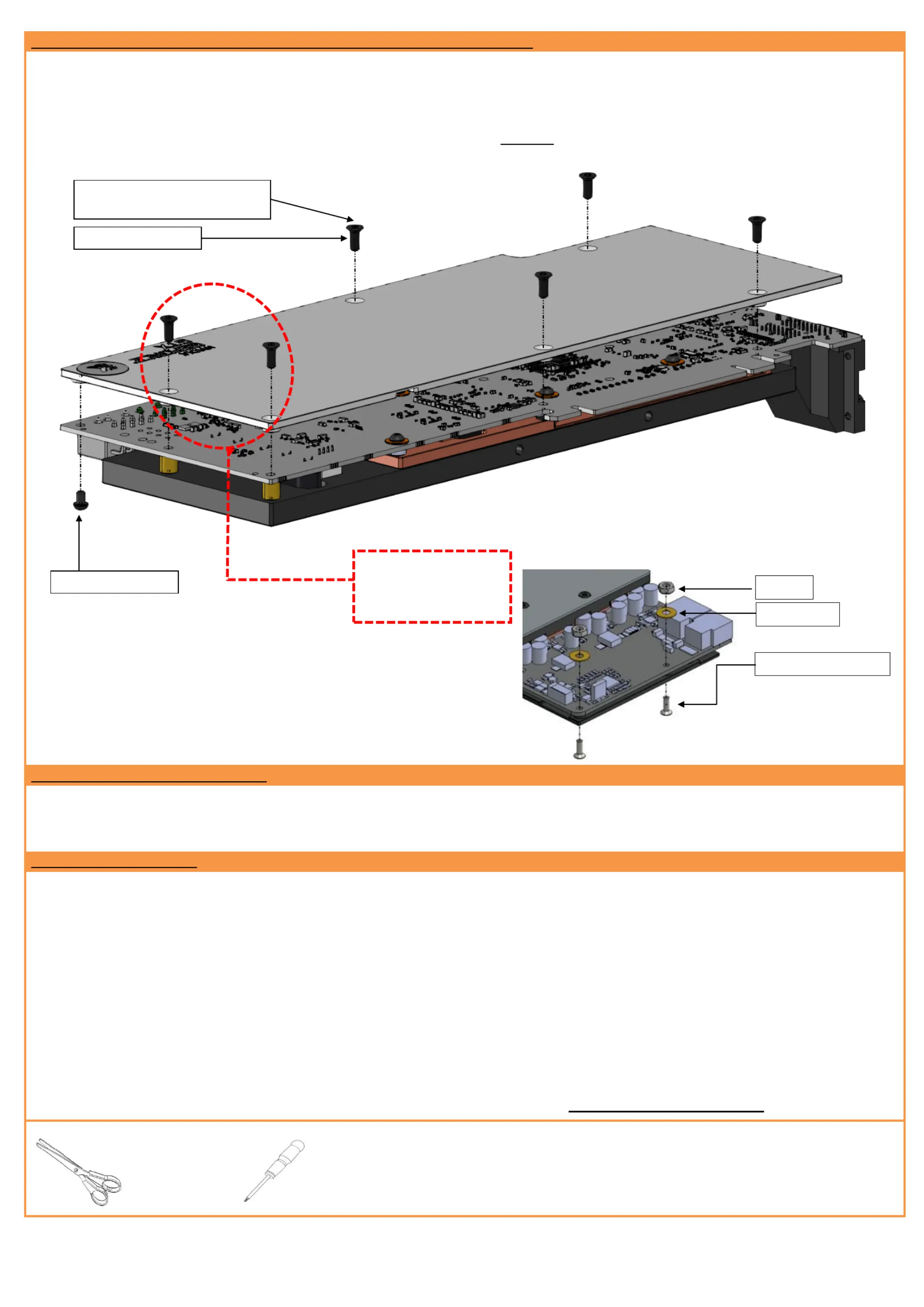

STEP 3 ATTACHING - 780 GTX Ti BACKPLATE TO THE GRAPHICS CARD: EK FC

Take enclosed mounting screws and install them as shown on picture below. EKWB recommends users to start with four (6) M3x8 DIN7991 screws

(HINT: do not tighten screws until they are all positioned in their mounting holes) in the middle of the card and then continue with screwing in of

the remaining M3x4 DIN7985 screw using Philips head screwdriver Backplate has milled in standoffs, so there is no fear of over tightening of the .

screws. Nevertheless do not exaggerate with screwing force as there is no need for it.

( all means users must also consider that this product is intended to be used only with -FC780 GTX Ti, -FC Titan SE or EK-FC770 GTX series By EK EK

water blocks. No other water block or 3

party heat sinks or coolers are supported!)

STEP 4: CHECKING FOR CONTACTS

If necessary temporarily r

emove the backplate to check for uniform surface contact between the backplate and the components. Check whether

the backplate makes contact with the intended integrated cirucit. Then repeat sub-steps in previous section to re-attach the backplate. In case you

fail to obtain good contact, please check again your thermal pad thickness or contact our support service at

http://www.ekwb.com/support.

IMPORTANT DISCLOSURES

VERY IMPORTANT NOTICE: Once the installation is completed, it is a recommended practice to test the cooling circuit for leaks prior to powering up the

computer. We recommend a 24 hour leak test prior to powering up the computer. Do not test the water block using city water pressure. This will rupture the top

of the housing and render the block unusable (and will void your warranty).While all efforts have been made to provide the most comprehensive tutorial possible,

EK Water Blocks assumes no liability expressed or implied for any consequential damage(s) occurring to your equipment as a result of using EK Water Blocks

cooling products, either due to errors or omissions on our part in the above instructions, or due to failure or defect in the EK Water Blocks cooling products.

WARRANTY:

Our products are warranted against defects in materials or workmanship for a period of 24 months beginning from the date of delivery to the final user. During

this period, products will be repaired or have parts replaced at our discretion provided that: (I) the product is returned to the agent from whom it was

purchased; (II) the product has been purchased by an end user and has not used for commercial purposes; (III) the product has not been misused, handled

carelessly, or used in a manner other than in accordance with the instructions provided describing its installation and proper use. This warranty does not confer

rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This warranty is offered as an extra benefit and

does not affect your statutory rights as a consumer. This warranty is voided if the product comes in contact with aggressive UV additives or other improper

liquids.

EK blocks are sealed with warranty void circular label, which proves that the block has withstood a pressure leak test. Removing it will void leak-free guarantee

and not the guarantee on the product itself. Any other RMA issues can be reported to EK Support at http://www.ekwb.com/support for further analysis.

REQUIRED TOOLS AND MOUNTING SCREWS:

scissors Philips head screwdriver

Use enclosed Allen key 2mm on

DIN7991 screws to aach backplate.

M 8 DIN7991 screw 3x

M3x4 DIN7984 screw

This applies only for Acetal-

and Original CSQ top version,

which cover the enre lenght

of the PCB!

M3x10 DIN7991 screw
