ELAR EXTQW BAR HP™
SKU# ELA961

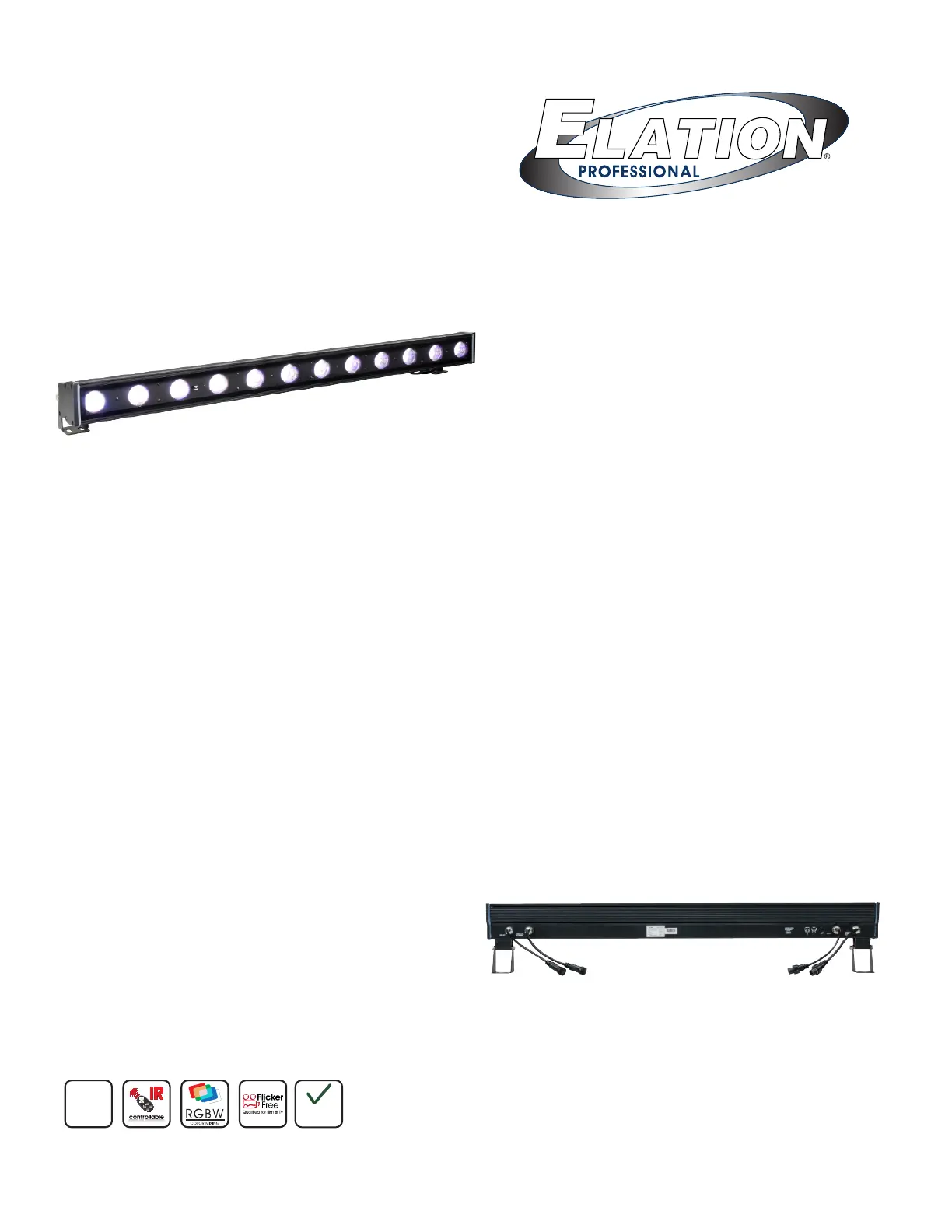

The IP65 Rated ELAR EXTQW BAR HP™ features (12) 5W
QUAD RGBW Color LEDs, a 25° beam angle, variable
color and strobe effects, 3 DMX channel modes, icker
free operation for TV and FILM, 3pin in/out DMX and 4pin
power in/out connections, (2) integrated adjustable
mounting brackets, linkable power for up to (7) units at
120V and (14) units at 240V, 90W max power consumption,
programmable IR remote (sold separately) and a multi-
voltage universal auto switching power supply (100-240v).
FEATURES
12 x 5W Quad Color (RGBW) LEDs
25° Beam Angle
IP65 Rated
Die-Cast Aluminum Housing / Tempered Glass
Variable Color & Strobe Effects
3 DMX Channel Modes
Flicker Free Operation for TV and FILM
90W Max Power Consumption
Power Link Multiple Units
Integrated Adjustable Mounting Brackets (x2)
IR Remote Programmable (sold separately)
Specications are subject to change without notice ©Elation Professional
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
ELATION
I
ELAR EXTQW BAR HP™
I
Product Specification Sheet
IP65
RoHs
COMPLIANT
FEATURES
25° Beam Angle
IP65 Rated
Die-Cast Aluminum Housing / Tempered Glass
IR Remote Programmable
Flicker Free Operation for TV and FILM
SOURCE
12 x 5W QUAD Color (RGBW) LEDs
50,000 Hour Average Life
PHOTOMETRIC DATA
1430 LUX (133 FC) @9.8 ft. (3m) 25° Full ON
EFFECTS
Color + Variable Strobe Macros
Electronic Dimming: 0% - 100%
COLOR
RGBW (Red, Green, Blue, White)
CONTROL / CONNECTIONS
3 DMX Channel Modes (7/11/51)
3pin DMX In/Out
4pin Power In/Out
Power Link Multiple Units - (7) at 120V (14) at 240V
SIZE / WEIGHT
Length: 39.4” (1000mm)
Width: 3.5” (90mm)
Vertical Height: 7.1” (181mm)
Weight: 11.5 lbs. (5.2kg)
ELECTRICAL
AC 100-240V - 50/60Hz
90W Max Power Consumption
APPROVALS / RATINGS
CE Pending
cETLus Pending
IP65 Rated
INSTALLATION
Rigging: Integrated Adjustable Mounting Brackets (x2)
Working Position: Any (360°)
INCLUDED ITEMS
(1) 6.5 ft. (2m) 4pin Female to Edison Power Cable
(1) 5.5 ft. (1.7m) 3pin Male to 3pin Female DMX Cable
(1) 5.5 ft. (1.7m) 3pin Female to 3pin Male DMX Cable
(1) Bag of DMX End Caps
(2) Mounting Brackets
7.1”
(181mm)
3.5”
(90.0mm)
3.5”
(90.0mm)
7.1”
(181mm)
39.4”
(1000mm)
3.0”
(76.0mm)
3.0”
(76.0mm)
3.5”
(89.5mm)
3.30”
(84.0mm)
specifications
I
ELATION ELAR EXTQW BAR HP™
I
www.elationlighting.com
Specications are subject to change without notice ©Elation Professional
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
RED LEDs
GREEN LEDs
BLUE LEDs
WHITE LEDs
FULL ON
118 FC / 1270 LUX
158 FC / 1700 LUX
121 FC / 1300 LUX
134 FC / 1440 LUX
514 FC / 5530 LUX
25° Beam Angle
LUX
x
0.0929 = FC
0 m
0 ft
1 m
3.3 ft
4 m
13.1 ft
3 m
9.8 ft
2 m
6.6 ft
5 m
16.4 ft
Ø 0.41 m / Ø 1.3 ft Ø 0.65 m / Ø 2.1 ft Ø 0.80 m / Ø 2.6 ft
Min Beam Diameter
25° Beam Angle Ø 1.05 m / Ø 3.4 ftØ 0.25 m / Ø 0.8 ft
61 FC / 660 LUX
71 FC / 765 LUX
65 FC / 700 LUX
66 FC / 710 LUX
248 FC / 2670 LUX
36 FC / 387 LUX
39 FC / 415 LUX
38 FC / 410 LUX
37 FC / 400 LUX
133 FC / 1430 LUX
23 FC / 243 LUX
24 FC / 260 LUX
23 FC / 251 LUX
23 FC / 250 LUX
88 FC / 950 LUX
15 FC / 164 LUX
17 FC / 179 LUX
16 FC / 171 LUX
16 FC / 168 LUX
60 FC / 647 LUX

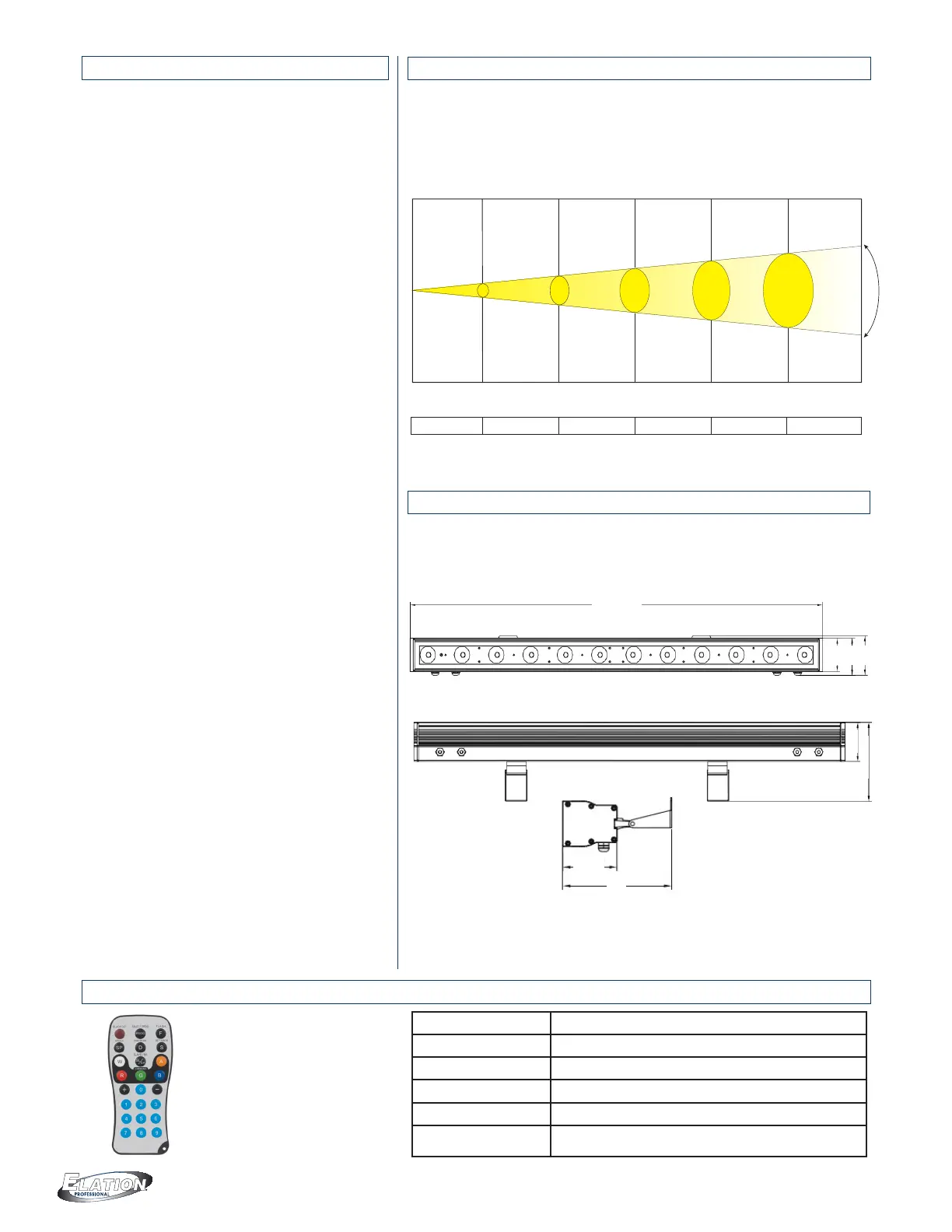

DIMENSIONAL DIAGRAM
OPTIONAL ACCESSORIES
PRODUCT SPECIFICATIONS
PHOTOMETRIC DATA
ELAR WR II
Infrared Wireless Remote Controller
Required To Program Fixture
*Not Included Purchased Separately
ORDER CODE ITEM
TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp
ELA958/3MPEC 3m (4pin) Power Ext/Link Cable
ELAR 3C-1M 1m (3pin) Signal Ext Cable
ELAR 3C-5M 5m (3pin) Signal Ext Cable
ELAR WR II
Infrared Wireless Remote Controller Required To Program Fixture
*Not Included Purchased Separately

Produkt Specifikationer

Mærke: Elation
Kategori: Lys
Model: ELAR EXTQW BAR HP
