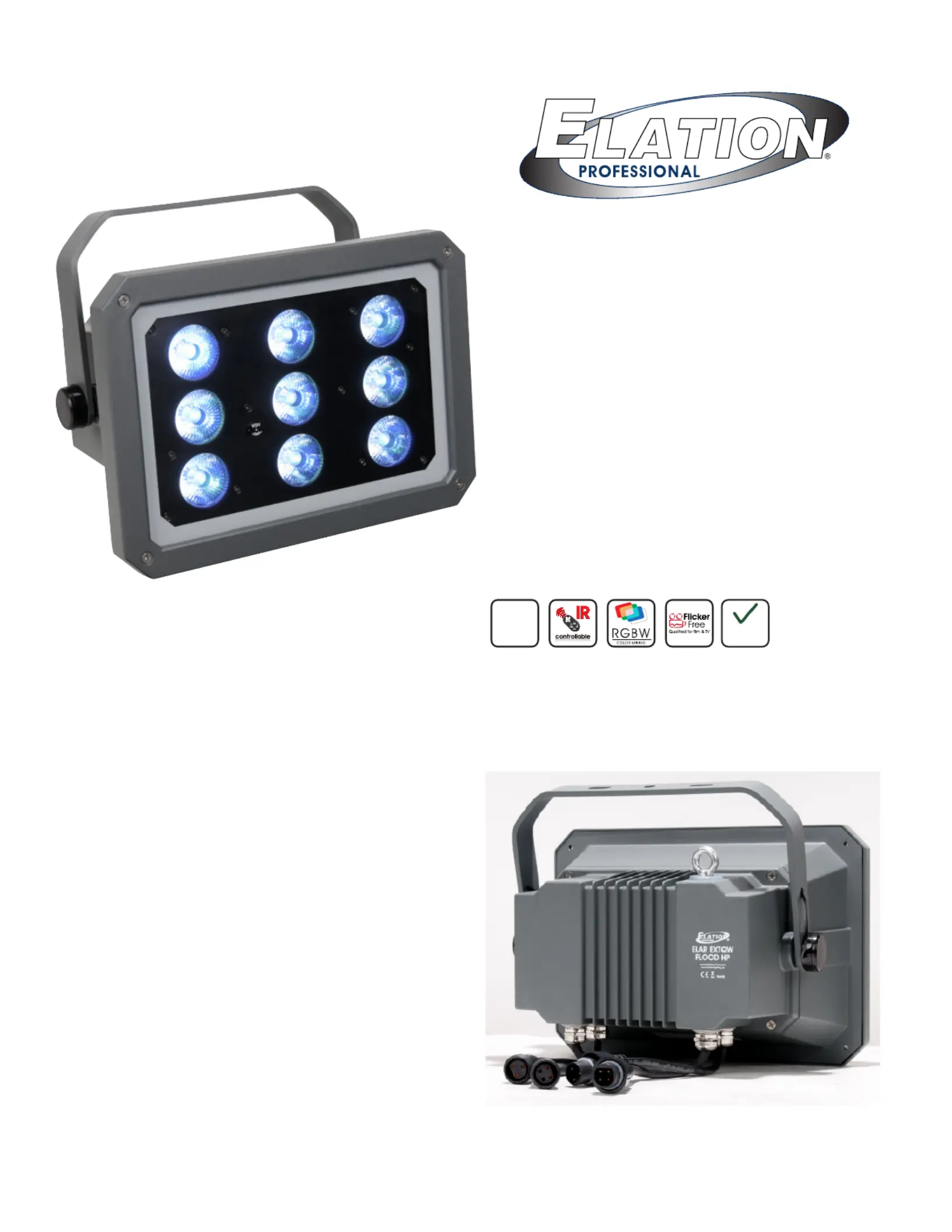

ELAR EXTQW FLOOD HP™

SKU# ELA973

The IP65 Rated ELAR EXTQW FLOOD HP™ features (9) 5W

QUAD RGBW Color LEDs, a 25° beam angle, variable

color and strobe effects, 8 DMX channel modes, flicker

free operation for TV and FILM, 3pin in/out DMX and

4pin power in/out connections, integrated rigging yoke,

linkable power for up to (10) units at 120V and (20) units

at 240V, 56W max power consumption, and a multi-

voltage universal auto switching power supply (100-240v).

FEATURES

9 x 5W Quad Color (RGBW) LEDs

25° Beam Angle

IP65 Rated

Die-Cast Aluminum Housing / Tempered Glass

Variable Color & Strobe Effects

8 DMX Channel Modes

Flicker Free Operation for TV and FILM

56W Max Power Consumption

Power Link Multiple Units

Integrated Rigging Yoke

IR Remote Programmable

Specifications are subject to change without notice ©Elation Professional

Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040

323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com

Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands

+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu

ELATION I ELAR EXTQW FLOOD HP™ I Product Specification Sheet

IP65

RoHs

C O M P L I A N T

FEATURES

25° Beam Angle

IP65 Rated

Die-Cast Aluminum Housing / Tempered Glass

IR Remote Programable

Flicker Free Operation for TV and FILM

SOURCE

9 x 5W QUAD Color (RGBW) LEDs

50,000 Hour Average Life

PHOTOMETRIC DATA

1736 LUX (161 FC) @9.8 ft. (3m) 25° Full ON

EFFECTS

Color + Variable Strobe Macros

Electronic Dimming: 0% - 100%

COLOR

RGBW (Red, Green, Blue, White)

CONTROL / CONNECTIONS

8 DMX Channel Modes (1/2/3/4/5/6/7/8)

3pin DMX In/Out

4pin Power In/Out

Power Link Multiple Units (10) at 120V (20) at 240V

SIZE / WEIGHT

Length: 11.8” (298mm)

Width: 8.3” (210mm)

Vertical Height: 9.8” (249mm)

Weight: 9.9 lbs. (4.5kg)

ELECTRICAL

AC 100-240V - 50/60Hz

56W Max Power Consumption

APPROVALS / RATINGS

CE Pending

IP65 Rated

INSTALLATION

Rigging: Integrated Yoke

Working Position: Any (360°)

INCLUDED ITEMS

(1) 6.5 ft. (2m) 4pin Female to Edison Power Cable

(1) 5.5 ft. (1.7m) 3pin Male to 3pin Female DMX Cable

(1) 5.5 ft. (1.7m) 3pin Female to 3pin Male DMX Cable

(1) Bag of DMX End Caps

11.8” (298mm)

8.3” (210mm)

7.1” (179.5mm)

9.8” (249mm)

4.5” (114.63mm)

9.8” (249mm)

9.7” (245.39mm)

10.9” (276.39mm)

specifications

ELATION ELAR EXTQW FLOOD HP™

www.elationlighting.com

Specifications are subject to change without notice ©Elation Professional

Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040

323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com

Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands

+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu

RED LEDs

GREEN LEDs

BLUE LEDs

WHITE LEDs

FULL ON

196 FC / 2110 LUX

221 FC / 2380 LUX

230 FC / 2480 LUX

305 FC / 3280 LUX

920 FC / 9900 LUX

25° Beam Angle

LUX

0.0929 = FC

0 m

0 ft

1 m

3.3 ft

4 m

13.1 ft

3 m

9.8 ft

2 m

6.6 ft

5 m

16.4 ft

Ø 1.35 m / Ø 4.4 ft

Ø 1.50 m / Ø 4.9 ft

Ø 1.65 m / Ø 5.4 ft

Min Beam Diameter

25° Beam Angle Ø 1.80 m / Ø 5.9 ftØ 1.25 m / Ø 4.1 ft

76 FC / 822 LUX

884 FC / 884 LUX

91 FC / 981 LUX

116 FC / 1244 LUX

342 FC / 3680 LUX

37 FC / 398 LUX

39 FC / 421 LUX

42 FC / 455 LUX

55 FC / 592 LUX

161 FC / 1736 LUX

22 FC / 237 LUX

22 FC / 240 LUX

25 FC / 269 LUX

33 FC / 350 LUX

94 FC / 1009 LUX

14 FC / 153 LUX

14 FC / 155 LUX

16 FC / 168 LUX

20 FC / 217 LUX

61 FC / 653 LUX

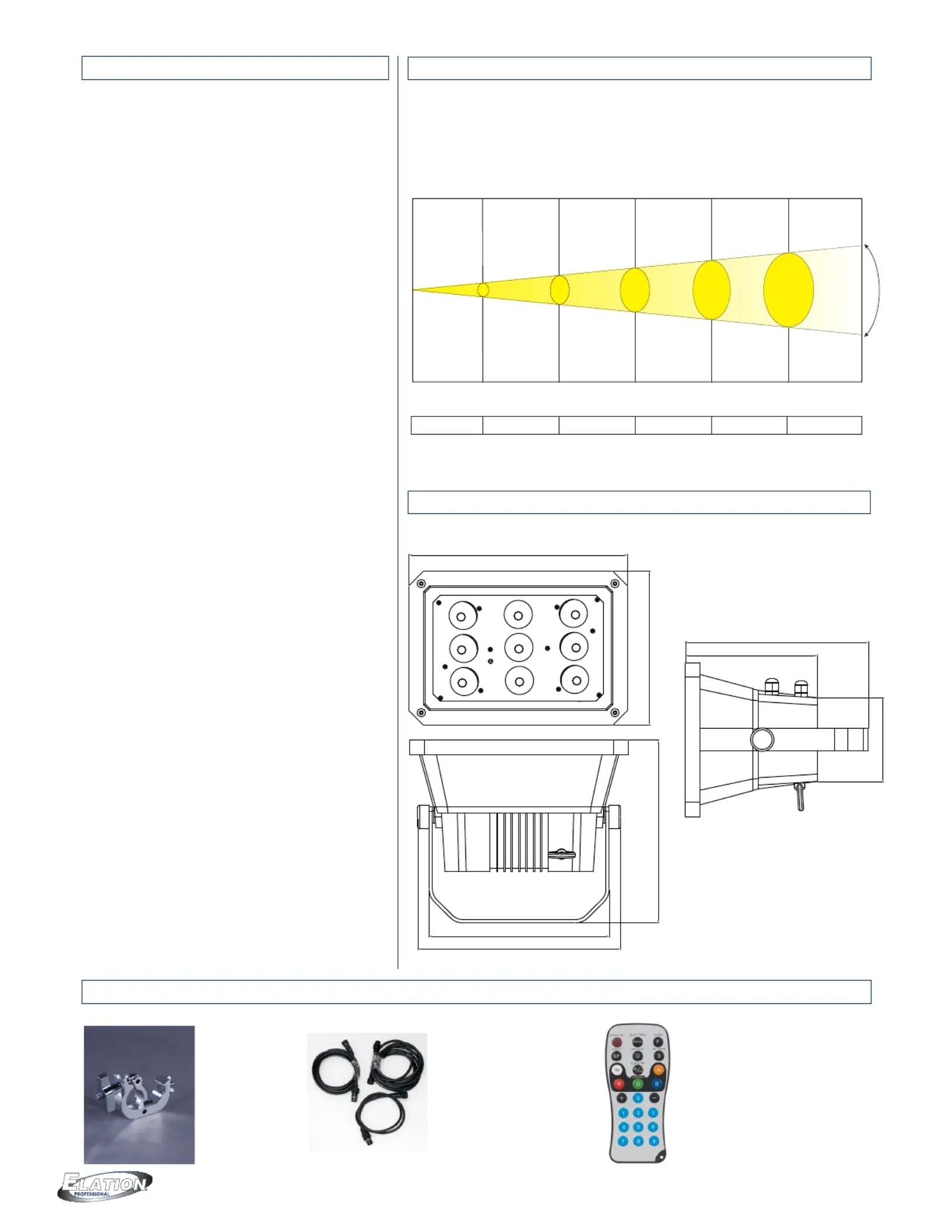

DIMENSIONAL DIAGRAM

OPTIONAL ACCESSORIES

PRODUCT SPECIFICATIONS

PHOTOMETRIC DATA

TRIGGER CLAMP

Heavy Duty

Wrap Around

Hook Style

Clamp

Data / Power Ext Link Cables

ELA958/3MPEC

3m (4pin) Power Ext Link Cable

ELAR 3C-1M

1m (3pin) Signal Ext Link Cable

ELAR 3C-5M

5m (3pin) Signal Ext Link Cable

ELAR WR II

Infrared Wireless Remote Controller

Required To Program Fixture

*Not Included Purchased Separately
