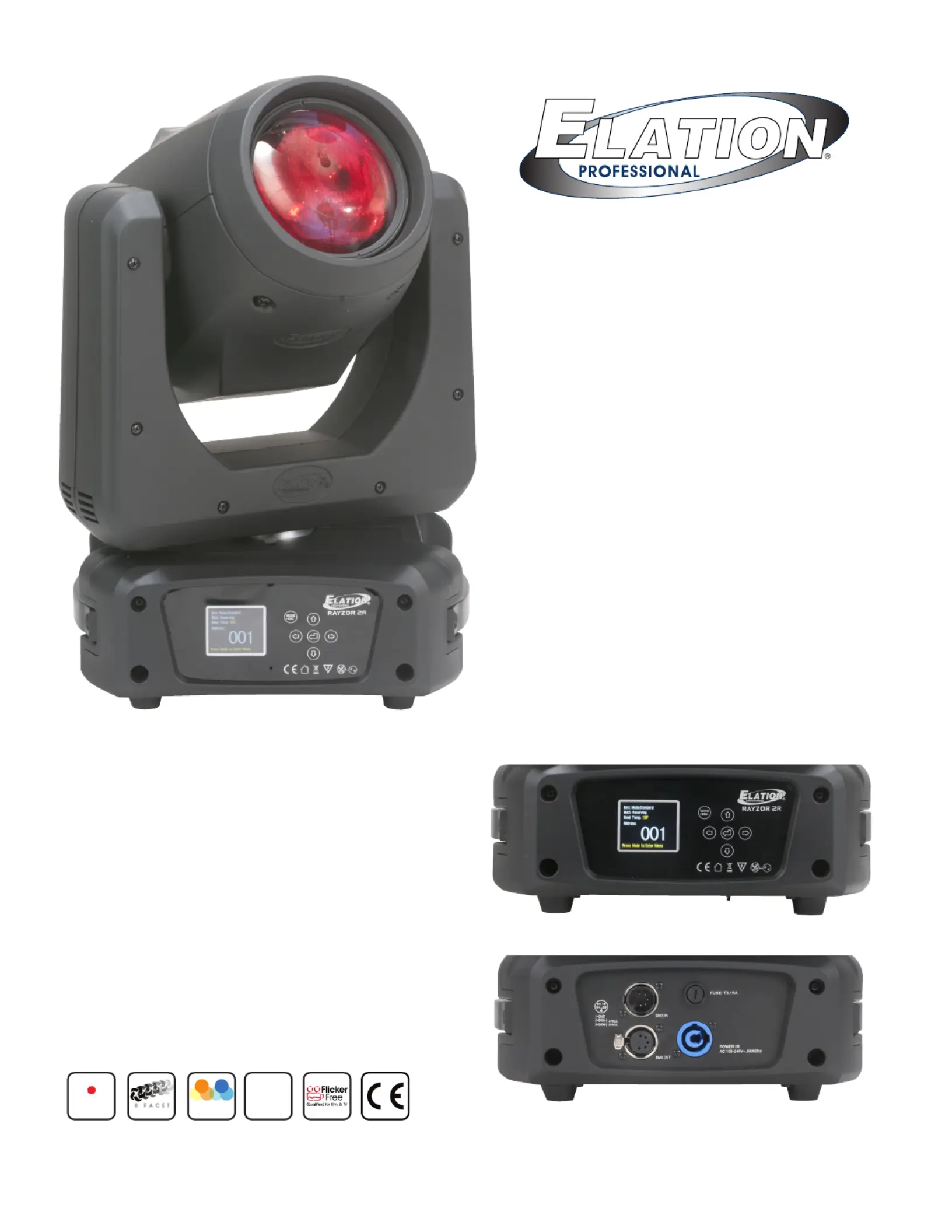

RAYZOR BEAM 2R™
SKU# RAY536
The new Rayzor Beam 2R™ features the 132W Platinum
2R lamp, 3° sharp narrow beam, 8 facet rotating prism,
super fast 16 bit 3-phase pan/tilt motors, electronic
strobe (1-13 fps) and 0-100% dimming, (13
) dichroic
colors including UV, CTO, CTB, plus white, (14) static
gobos including (6) multi-sized beams, icker free
operation for TV and FILM, remote device management
in/out connections, (6) button touch control panel,
230W max power consumption, and a multi-voltage
universal auto switching power supply (120-240v).
FEATURES
132W Platinum 2R Lamp
49,470 LUX 4596 FC @42.9’ (15M) / 7,500K, >75 CRI
3° Sharp Narrow Beam
8 Facet Rotating Prism
Super Fast 16 bit 3-Phase Pan/Tilt Motors
Electronic Strobe (1-13 fps) and 0-100% Dimming
(13) Dichroic Colors Including UV, CTO, CTB + White
(14) Static Gobos Including (6) Multi-Sized Beams
Flicker Free Operation for TV and FILM
Remote Device Management Protocol Support
230W Max Power Consumption
Specications are subject to change without notice ©Elation Professional
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
ELATION I RAYZOR BEAM 2R™ I Product Specification Sheet
3° Beam
RDM
Remote Device Management
8 F A C E T
ROTATING PRISM
CTO CTB&
CO LO R C OR R EC TIO N
FEATURES
3° Sharp Narrow Beam
Super Fast 16 bit 3-Phase Pan and Tilt Motors
CTO and CTB Color Correction
Flicker Free Operation for TV and FILM
Remote Device Management Protocol Support
SOURCE
132W Platinum 2R Lamp
6,000 Hour Average Life
PHOTOMETRIC DATA
49,470 LUX 4596 FC @42.9’ (15M) / 7,500K, >75 CRI
EFFECTS
Strobe (1-13 fps)
Electronic Dimming: 0% - 100%
8 Facet Rotating Prisms and Macros
COLOR
(13) Dichroic Colors Including UV, CTO, CTB + White
GOBOS
(14) Static Gobos Including (6) Multi-Sized Beams
CONTROL / CONNECTIONS
(3)
DMX Channel Modes (10/12/16)
Remote Device Management
Pan Movement: 540°/630° / Tilt Movement: 270°
6 Button Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit 3-Phase Pan/Tilt Motors
5pin DMX In/Out
power In/Out cable
SIZE / WEIGHT
Length: 11.6” (295mm)
Width: 9.6” (245mm)
Vertical Height: 16.6” (421mm)
Weight: 23.0 lbs. (10.4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
230W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE Approved
cETLus Pending
IP20 Rated
INSTALLATION
Rigging: Omega Bracket
Working Position: Flat Surface / Inverted (180°)
INCLUDED ITEMS
(1) Omega Bracket
(1) 5pin XLR Cable
(1) Power Cable
16.6”
(199mm)
16.1”
(408mm)
10.2”
(258mm)
10.9”
(276mm)
9.6”
(245mm)
7.5”
(190mm)
11.6”
(295mm)
16.6”
(421mm)
7.7”
(195mm)
11.7”
(296mm)
16.1”
(408mm)
3.7”
(94mm)
specifications
I
ELATION RAYZOR BEAM 2R™
I
www.elationlighting.com
Specications are subject to change without notice ©Elation Professional
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
3°
Beam
15m
20m
25m
m ft m ft m ft
Distance 15 49.2 20 65.6 25 82.0
3° Beam Diameter
0.78 2.6 1.04 3.4 1.3 4.3
lux fc lux fc lux fc
FULL ON 49,470 4,596 29,300 2,722 19,200 1,784

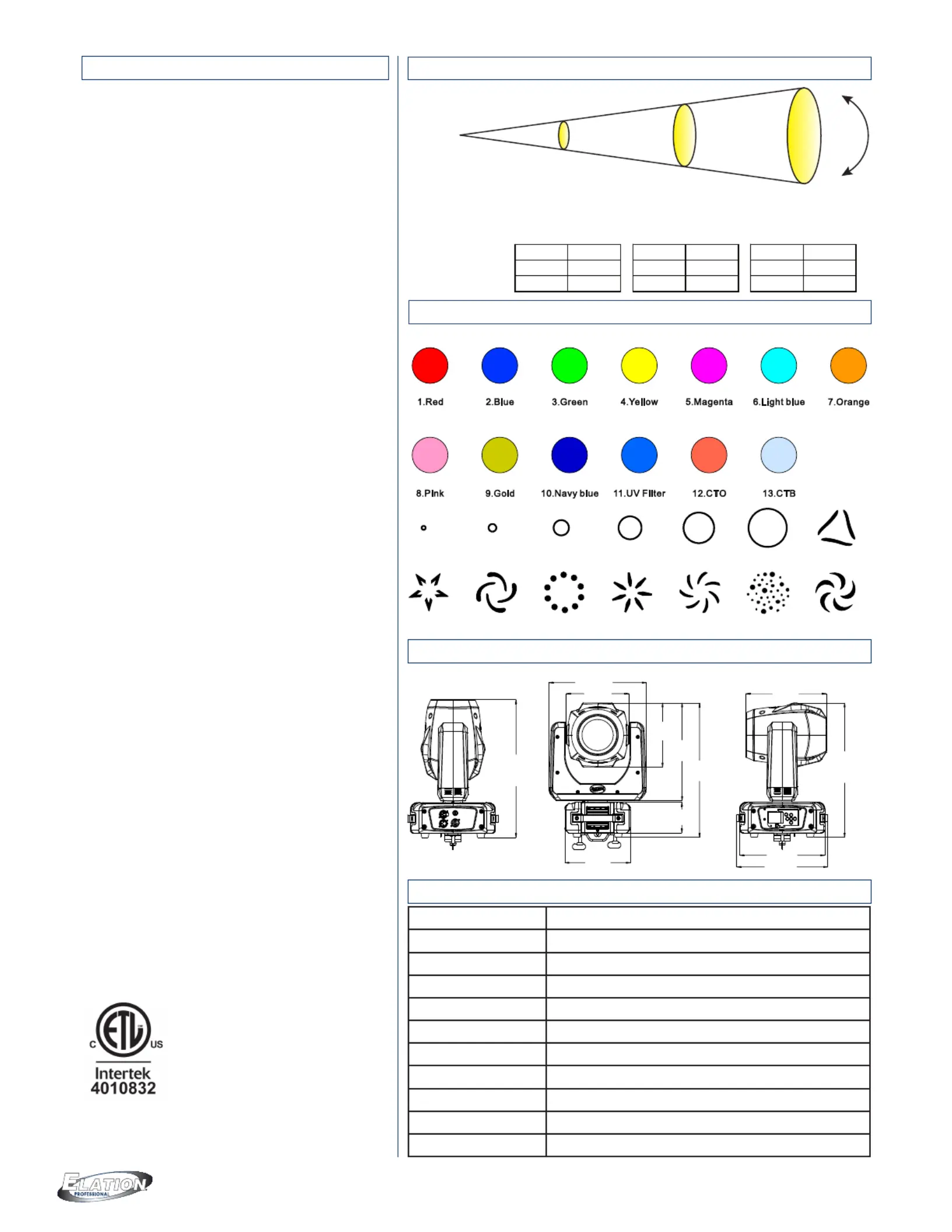

DIMENSIONAL DIAGRAMS
PRODUCT SPECIFICATIONS
PHOTOMETRIC DATA
OPTIONAL ACCESSORIES
ORDER CODE ITEM
TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp
* * pending * * Flight Case For Rayzor Beam 2R™
EWDMXSYSTEM Wireless DMX System (1 Transmitter, 1 Receiver)
EWDMXT Wireless DMX Transmitter
EWDMXR Wireless DMX Receiver
AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable
AC5PDMX10PRO 10 ft. (3m) 5pin PRO DMX Cable
AC5PDMX15PRO 15 ft. (4.5m) 5pin PRO DMX Cable
AC5PDMX25PRO 25 ft. (7.5m) 5pin PRO DMX Cable
Additional cable lengths available: 50, 100 ft (15.2, 30.5m)
COLORS AND GOBOS
