Lavatory Sink Overflow Assembly

NOTE: Install overflow before mounting lavatory sink into counter.

1. Remove overflow grill plug (A) from assembly, and mount thru hole in the

side of the sink.

NOTE: Rubber gasket to be against underside of lavatory sink as

illustrated.

2. Line up waste end (B) and waste opening. Insert waste fitting and install

following the manufacturer’s directions.

NOTE: Be sure rubber mack washer is positioned between lavatory

sink and overflow fitting as illustrated.

3. Tighten overflow grill plug.

4. Tighten waste fitting.

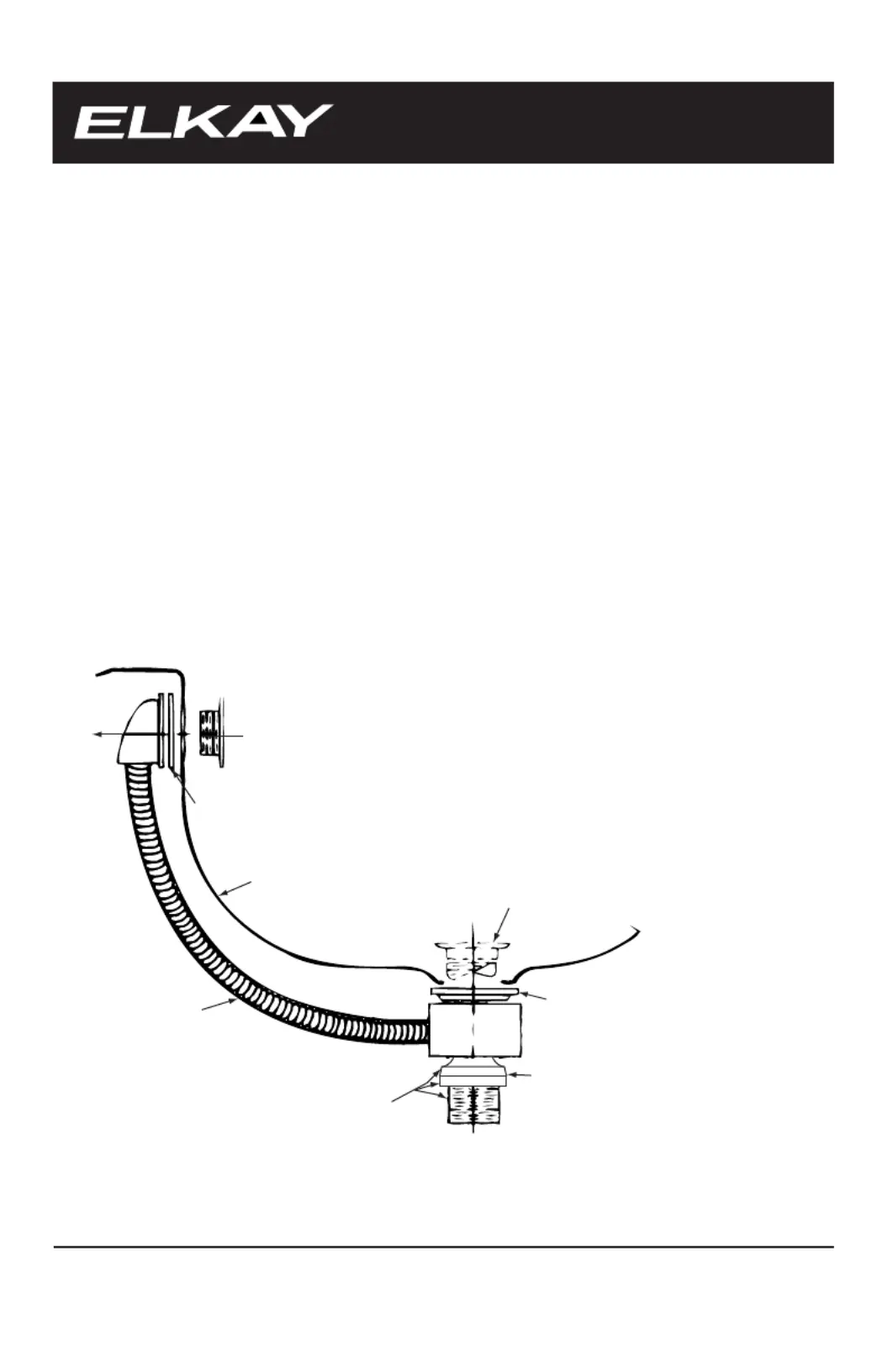

(A) OVERFLOW GRILL PLUG

RUBBER GASKET

LAVATORY

SINK

OVERFLOW

TUBING

RUBBER MACK WASHER

WASTE FITTING

(FURNISHED BY OTHERS)

RUBBER WASHER,

FRICTION WASHER

AND WASTE FITTING

(FURNISHED BY OTHERS)

(B) WASTE END OF OVERFLOW
