Side 1/5

Strobe

light &

red LED

Control Box –

hidden under

water proof cover

(below)

Control

box

cover

AS80SR11B

Solar Siren

Installation Instructions

General Introduction

The AS80SR11B is an outdoor siren powered by solar energy and rechargeable

battery. By its visible presence, the external siren indicates that an alarm system is

installed and deters intruders. In case of intrusion, it alerts the neighborhood by its

powerful 110 decibels piercing sound and a flashing red light

Product Overview

FRONT VIEW

Binding

Open up the siren by removing the fixing screw from the bottom edge and carefully

peeling off the back cover. All electronic components are housed within the front

cover.

A 9V Alkaline battery is supplied to boost the initial power to the unit when it is first

activated until the Solar Panel charges the main battery. Locate the battery clips of

this 9V battery but do not connect it up yet.

Log into the ELRO Smart Home Alarm account from a web browser.

Select “System”.

Select “Add a New Device”, then “Solar Siren”.

Solar Panel

6V 1.2Ahr

rechargeabl

battery

9V initial powe

up battery

INSIDE VIEW OF SIREN MAIN BODY

(BACK COVER REMOVED)

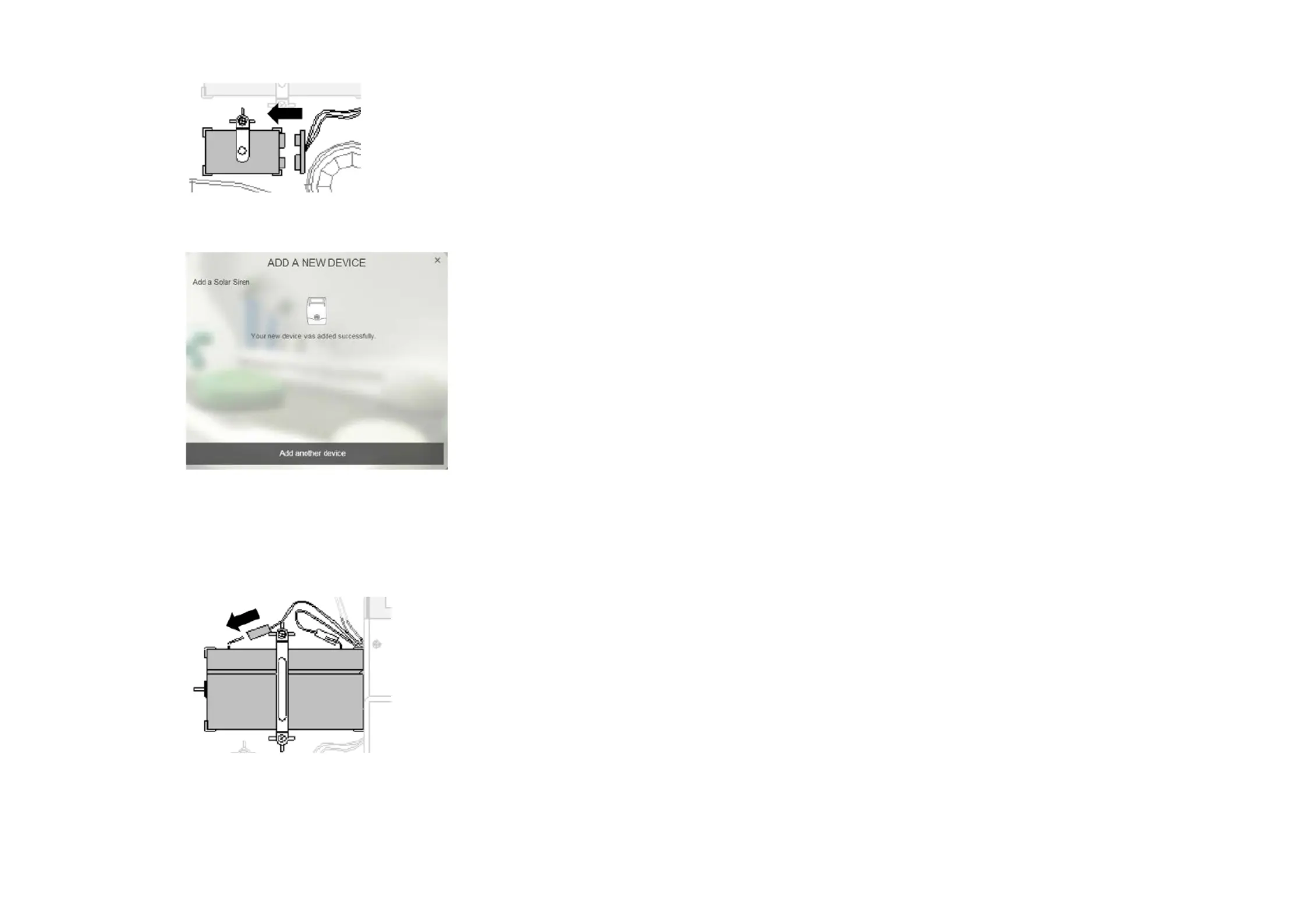

The following screen will appear. This means the gateway is entering binding mode.

Connect the 9V battery to its battery clips to power up the siren.

The screen below will appear in 10 seconds if the process is successful.

Note: Time-out will occur if the binding process was unsuccessful. Please refer to

the “Manual Binding” in the Troubleshooting section.

Next connect the main rechargeable battery to the charging leads. Connect the

Red lead to the Red (+ve) terminal and the Black lead to the Black (-ve) terminals.

10.

The siren is now ready however do not refit the back cover just yet.

Operation & Testing

IMPORTANT: The loud sound level produced by this device will be deafening and

cause discomfort to the ear. Place the siren outdoors and do not stand in close

proximity to the siren.

Note: It is strongly advised to have the keyfob or keypad ready to quickly Disarm

the system to turn off the siren.

Assemble the back cover back to the main body without screwing the fixing screw

at the bottom.

Place the siren facing up on a flat surface so that the protruding tamper switch is

pressed.

Set the system to Arm mode and trigger the alarm. The siren will emit a loud

piercing sound and the strobe light will flash brightly.

Quickly disarm the system to stop the siren.

Mounting

The Siren should be mounted:

as high as possible in a prominent position so that it can be easily seen and heard.

on a flat surface so that the rear tamper switch is not easily activated. Ensure also

that the tamper switch does not fall into the recess between brick courses as this

could prevent the switch from closing and give a permanent tamper signal.

ideally on a south facing wall to receive optimum amount of sunlight, but an east or

west facing wall will also suffice. Avoid mounting on a north facing wall, and avoid

shadows cast by neighboring walls, trees, and roof overhangs.

at least 1 meter away from any external or internal metalwork which can affect its

radio transmission.

Installation

To install the siren on the wall, first affix its back cover on the wall and then followed by

mounting its main body onto the back cover.
