ENG CHANNEL8N 01 V00 03/17

CHANNEL8N

8 CHANNEL PT-100 SCANNER

96 x 96 DIN 1/4

96 mm / 3.78 inch

12 ± 1 mm / 0.47 inch

84 mm / 3.31 inch

Maksimum 15 mm / 0.59 inch

92mm/3.62 inch

129mm/5.08 inch(min)

Panel Kesiti

320 x 240 Pixel

TFT LCD

Standart

Function

Buttons

MENU BUTTON

Used to access Menu page.

ENTER BUTTON

Used to go in to selected page, to make parameter's cell

available to change and to confirm parameter’s change.

AUTO BUTTON

Used to auto-scan pages.

BACK BUTTON

Used to go back to previous menu and to cancel

parameter's change.

UP BUTTON

Used to go up in menus and lists and also used to increase

parameter's value.

LEFT BUTTON

Used to go left in menus.

F1 F2 F3 F4

F4F1

DOWN BUTTON

Used to go downin menus and lists and also used to

decrease parameter's value.

RIGHT BUTTON

Used to go right in menus.

DELETE BUTTON

Used to erase logs on the screen.

SETTINGS

LOGS

ADVANCE

SETTINGS

LANGUAGE

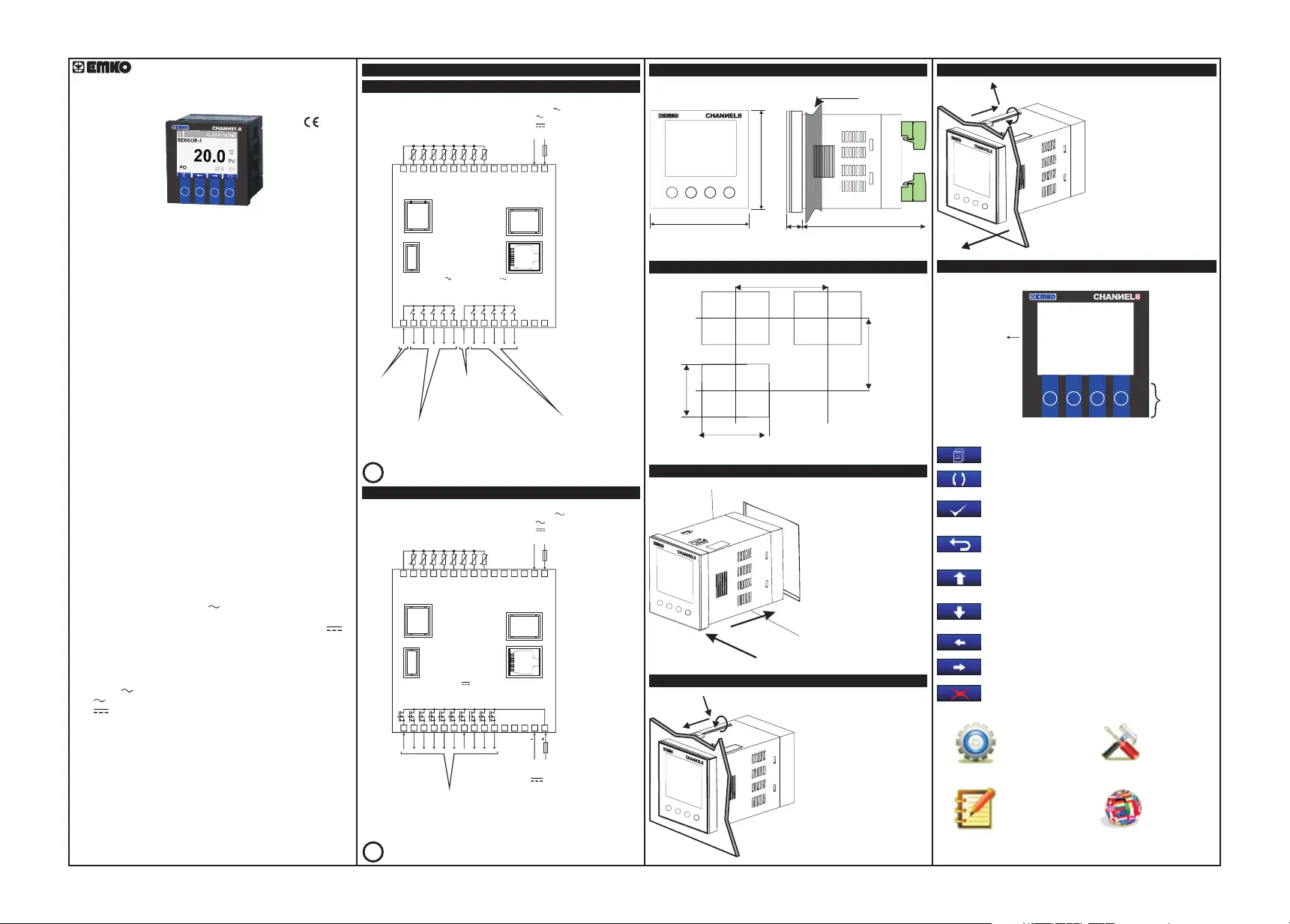

CHANNEL8N 8 Channel PT-100 Scanner

- 320 x 240 pixel TFT LCD display

- 8 PT-100 temperature sensor inputs

- ON-OFF control

- Relay or (pnp “source”) transistor output

- Sensor error detection

- Adjustable temperature offset

- 3 Different alarm and pre-alarm types for each channel

(High, Low and Band Alarms)

- User defined channel labels

- Display scan modes

- Operating with Real Time Clock (RTC)

- ModBus RTU communication protocol

(RS-232, RS-485 and Ethernet communication)

- Data Logging to USB Flash Memory

- Adjustable data logging time interval

- Password protection for programming mode

CHANNEL8N series 8 channel PT100 scanner devices are designed for

measuring and logging temperature. They can be used in many

applications with their PT-100 process input, alarm outputs, selectable

alarm functions, RS-232 / RS-485 / Ethernet / USB communications.

SPECIFICATIONS

INPUT

Thermoresistance(RTD) : 2 wire PT100 (IEC 751) (ITS90)

Measurement Range : -200°C / +650°C

Accuracy : ± 0.25% of full scale

Sensor Break Protection : Upscale

OUTPUT

Relay :

ax. 1A@24V

DISPLAY

LCD Display : 320x240

POWER SUPPLY

ENVIRONMENTAL RATINGS

Operating Temperature : 0...50°C

Humidity : 0-90%RH (none condensing)

Protection Class : IP65 at front, IP20 at rear

PHYSICAL SPECIFICATIONS

Weight : 400 gr.

Dimension : 96 x 96 mm, Depth:96 mm

Panel Cut-Out : 92 x 92 mm

Sampling Time : 400msecs.

Line Compensation : Maximum 10

Input Ressistance : > 10MW

Resistive Load 5A@250V

(Electrical Life : 100.000 operation (Full Load)

Transistor : PNP(source) type transistor output (M )

pixel TFT LCD

100 - 240 V (-%15 / +%10) 50/60 Hz. 7VA

24 V (-%15 / +%10) 50/60 Hz. 7VA

24 V (-%15 / +%10) 7W

(It must be determined in order.)

Electrical Wiring Diagram

Device with Relay Outputs

RS 232

COMMUNICATION

5 x 5A@250V

COMMON-1

COMMON-2

21 22

25 26

28 29

18 19

1 2

8 9

11 12

CH-1 ALARM

OUTPUT

CH-2 ALARM

OUTPUT

CH-3 ALARM

OUTPUT

CH-4 ALARM

OUTPUT

CH-5 ALARM

OUTPUT

CH-6 ALARM

OUTPUT

CH-7 ALARM

OUTPUT

CH-8 ALARM

OUTPUT

GENERAL ALR.

OUTPUT

GENERAL PRE-ALR.

OUTPUT

5 x 5A@250V

USB 2.0

COMMUNICATION

ETHERNET

RS485

COMMUNICATION

PT-100

CH-1

PT-100

CH-2CH-3CH-4CH-5CH-6CH-7CH-8

AGND

100...240V - %15;+%10) 50/60Hz 7VA

24V (-%15;+%10) 50/60Hz 7VA

24V (-%15;+%10) 7W

(+)

(-)

Device with Transistor Outputs

RS 232

COMMUNICATION

1 2

8 9

11 12

USB 2.0

COMMUNICATION

ETHERNET

RS485

COMMUNICATION

PT-100

CH-1

PT-100

CH-2CH-3CH-4CH-5CH-6CH-7CH-8

AGND

100...240V (- %15;+%10) 50/60Hz 7VA

24V (-%15;+%10) 50/60Hz 7VA

24V (-%15;+%10) 7W

(+)

(-)

RS485, Ethernet and USB communications are optional

21 22

25 26

28 29

18 19

CH-1 ALARM

OUTPUT

CH-2 ALARM

OUTPUT

CH-3 ALARM

OUTPUT

CH-4 ALARM

OUTPUT

CH-5 ALARM

OUTPUT

CH-6 ALARM

OUTPUT

CH-7 ALARM

OUTPUT

CH-8 ALARM

OUTPUT

GENERAL ALR.

OUTPUT

GENEAL PRE- ALR.

OUTPUT

10 x 1A@24V

TRANSISTOR OUTPUTS

POWER SUPPLY

24V ±%15

RS485, Ethernet and USB communications are optional

Relay Outputs

(Alarm Outputs for

Channels 6 to 8,

General Alarm Output and

General Pre-Alarm Output )

CH = CHANNEL

Power Supply Input

(It must be determined in order.)

Process Inputs

(PT-100)

Common1

Common2

Relay Outputs

(Alarm Outputs for

Channels 1 to 5)

Power Supply Input

(It must be determined in order.)

Process Inputs

(PT-100)

Transistor Outputs

(Alarm Outputs for

Channels 1 to 8,

General Alarm Output and

General Pre-Alarm Output )

CH = CHANNEL

Maximum

CHANNEL8N Front View and Dimensions of

Panel Cut-Out

1-Before mounting the device

in your panel, make sure that

the cut-out is of the right size.

2-Check front panel gasket

position

3-Insert the device through the

cut-out. If the mounting clamps

are on the unit, put out them

before inserting the unit to the

panel.

Panel Mounting

Installation Fixing Clamp

The unit is designed for panel

mounting.

1-Insert the unit in the panel

cut-out from the front side.

2- Insert the mounting clamps

to the holes that located top

and bottom sides of device and

screw up the fixing screws until

the unit completely immobile

within the panel.

Removing from the Panel

1-Loosen the screws.

2-Pull mounting clamps from

top and bottom fixing sockets.

3-Pull the unit through the

front side of the panel

Definition of Front Panel

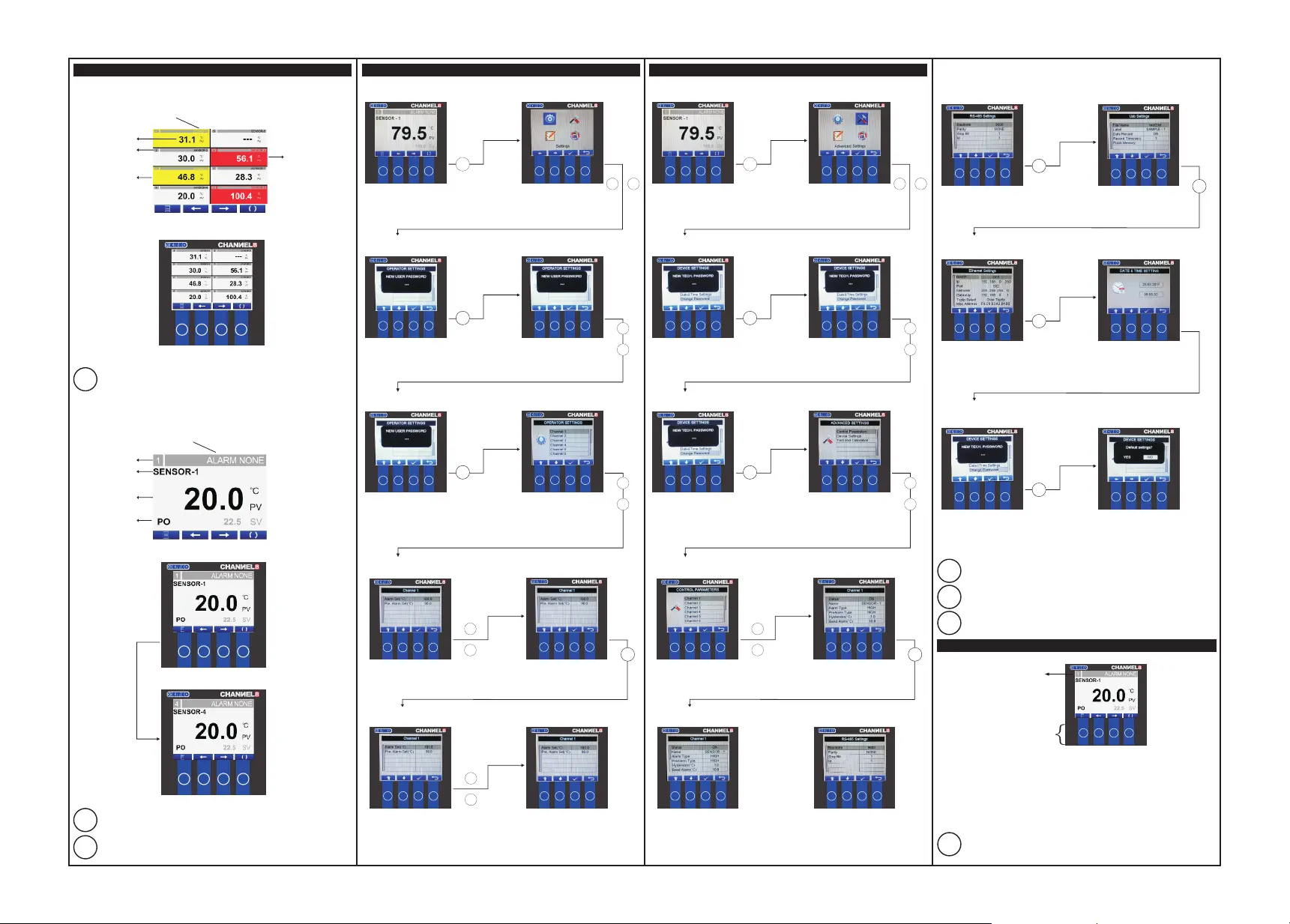

MAIN OPERATION SCREEN

MAIN OPERATION (CHANNEL-1 SCREEN)

MENU SCREEN

Minimum Maximum

9999

OPERATOR PARAMETERS

PASSWORD SCREEN

OPERATOR ŞİFRESİ

Press F1 or F2 direction buttons

to move to the Settings tab.

When the F1 menu button is pressed

while the main screen is on the page, the

menu page is displayed.

100.0 C

Minimum Maximum

-200.0

650.0

100.0

Minimum Maximum

-200.0

650.0

200.0

PARAMETERS

CHANGE

PARAMETERS

CHANGE

OPERATOR PARAMETERS

(CHANNEL-1 PARAMETERS)

Press F3 button. If password

is different from 0, password

screen opens.

Enter the password value using

the F1 and F2 buttons.

Confirm the characters one by

one by pressing F3 button.

Once you have confirmed the

last character, you will proceed

to the operator parameters

screen.

Press the F1 and F2 buttons to

highlight the channel and press the F3

button.

Select the relevant parameter

with the F1 and F2 buttons.

Press the F3 button to select

the parameter.

Use the F1 and F2 buttons to change

the value of the parameter.

Press the F3 button to save

the parameter value.

DEVICE SETTINGS

(Rs485 SETTINGS)

DEVICE SETTINGS

(USB SETTINGS)

DEVICE SETTINGS

(ETHERNET SETTINGS)

DEVICE SETTINGS

(DATE TIME SETTINGS)

With the F1 and F2 buttons you can

select and change the USB

parameters. Use the F3 button to

save.

With the F1 and F2 buttons you can

select and change the RS485

parameters. Use the F3 button to

save.

With the F1 and F2 buttons you can

select and change the ETHERNET

parameters. Use the F3 button to

save.

With the F3 button you can select the

Date and Time parameters and you

can change the value with the F1, F2

buttons.

Channel Number

Device Function

Buttons

Alarm Set

Alarm set value for selected channel is can be adjusted according to this parameter.

It can be adjust between -200 0

O O

C to +65 C.

Pre. Alarm Set

Pre- Alarm set value for selected channel is can be adjusted according to this

parameter. It can be adjust between -200 0

O O

C to +65 C.

F4F1

Channel Label

PreAlarm Status

Alarm Status

Channels Names

Process Value

F4F1

Alarm Messages

Channel Output

Status

Channel Number

F4F1

F3 F4F1

F4F1

F3 F4F1

F4F1

F3F4F1

F4F1

F3 F4F1

F4F1

F1 F2

Operator Password Change

Password for device is adjusted by this parameter.Operator

DEVICE SETTINGS

(PASSWORD CHANGE)

Use the F1 and F2 buttons to change

the value of the parameter. Confirm the

characters one by one by pressing F3

button.

Use the F1 button to move to

the "YES" tab and press the F3

button. In 1-3 seconds the

device will return to factory

settings.

F4F1

F3 F4F1

TECHNICIAN PARAMETERS

(CONTROL PARAMETERS

Minimum Maximum

9999

TECHNICIAN PARAMETERS

PASSWORD SCREEN

TECHNICIAN PARAMETERS

PASSWORD SCREEN

TECHNICIAN PARAMETERS

PASSWORD INPUT SCREEN

OPERATOR ŞİFRESİ

Press F1 or F2 direction buttons

to move to the Advanced

Settings tab.

100.0 C

Minimum Maximum

-200.0

650.0

100.0

Minimum Maximum

-200.0

650.0

200.0

PARAMETERS

CHANGE

DEVICE SETTINGS

(RS232 SETTINGS)

Press F3 button. If password

is different from 0, password

screen opens.

Enter the password value using

the F1 and F2 buttons.

Confirm the characters one by

one by pressing F3 button.

Once you have confirmed the

last character, you will proceed

to the operator parameters

Use the F1 and F2 buttons to scroll to

the Control parameters and press the

F3 button.

Select the relevant channel with the F1

and F2 buttons.

Press the F3 button to select

the parameter.

Use the F1 and F2 buttons to change

the value of the parameter. Press the

F3 button to save the parameter value.

With the F1 and F2 buttons you

can select and change the RS232

parameters. Use the F3 button to

save.

F4F1

F3 F4F1

F4F1

F3 F4F1

F4F1

F3F4F1

F1 F2

TECHNICIAN PARAMETERS

(CHANNEL-1)

TECHNICIAN PARAMETERS

(CHANNEL-1 PARAMETERS)

Main Operation Screens Definetion Accessing to the Operator Parameter Pages

If the display type parameter value Screen Type = MULTIPLE

If the display scan parameter value Screen Change = ENABLE, each main

operation screen is showing on LCD screen during time defined by Change

Time parameter value.

If the display type parameter value Screen Type = SINGLE

Channel Name

Process Value

MAIN OPERATION (CHANNEL-4 SCREEN)

Press number

F2 or F3

buttons for

accessing the

relevant channel

screen.

If the display scan parameter value Screen Change = ENABLE, each main

operation screen is showing on LCD screen during time defined by Change

Time(sec) parameter value

If more than one alarm messages is present, each alarm message is

showing on LCD screen during 1 second.

MAIN OPERATION SCREEN

OPERATOR PARAMETERS

PASSWORD SCREEN

OPERATOR PARAMETERS

PASSWORD INPUT SCREEN

OPERATOR PARAMETERS

(CHANNEL-1)

OPERATOR PARAMETERS

(CHANNEL-1 PARAMETERS)

Accessing to the Technician Parameter Pages

Operator Pages Parameters Definetions

If no operation is performed for 20 seconds in operator parameters section,

device turns to main operation screen automatically.

If the device has a optional RS485 communication then RS 485 page is

observed, If the device has a optional USB communication then USB page is

observed.

If no operation is performed for 20 seconds in operator or technician

parameters section, device turns to main operation screen automatically.

If the device has a optional ETHERNET communication then ETHERNET

page is observed, otherwise this page is not observed.

MAIN OPERATION SCREEN

MENU SCREEN

When the F1 menu button is pressed

while the main screen is on the page, the

menu page is displayed.

DEVICE SETTINGS

(DEFAULT SETTINGS)

Produkt Specifikationer

Mærke:	Emko
Kategori:	Termostat
Model:	CHANNEL8N

Har du brug for hjælp?

Hvis du har brug for hjælp til Emko CHANNEL8N stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Termostat Emko Manualer

7 September 2025

7 September 2025

7 September 2025

7 September 2025

7 September 2025

7 September 2025

Emko Eco Light Manual

3 September 2024

Emko ESM-4900 Manual

28 August 2024

Emko CHANNEL8N Manual

28 August 2024

Emko ESM-4920 Manual

27 August 2024

Termostat Manualer

Nyeste Termostat Manualer

Emerson ST75 Manual

1 Oktober 2025

Homematic IP HMIP-eTRV Manual

30 September 2025

Xavax UT 200 Manual

29 September 2025

Delta Dore Tybox Control Manual

28 September 2025

Delta Dore Tybox RF 210 Manual

28 September 2025

Delta Dore Tybox RF 210 XL Manual

28 September 2025

Delta Dore Tybox RF 210 BK Manual

28 September 2025

Stiebel Eltron RTU-TC Manual

28 September 2025

Stiebel Eltron RTF-TC Manual

27 September 2025

Grässlin Chronostat RTC 7 Manual

26 September 2025
