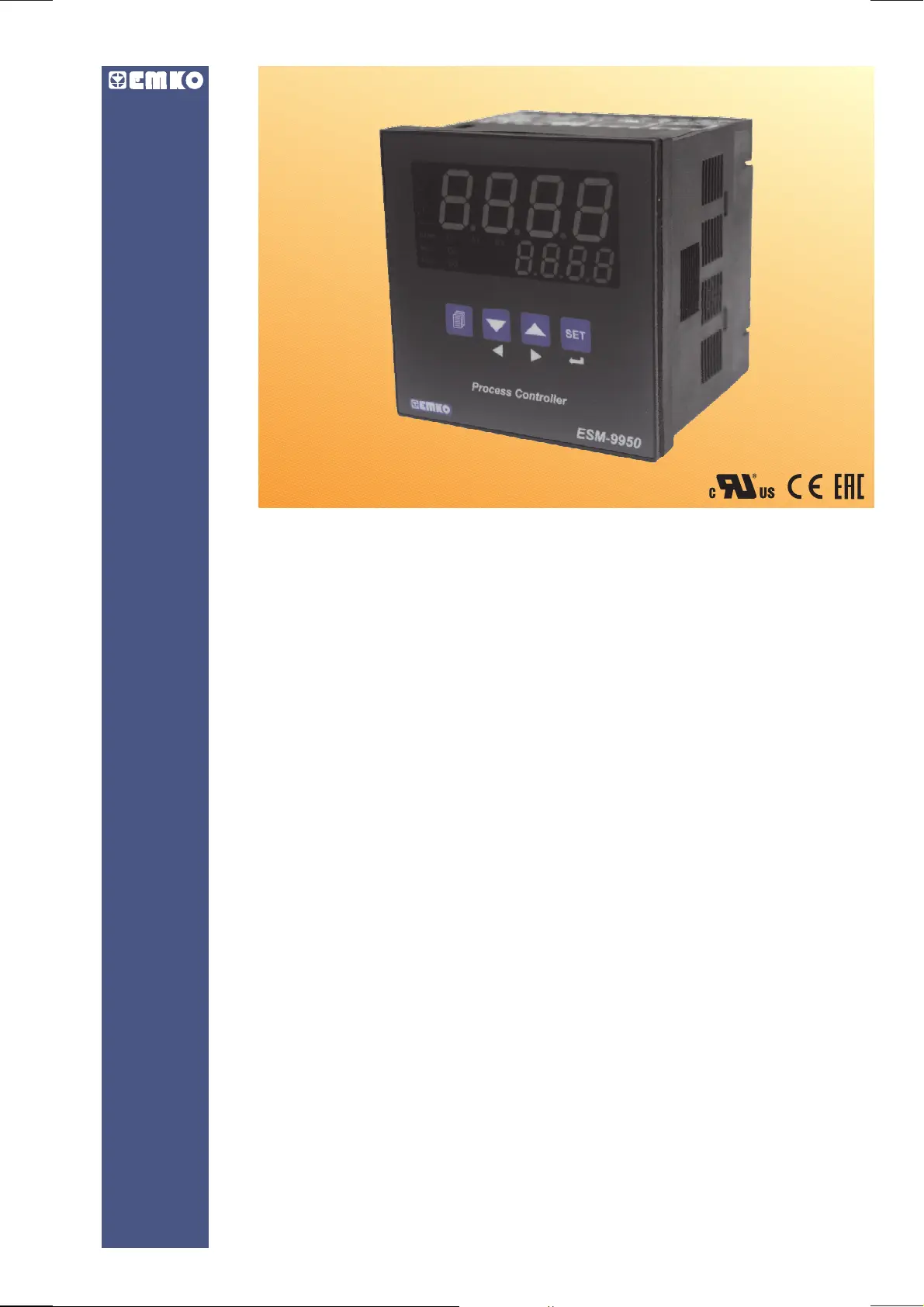

ESM-995096x961/4DIN ProcessController

ESM-995096x961/4DIN

UniversalInputPIDProcessControllerwith

SmartI/OModuleSystem

-4 4digitsprocessset(SV)display

(TC,RTD,mV ,V ,mA )

-Dualormultipointcalibrationfor oltage/Currentinput

- AdaptationofPIDcoefficientstothesystemwith Auto-tuneand

Self-tune

-Manual/Automaticmodeselectionforcontroloutputs

-Bumplesstransfer

-Programmableheating,coolingandalarmfunctionsforcontrol

outputs

-Motorizedvalvecontrolfunction

-8stepsprofilecontrol(Ramp&Soak)functionandstart-hold-

stopbyusinglogicinputmodule

-Remotesetpointfunctionbyusinganaloginputmodules

-Retransmissionofprocessvalueorprocesscontrolbyusing

0/4...20mA CurrentOutputModule

-Hardwareconfigurationbyusinginput/outputmodules

Z Z Z

-Detectionofheaterfailurebyusing0...5 A CTinputmoduleV

digitsprocess(PV)and

-Universalprocessinput

-Optionalsecondarysensorinput

-ConfigurableON/OFF,P,PI,PDandPIDcontrolforms

-SmartI/Omodulesystem

-RS-232(standard)orRS-485(optional)serialcommunication

withModbusRTUprotocol

InstructionManual.ENGESM-995002V1607/18

Instruction manual of ESM-9950 process controller consists of two main sections.

Explanation of these sections are below. Also, there are other sections which include order

information and technical specifications of the device. All titles and page numbers in instruction

manual are in “ ” section. User can reach to any title with section number.

In this section, physical dimensions of the device, panel mounting, electrical wiring,

module mounting to the device, physical and electrical installation of the to the system are

explained.

In this section, user interface of the , how to access to the parameters, description

of the parameters are explained.

CONTENTS

Installation:

Operation and Parameters:

device

Also in these sections, there are warnings to prevent serious injury while doing the

physical and electrical mounting or using the device.

Explanation of the symbols which are used in these sections are given below.

This symbol is used to determine the dangerous situations as a result of an electric

shock. User must pay attention to these warnings definitely.

This symbol is used for safety warnings. User must pay attention to these

warnings.

In parameters section, for making relevant parameters to be active, determined

module must be installed to Module-1 or Module-2 socket.

This symbol is used to determine the important notes about functions and usage of

the device.

ABOUTINSTRUCTIONMANUAL
