GB | Wireless Doorchime
The set includes a push button (transmitter) and a home doorchime (receiver).
A transmission between the button and the door chime is performed by radio waves at frequency
of 433.92 MHz. Transmission range depends on local conditions and can be up to 100 m in an open
space without interference.
For a correct use of the wireless door chime, read the user manual carefully.
Specications
Transmission range: up to 100 m in open area (in built-up area may drop to fth)
Pairing of the door chime and the push button: “self-learning” function
Pairing capacity: max 8 buttons
Optical signalization of ringing on push button
Number of melodies: 36 melodies
Transmission Frequency: 433.92 MHz, 10 mW e.r.p. max.
Power of door chime unit: 3× 1.5 V AA
Power of pushbutton: Battery 1× 3 V (CR2032)
Included parts: double-sided adhesive tape, 2 screws
Description of the door chime and the buttons:

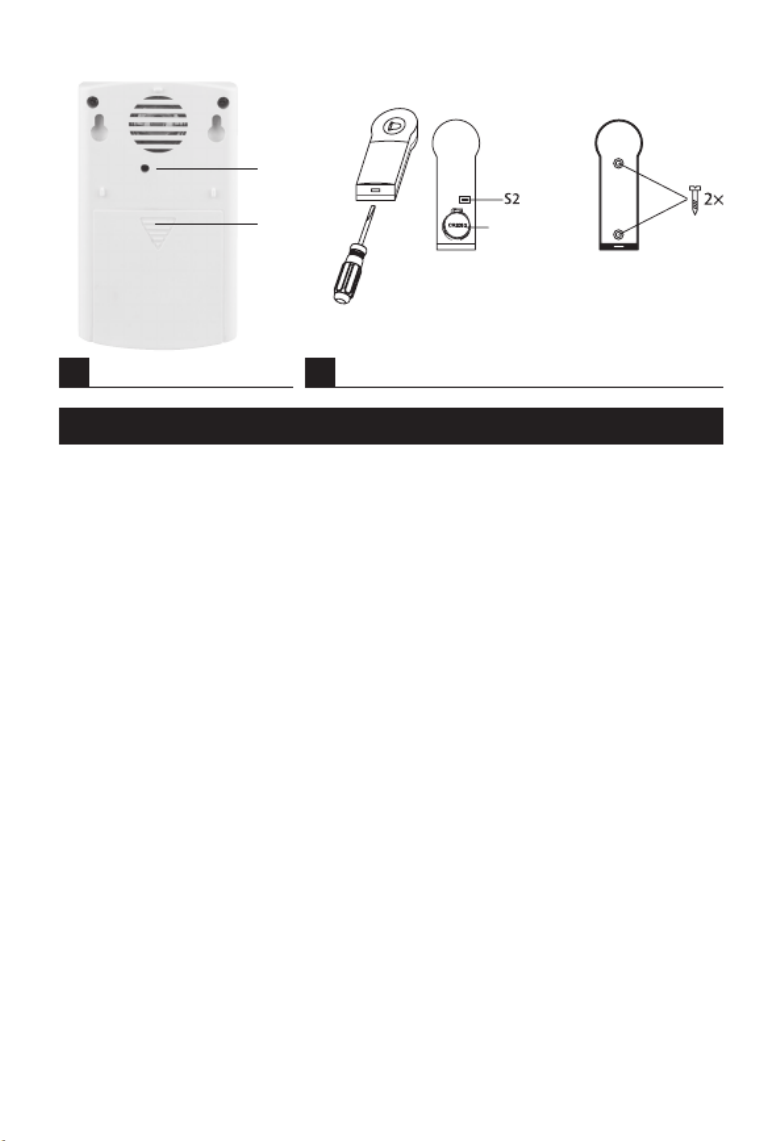

see Fig. 1
A – melody selection
B – battery compartment
see Fig. 2
1 – replacing of a battery inthe push button
2 – installation of the button
COMMISSIONING
Push button of the door chime (transmitter)
1. Using a screwdriver remove the back cover through the hole onthe side of the button. Insert 3 V
battery in to the button. Pay attention to the polarity of the inserted battery.
2. Attach the back cover that serves as a holder on a wall with two screws. It can also be attached
using double-sided adhesive tape. Check if the set operates reliably at a chosen place before instal-
lation. It is advisable to choose a protected position of the button, e.g. placing it in an embrasure.
3. Assemble the button by putting the front part on the back cover and snap it.
4. Write your name on the label under the transparent cover. Remove the cover by slight pulling.
Note: The push button of the door chime (transmitter) can be easily placed on wood or brick walls.
Never place the button directly on metal objects or materials that contain metal such as plastic con-
struction of windows and doors that contain metal frame. The transmitter may not function properly.
1 2
A
B
1 2
CR2032
