GB | Replacement Button
It is designed for wireless door chimes type 98103 (P5721, P5722), 98098 (P5723), 98080S (P5705),
98105 (P5712).
Specications
Transmission range: up to 100 m in open area (in built-up area may drop to fth)
Pushbutton: waterproof, IP44 coverage
Pairing of the door chime with the push buttons: “self-learning” function
Power of pushbutton: Battery 1×3 V (Type CR2032)
Included parts: double-sided adhesive tape, 2 screws
Replacing of a battery in the push button

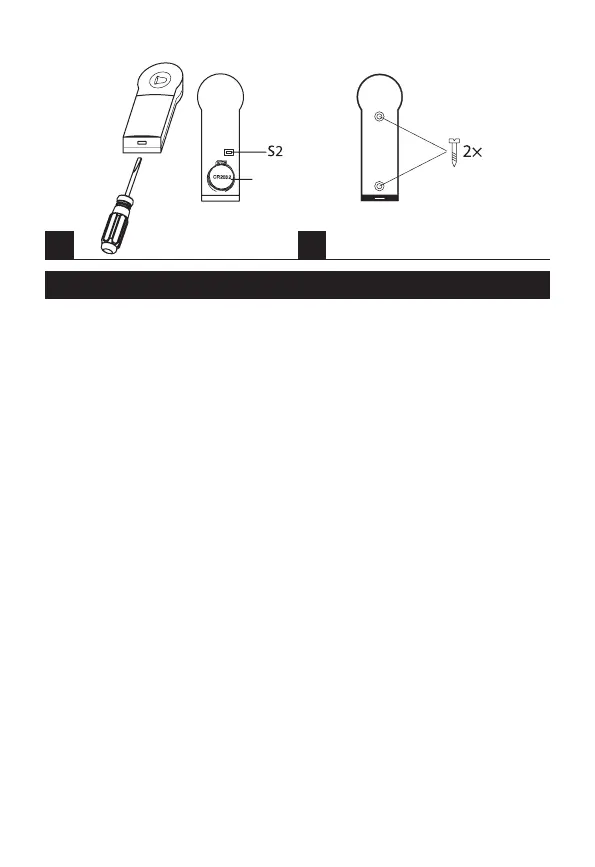

see Fig. 1
Installation of the push button
see Fig. 2
Pairing of the push button and the door chime
1. Plug the door chime in a socket 230 V AC/50 Hz (98103, 98080S) or insert batteries into the
door chime (98098, 98105).
Hear a melody – the door chime is ready for pairing.
2. Press the push button on the button (transmitter), hear a melody, the devices will be matched.
3. For pairing of other buttons, repeat step 2.
4. Pairing of the buttons can be done within 30 seconds after insertion of the door chime into a
socket or insertion of batteries.
5. If you want to pair another buttons later, follow step 1 and 2.
6. This allows you to progressively pair up to 16 buttons.
Erasing the memory of paired buttons
1. Remove the rear part of the push button cover.
2. Set the chime to the pairing mode – depending from the door chime type, remove the battery
and reinsert or disconnect the chime from the 230 V socket and reconnect.
3. Within 30 seconds push the S2 button on the rear of the push button (transmitter).
4. A melody will sound – the memory of all matched buttons will be erased.
Installation of the push button (transmitter)
1. Using a screwdriver remove the back cover through the hole on the side of the button (OPEN).
Insert 3 V battery in to the button. Pay attention to the polarity of the inserted battery.
2. Attach the back cover that serves as a holder on a wall with two screws. It can also be attached using
double-sided adhesive tape. Check if the set operates reliably at a chosen place before installation.
It is advisable to choose a protected position of the button, e.g. placing it in an embrasure.
CR2032
1 2
