This user guide provides detailed information for using the BrightEye™11 SDI

to Analog Converter module.

The information is organized into the following sections:

• Product Overview

• Functional Description

• Rear Connectors

• Operation

• Front Panel Controls and Indicators

• Using The BrightEye Control Application

• Warranty and Factory Service

• Specifications

• Glossary

BrightEye-1

BrightEye 11

SDI to Analog Converter

User Guide

Revision 3.0 SW v1.0.4

ENSEMBLE

DESIGNS

BrightEye 11 SDI to Analog Converter

PRODUCT OVERVIEW

BrightEye™ 11 provides digital to analog conversion with the full range of analog

output formats available: Beta, SMPTE, RGB, and Composite (with simultaneous

S-Video Y/C outputs). 12 bit processing and conversion at 8x oversampling mean

the best looking images possible.

Output format and gain are controlled from the front panel. The BrightEye

Control application also provides remote control of the unit from a personal

computer with USB support. A status display on the front panel indicates input

presence.

BrightEye 11 is the perfect choice to feed monitors, VTRs, or video projectors.

A glossary of commonly used video terms is provided at the end of this user guide.

FUNCTIONAL DESCRIPTION

As shown in the functional block diagram below, serial digital video is fed to the

converter on a single BNC connector.

The SDI input is routed directly to the SDI Out BNC and the reclocking and dese-

rializing circuitry before entering the D to A converter.

The converted analog signal is then encoded to the desired output format as

chosen on the front panel or with BrightEye PC or Mac. During this stage, gain

can be adjusted for the correct output levels.

BrightEye 11 is powered by a 12 volt DC universal power supply. This power

supply can accept an input voltage between 90 and 230 volts, at 50 or 60 Hertz. It

uses a standard IEC line cord and can be used anywhere in the world. It is

normal for the converter to be quite warm to the touch when operating.

BrightEye-2

Reclocker

Deserializer

SDI Out

SDI In

C, Pr, R Out

Cpst, Y, G Out

Y, Pb, B Out

Front Panel Controls

Gain Adjust

12-bit

D to A

Converter

and

Video

Encoder

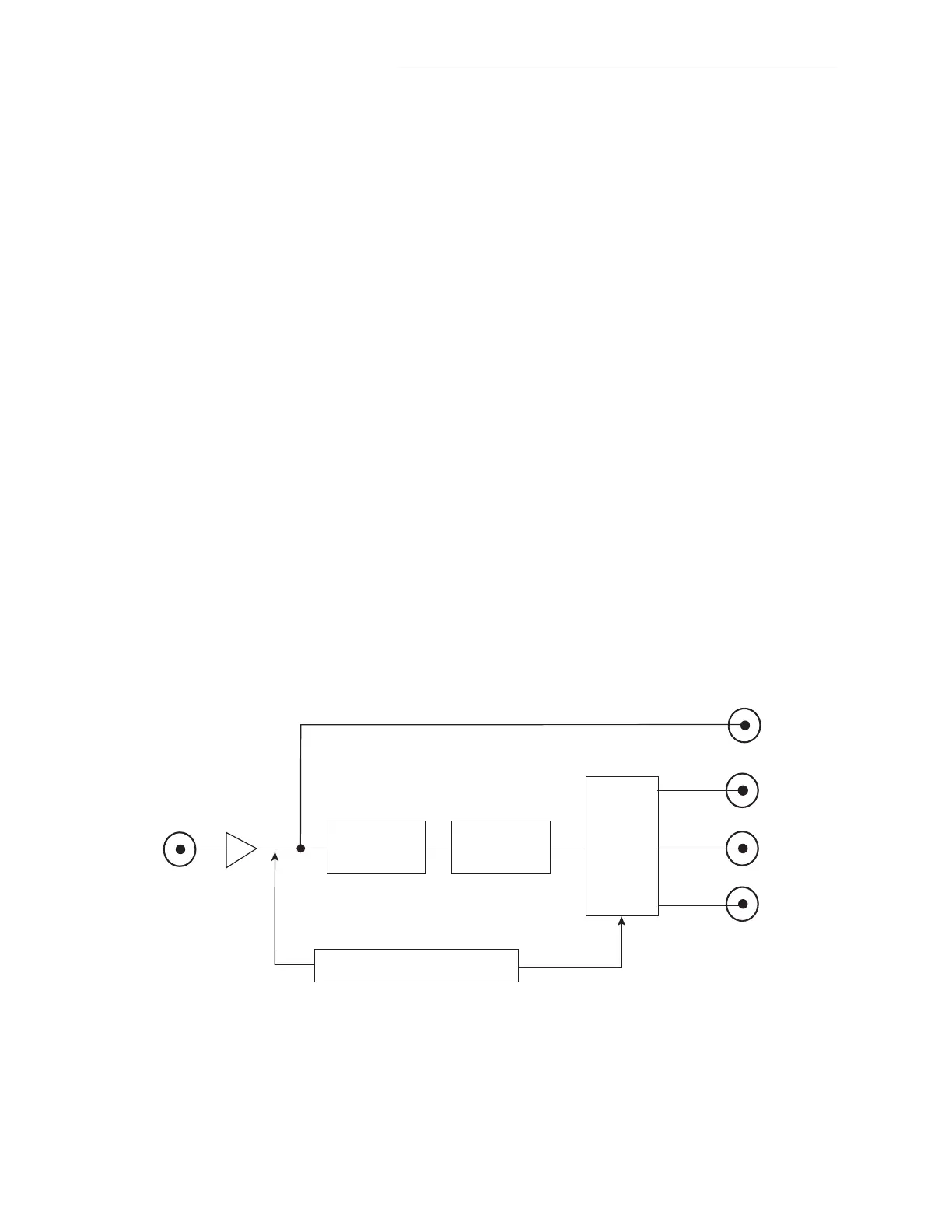

BrightEye 11 Functional Block Diagram
