This user guide provides detailed information for using the BrightEye™16 SDI

to Analog Converter with Frame Sync/Genlock with Audio Disembedder.

The information is organized into the following sections:

• Product Overview

• Functional Description

• Applications

• Rear Connectors

• Operation

• Front Panel Controls and Indicators

• Using The BrightEye Control Application

• Warranty and Factory Service

• Specifications

• Glossary

BrightEye-1

SDI to Analog Converter

with Frame Sync/Genlock

and Audio Disembedder

User Guide

Revision 4.0 SW v1.0.2

ENSEMBLE

DESIGNS

BrightEye 16 D-to-A Converter TBC/FS and Disembedder

PRODUCT OVERVIEW

BrightEye™ 16 provides digital to analog conversion with a timeable output. It is

perfect for feeding composite analog switchers and routers where timing to a

reference is required. It also disembeds audio from the SDI input and converts it

to four analog audio outputs.

The BrightEye 16 has an SDI video and a reference input. The input signal is

converted to analog composite and synchronized (genlocked) to the reference

signal. The analog composite output is fully timed with respect to the reference

including ScH phase.

Embedded audio from the SDI input is disembedded and converted with 24 bit

precision to analog audio.

Basic controls are accessed on the front panel. The BrightEye Control application

provides access to video proc functions and built-in audio mixer controls not

available from the front panel.

A glossary of commonly used video terms is provided at the end of this user guide.

FUNCTIONAL DESCRIPTION

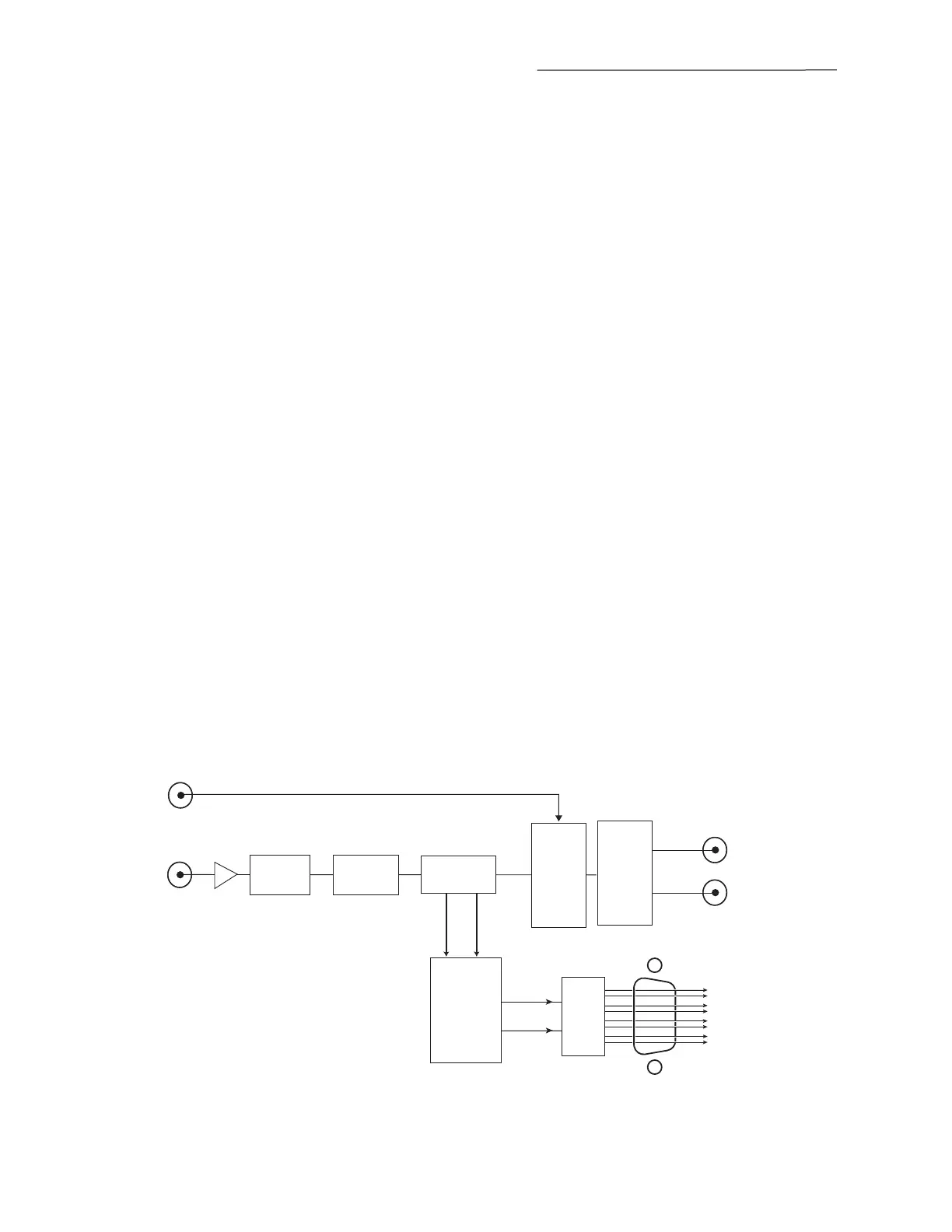

As shown in the functional block diagram below, serial digital video input is fed

to the converter unit on a single BNC connector. The SDI input is routed to the

reclocking and deserializing circuitry before entering the TBC/Frame

Synchronizer where the external Ref In signal provides a timing reference.

Embedded audio is disembedded from the SDI input and converted to analog

audio and output as balanced audio at the 15 pin D connector.

The video is sent to a 12 bit D-to-A converter. The converted analog signal

is then encoded to PAL or NTSC analog video depending on the line rate of the

input. During this stage, proc amp adjustments can be made for the correct

output levels. Two composite out BNCs are provided at the output.

BrightEye-2

Reclocker Deserializer

SDI In

Ref In

Composite Out 1

Composite Out 2

12-bit

D to A

Converter

and

Video

Encoder

TBC/

Frame

Sync

Ch 1/2

Ch 3/4

Ch 1

Ch 3

Ch 2

Ch 4

Balanced

Audio

Outputs

Mixer

Shuffler

Disembedder

BrightEye 16 Functional Block Diagram
