This user guide provides detailed information for using the BrightEye™20

Analog and Digital Audio Embedder or Disembedder unit.

The information is organized into the following sections:

• Product Overview

• Functional Description

• Applications

• Rear Connectors

• Operation

• Front Panel Controls and Indicators

• Using The BrightEye Control Application

• Warranty and Factory Service

• Specifications

• Glossary

BrightEye-1

BrightEye 20

Analog and Digital Audio

Embedder or Disembedder

User Guide

Revision 4 SW v1.0.9

NSEMBLE

DESIGNS

BrightEye 20 Analog and Digital Audio Embedder or Disembedder

PRODUCT OVERVIEW

The BrightEye 20 is a compact solution for embedding or disembedding. With SDI

input and output, and both analog and digital audio I/O, it is field configurable for

embedding or disembedding.

Mux/Demux mode, audio input source, AES group selection, VU status, and gain

adjustment can be monitored and adjusted from the front panel. More advanced

functionality is available via the BrightEye Control application.

A glossary of commonly used video terms is provided at the end of this manual.

FUNCTIONAL DESCRIPTION

BrightEye 20 is a versatile Audio Mux/DeMux (Embedder/Disembedder). It

supports four channels of audio, with both analog and digital I/O. Complete

control over audio levels and mixing and swapping between channels is provided

through the BrightEye Control application.

Demultiplex Operation

When configured as an Audio Disembedder (demultiplexer), BrightEye 20 extracts

the digital audio content being carried in an SDI video stream and produces

simultaneous digital audio (AES) and analog audio outputs.

The Group Select control is used to identify which of the four possible audio

groups is to be disembedded. The front panel Group Select control will illuminate

green to indicate that the selected group has been detected in the incoming video.

If that group is not present, the control will illuminate red.

The four output channels of the disembedder feed a 4 channel mixer/shuffler. This

mixer provides precise adjustment of audio level for each channel, and the ability

to assign input channels to any combination of output channels. Additionally,

signal phase inversion can be selected on a channel by channel basis to address

BrightEye-2

4x4

Input

Selector

AES Port 1/2

Sample Rate

Converter

Analog Audio I/O

AES

Formatter

AES Port 3/4

SDI In SDI out

AES

Rcvr

Sample Rate

Converter

2 Ch

AES

Rcvr

4 Channel

Mixer

Shuffler

EmbedderDisembedder

4 Ch

Note: AES Outputs

shared with AES Inputs

4 Channel

A to D

4 Channel

D to A

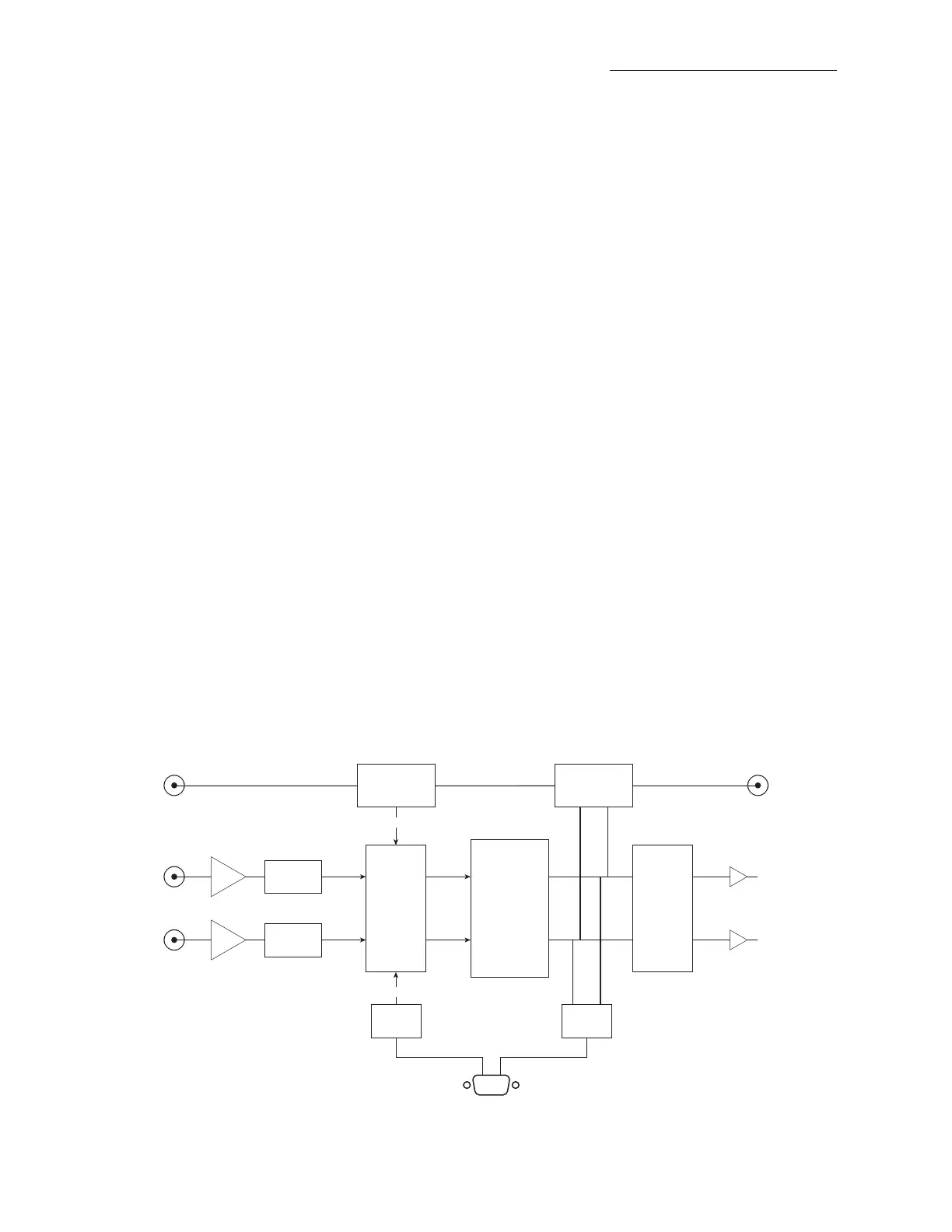

BrightEye 20 Functional Block Diagram
