This user guide provides detailed information for using the BrightEye™70

HD/SD AES Embedder/Disembedder unit.

The information is organized into the following sections:

• Product Overview

• Functional Description

• Applications

• Rear Connectors

• Operation

• Front Panel Controls and Indicators

• Using The BrightEye Control Application

• Warranty and Factory Service

• Specifications

• Glossary

BrightEye-1

HD/SD AES

Embedder/Disembedder

User Guide

Revision 3.1 SW v1.0.0

BrightEye 70 HD/SD AES Embedder/Disembedder

PRODUCT OVERVIEW

The BrightEye 70 is a dual rate, eight channel audio embedder or disembedder

for 1.5 Gb/s high definition video signals or for 270 Mb/s standard defintion

signals. Four AES ports automatically configure for inputs or outputs when the

module is configured for Mux or Demux.

Selection of Mux or Demux mode, AES group selection, VU status, and gain

adjustment can be monitored and adjusted from the front panel. More advanced

functionality is available via the BrightEye Control application.

The BrightEye 70 includes an eight channel audio mixer with channel swap and

shuffle capability that allows you to completely rearrange and remix audio

channels. It provides precise control over audio level, up to 2 dB of gain to com-

pensate for low level sources. All audio processing is prerformed at full 24 bit res-

olutionby a digital signal processor (DSP).

Delay is adjustable up to one second. The Data mode operation allows embedding

or disembedding of Dolby E or AC3 signals.

A glossary of commonly used video terms is provided at the end of this manual.

FUNCTIONAL DESCRIPTION

When configured as a multiplexer as shown in the functional block diagram

below, the BrightEye 70 has one serial digital video input and four AES inputs.

The four AES streams are sample rate converted (allowing the use of asyn-

chronous audio) then processed in the input selector and mixer/shuffler. The

selected groups are then embedded into the video stream. The output of the

module is a digital stream that contains the original video signal and four audio

pairs.

BrightEye-2

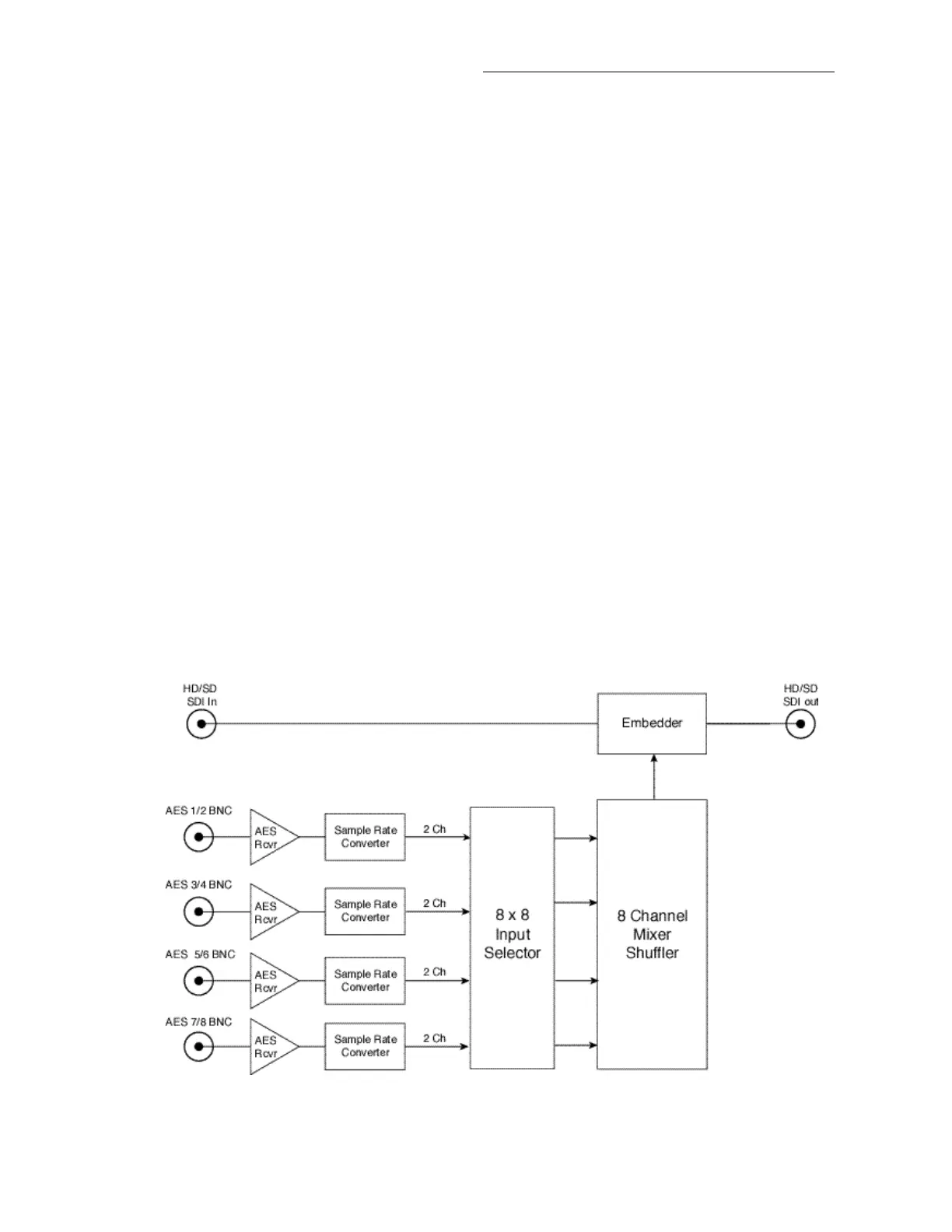

BrightEye 70 Multiplexer (Embedder) Mode Functional Block Diagram
