Enviroswim ES- 3 Installation Guide
©Enviroswim 2014 Enviroswim 2014 © V3.0AU
These instructions are repeated in the Operating Manual and should be repeated every time the pool is refilled.
1. Ensure that unwanted compounds are eliminated from the water.
<recommended for
that metal
Test unusual supplies such as bore water for excessive amounts of
metals in particular, manganese, iron and magnesium. There are –
dierent recommended maximums. Remove using appropriate
sequestering agents.
Dilute or use a sequestering agent to reduce. Note: To establish the
copper ions and proportionate silver ions with the Enviroswim
process require there is no signicant residual copper in the.
Use Hydrochloric Acid or Sodium Bisulphate to
reduce. Sodium Bicarbonate to increase.
Use Calcium Chloride to increase
Use Sodium Bicarbonate to increase
Use Pool Salt to increase Dilute to decrease –
Do not use Cyanuric Acid (Stabliser) as this will interfere with the oxidising capability of the Enviroswim
system
Complete and return your Warranty Registration Card NOW!!
1. Balance the water as per above. Ensure all Enviroswim switches are set to OFF and variable controls (Ioniser
and ORP) at minimum (fully counter-clockwise).
2. Turn on the pool pump so that water is owing through the filtration system
and the Enviroswim ionization/oxidation chamber and ultrasonic emitter
pipe. Set the left hand switch on the Enviroswim unit to MANUAL. Make
sure that the ionization/oxidation chamber is lled with water.
3. Turn on the right hand ON/OFF switch on the control box.
4. Turn the knob on the control box under the ORP meter slowly clockwise
until the ORP meter reads between 13 - 15 Amps.
5. Turn the ioniser switch to maximum. Run the unit for approximately 1 hour
per 1000 litres of water and test copper level.
6. Perform chemical tests to determine readings for pH, ORP, alkalinity,
copper, and calcium hardness then adjust accordingly. Refer to Operating
Manual for appropriate treatments.
7. Test the copper level and when in the range 0.2-0.4 ppm set the system
for the appropriate run time and adjust the Ioniser output to around 50%.
8. Startup is now complete. Refer to the operating manual for a guide on run
times. Remember every pool is dierent. Factors that will impact runtime
are location, bather load, season, type of cover and water temperature.
When can I use the pool?
It is OK to use the pool while the Copper levels are being established provided the EnviroSwim system is
processing the water continuously and the correct water balance (pH, alkalinity and hardness) is established.
The Oxidation process will treat organic matter and as water ows through the cell it will be being treated with
concentrated Copper and Silver ions. We recommend that the water is allowed to circulate at least once (allow
1 hour per 10,000 litres) before swimming.
1. Plan layout of components
a. Check component dimensions.
b. Conrm sequence of components in water ow.
c. Check cable lengths for control box location.
d. Power Supply
2. Conrm additional materials required
a. Pipe ttings and Pipe adhesive
b. Cable ties
c. Mounting Screws
3. Tools.
a. Pipe Saw
b. Drill and Bits
Return your Warranty Registration Card to ensure
Warranty commences from installation rather than manufacturing date
Seasonal Newsletter
Rapid response to your questions
Balance Water
1. Plan 2. Install 3. Commission
IMPORTANT SAFETY INSTRUCTIONS
ATTENTION INSTALLER
This manual contains important information about the installation of this product. For complete instructions on
operation and safe use of this product refer to EnviroSwim ES-3 Operating Manual
READ AND FOLLOW ALL INSTRUCTIONS. IMPORTANT SAFETY INSTRUCTIONS WARNING -
PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS
To reduce the risk of injury, do not permit children to use this product unless they are closely WARNING –
supervised.
When mixing acid with water, ALWAYS ADD ACID TO WATER, NEVER ADD WATER TO ACID. WARNING –
There are no serviceable parts in the control box. Return to Enviroswim for service. WARNING –
Do not operate electrolytic cell without proper ow or water circulation. A build-up of gases will WARNING –
result in hazardous conditions.
Use of chemicals other than those recommended may be hazardous. Follow the Chemical CAUTION –
Manufacturer’s Instructions.
This unit is for use with permanently installed pools. Do not use with storable pools. A CAUTION ––
permanently installed pool is constructed in or on the ground or in a building such that it cannot be readily –
disassembled for storage. A storable pool is constructed so that it is capable of being readily disassembled for
storage and reassembled to its original integrity.
Some modern variable speed pumps have settings that produce inadequate water ow to either ll CAUTION –
the ES-3 wet cell or create sucient ow to eect the ES-3 processes. Do not allow these pumps to operate at
their minimum speed when the ES- is being operated. 3
READ ALL THESE INSTRUCTIONS
For advice phone 1300 888 457or email : info@enviroswim.com

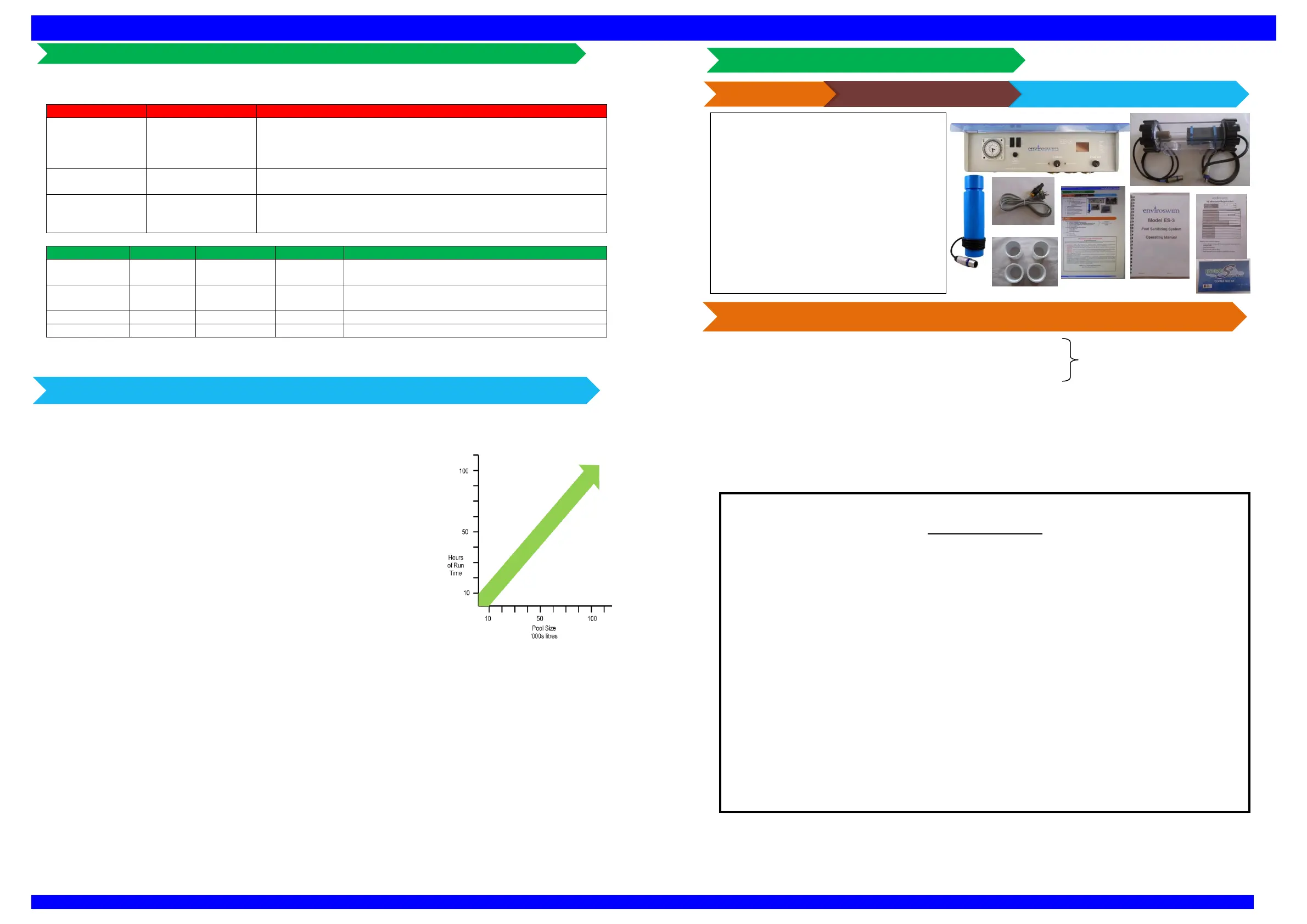

What in the Box? ’s
1 x Enviroswim Control Unit
1 x Transparent water cell
o 1 x Titanium plate assembly
o 1 x Cu/Ag electrode
assembly
Ultrasonic Emitter assembly
Power Cable
4 x 40mm to 50mm adapters
Installation Guide (this guide)
Operating Manual (A5)
Warranty Registration Card
Copper test kit
Review
instructions next
page
