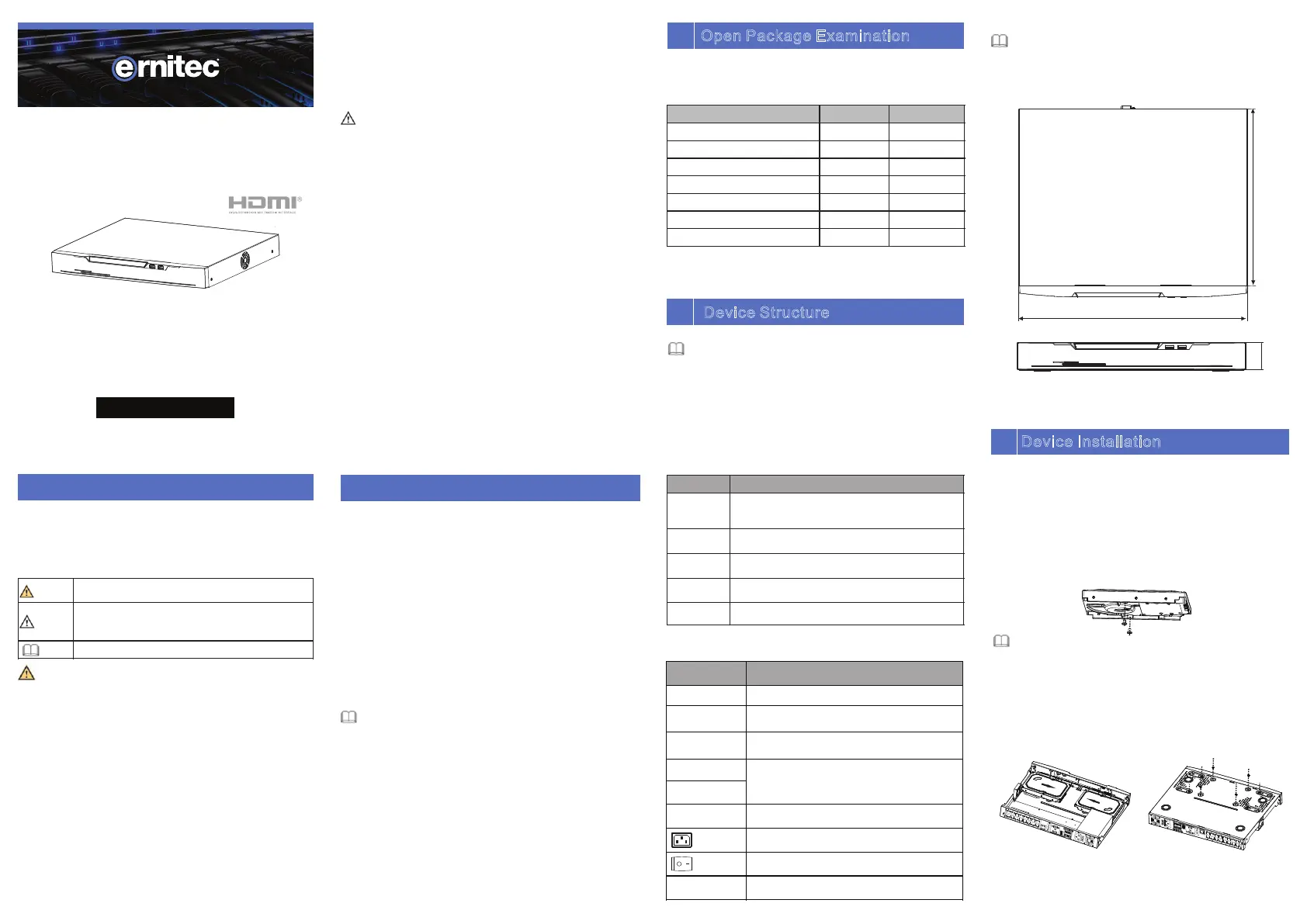

Side 1/2

PoE NVR

8CH

Quick Setup Guide

Fully understand this document before using this device, and

strictly observe rules in this document when using this device. If

you install this device in public places, provide the tip "You have

entered the area of electronic surveillance" in an eye-catching

place. Failure to correctly use electrical products may cause fire

and severe injuries.

It alerts you to moderate dangers which, if not

avoided, may cause minor or moderate injuries.

It alerts you about risks. Neglect of these risks may

cause device damage, data loss, device

performance deterioration, or un

predictable results.

It provides additional information.

Ÿ Strictly observe installation requirements when installing the

device. The manufacturer shall not be held responsible for

device damage caused by users' non-conformance to these

requirements.

Ÿ Strictly conform to local electrical safety standards and use

power adapters that are marked with the LPS standard when

installing and using this device. Otherwise, this device may be

damaged.

Ÿ Use accessories delivered with this device. The voltage must

meet input voltage requirem

ents for this device.

Ÿ If this device is installed in places with unsteady voltage, ground

this device to discharge high energy such as electrical surges in

order to prevent the power supply from burning out.

Ÿ When this device is in use, ensure that no water or any liquid

flows into the device. If water or liquid unexpectedly flows into

the device, immediately power off the device and disconnect all

cables (such as power cables and network cables) from this

device.

Precautions

Special Announcement

For more information, please refer to website.

Ÿ Avoid heavy loads, intensive shakes, and soaking to prevent

damages during transportation and storage. The warranty does

not cover any device damage that is caused during secondary

packaging and transportation after the original packaging is

taken apart.

Ÿ Protect this device from fall-down and intensive strikes, keep the

device away from magnetic field interference, and do not install

the device in places with shaking surfaces or under shocks.

Ÿ Clean the device with a soft dry cloth. For stubborn dirt, dip the

cloth into slight neutral cleanser, gently wipe the dirt with the

cloth, and then dry the device.

Ÿ Do not jam the ventilation opening. Follow the installation

instructions provided in this document when installing the device.

Ÿ Keep the device away from heat sources such as radiators,

electric heaters, or other heat equipment.

Ÿ Keep the device away from moist, dusty, extremely hot or cold

places.

Ÿ If the device is installed outdoors, take insect- and moisture-

proof measures to avoid circuit board corrosion that can affect

monitor

ing.

Ÿ Remove the power plug if the device is idle for a long time.

Ÿ All complete products sold by the manufacturer are delivered

along with nameplates, quick setup guide and accessories after

strict inspection. The manufacturer shall not be held responsible

for counterfeit products.

Ÿ The manufacturer will update this manual according to product

function enhancement or changes and regularly update the

software and hardware described in this manual. Update

information will be added to new versions of this manual without

prior notice.

Ÿ This manual may contain misprints, technology information that

is not accurate enough, or product function and operation

description that is slightly inconsistent with the actual product,

the final interpretation of company is as a standard.

Ÿ This manual is only for reference and does not ensure that the

information is totally consistent with the actual product. For

consistency, see the actual product.

NOTE

Ÿ If this device is installed in places where thunder and lightning

frequently occur, ground the device nearby to discharge high

energy such as thunder strikes in order to prevent device

damage.

CAUTION

NOTE

CAUTION

WARNING

Table 2- 1 Front panel description

Port Name

Description

HDD

Indicator

Hard disk status indicator.

This indicator flashes when data is transmitted.

KB/MOUSE

Supports connection to a USB mouse.

BACKUP

Supports connection to a USB flash drive or USB

removable hard disk.

PWR

Indicator

When the NVR is operating, the PWR indicator

is steady on.When the NVR is shut down, the

PWR indicator is turned off.

Open the package, check the appearance of product for no

obvious damage, and confirm the item list for table 1-1 is

consistent.

Table 1- 1 Packing li

Open Package Examination

2.1 Device Ports

Different devices may have different ports and multi-head

cables; Please refer to the actual product.

NOTE

Device Structure

2.2 Device Dimensions

Different devices may have different dimensions; Please

refer to the actual product.

NOTE

Figure 2-1 Dimensions (Unit:mm)

PoE

Indicator

PoE network status indicator.

This indicator flashes when data is transmitted.

Network Video Recorder

Phillips head screw

Power cord

Power adapter

Mouse

Quick Setup Guide

Terminal block

Component

Table 2- 2 Rear panel description

Remark

Quantity

Optional

Front panel description of device, please refer to table 2-1.

Rear panel description of device, please refer to table 2-2.

44.5

BACKU P

KB/MO USE

372

213

The hard disk of the NVR must be provided by the user. Take the

following steps to install the hard disks：

Step 1 Remove the screws for fixing the cover and take down the

cover.

Step 2 Take out the screws and mount two of them to the screw

holes of hard disk, as shown in figure 3-1.

Figure 3-1 Installing the hard disk screws

evice Installation

Step 3 Route the screws through the gourd holes on the base,

push the hard disk to the appropriate position on the left, as

shown in figure 3-2.

Step 4 Turn the device over, and mount other two screws to the

holes, as shown in figure 3-3. Then fasten all the screws.

Ÿ Just screw the screws about 1 to 2 turns instead to the end.

NOTE

Figure 3-2 Installing hard disk

Step 5 Install other hard disks following step 2,step 3 and step 4,

and insert the hard disk data cable and power cable, then

replace the upper cover and fasten the fixing screws.

Figure 3-3 Fixing hard disk

HDMI

USB

HDMI

USB

Name

Description

PoE Port PoE network interfaces.

LAN Rj45 10 /100/1000 Mbps adaptive. Ethernet

interface.

AUDIO OUT/

AUDIO IN

Audio output / Audio input.

VGA Video output interface.

HDMI

Alarm I/O Alarm input/Alarm output.

AC 110V — 220V.

Power switch.

USB

USB 2.0 port.

Item no.: 0070-10402

Produkt Specifikationer

Mærke:	Ernitec
Kategori:	Ikke kategoriseret
Model:	0070-10402
Tænd-/slukkontakt:	Ja
Vekselstrømsindgangsspænding:	100 - 240 V
Bredde:	372 mm
Dybde:	315 mm
Højde:	47 mm
Vægt:	2100 g
Produktfarve:	Sort
Pakkevægt:	4000 g
Wi-Fi:	Ingen
Relativ luftfugtighed ved opbevaring (H-H):	0 - 90 %
Antal HDMI-porte:	1
Ethernet LAN-porte (RJ-45):	8
Antal USB 2.0-porte:	3
Driftstemperatur (T-T):	10 - 50 °C
Maksimal opløsning:	3840 x 2160 pixel
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Strømforbrug (maks.):	15 W
Ethernet WAN:	Ja
Netværksstandarder:	IEEE 802.3af, IEEE 802.1x
Understøttede netværksprotokoller:	HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE
Knap til nulstilling:	Ja
LED-indikatorer:	Ja
HDD kapacitet:	- GB
Antal brugere:	8 bruger(e)
Understøttede mobile operativsystemer:	Android, iOS
Bæredygtighedscertifikater:	National Defense Authorization Act (NDAA), CE, Federal Communications Commission (FCC)
Optagelsestilstande:	Continuous, Schedule, Event, Manual
Maksimum billedhastighed:	30 fps
Strøm over Ethernet (PoE):	Ja
Overholdelse af bæredygtighed:	Ja
Bevægelsessensor (video):	Ja
Ansigtsgenkendelse:	Ja
Line-in:	Ja
HDD-grænseflade:	SATA
Total Power over Ethernet (PoE):	64 W
Stativ-montering:	Ja
Antal blæsere:	1 blæser(e)
Lydudgang:	3,5 mm
Power over Ethernet (PoE) porte, antal:	8
Maksimal lagerkapacitet:	12 TB
Antal understøttede HHD'er:	2
Multi-skærm:	Ja
Backup funktion:	Ja
Video indgangskanaler:	8 kanaler
HDMI udgang:	Ja
Indgang båndbredde:	56 Mbit/s
Udgang båndbredde:	56 Mbit/s
VGA (D-Sub) udgangsporte:	1
Sporing af videotab:	Ja
Alarm indgangskanaler:	8
Alarm udgangskanaler:	1
Garantiperiode:	5 År
