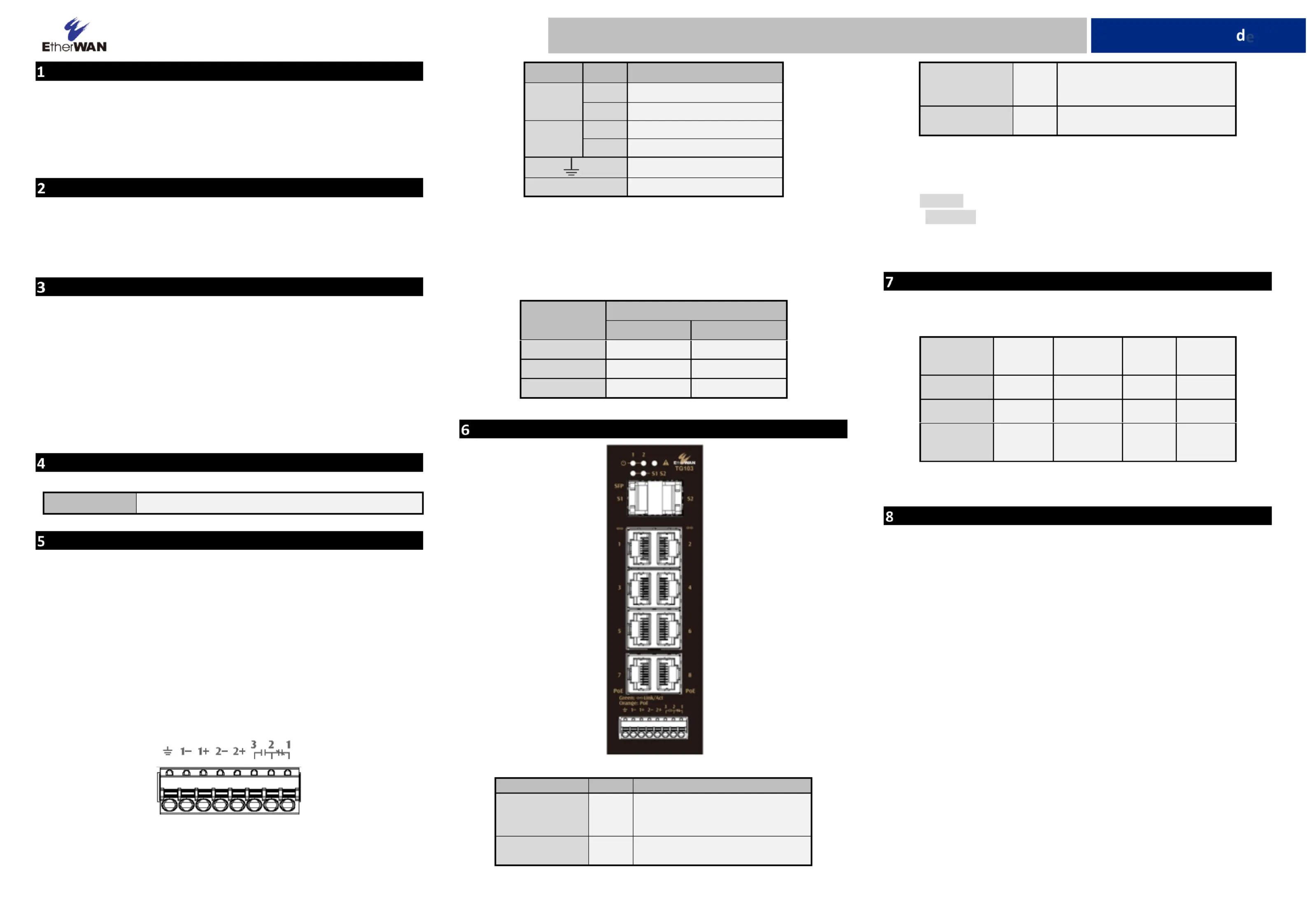

TG103H Page 1

Installation Gui e

TG103H | Unmanaged PoE Ethernet Switch

Unpacking

Open the carton and unpack the items. Your package should include:

▪ One TG103H Switch

If any items are missing or damaged, notify your EtherWAN representative. If

possible, save the carton and packing material in case you need to ship or store

the switch in the future.

Equipment Needed

▪ Appropriate cables for data ports. To prevent damage to the switch from

electrical surges, it is recommended to use STP (Shielded twisted pair) cabling

with a minimum rating of cat5e.

▪ Appropriate SFP modules for SFP ports

Select a Location

▪ Installation: Place the device on the DIN rail from above using the slot. Push

the front of the device toward the mounting surface until it audibly snaps into

place.

▪ Choose a dry area with ambient temperature between -40°C to 75°C (-an

40°F to 167°F).

▪ Keep away from heat sources, sunlight, warm air exhausts, hot-air vents, and

heaters.

▪ Be sure there is adequate airflow.

▪ Pollution degree 2.

Connect to the Data Ports

The switch the following ports: has

TG103H-0802

8 Gigabit PoE ports + 2 100/1G SFP ports

Connect Power

The switch has two power inputs. Only one power input is required to operate

the switch. Connect the supply voltage to start up the device via the terminal

block.

Power rating:

▪ PoE 30 Watts per port: 52 57 VDC, 5.47-4.99 A –

▪ PoE 9 Watts per port: 54 57 VDC, 17-0 –5. 4.99 A

▪ PoE power budget: 270W

▪ The power input specification complies with the requirements of SELV (Safety

Extra Low Voltage), and the power supply should comply with UL 61010-1

and UL 61010-2-201.

Terminal Block

The switch provides two power inputs on a -57VDC terminal block. 52

State

Description

Power 1

52-57VDC

Power Ground

Power 2

52-57VDC

Power Ground

Earth Terminal

Relay Output Rating

0.5A @ 48VDC

Relay Output Alarm

The switch provides a relay output contact. The relay is used to indicate user-a

defined power redundancy failure. The current is 0.5A@48VDC at Normal Open ly

or Normal Closed. ly

Relay Contact

Normally Open

Normally Closed

No power

Open

Closed

Normal

Closed

Open

Abnormal

Open

Closed

LED Indicators

TG103H-0802

LED

Color

Status

L/A (Link/Active)

Green

On: Link active

Off: No l ink

Flashing: Data transmission

PWR 1 & 2

Green

On: Power on

Off: Power off

Alarm

Red

On: Error - power redundancy

failure

Off: No power error condition

PoE

Amber

On: Powered Device connected

Off: Powered Device disconnected

Power-Up Sequence

When the switch is powering up:

▪ All Link/ACT LEDs blink momentarily.

▪ The Power 1, 2 LEDs light up and stay lit.

▪ LEDs for every port connected to a device will flash, as the switch conducts a

brief Power On Self-Test (POST).

Quality of Service (QoS)

The QoS feature is automatically activated when the switch is running. Priority

mapping is handled according to the following tables:

CoS priority

(802.1p)

7, 6

5, 4

3, 2

1, 0

DSCP priority

59, 55

47, 46, 43

Other

Queues

WFQ

Highest

Priority

Secondary

Priority

EtherNet/IP: UDP 2222 (Queue 2)

Profinet Ether type: 0x8892 (Queue 2)

DIP Switch Settings

There is a 10-pin DIP switch for enabling the PoE Watchdog function.

When the DIP switch for a port is set to ON, the watchdog function will be

enabled after the device has been powered on for 10 minutes to give powered

devices time to boot. Every 30 seconds, the device will detect whether the

packets from a powered device are being received or not. If no packet is received

after 30 seconds, connected ports with the DIP switch set to ON will be restarted

(other ports are not disturbed). If a packet is received in the 25th second, then

the 30 second interval will be restarted.

If DIP switch 9 (EXT) is set to ON, the watchdog function will be enabled after 5

minutes instead of 10 minutes after the switch powers on.

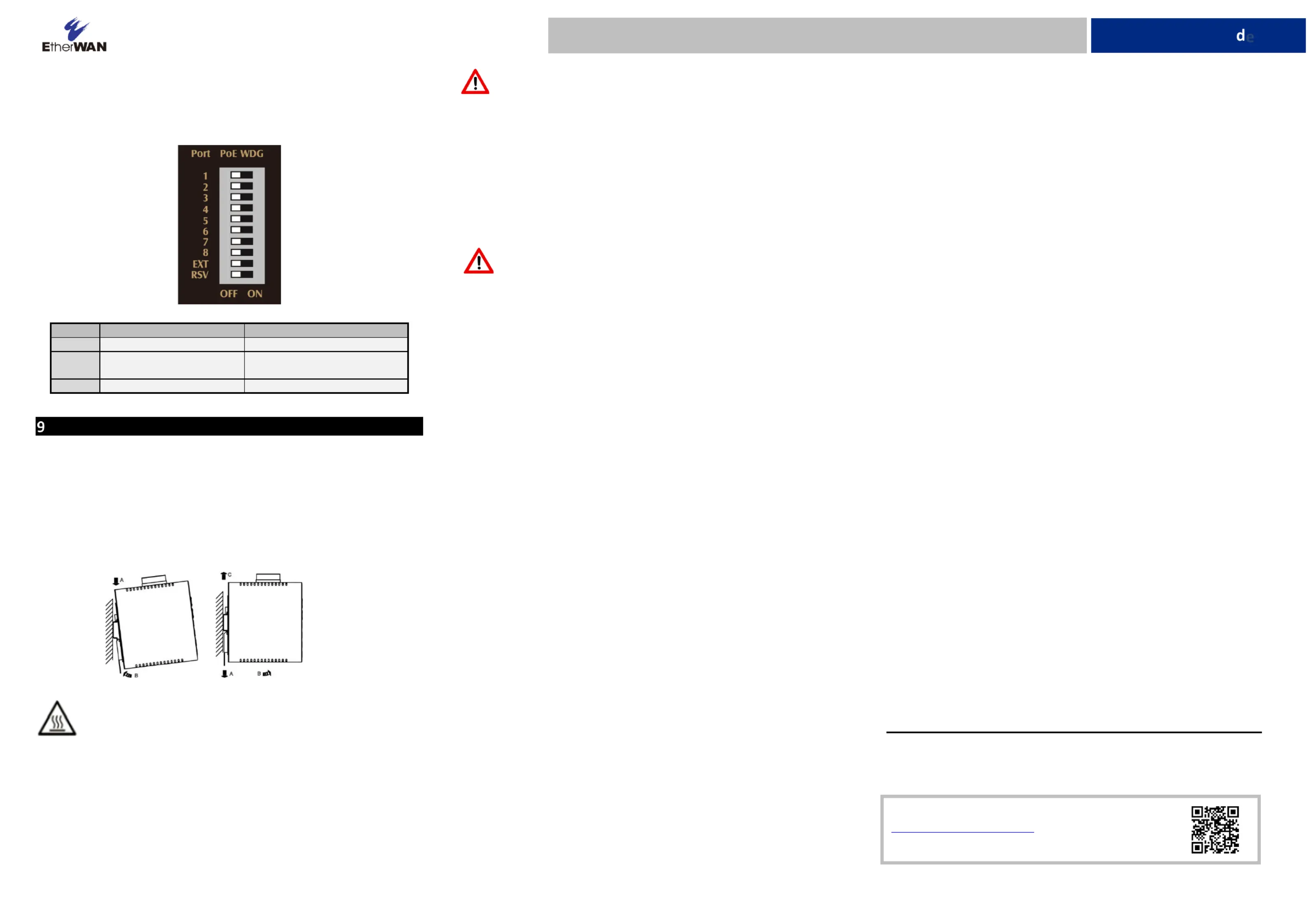

TG103H Page 2

Installation Gui e

TG103H | Unmanaged PoE Ethernet Switch

Each PoE port will calculate the 30 seconds intervals independently, without

interfering with other ports. For example, i port 1 is restarted and port 2 is not f

restarted, the starting times of the counters of the two ports will be different.

Note: if watchdog status is toggled for a PoE port with a DIP switch, the device

must be restarted for the change to take effect.

DIP No.

Off

1~8

Port 1~8 Watchdog Enable

Port 1~8 Watchdog Disable

Set watchdog to run 5

minutes after start

Set watchdog to run minutes 10

after start

Reserved

Other Information

DIN-Rail Assembly Startup, and Dismantling ,

▪ Assembly: Place the switch on the DIN rail from above using the slot. Push

the front of the switch toward the mounting surface until it audibly snaps

into place. If you install two switch units at the same time, the gap in

between the units must be 2 cm. ≥

▪ Startup: Connect the supply voltage to start up the Switch via the terminal

block.

▪ Dismantling: Pull out the lower edge and remove the Switch from the DIN

rail.

“The device can get hot to the touch after running at full load for

some time. Please use caution when handling the device.”

“L'appareil peut devenir chaud au toucher après avoir fonctionné à

pleine charge pendant un certain temps. Veuillez faire preuve de

prudence lors de la manipulation de l'appareil.”

Power wiring information:

Use cable type - AWG -22 and corresponding pin type cable terminals. 18

The rating of the power wire used must be at least 75°C.

Use Copper conductors only.

If the equipment is used in a manner not specified by the manufacturer, the

protection provided by the equipment may be impaired.

For repair or maintenance needs, contact EtherWAN directly.

Informations de câblage d'alimentation:

Utilisez le type de câble - AWG 18-22.

Le calibre du fil d'alimentation utilisé doit être d'au moins 75°C.

Utilisez uniquement des conducteurs en cuivre.

DESTINÉ À ÊTRE UTILISÉ AVEC DES CONDUCTEURS EN CUIVRE SEULEMENT.

Si la méthode d'utilisation de l'équipement diffère de celle décrite par le fabricant,

la protection assurée par l'équipement risque d'être altérée.

Contactez-nous pour l'entretien ou la reparation.

Label clean up:

Use a dry cloth to clean the labelling.

If the equipment is used in a manner not specified by the manufacturer, the

protection provided by the equipment may be impaired.

The product is open type, intended to be installed in an industrial control panel or

an enclosure.

SFP module specification requirement: Class 1 laser product. Complies with CDRH

21CFR 1040.10 and 1040.11. Rated 3.3 or 5 VDC.

The installation safety of any system incorporating the equipment is the

responsibility of the assembler of the system.

Nettoyage de l’étiquette:

Nettoyez avec un chiffon doux et sec.

Si l’équipement est utilisé d’une façon non conforme aux directives du

manufacturier, il peut être endommagé.

Le produit est du type ouvert et doit être installé dans un coffret ou panneau de

contrôles industriel.

Spécification pour le module SFP: Laser classe 1 conforme aux normes CDRH

21CFR 1040.11 Alimentation 3.3 ou 5 VDC.

La sécurité d’une l’installation d’un système incorporant l’équipement est la

responsabilité de l’assembleur du système.

Manufacturer information:

EtherWAN Systems, I .nc

2301 E. Winston Rd., Anaheim, CA 92806, USA

Scan the QR code for more information on the product :

http://www.etherwan.com/us
