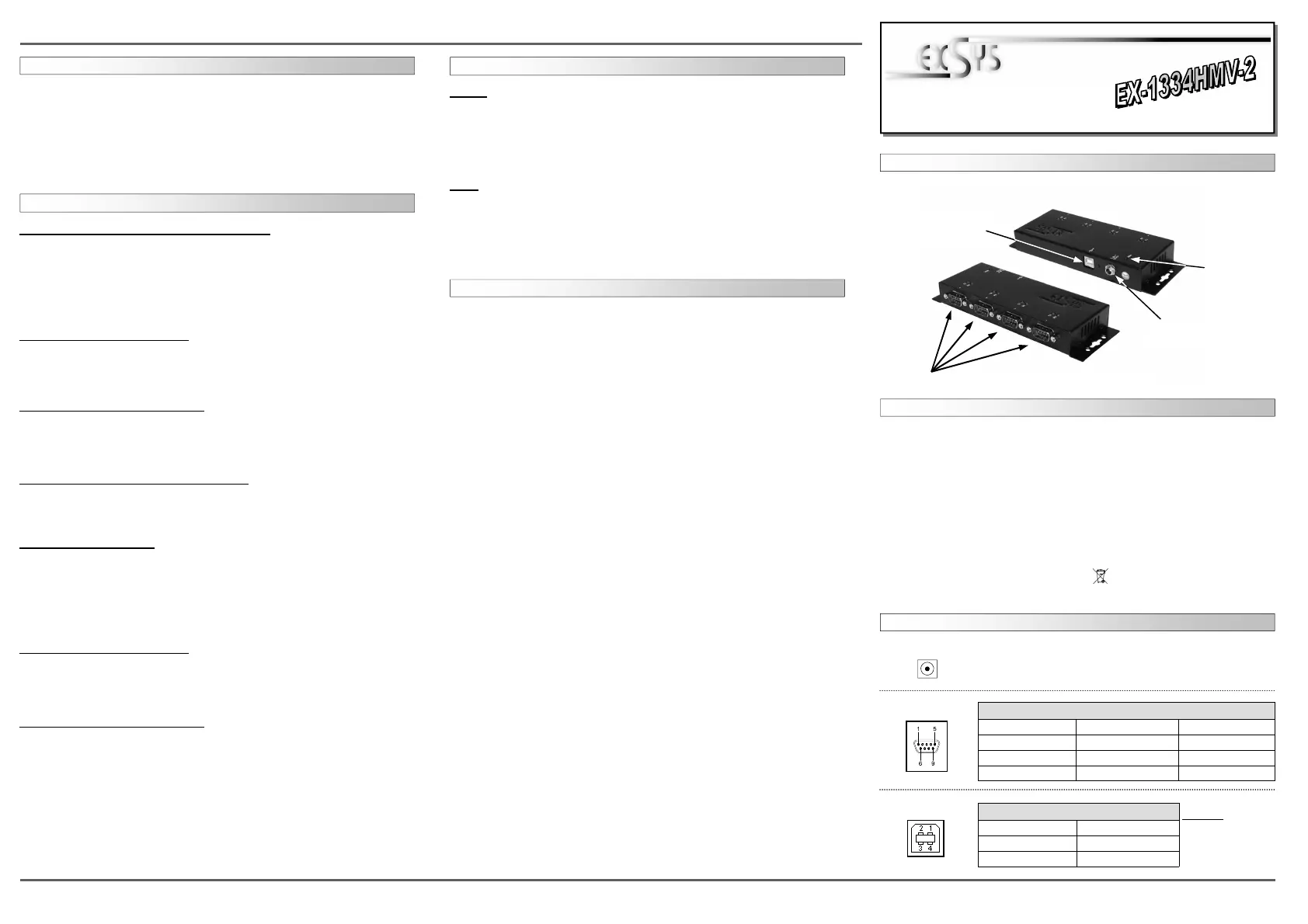

Side 1/2

6 5

1334HMV

English

1334HMV

English

Die EX-1334HMV-2 ist ein Modul zur Umsetzung von USB auf 4 RS-232 Schnittstellen

mit FIFO 16C550 Ports für den Anschluss von High Speed Seriellen RS-232 Peripherie

Geräten (z.B. Modem, Plotter usw.). Das USB Modul ist Hot Plug & Play fähig. Für die

Einstellungen der I/O Adressen und Interrupts sind keine Jumper und Einstellungen

notwendig. Sie werden vom System (BIOS) und beim installieren des Betriebssystems

automatisch vorgenommen. Die EX-1334HMV-2 ist mit einem verschraubbaren USB

Anschluss sowie mit einem verschraubbaren Netzteil Anschluss ausgestattet.

BESCHREIBUNG & TECHNISCHE DATEN

AUFBAU

Bedienungsanleitung

Vers. 1.3 / 20.06.13

Betriebs LED

S1-S4: 4 x 9 Pin Stecker Seriell RS-232

5V Buchse für externes

Netzteil (verschraubbar)

USB B-Buchse

PC-Anschluss

(verschraubbar)

Kompatibilität: USB 1.1 & 2.0

Betriebssysteme: WIN 9.x/ ME/ 2000/ XP/ Vista/ 7/ 8/ Server 200x/ Linux/ MAC

Anschlüsse: 4x 9 Pin D-Sub Stecker, 1x USB B-Buchse, 1x 5V Buchse

Lieferumfang: EX-1334HMV-2, Treiber CD, Anleitung, USB Kabel, Netzteil

Zertifikate:

CECE

CE / FCC / RoHS / WEEE DE97424562 / WHQL

ANSCHLÜSSE

ACHTUNG!!!

Nur zur Verwendung mit im Lieferumfang enthaltenem Netzteil!

5 Volt Buchse:

Pin Signal Pin Signal Pin Signal

1 CDC 4 DTR 7 RTS

2 RXD 5 GROUND 8 CTS

3 TXD 6 DSR 9 RI

Seriell 9 Pin D-SUB Stecker

DB 9M:

USB B-Buchse:

USB 2.0 B-Buchse

Pin Signal Pin Signal

1 VCC 3 DATA+

2 DATA- 4 GND

Achtung!

Stecker nie umge-

kehrt oder mit

Gewalt einstecken.

DRIVER INSTALLATION

Windows 2000/ XP/ Vista/ 7/ 8/ Server 200x

Windows will recognize a new „FT232R USB UART“ and open the hardware assistant.

Please choose manual installation and put the driver CD into your CD-ROM drive. Enter

Path "D:\USB_to_IO\FTDI\(32_64bit)Win7_8_XP_Vista_2008_2008R2_2003_2000”

into the box for the Path/Source and click at >next/continue<. Now Windows search for

the drivers in the specified directory. Follow the hardware assistant and finish the instal-

lation. If Windows recognizes other new devices repeat the above described steps.

Attention! Restart Windows in any case after installing the drivers.

CHECK THE INSTALLED DRIVER

Click at Start<>Run< then enter “compmgmt.msc“ and click at >OK<. In the windows

that open select >Device Manager<. Under ”Ports (COM and LPT)“ you should find

one more new „USB Serial Port (COM2) to (COM5)“. If you see this or similar entries

the module is installed correctly.

INSTALL THE PERIPHERAL DEVICE

The speed from the serial ports can be set to the maximum baud rate of 115.2Kbaud.

With double click select for example >Device manager< >USB Serial Port (COM5)<.

Now you can select the different settings of baud rate, stop/start-bits etc. This setting

you can use also for the other COM ports.

CHANGE PORT NUMBER (NOT WIN98 & ME)

If you like to change the port number for example COM3 to COM5, open the >Device

Manager< click at >COM3<, >Settings< and then >Advance<. There you can choose

between COM3 up to COM256.

Windows 98/ 98SE/ ME

Windows will recognize a new “FT232R USB UART“ and open the hardware assistant.

Please choose manual installation and put the driver CD into your CD-Rom drive (as

sample D:) . Now enter the Path “D:\USB_to_IO\FTDI\Win98_ME” into the box for the

Path/Source and click at >next/continue<. Now Windows search for the drivers in the

specified directory. Follow the hardware assistant and finish the installation. If Windows

recognizes other new devices repeat the above described steps. Attention! Restart

Windows in any case after installing the drivers.

CHECK THE INSTALLED DRIVER

Click at Start<>Run< then enter “compmgmt.msc“ and click at >OK<. In the windows

that open select >Device Manager<. Under ”Ports (COM and LPT)“ you should find

one more new „USB Serial Port (COM2) to (COM5)“. If you see this or similar entries

the module is installed correctly.

INSTALL THE PERIPHERAL DEVICE

The speed from the serial ports can be set to the maximum baud rate of 115.2Kbaud.

With double click select for example >Device manager< >USB Serial Port (COM5)<.

Now you can select the different settings of baud rate, stop/start-bits etc. This setting

you can use also for the other COM ports.

HARDWARE INSTALLATION

Because there are large differences between PC’s, we can give you only a general

installation guide. Please refer your computer’s reference manual whenever in doubt.

1. Connect the USB cable to the USB B-Port.

2. Connect the included power supply into the 5Volt connector.

3. Now connect the other end from the USB cable (A-Plug) to the A-Port at your PC.

DRIVER INSTALLATION

LINUX

There are drivers available for Linux. The drivers are located in the folder

“D:\USB_to_IO\FTDI\Linux x86_64“ on the driver CD. They are supported by the most

versions of Linux. Because each individual distribution and kernel version of Linux is

different, sadly we cant provide a installation instruction. Please refer to the installation

manual for standard I/O ports from your Linux version.

MAC

There are drivers available for MAC. The drivers are located in the folder

“D:\USB_to_IO\FTDI\MAC OSX or Mac_OS_9_8“ on the driver CD. They are sup-

ported by the most versions of MAC OS. Because each individual version of MAC OS is

different, sadly we cant provide a installation instruction. Please refer to the installation

manual for standard I/O ports from your MAC OS version.

CLEANING

For cleaning please use only a dry fluff less cloth and remove the dirt with gently pres-

sure. In the area of the connectors please make sure that no fibres from the cloth re-

main in the connectors. Attention! Never use a moist or wet cloth for cleaning!

Produkt Specifikationer

Mærke:	EXSYS
Kategori:	Ikke kategoriseret
Model:	EX-1334HMV-2
Produktfarve:	Sort
Antal USB 2.0-porte:	2
Forbindelsesteknologi:	Ledningsført
Mac kompabilitet:	Ingen
Værtsgrænseflade:	USB
Antal serielle porte:	4
