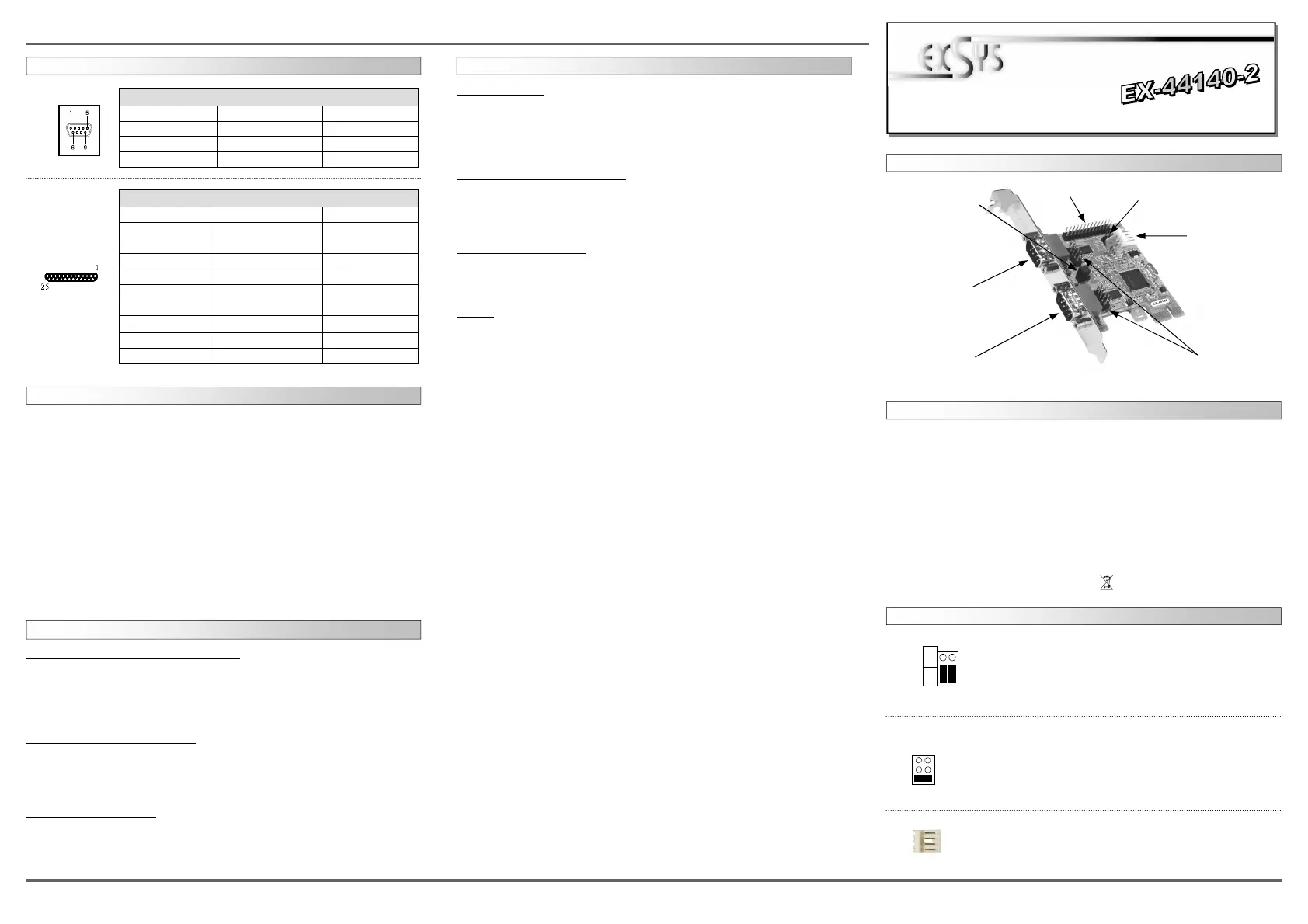

Side 1/2

6 5

44140

English

44140

English

Die EX-44140-2 ist eine PCI-Express serielle RS-232 Karte mit 2 seriellen FIFO 16C550

Port und 1 parallel Port für den Anschluss von High-Speed seriellen RS-232 Peripherie

Geräten (z.B. Terminal, Modem, Plotter usw.). Der serielle PCI-Express Bus unterstützt

dabei optimal die Leistung des schnellen 16C550 Chipset mit 256byte FIFO Cache. Die

Karte gewährleistet so eine sichere Datenübertragung und exzellente Performance von

bis zu 115,2KBaud/s! Sie unterstützt alle PCI-Express Slots von x1 bis x16. Es ist nicht

möglich die I/O Adressen und Interrupts manuell einzustellen, da die Einstellungen der

Karte vom System (BIOS) und vom Betriebssystem automatisch vorgenommen werden.

BESCHREIBUNG & TECHNISCHE DATEN

AUFBAU

J6: Parallel Anschluss

Bedienungsanleitung

Vers. 1.3 / 18.07.13

S1: 9 Pin Stecker

Seriell Anschluss

S2: 9 Pin Stecker

Seriell Anschluss

JP1: Power auf 9 Pin

Stecker Ein/Aus

JP2: Jumper für die Stromquelle

(Netzteil oder PCI-Express Bus)

J7: Anschluss für Strom

vom PC Netzteil

J1 & J2: Interner serieller Anschluss

Kompatibilität: PCI-Express p1-x1 bis p1-x16

Betriebssysteme: Windows DOS/ 2000/ XP/ Vista/ 7/ 8/ Server 200x/ Mac/ Linux

Anschlüsse: 2x 9 Pin D-Sub Seriell Stecker, 1x 25 Pin D-Sub Parallel Buchse

Lieferumfang: EX-44140-2, Treiber CD, Anleitung, 25 Pin Parallel Kabel

Zertifikate:

CECE

CE / FCC / RoHS / WEEE DE97424562 / WHQL

JUMPER EINSTELLUNG & ANSCHLÜSSE

JP1:

DIS = Am Pin 9 liegt das Standard Signal RI (Ring Indicator)

(Werkseinstellung)

PWR = Am Pin 9 kann jetzt eine Spannung von DC5V oder DC12V

eingestellt werden

Die Einstellung der Spannung nehmen Sie mit dem JP2 vor. Dies sollte

aber bei Standard Anwendungen nicht verstellt werden.

JP2:

Wenn Sie den Jumper JP1 für auf PWR gesetzt haben, können Sie mit

dem Jumper JP2 den Spannungswert einstellen. Es gibt 3 verschiedene

Spannungsquellen.

(Nur in Verbindung mit JP1 auf PWR!!!)

DIS PWR

AUX 5V = 5Volt vom PC-Netzteil

AUX 12V = 12Volt vom PC-Netzteil

PCI 12V = 12Volt vom Mainboard (STANDARD)

AUX5V

AUX12V

PCI12V

J7:

1 +5V

2 GND

3 GND

4 +12V

Für AUX Einstellung (JP2) muss J7 mit PC Netzteil verbunden

werden! Sonst wird die Karte nicht mit Strom versorgt.

DB 25F:

JUMPER SETTING & CONNECTORS

DB 9M:

Pin Signal Pin Signal Pin Signal

1 CDC 4 DTR 7 RTS

2 RXD 5 GROUND 8 CTS

3 TXD 6 DSR 9 RI

Serial 9 Pin D-SUB connector

Pin Signal Pin Signal Pin Signal

1 STROBE 10 ACKNOWLEDGE 19 GROUND

2 DATA 0 11 BUSY 20 GROUND

3 DATA 1 12 PAPER EMPTY 21 GROUND

4 DATA 2 13 SELECT 22 GROUND

5 DATA 3 14 AUTO FEED 23 GROUND

6 DATA 4 15 ERROR 24 GROUND

7 DATA 5 16 INIT 25 GROUND

8 DATA 6 17 SELECT INPUT

9 DATA 7 18 GROUND

Parallel 25 Pin D-SUB connector

If you are ready with the jumper settings, please proceed with the following installation

instructions. Because there are large differences between PC’s, we can give you only a

general installation guide. Please refer to your computer’s reference manual whenever in

doubt.

1. Turn off the power to your computer and any other connected peripherals.

2. Remove the mounting screws located at the rear and/ or sides panels of your Com-

puter and gently slide the cover off.

3. Locate an available expansion slot and remove its covers from the rear panel of your

computer. Make sure it is the right expansion slot for the card (see card description)

4. Align the card with the expansion slot, and then gently but firmly, insert the card. Make

sure the card is seated and oriented correctly. Never insert the card by force!

5. Then connect the card with a screw to the rear panel of the computer case.

6. Gently replace your computer’s cover and the mounting screws.

HARDWARE INSTALLATION

DRIVER INSTALLATION

Windows 2000/ XP/ 7/ 8/ Server 200x

Please insert the driver CD into your CD-Rom drive (for example D:\) and open the

folder D:\IO\MOSCHIP\MCS99xx\Win7_8_XP_2K_2003_2008 on the CD and then

select the correct folder for your Bit system. Now start the file “StnSetup.exe“ by dou-

ble click on it and follow the setup program to finish installation process.

Attention! Restart your PC in any case after installing the drivers.

CHECK THE INSTALLED DRIVER

Click at Start<>Run< then enter “compmgmt.msc“ and click at >OK<. In the windows

that opens select >Device Manager<. Under „Ports (COM and LPT)“ you should find a

new „PCI Port“ as sample (COM3) & (LPT3). If you see this or similar entries the card

is installed correctly.

CHANGE PORT NUMBER

If you like to change the port number for example COM3 to COM5, open the >Device

Manager< click at >COM3<, >Settings< and then >Advance<. There you can change

between COM3 till COM256. The same applies also to change the LPT port.

DRIVER INSTALLATION

Windows Vista

Please insert the driver CD into your CD-Rom drive (for example D:\) and open the

folder D:\IO\MOSCHIP\MCS99xx\VISTA on the CD and then select the correct folder

for your Bit system. Now start the file “StnSetup.exe“ by double click on it and follow

the setup program to finish installation process.

Attention! Restart your PC in any case after installing the drivers.

CHECK THE INSTALLED DRIVER

Click at Start<>Run< then enter “compmgmt.msc“ and click at >OK<. In the windows

that opens select >Device Manager<. Under „Ports (COM and LPT)“ you should find a

new „PCI Port“ as sample (COM3) & (LPT3). If you see this or similar entries the card

is installed correctly.

CHANGE PORT NUMBER

If you like to change the port number for example COM3 to COM5, open the >Device

Manager< click at >COM3<, >Settings< and then >Advance<. There you can change

between COM3 till COM256. The same applies also to change the LPT port.

LINUX

There are no drivers available for Linux, but the card is supported by the most versions

of Linux. Because each individual distribution and kernel version of Linux is different,

sadly we cant provide a installation instruction. Please refer to the installation manual for

standard I/O ports from your Linux version! In some newer versions the card will even

be installed automatically after starting Linux.
