User Manual
Oscilloscope Probe
MODEL TL620

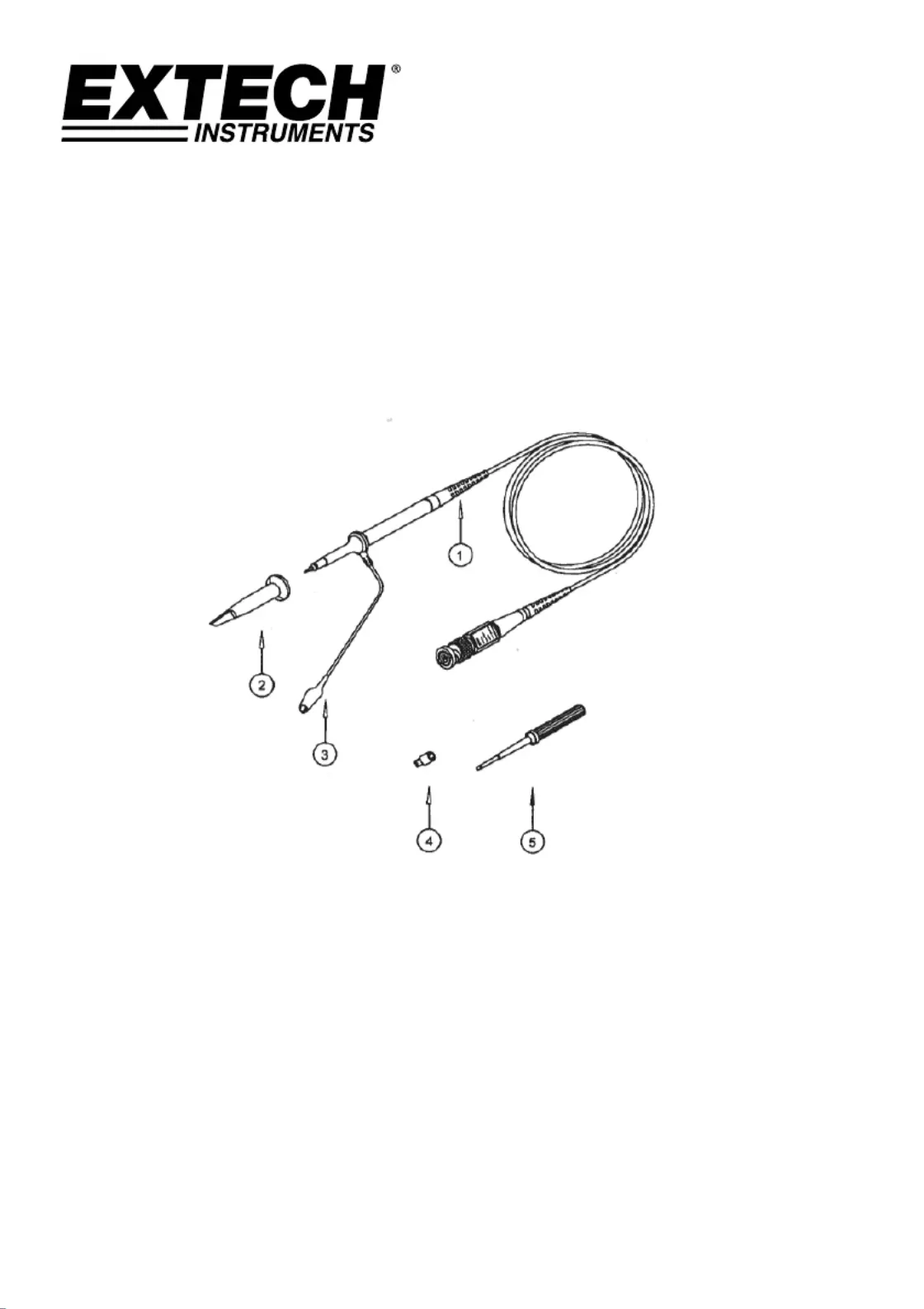

1. Probe Rod
2. Probe Tip
4. Tip Locating Sleeve
5. Adjustment Tool
2 TL620-en-GB_V1.2 5/16
Specifications
Attenuation X1, X10
Input Resistance X1: 1M±2%, X10: 10M±2%
Input Capacitance X1: 85pF to 115pF, X10: 18.5pF to 22.5pF
Compensation Range 15pF to 40pF
Bandwidth X1: DC to 6MHz, X10: DC to 60Mhz/100MHz/200Mhz
Maximum Input Voltage X1: <200VDC + Peak AC
X10: <600VDC + Peak AC
Cable Length 120cm (47”)
Weight 55g (0.15lb)
Operating Temperature -10°C to 50°C (14F to 122°F)
Storage Temperature -20°C to 75°C (-4F to 167°F)
Humidity <85% RH

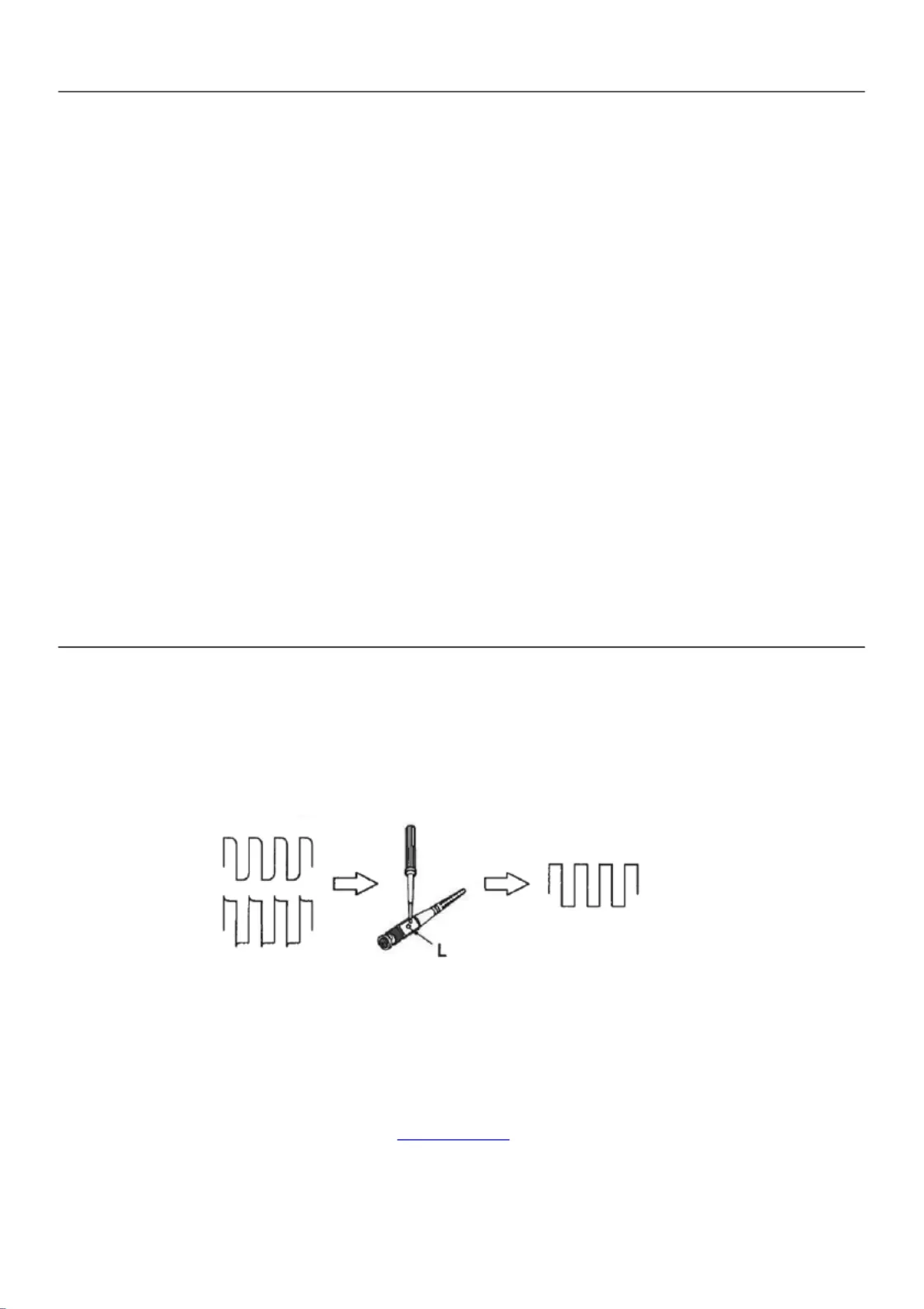

Low Frequency Probe Compensation
Before taking any measurements using the probe, first check the compensation and adjust it to match
the channel inputs. Most oscilloscopes have a square wave reference signal available at a terminal on
the front panel used to compensate the probe. Connect the probe to the signal source to display a
1kHz test signal on the oscilloscope. Adjust the trimmer “L” until the signal displays a flat-top square
wave.
Copyright ©2012 2016 FLIRSystems,Inc.
Allrightsreservedincludingtherightof orreproductioninwhole in inpart anyform
www.extech.com
ISO9001Certified
