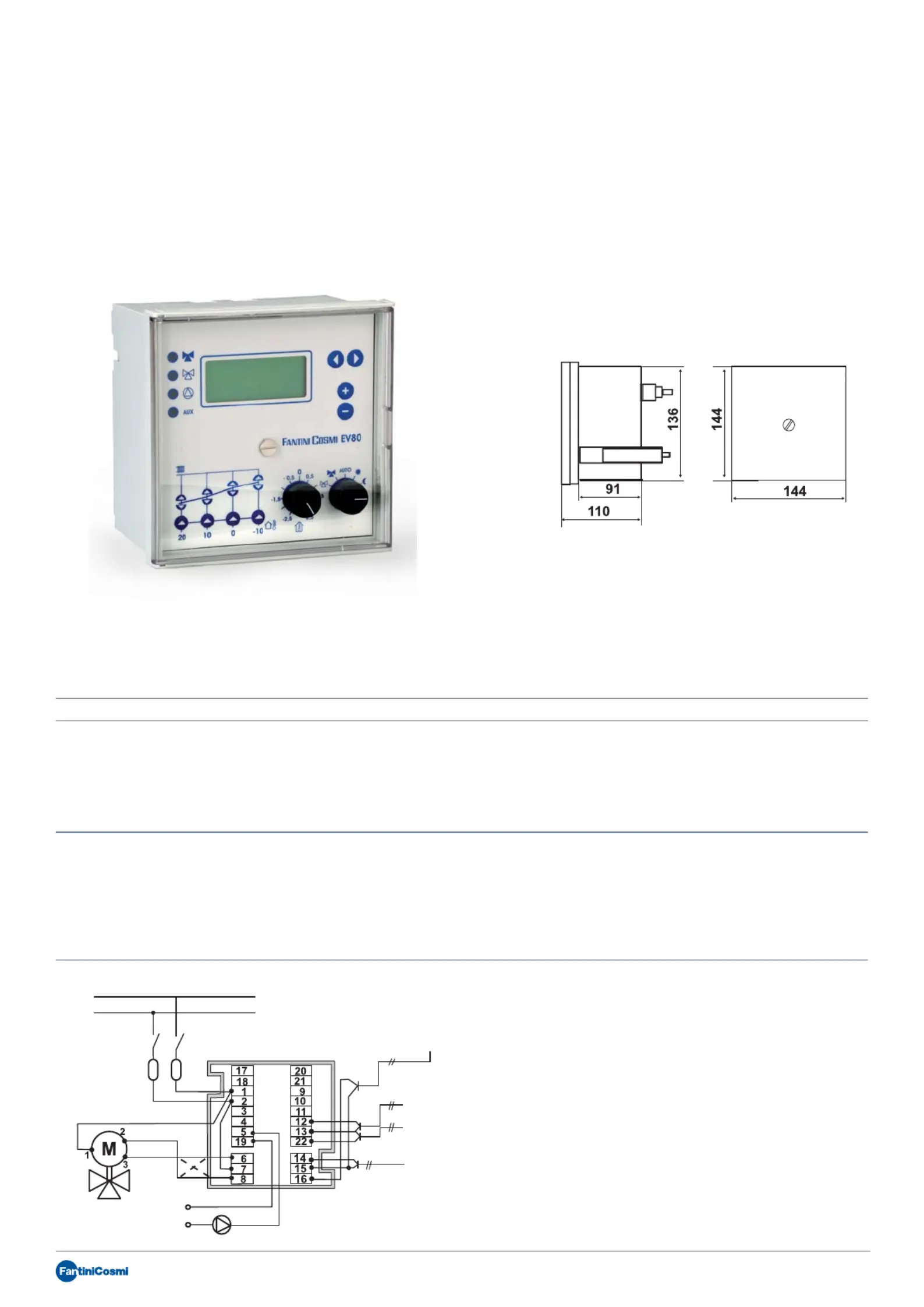

ELECTRICAL DIAGRAM FOR THE CONTROL OF THE MOTORIZED MIXING VALVES WITH SERVOCONTROLS SUPPLIED AT 230V 50HZ

The unit regulates water delivery temperature of the heating systems. It is suitable for all heating systems types of apartment buil-

dings, factories, schools, cottages, etc.

EV80

Digital controller for heating systems with remote control

ELECTRICAL FEATURES

Consumption: 7 VA.

Contacts rating 5A- 230Vac (resistive load).

2 optoisolated alarm inputs to prevent interference.

1 communication channel RS232 for connection to a modem or directly to a computer.

Dimensions (mm)

Power supply Contacts

rating

Operation

admissible

temperature

Protection

degree

EV80 230V 50Hz 5(3)A - 250Vac 0 ÷ 50 °C IP40

Servocontrol

External probe code: EC14

Circulation pump

power supply

Delivery probe code: EC15-EC16

common

open

closed

Limit probe code: EC15-EC16

Ambient probe set-point variation code: EC10

Power supply 230V-50Hz

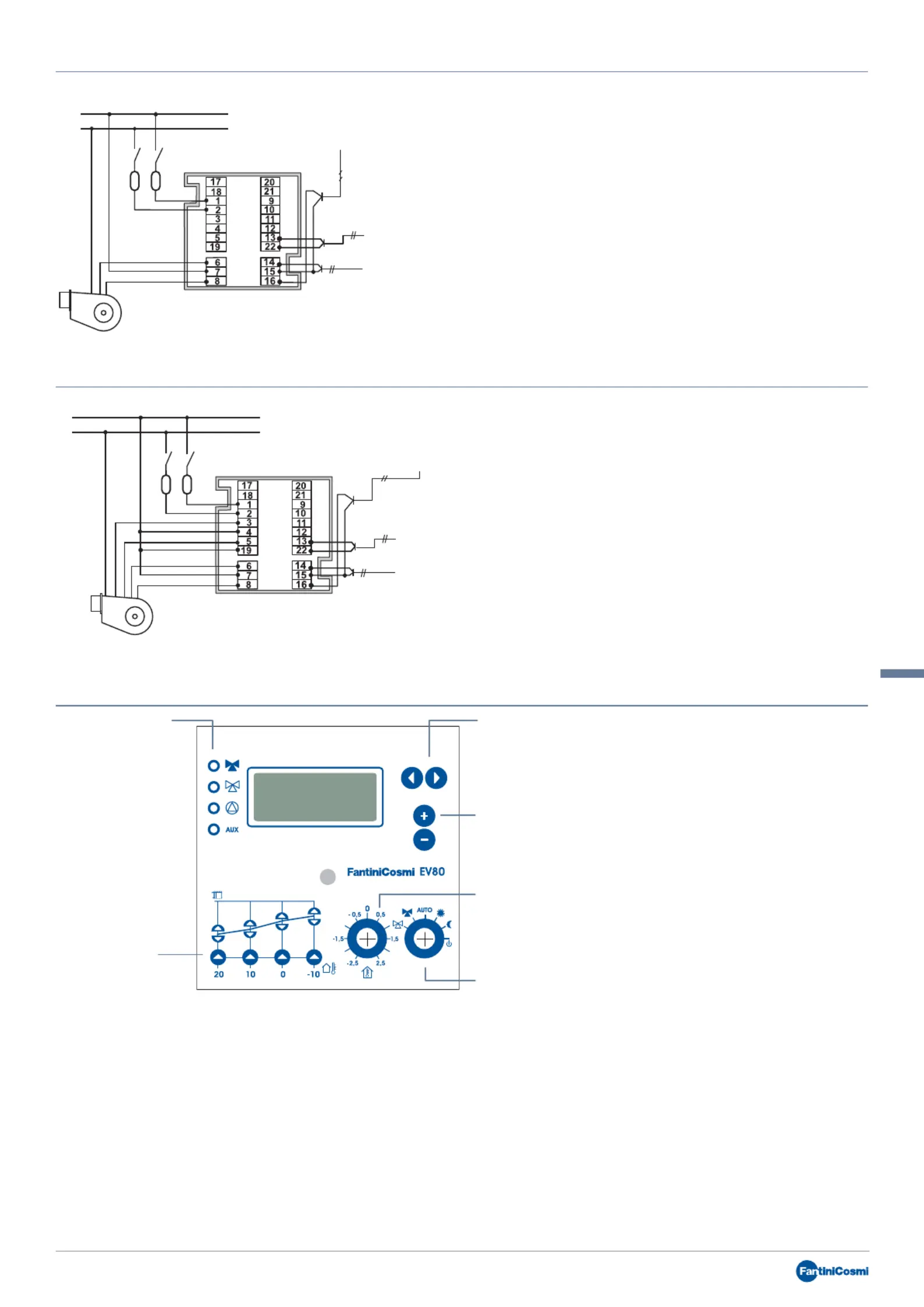

ELECTRICAL DIAGRAM FOR THE ON - OFF CONTROL OF THE 2-STAGE BURNER

ELECTRICAL DIAGRAM FOR THE ON - OFF CONTROL OF THE 4-STAGE BURNER

OPERATION

The controller calculates the delivery temperature value as a function of the following parameters:

external temperature (detected by the probe);

regulation broken curve (set);

ambient temperature calculated by the controller (optional);

ambient temperature detected by the ambient probe (optional).

By means of controller it is possible to choose the desired output type:

mixing valve control (relay “opens” and “closes”);

2-stage output (relay “opens”=stage 1 and “closes”=stage 2);

4-stage output (relay “opens”=stage 1, “closes”=stage 2, “pump”=stage 3 and “aux”=stage 4).

N.B. with 4-stage operation the two relays (pump control and auxiliary) cannot be used for another purposes.

It compares the theoretical (calculated) delivery temperature value with the real value, measured by the relative probe and acts on

the regulation valve to obtain the desired temperature.

Programming can be made via GSM phone.

External probe code: EC14

Delivery probe code: EC15-EC16

Limit probe code: EC15-EC16

STAGE 2

STAGE 1

Indicator led

for following commands:

valve opens

valve closes

circulation pump

auxiliary relay

broken curve

regulation

Selector switch to vary the desired ambient temperature value.

6-position switch to choose operating modes.

Using the 2 keys (+ and -) can be scrolled various menus and can

be modified the parameters.

The 2 keys (< and >) are used to enter in the menu and to pass from

one page to another.

Power supply 230V-50Hz

External probe code: EC14

Delivery probe code: EC15-EC16

Limit probe code: EC15-EC16

STAGE 4

STAGE 3

STAGE 2

STAGE 1

Power supply 230V-50Hz
