EV91A - SLAVE
TEMPERATURE REGULATION MODULE
WITH OUTSIDE PROBE
temperature and the outside temperature. The re-
quired ambient temperature is set by the user through
a conguration menu shown on the MASTER EV90
display, and it may take on various values depending
on the selected program.
culates the WATER DELIVERY TEMPERATURE
required to obtain the ambient temperature associa-
terpolation by using the values set for water delivery
temperature for four outside temperature values
( 20°;10°; 0°;-10°).

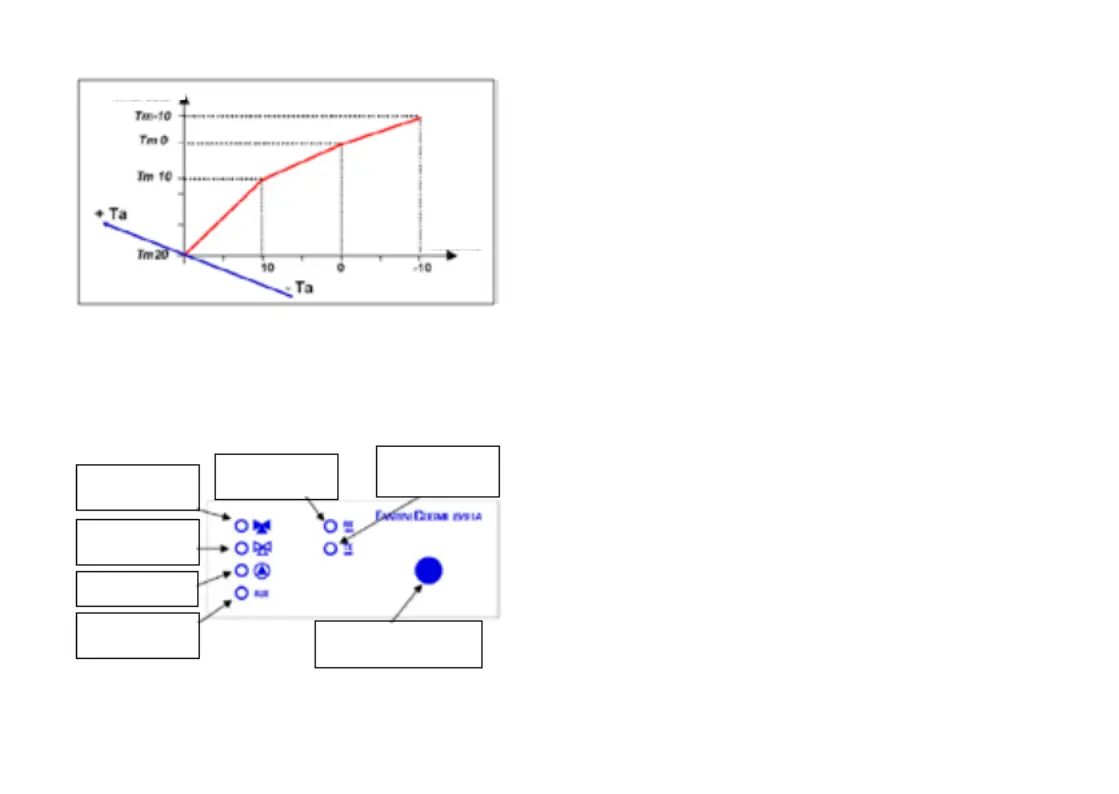

This curve represents the water delivery temperature
values based on the external temperature required to
obtain an ambient temperature of 20°C.
For other ambient temperatures, the broken regula-
tion curve moves along the straight line “+Ta -Ta”.
The EV91A module works properly only when it is
connected through a two-wire serial bus (FANBUS)
bitrates bus data and checks the conditions of all de-
vices connected to it.
The EV91A module receives from the MASTER con-
trol unit all information required to perform regulation
like: time, current date, etc.
USE
The EV91A module is suitable to be used on all types
of centralised heating plants like those installed in
housing estates, schools, hospitals, factories, etc.
Each setting may be controlled by a temperature
regulation module of the EV91A type for a maximum
of eight rooms.
The EV91A module enables to fully manage a mixing
valve, a circulation pump and an auxiliary output.
OPERATION
The EV91A is designed to obtain a certain AMBIENT
TEMPERATURE by measuring the water delivery
FANTINI COSMI S.p.A.
Via dell’Osio, 6 20090 Caleppio di Settala, Milano - ITALY
Tel. +39 02 956821 Fax +39 02 95307006 info@fantinicosmi.it| |
EXPORT DEPARTMENT
Ph +39 02 95682229 export@fantinicosmi.it|
www.fantinicosmi.com
2
DESIGN CHARACTERISTICS
6-module DIN container; removable terminal boards
facilitate replacement.
OUTPUT RELAYS
The four output relays have the following functions:
Circulation pump command
Valve opening command
Valve closing command
Auxiliary command
CIRCULATION PUMP (If tted).
It is activated to circulate water inside the heating
plant and it is turned off when the water delivery tem-
perature calculated by the control unit falls below the
minimum value set by the user.
MIXING VALVE
vant relays to allow the water delivery temperature to
reach the temperature value calculated by the control
unit.
AUXILIARY OUTPUT
The auxiliary relay just follows the operating mode.
More particularly, the relay is closed when the ope-
rating mode is “DAYTIME”, “FORCED” or “TEMPO-
RARY”. In all other cases it is opened.
OPERATING PROGRAMMES
The unit works with different programmes selectable
by the user.
- Valve Opens
ValveOpens
command
indication
ValveCloses
command
indication
Indication of
data transmission
through BUS
Indication of
data reception
through BUS
Auxiliary command
indication
BUTTON to reset
factory settings
Pump command
indication
Water Delivery T.
External T.
